Hyundai i10 (2016 year). Manual - part 1

Your vehicle at a glance

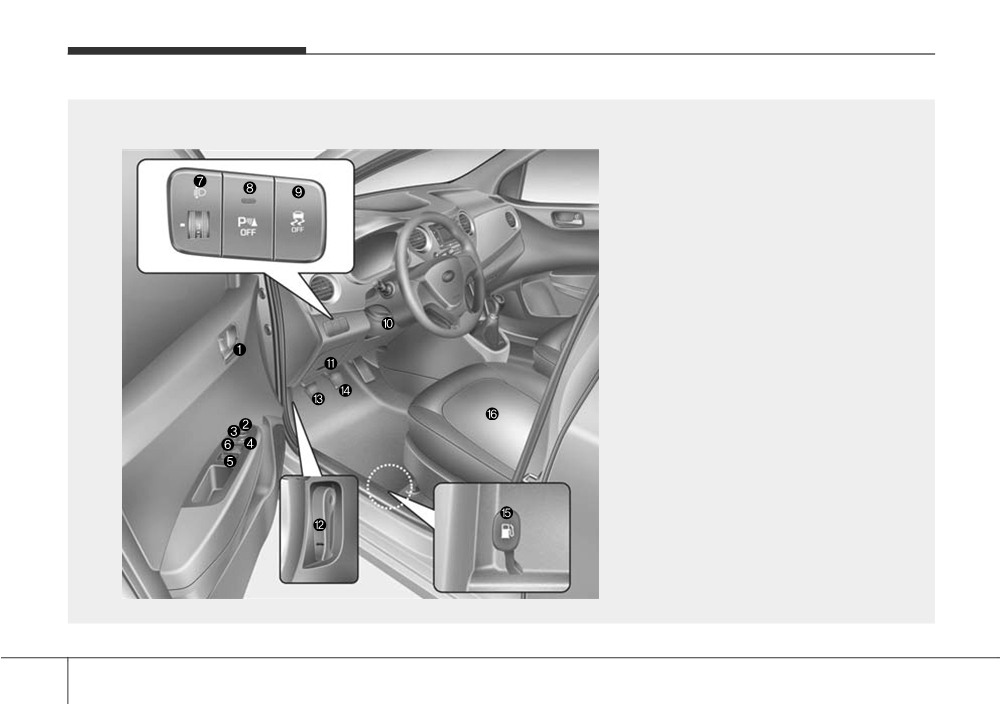

INTERIOR OVERVIEW

■ Left-hand drive

1. Door lock/unlock button

4-17

2. Outside rearview mirror folding

button*

4-39

3. Outside rearview mirror control

switch*

4-38

4. Power window lock button*

4-28

5. Power window switches*

4-26

6. Central door lock switch*

4-18

7. Headlight leveling device*

4-64

8. Rear parking assist system OFF

button*

5-33

9. ESC OFF button*

5-26

10. Steering wheel tilt lever*

4-35

11. Fuse box

7-49

12. Hood release lever

4-30

13. Clutch pedal*

5-11

14. Brake pedal

5-20

15. Fuel filler lid opener

4-32

16. Seats

3-2

17. Key ignition switch/

Engine start/stop button

5-4/5-6

* : if equipped

OBA013003L

2 2

Your vehicle at a glance

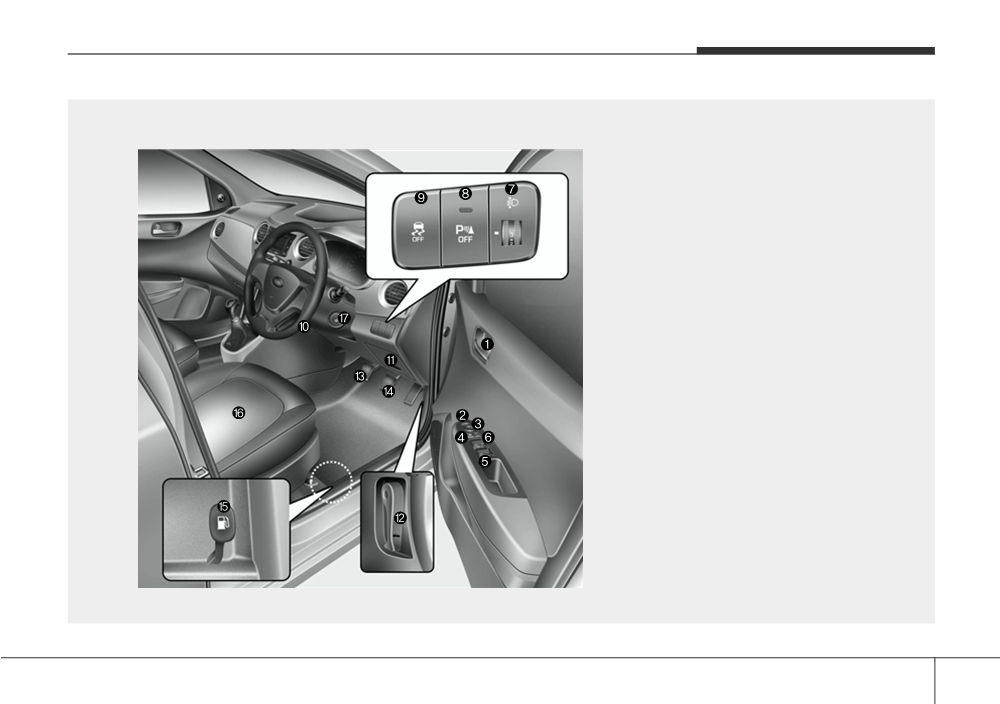

■ Right-hand drive

1. Door lock/unlock button

4-17

2. Outside rearview mirror folding

button*

4-39

3. Outside rearview mirror control

switch*

4-38

4. Power window lock button*

4-28

5. Power window switches*

4-26

6. Central door lock switch*

4-18

7. Headlight leveling device*

4-64

8. Rear parking assist system OFF

button*

5-33

9. ESC OFF button*

5-26

10. Steering wheel tilt lever*

4-35

11. Fuse box

7-49

12. Hood release lever

4-30

13. Clutch pedal*

5-11

14. Brake pedal

5-20

15. Fuel filler lid opener

4-32

16. Seats

3-2

17. Key ignition switch/

Engine start/stop button

5-4/5-6

* : if equipped

OBA013003R

2 3

Your vehicle at a glance

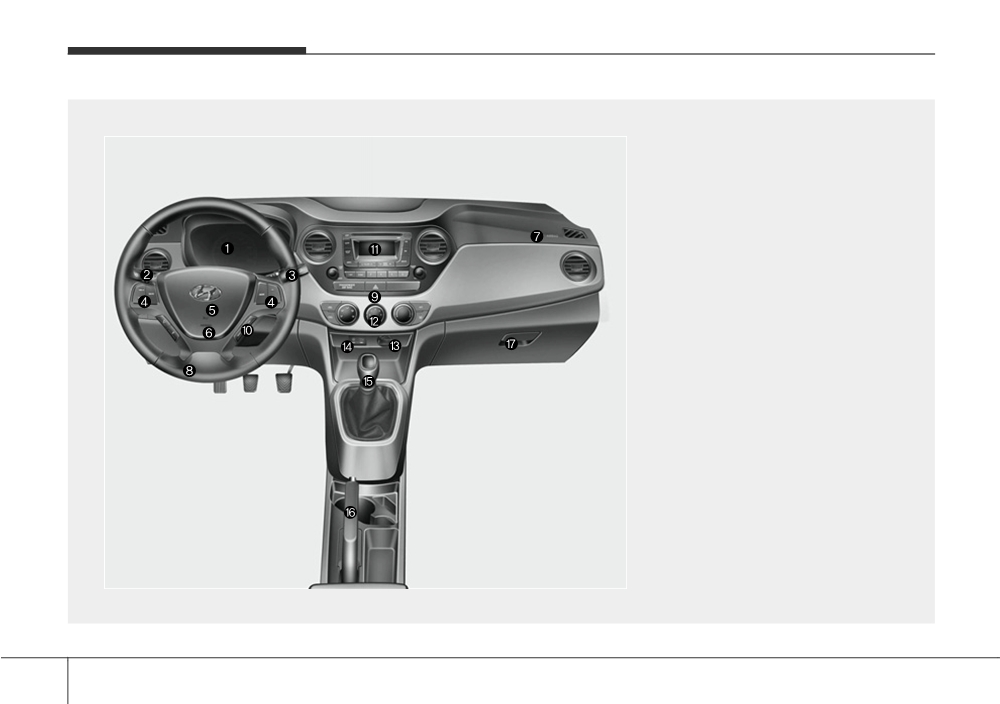

INSTRUMENT PANEL OVERVIEW

■ Left-hand drive

1. Instrument cluster

4-41

2. Light control / Turn signals

4-59

3. Wiper/Washer

4-65

4. Audio remote control*

4-89

5. Horn

4-36

6. Driver’s front air bag*

3-30

7. Passenger’s front air bag*

3-30

8. Steering wheel

4-35

9. Hazard warning flasher

button

4-58, 6-2

10. Trip computer switch

4-45

11. Audio system*

4-100, 4-105

12. Climate control system*

4-71

13. Cigarette lighter*/

Power outlet*

4-83, 4-85

14. AUX, USB and iPod port*

4-90

15. Shift lever

5-11/5-14

16. Parking brake lever

5-21

17. Glove box

4-81

* : if equipped

OBA013004L

2 4

Your vehicle at a glance

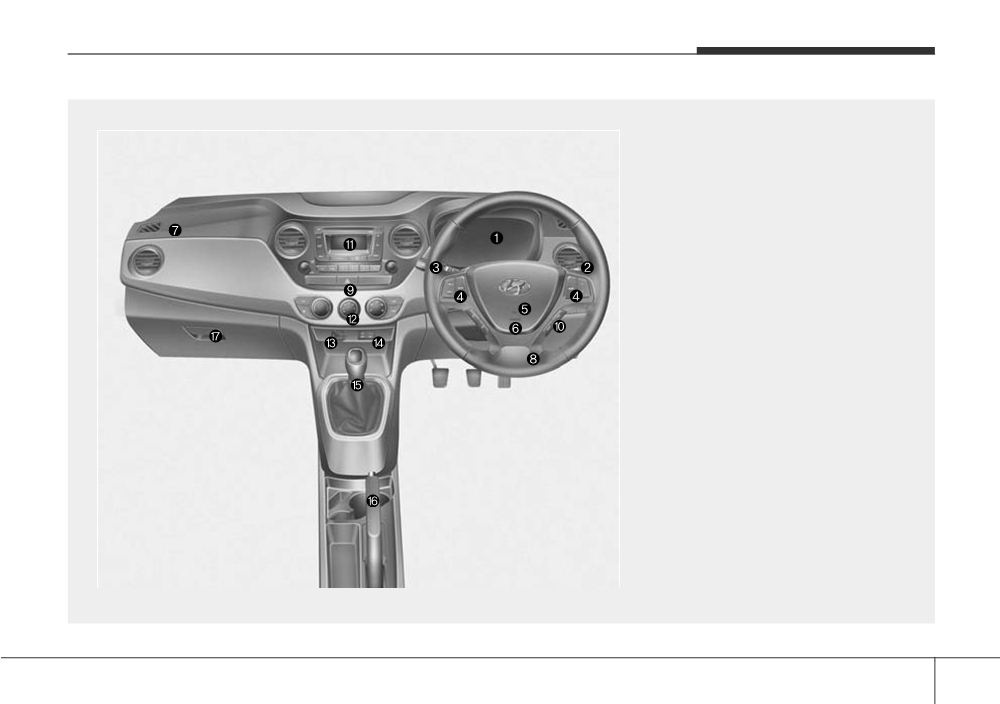

■ Right-hand drive

1. Instrument cluster

4-41

2. Light control / Turn signals

4-59

3. Wiper/Washer

4-65

4. Audio remote control*

4-89

5. Horn

4-36

6. Driver’s front air bag*

3-30

7. Passenger’s front air bag*

3-30

8. Steering wheel

4-35

9. Hazard warning flasher

button

4-58, 6-2

10. Trip computer switch

4-45

11. Audio system*

4-100, 4-105

12. Climate control system*

4-71

13. Cigarette lighter*/

Power outlet*

4-83, 4-85

14. AUX, USB and iPod port*

4-90

15. Shift lever

5-11/5-14

16. Parking brake lever

5-21

17. Glove box

4-81

* : if equipped

OBA013004

2 5

Your vehicle at a glance

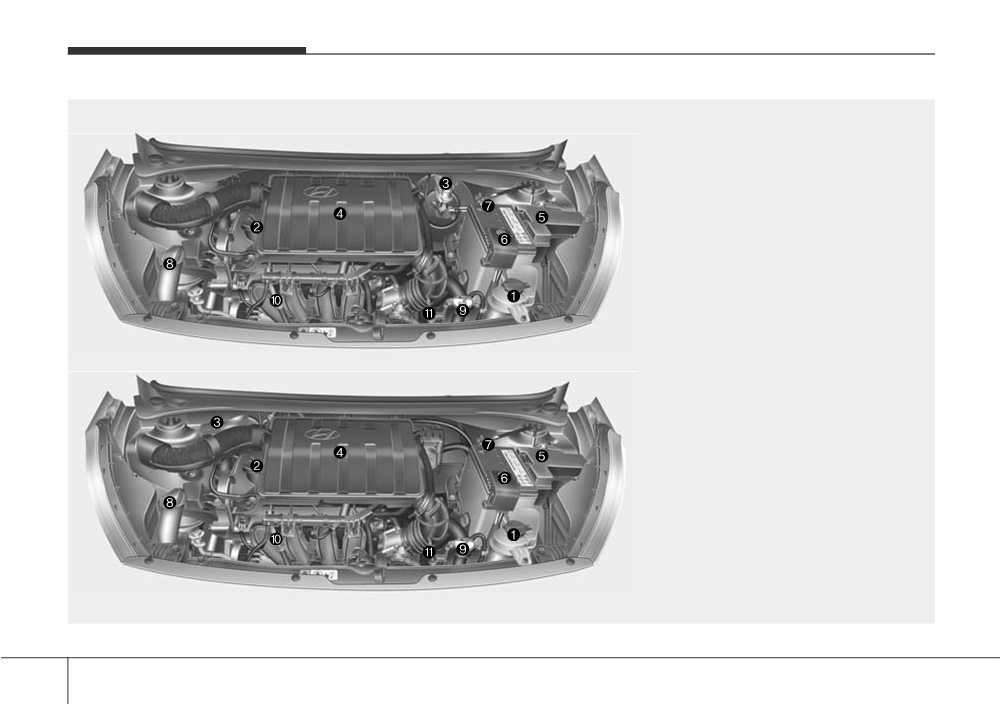

ENGINE COMPARTMENT

■ Left-hand drive

1. Engine coolant reservoir

7-20

2. Engine oil filler cap

7-18

3. Brake/clutch fluid reservoir

7-22

4. Air cleaner

7-26

5. Fuse box

7-49

6. Positive battery terminal

7-34

7. Negative battery terminal

7-34

■ Right-hand drive

8. Windshield washer fluid reservoir

7-25

9. Radiator cap

7-21

10. Engine oil dipstick

7-18

11. Automatic transaxle dipstick*

7-23

* : if equipped

❈ The actual engine compartment in the vehicle may differ from the illustration.

OBA013006/OBA013006R

2 6

Safety features of your vehicle

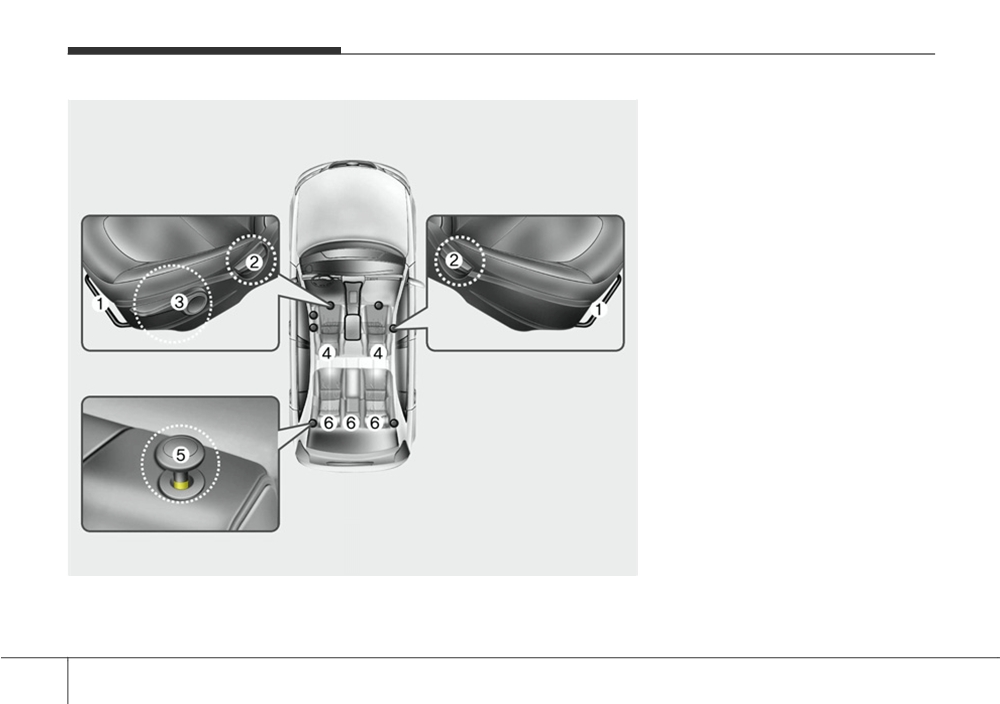

SEAT

■ Left-hand drive

Front seats

(1) Forward and rearward

(2) Seatback angle

(3) Seat cushion height (driver’s seat)*

(4) Headrest

Rear seats

(5) Seat folding*

(6) Headrest (outboard and/or center*)

* : if equipped

OBA033001

3 2

Safety features of your vehicle

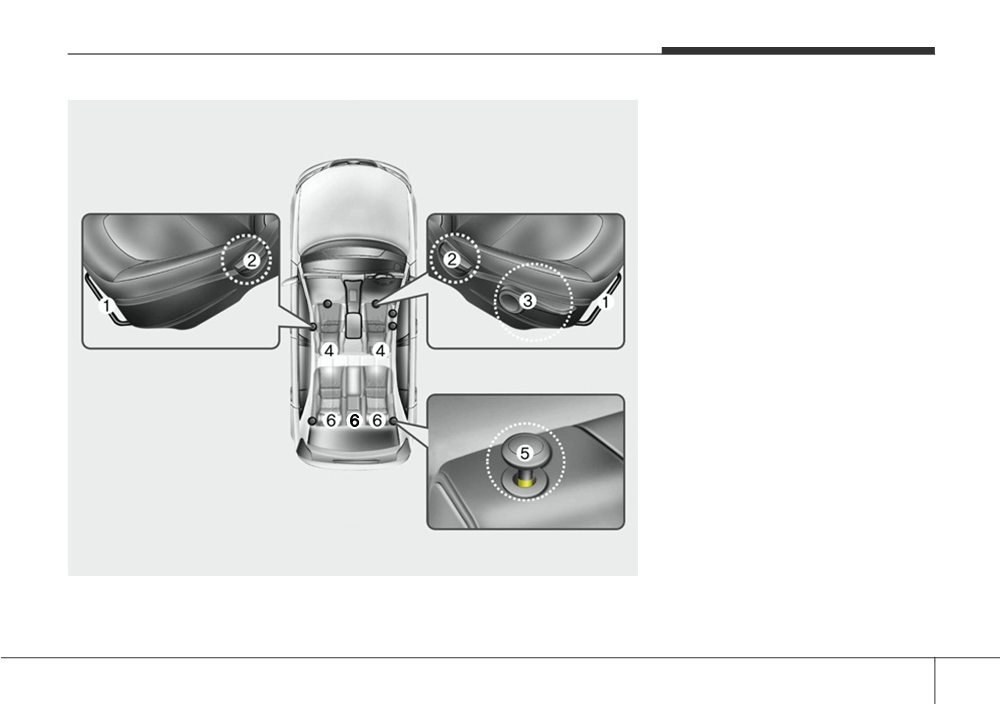

■ Right-hand drive

Front seats

(1) Forward and rearward

(2) Seatback angle

(3) Seat cushion height (driver’s seat)*

(4) Headrest

Rear seats

(5) Seat folding*

(6) Headrest (outboard and/or center*)

* : if equipped

OBA033001R/Q

3 3

Safety features of your vehicle

WARNING - Loose objects

WARNING - Driver respon-

WARNING - Driver’s seat

Loose objects in the driver’s foot

sibility for front seat pas-

• Never attempt to adjust seat

area could interfere with the opera-

senger

while the vehicle is moving. This

tion of the foot pedals, possibly

could result in loss of control,

Riding in a vehicle with a front seat-

causing an accident. Do not place

and an accident causing death,

back reclined could lead to serious

anything under the front seats.

or fatal injury in an accident. If a

serious injury, or property dam-

age.

front seat is reclined during an

accident, the occupant’s hips may

• Do not allow anything to interfere

slide under the lap portion of the

with the normal position of the

WARNING - Uprighting

seat belt applying great force to the

seatback. Storing items against a

seat

unprotected abdomen. Serious or

seatback or in any other way

When you return the seatback to its

fatal internal injuries could result.

interfering with proper locking of

upright position, hold the seatback

The driver must advise the front

a seatback could result in serious

and return it slowly and be sure

or fatal injury in a sudden stop or

passenger to keep the seatback in

there are no other occupants

collision.

an upright position whenever the

around the seat. If the seatback is

vehicle is in motion.

• Always drive and ride with your

returned without being held and

seatback upright and the lap por-

controlled, the back of the seat

tion of the seat belt snug and low

could spring forward resulting in

across the hips. This is the best

accidental injury to a person struck

position to protect you in case of

by the seatback.

an accident.

• In order to avoid unnecessary and

perhaps severe air bag injuries,

always sit as far back as possible

from the steering wheel while

maintaining comfortable control

of the vehicle. It is recommended

that drivers allow at least 25 cm

(10 in.) between the center of the

steering wheel and their chest.

3 4

Safety system of your vehicle

OBA033002

OBA033003

OBA033004

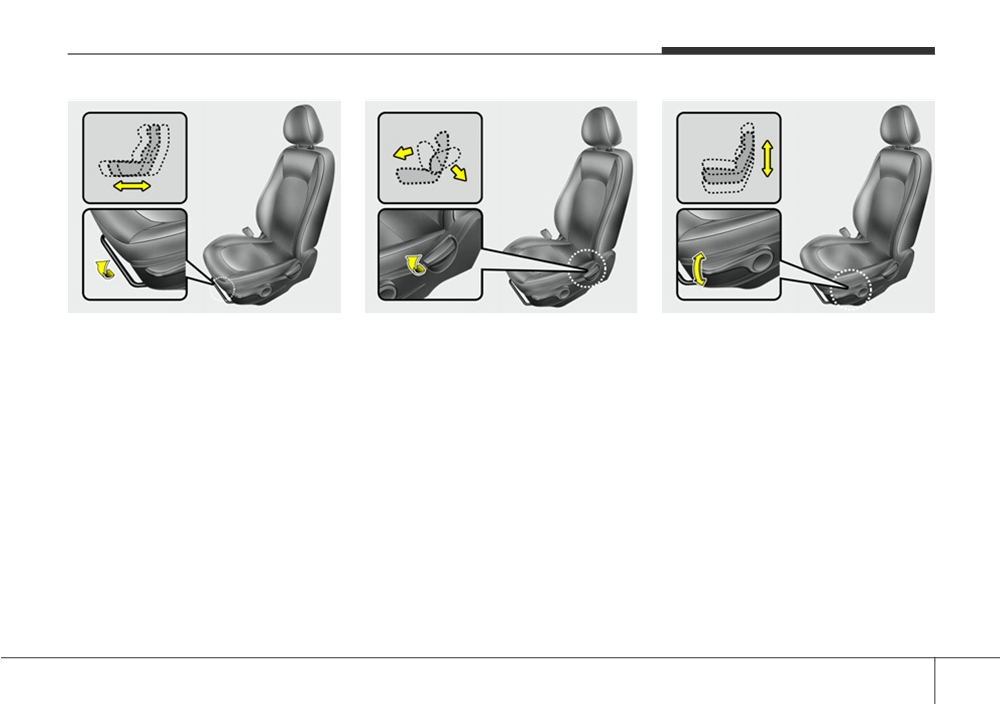

Front seat adjustment

Seatback angle

Seat cushion height (for driver’s seat)

To recline the seatback:

(if equipped)

Forward and rearward

1. Lean forward slightly and lift up the

To change the height of the seat cushion,

To move the seat forward or rearward:

seatback recline lever.

move the lever upwards or downwards.

1. Pull the seat slide adjustment lever up

2. Carefully lean back on the seat and

• To lower the seat cushion, push down

and hold it.

adjust the seatback of the seat to the

the lever several times.

2. Slide the seat to the position you

position you desire.

• To raise the seat cushion, pull up the

desire.

3. Release the lever and make sure the

lever several times.

3. Release the lever and make sure the

seatback is locked in place. (The lever

seat is locked in place.

MUST return to its original position for

Adjust the seat before driving, and make

the seatback to lock.)

sure the seat is locked securely by trying

to move forward and rearward without

using the lever. If the seat moves, it is not

locked properly.

3 5

Safety features of your vehicle

WARNING

To reduce the risk of serious injury

or death in an accident, take the fol-

lowing precautions when adjusting

your headrests:

•

Always properly adjust the head-

rests for all passengers BEFORE

starting the vehicle.

•

NEVER let anyone ride in a seat

with the headrest removed.

•

Adjust the headrests so the mid-

OPA039052

OBA033005

dle of the headrests is at the

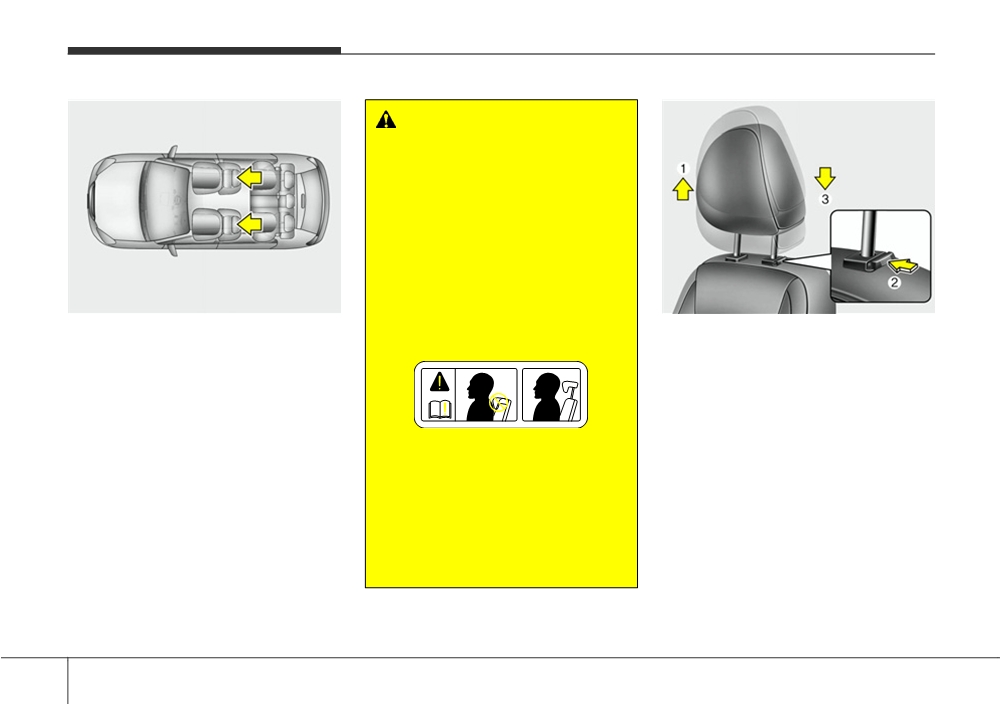

Headrest

same height as the height of the

Adjusting the height up and down

The driver's and front passenger's seats

top of the eyes (see diagram).

(if equipped)

are equipped with a headrest for the

To raise the headrest, pull it up to the

occupant's safety and comfort.

desired position (1). To lower the head-

The headrest not only provides comfort

rest, push and hold the release button (2)

for the driver and front passenger, but

on the headrest support and lower the

also helps protect the head and neck in

headrest to the desired position (3).

the event of a collision.

•

NEVER adjust the headrest posi-

tion of the driver's seat when the

vehicle is in motion.

•

Adjust the headrest as close to

the passenger's head as possi-

ble. Do not use a seat cushion

that holds the body away from

the seatback.

3 6

Safety features of your vehicle

OBA033006

OPA037007

OBA033031L

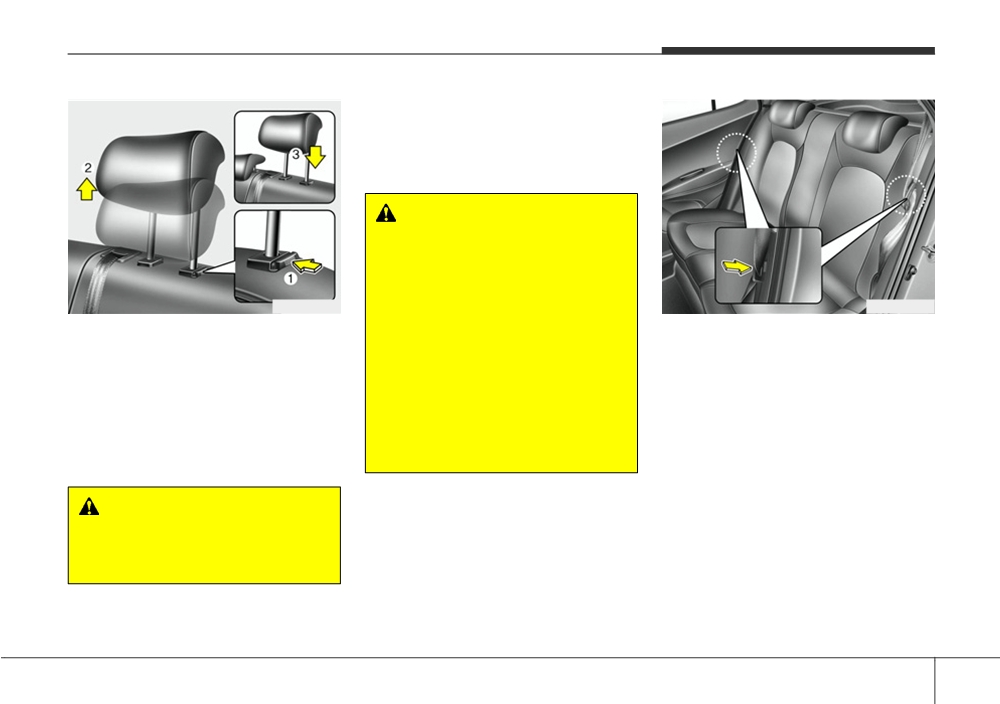

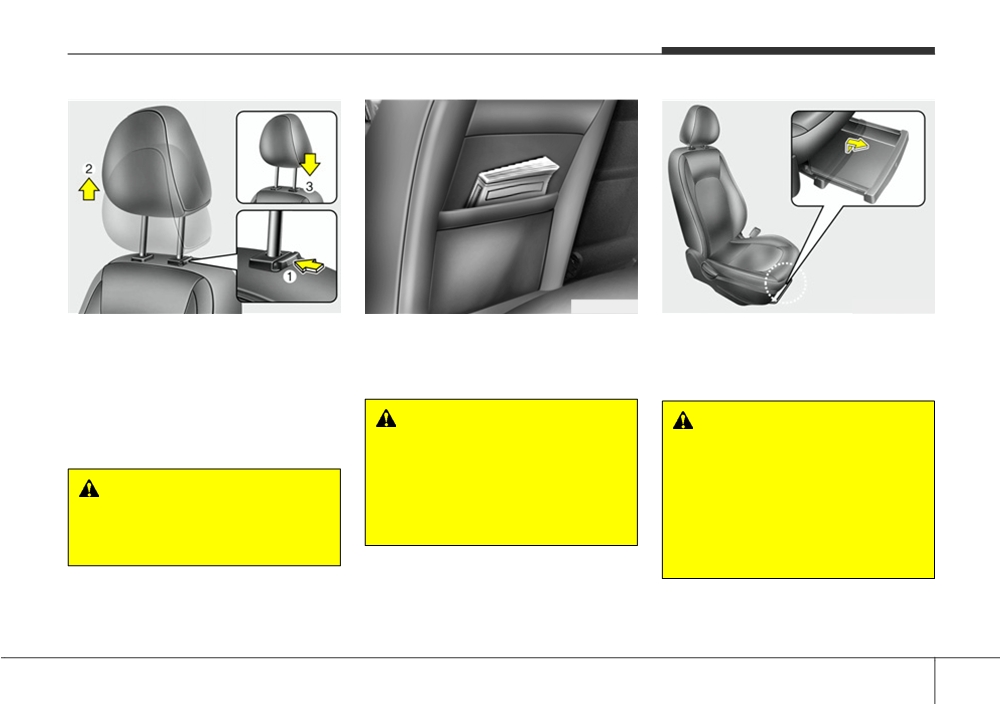

Removal/Reinstall (if equipped)

Seatback pocket (if equipped)

Passenger seat under tray

To remove the headrest, raise it as far as

The seatback pocket is provided on the

(if equipped)

it can go then press the release button (1)

back of the driver’s and/or front passen-

To open the tray, pull up the tray and then

while pulling the headrest up (2).

ger’s seatback.

pull it out forward.

To reinstall the headrest, put the head-

rest poles (3) into the holes while press-

WARNING - Seatback

WARNING - Flammable

ing the release button (1). Then adjust it

pocket

materials

to the appropriate height.

Do not put heavy or sharp objects

Do not store cigarette lighters,

in the seatback pocket. In an acci-

propane cylinders, or other flamma-

WARNING

dent they could come loose from

ble/explosive materials in the tray.

Always make sure the headrest

the pocket and injure vehicle occu-

These items may catch fire and/or

locks into position after reinstalling

pants.

explode if the vehicle is exposed to

and adjusting it properly.

hot temperatures for extended peri-

ods.

3 7

Safety features of your vehicle

WARNING

To reduce the risk of serious injury

or death in an accident, take the fol-

lowing precautions when adjusting

your headrests:

•

Always properly adjust the head-

rests for all passengers BEFORE

starting the vehicle.

•

NEVER let anyone ride in a seat

with the headrest removed.

•

Adjust the headrests so the mid-

OPA039053

OBA033025

dle of the headrests is at the

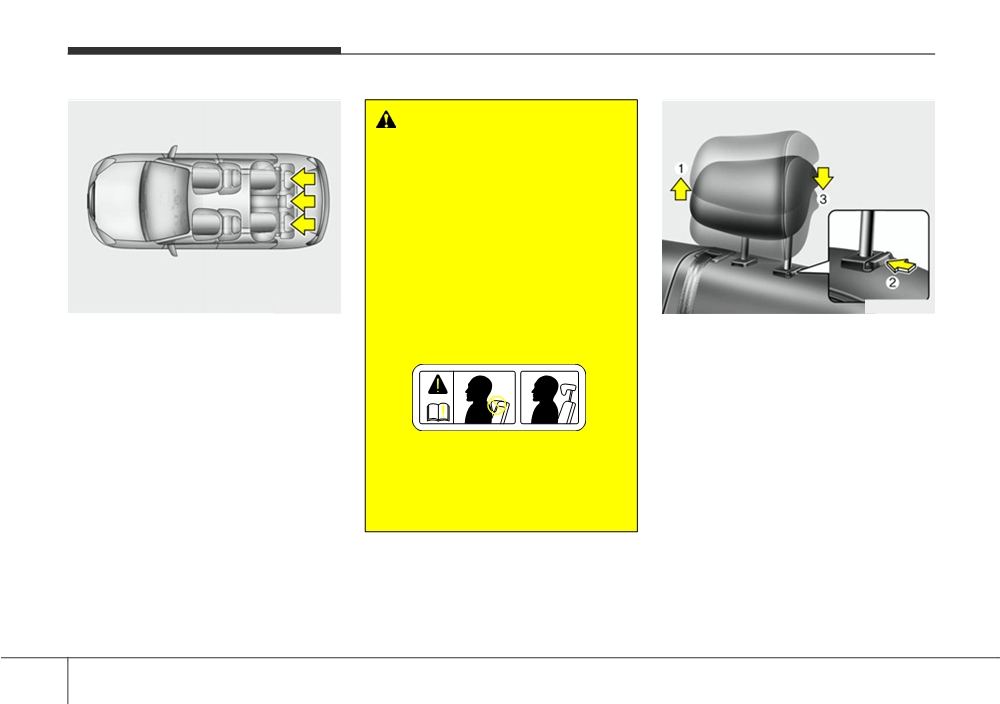

Rear seat adjustment

same height as the height of the

Adjusting the height up and down

top of the eyes (see diagram).

(if equipped)

Headrest

To raise the headrest, pull it up to the

The rear seat(s) is equipped with head-

desired position (1). To lower the head-

rests in the outboard seating positions

rest, push and hold the release button (2)

(and/or center seating position) for the

on the headrest support and lower the

occupant's safety and comfort.

headrest to the desired position (3).

The headrest not only provides comfort

• Adjust the headrest as close to

for passengers, but also helps protect

the passenger's head as possi-

the head and neck in the event of a colli-

ble. Do not use a seat cushion

sion.

that holds the body away from

the seatback.

3 8

Safety features of your vehicle

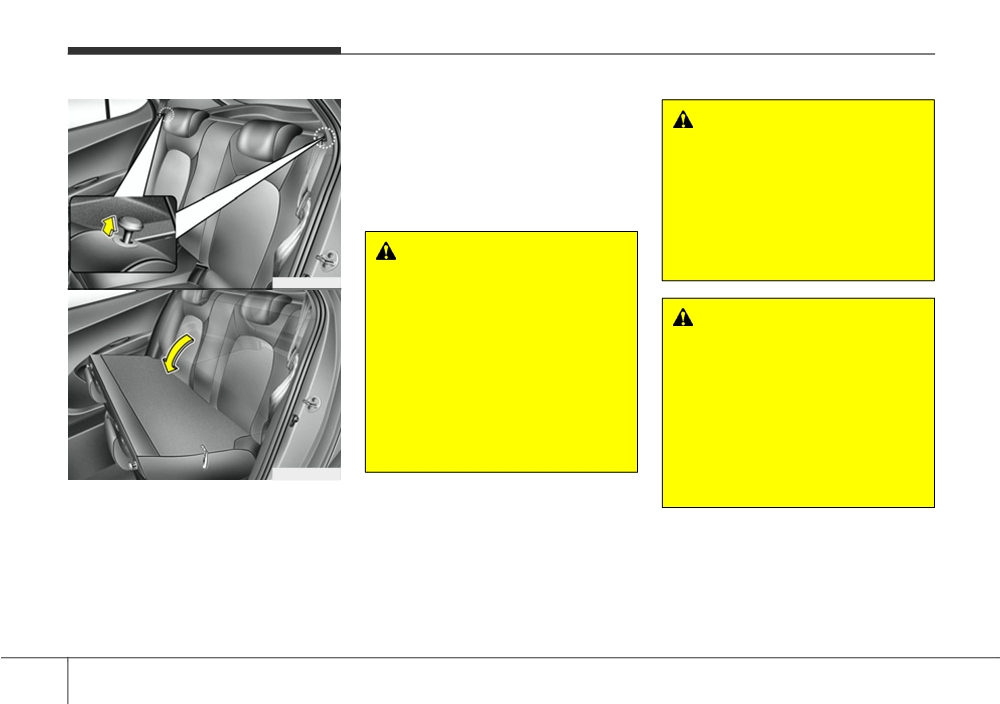

Folding the rear seat

The rear seatbacks (or cushions) may be

folded to facilitate carrying long items or

to increase the luggage capacity of the

vehicle.

WARNING

• Never allow passengers to sit on

top of the folded down seatback

while the vehicle is moving as

this is not a proper seating posi-

OBA033026

tion and no seat belts are avail-

OBA033027

able for use. This could result in

Removal/Reinstall (if equipped)

3. Insert the rear lap/shoulder belt plate

serious injury or death in case of

To remove the headrest, slightly fold the

into the holder on the side trim. It will

an accident or sudden stop.

rear seatback, raise the headrest as far

prevent the lap/shoulder belt from

• Objects carried on the folded

as it can go then press the release button

interfering with the seatback when fold-

down seatback should not extend

(1) while pulling upward (2).

ing.

higher than the top of the front

To reinstall the headrest, put the head-

seats. This could allow cargo to

rest poles (3) into the holes while press-

slide forward and cause injury or

ing the release button (1). Then adjust it

damage during sudden stops.

to the appropriate height.

1. Set the front seatback to the upright

WARNING

position and if necessary, slide the

Always make sure the headrest

front seat forward.

locks into position after reinstalling

2. Lower the rear headrests to the lowest

and adjusting it properly.

position

(if equipped with adjustable

headrests).

3 9

Safety system of your vehicle

To use the rear seat, lift and push up the

seatback backward. Push the seatback

WARNING - Cargo

firmly until it clicks into place. Make sure

Cargo should always be secured to

the seatback is locked in place.

prevent it from being thrown about

When returning the rear seatbacks to the

the vehicle in a collision and caus-

upright position, remember to return the

ing injury to the vehicle occupants.

rear shoulder belts to their proper position.

Do not place objects in the rear

seats, since they cannot be proper-

ly secured and may hit the front

WARNING

seat occupants in a collision.

When returning the rear seatback

OBA033028

from a folded to an upright posi-

tion, hold the seatback and return it

slowly. Ensure that the seatback is

WARNING - Cargo loading

completely locked into its upright

Make sure the engine is off, the

position by pushing on the top of

shift lever is in P (Park, for auto-

the seatback. In an accident or sud-

matic transaxle vehicle ) or neutral

den stop, the unlocked seatback

(for manual transaxle vehicle), and

could allow cargo to move forward

the parking brake is securely

with great force and enter the pas-

applied whenever loading or

senger compartment, which could

unloading cargo. Failure to take

result in serious injury or death.

these steps may allow the vehicle

OBA033029

to move if the shift lever is inadver-

tently moved to another position.

4. Pull up both sides of the seatback lever

and fold the seatback toward the front

of the vehicle.

3 10

Safety system of your vehicle

SEAT BELTS

Seat belt restraint system

(Continued)

WARNING

•

Avoid wearing twisted seat belts.

Damaged seat belts and seat belt

WARNING

A twisted seat belt will not pro-

assemblies will not operate properly.

•

For maximum restraint system

tect you properly in an accident.

Always replace:

protection, the seat belts must

Be sure the belt webbing is

• Frayed, contaminated, or damaged

always be used whenever the

straight and not twisted.

webbing

vehicle is moving.

•

Each belt assembly must only be

• Damaged hardware

•

Seat belts are most effective

used by one occupant; it is dan-

gerous to put a belt around a

• The entire seat belt assembly after

when seatbacks are in the

child being carried on a occu-

it has been worn in an accident,

upright position.

pant's lap.

even if damage to webbing or

•

Children age 12 and under must

assembly is not apparent

always be properly restrained in

•

Be careful not to damage the belt

the rear seat. Never allow chil-

webbing or hardware. If the belt

dren to ride in the front passen-

webbing or hardware is dam-

ger seat. If a child over 12 must

aged, replace it.

WARNING

be seated in the front seat, he/she

No modifications or additions

must be properly belted and the

should be made by the user which

seat should be moved as far back

will either prevent the seat belt

as possible.

adjusting devices from operating to

•

Never wear the shoulder belt

remove slack.

under your arm or behind your

back. An improperly positioned

shoulder belt can cause serious

injuries in a crash. The shoulder

belt should be positioned midway

over your shoulder across your

collarbone.

(Continued)

3 11

Content   ..  1  2  3   ..
