Hyundai Azera (2017 year). Manual - part 21

Driving your vehicle

CAUTION

•

Do not install accessories

around the sensor and do not

replace the bumper by your-

self. It may interfere with the

sensor performance.

•

Always keep the sensor and

bumper clean.

•

To prevent sensor cover dam-

OHG045330L

age from occurring, wash the

OHG055171L

car with a soft cloth.

SCC (Smart Cruise Control) mal-

•

Do not damage the sensor or

function message

sensor area by a strong

The message will appear when the

impact. If the sensor moves

vehicle to vehicle distance control

slightly off position, the smart

system is not functioning normally.

cruise control system will not

operate correctly.

We recommend that you take your

vehicle to an authorized HYUNDAI

If this occurs, we recommend

that the system be inspected

dealer and have the system

checked.

by an authorized HYUNDAI

OHG045329L

dealer.

To convert to cruise control

•

Use only a genuine HYUNDAI

mode:

sensor cover for your vehicle.

The driver may choose to only use

the cruise control mode (speed con-

trol function) by doing as follows:

5 50

Driving your vehicle

1. Turn the smart cruise control sys-

tem on (the cruise indicator light

will be on but the system will not

be activated).

2. Push the distance to distance

switch for more than 2 seconds.

3. Choose between "Smart cruise

control(SCC) mode" and "Cruise

control(CC) mode".

WARNING

OBH058029

OBH058030

When using the cruise control

Limitations of the system

• Your vehicle speed can be reduced

mode, you must manually

due to a vehicle in the adjacent

The smart cruise control system may

access the distance to other

lane. Apply the accelerator pedal

have limits to its ability to detect dis-

vehicles as the system will not

and select the appropriate set

tance to the vehicle ahead due to

automatically brake to slow

speed. Check to be sure that the

road and traffic conditions.

down for other vehicles.

road conditions permit safe opera-

tion of the smart cruise control.

On curves

• On curves, the smart cruise control

system may not detect a moving

vehicle in your lane, and then your

vehicle could accelerate to the set

speed. Also, the vehicle speed will

slow down when the vehicle ahead

is recognized suddenly.

• Select the appropriate set speed

on curves and apply the brakes or

accelerator pedal if necessary.

5 51

Driving your vehicle

OBH058053

OBH058045

OHG050074

On inclines

Lane changing

•

Your vehicle may accelerate when

•

During uphill or downhill driving,

•

A vehicle which moves into your

a vehicle ahead of you disappears.

the smart cruise control system

lane from an adjacent lane cannot

•

When you are warned that the

may not detect a moving vehicle in

be recognized by the sensor until it

vehicle ahead of you is not detect-

your lane, and cause your vehicle

is in the sensor's detection range.

ed, drive with caution.

to accelerate to the set speed.

•

The sensor may not detect imme-

Also, the vehicle speed will slow

diately when a vehicle cuts in sud-

down when the vehicle ahead is

denly. Always pay attention to the

recognized suddenly.

traffic, road and driving conditions.

•

Select the appropriate set speed

•

If a vehicle which moves into your

on inclines and apply the brakes or

lane is slower than your vehicle,

accelerator pedal if necessary.

your speed may decrease to main-

tain the distance to the vehicle

ahead.

•

If a vehicle which moves into your

lane is faster than your vehicle,

your vehicle will accelerate to the

selected speed.

5

52

Driving your vehicle

A vehicle ahead cannot be recog-

nized correctly by the sensor if any of

following occurs:

- When the vehicle is pointing

upwards due to overloading in the

trunk

- While making turns by steering

- When driving to one side of the lane

- When driving on narrow lanes or on

curves

Apply the brakes or accelerator

OBH058046

OHG050075

pedal if necessary.

Vehicle recognition

•

When vehicles are at a standstill

Some vehicles ahead in your lane

and the vehicle in front of you

cannot be recognized by the sensor

changes to the next lane, be care-

as follows:

ful when your vehicle starts to

move because it may not recog-

- Narrow vehicles such as motorcy-

cles or bicycles

nize the stopped vehicle in front of

you.

- Vehicles offset to one side

- Slow-moving vehicles or sudden-

decelerating vehicles

- Stopped vehicles

- Vehicles with small rear profile such

as trailers with no loads

5 53

Driving your vehicle

WARNING

•

The smart cruise control sys-

tem cannot guarantee the

stop for every emergency sit-

uation.

If an emergency stop is nec-

essary, you must apply the

brakes.

•

Keep a safe distance accord-

ing to road conditions and

OHG050076

OHG050077

vehicle speed. If the vehicle to

•

Always look out for pedestrians

•

Always be cautious for vehicles

vehicle distance is too close

when your vehicle is maintaining a

with higher height or vehicles car-

during a high-speed driving, a

distance with the vehicle ahead.

rying loads that sticks out to the

serious collision may result.

back of the vehicle.

•

The smart cruise control sys-

tem cannot recognize a

stopped vehicle, pedestrians

or an oncoming vehicle.

Always look ahead cautiously

to prevent unexpected and

sudden situations from occur-

ring.

(Continued)

5 54

Driving your vehicle

ACTIVE ECO SYSTEM

•

When the Active ECO button is

Limitation of Active ECO oper-

pressed the ECO indicator (green)

ation:

will illuminate to show that the

If the following conditions occur while

Active ECO is operating.

Active ECO is operating, the system

•

When the Active ECO is activated,

operation is limited even though

it will remain on until the Active

there is no change in the ECO indi-

ECO button is pressed again.

cator.

Active ECO does not turn off when

•

When the coolant temperature is

the engine is restarted. To turn off

low: The system will be limited until

Active ECO, press the Active ECO

engine temperature becomes nor-

button again.

mal.

OHG051070A

•

If Active ECO is turned off, the sys-

•

When driving up a hill: The system

tem will return to normal mode.

Active ECO operation

will be limited to gain power when

driving uphill because the engine

Active ECO helps improve fuel effi-

torque is required.

ciency by controlling certain engine

and transaxle system operating

•

When using sports mode: The sys-

tem will be limited according to the

parameters. Fuel efficiency depends

on the driver's driving habit and road

manually selected gear.

condition.

•

When the accelerator pedal is

deeply depressed for a few sec-

onds: The system will be limited,

judging that the driver desires addi-

tional acceleration.

5 56

Driving your vehicle

BLIND SPOT DETECTION SYSTEM (BSD) (IF EQUIPPED)

(1) BSD (Blind Spot Detection)

(Continued)

The warning range depends on

•

The Blind Spot Detection

your vehicle speed. However, if

System (BSD) is a supplemen-

your vehicle is much faster than

Blind spot area

tal system to assist you. Do

the other vehicle, the system will

not solely rely on the system

not warn you.

and always pay attention and

(2) LCA (Lane Change Assist)

drive safely.

If the system detects a vehicle

•

The Blind Spot Detection

Closing at

approaching you at high speed,

high speed

System (BSD) is not a substi-

the system will warn you.

tute for proper and safe driv-

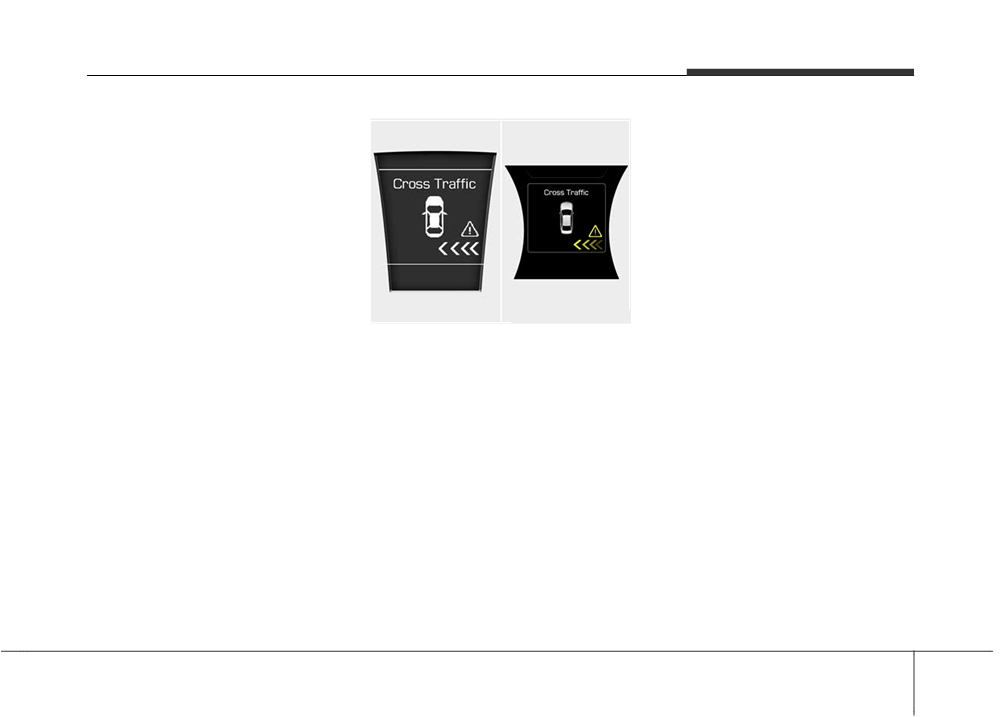

(3) RCTA (Rear Cross Traffic Alert)

ing. Always drive safely and

If

the sensor detects an

use caution when changing

approaching vehicle from the left

lanes or backing the vehicle

and right side as your vehicle

up. The Blind Spot Detection

moves rearward, the system will

System (BSD) may not detect

warn you.

every object alongside the

vehicle.

OVI053129

WARNING

The Blind Spot Detection System

•

Always check the road condi-

(BSD) uses a radar sensor to alert

tion while driving for unex-

WARNING

the driver.

pected situations

even

As the Blind Spot Detection

It senses the rear side territory of the

though the Blind Spot

(BSD) system is a supplemental

vehicle and provides an indication to

Detection System

(BSD) is

device for your safe driving, it

the driver if it detects an object

operating.

may be dangerous to rely on

approaching from these areas.

(Continued)

only the BSD information when

changing the lane. Always pay

attention to drive safely.

5 57

Driving your vehicle

To cancel:

Warning type

Press the BSD switch again. The

The system will activate when:

indicator on the switch will go off.

1.The system is on.

When the system is not used, turn

2.Vehicle speed is above about 20

the system off by turning off the

mph (30 km/h).

switch.

3.Other vehicles are detected in the

rear side.

✽ NOTICE

• If the engine is turned off and on,

the system returns to the previous

state.

OHG055101

• When the system is turned on, the

BSD (Blind Spot Detection) /

warning light will illuminate for 3

LCA (Lane Change Assist)

seconds on the outside rearview

Operating conditions

mirror.

To operate:

Press the BSD switch with the

Ignition switch in the ON position.

The indicator illuminates on the

switch. If vehicle speed exceeds 20

mph (30 km/h) the system will acti-

vate.

5 58

Driving your vehicle

■ Left side

■ Left side

■ Right side

■ Right side

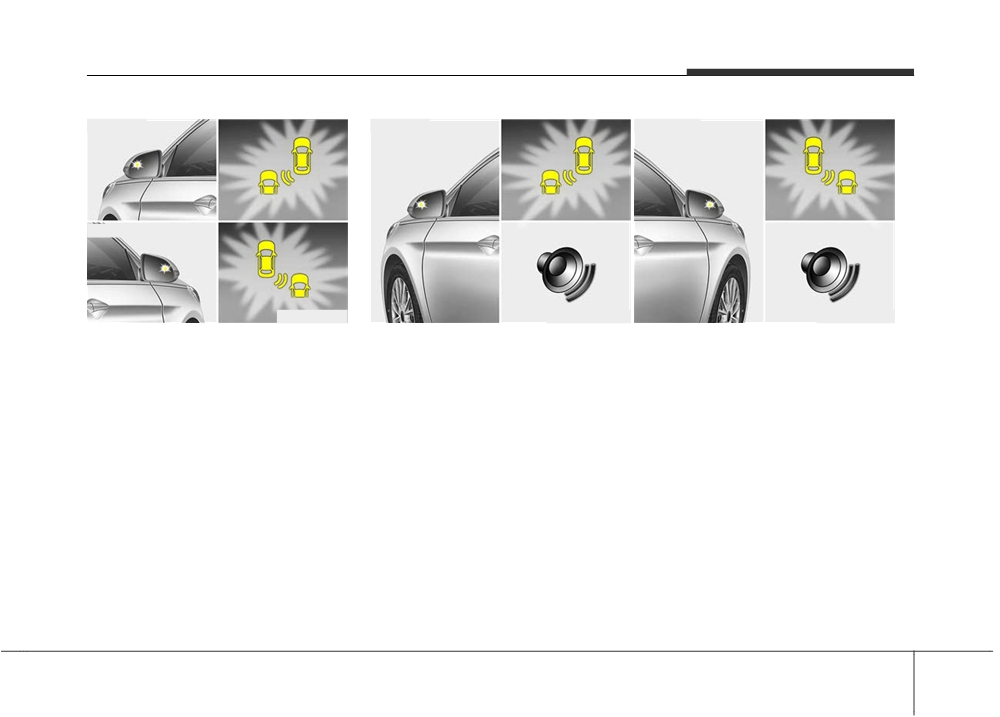

OHG055176

OHG055175

OHG055174

First stage alert

Second stage alert

If a vehicle is detected within the

The second stage alarm will activate when:

boundary of the system, a warning

1. The first stage alert is on.

light will illuminate on the outside

2. The turn signal light is on to change a lane.

rearview mirror.

When the second stage alert is activated, a warning light will blink on the

If the detected vehicle is not in warn-

outside rearview mirror.

ing range, the warning will turn off

If you turn off the turn signal light, the second stage alert will be deacti-

according to driving conditions.

vated.

5 59

Driving your vehicle

■ Type A

■ Type B

■ Type A

■ Type B

OHG055102

OHG045255L

OHG045254L

Detecting sensor

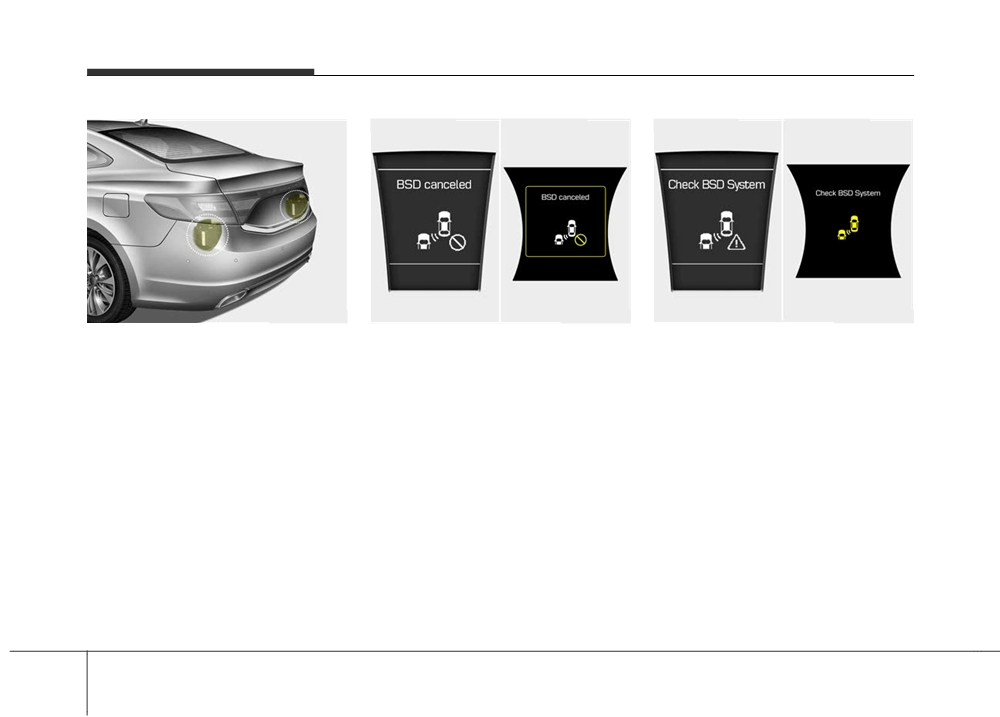

Warning message

If the system does not work properly,

The sensors are located inside of the

The message will appear to notify

a warning message will appear and

rear bumper.

the driver if there are foreign sub-

the light on the switch will turn off.

Always keep the rear bumper clean

stances on the rear bumper. The light

The system will turn off automatical-

on the switch and the system will

ly. Have your vehicle inspected by an

for the system to work properly.

turn off automatically.

authorized HYUNDAI dealer.

Remove the foreign substance on

the rear bumper. After the foreign

substance is removed, if you drive for

approximately 10 minutes, the sys-

tem will work normally.

If the system does not work normally

even though the foreign substance is

removed, take your vehicle to an

authorized HYUNDAI dealer and

have the system checked.

5 60

Driving your vehicle

RCTA (Rear Cross Traffic Alert)

■ Type A

■ Type B

✽ NOTICE

Operating conditions

•

If the detected vehicle is got out

To operate:

from sensing range, behind your

Go to the User Settings Mode

vehicle, moving opposite direction

(Driving Assist) and select RCTA

away from your vehicle or moving

(Rear Cross Traffic Alert) on the LCD

slow, the warning is cancelled.

display (For more details, refer to

•

The system may not operate prop-

"LCD Display" in chapter 4.). The

erly due to other factors or cir-

system will turn on and standby to

cumstances. Always pay attention

activate. The system will activate

to your surrounding.

when vehicle speed is below

6.2

•

If your vehicle's left or right side

mph (10 km/h) with the shift lever in

OHG045334L

bumper is blinded by barrier or

R (Reverse).

Warning type

vehicles, the system sensing ability

may be reduced.

If the vehicle detected by the sensors

✽ NOTICE

approaches your vehicle, the warn-

ing chime will sound, the warning

The RCTA (Rear Cross Traffic

light on the outside rearview mirror

Alert) detecting range is about 1.64

will blink and a message will appear

ft (0.5m) ~ 65 ft (20m). A vehicle will

on the LCD display.

be detected if the vehicle speed is 2.5

mph (4 km/h) ~ 22.4 mph (36 km/h)

within the detecting range. However,

the detecting range may change

under different conditions. Always

pay attention to the surroundings.

5 61

Driving your vehicle

(Continued)

WARNING

CAUTION

•

The Blind Spot Detection

•

The warning light on the out-

•

The system may not work

System (BSD) and Rear Cross

side rearview mirror will illu-

properly if the bumper has

Traffic Alert (RCTA) are not a

minate whenever a vehicle is

been replaced or if repair work

substitute for proper and safe

detected at the rear side by

has been done near the sen-

driving practices. Always

the system.

sor.

drive safely and use caution

To avoid accidents, do not

•

The detection area differs

when changing lanes or back-

focus only on the warning

according to the roads width.

ing the vehicles up. The Blind

light and neglect to see the

If the road is narrow the sys-

Spot Detection System (BSD)

surrounding of the vehicle.

tem may detect other vehicles

may not detect every object

in the next lane. In addition, if

•

Drive safely even though the

alongside the vehicle.

the road is very wide the sys-

vehicle is equipped with a

tem may not detect other vehi-

Blind Spot Detection System

cles.

(BSD) and Rear Cross Traffic

Alert

(RCTA). Do not solely

•

The system may turn off due

rely on the system but check

to strong electromagnetic

your surrounding before

waves.

changing lanes or backing the

vehicle up.

The system may not alert the

driver in some conditions so

always check the surround-

ings while driving.

(Continued)

5 62

Driving your vehicle

LANE DEPARTURE WARNING SYSTEM (LDWS) (IF EQUIPPED)

•

The LDWS does not make the

WARNING - LDWS Alert

vehicle change lanes. It is the dri-

ver's responsibility to always check

The LDWS is only intended to

provide you with information

the road conditions.

regarding your vehicle's posi-

•

If the sensor cannot detect the lane

tion on the roadway. Upon

or if the vehicle speed does not

receiving an LDWS alert, you

exceed

38 mph (60 km/h), the

must take the necessary steps

LDWS will not be able to notify you

to maintain control of your vehi-

if the vehicle departs the lane.

cle. The LDWS does not provide

•

If your vehicle has window tint or

OHG052091

any steering inputs into the

other types of coating on the front

vehicle for you. It can be dan-

windshield, the LDWS may not

gerous to make a large sudden

work properly.

steering input in response to an

•

Do not allow any water or liquid to

alert, since that could result in

contact the LDWS sensor, or it may

loss of control.

be damaged.

•

Do not remove the LDWS parts

and do not damage the sensor by

a strong impact.

•

Do not put objects that reflect light

OHG052057

on the dash board.

•

The operation of the LDWS can be

This system detects the lane with a

affected by several factors (includ-

sensor at the front windshield and

ing environmental conditions). It is

notifies you if it detects that your

the responsibility of the driver to

vehicle departs from the lane.

pay attention to the roadway and to

maintain the vehicle in its lane at

all times.

5 65

Driving your vehicle

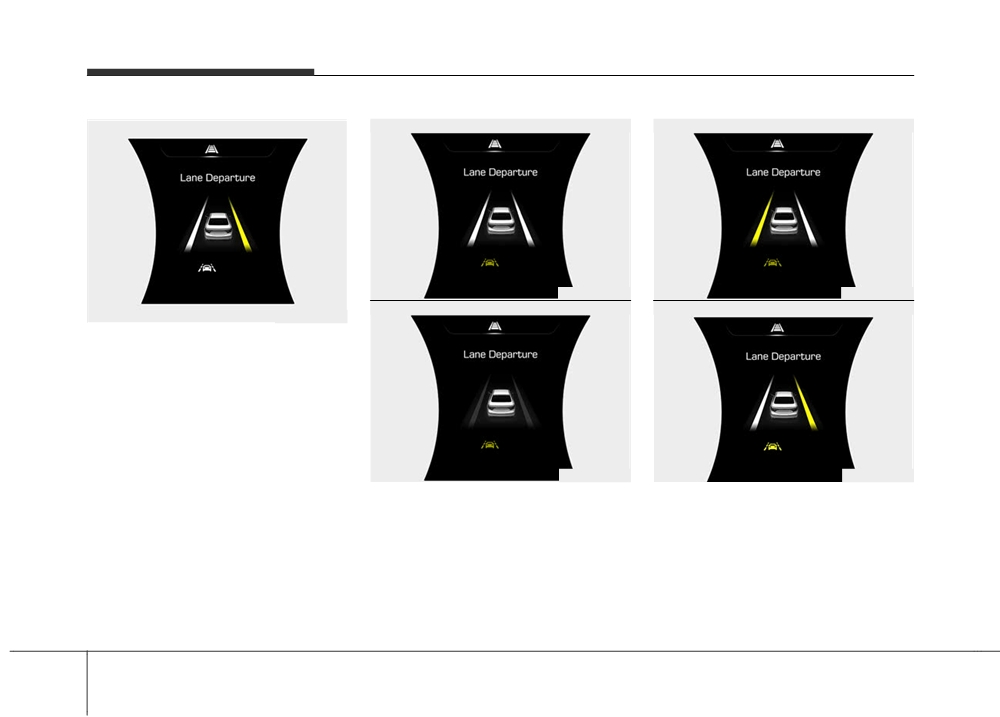

■ When the sensor detects the lane line

■ Lane departure warning (Left)

OHG055158N

OHG055160N

■ When the sensor doesn’t detect the lane line

■ Lane departure warning (Right)

OHG055159N

To operate the LDWS, press the but-

ton with the engine start/stop button

in the ON position. The indicator

(white) illuminates on the cluster. To

cancel the LDWS, press the button

again. The indicator will also be

turned off.

OHG055173N

OHG055178N

If the system detects that your vehi-

1.Visual warning

cle is leaving the lane when the

If you leave the lane, the lane you

LDWS is operating and vehicle

leave on the LCD display blinks

speed exceeds 38 mph (60 km/h),

green.

the warning operates as follows:

2.Auditory warning

If you leave the lane, the warning

sound operates.

5 66

Content   ..  19  20  21  22   ..
