Heated steering wheel

Horn

Information

(For Canada, if equipped)

The heated steering wheel will turn off

automatically approximately 30 min-

utes after the heated steering wheel is

turned on.

When the engine is turned off during

the engine and the heated steering

wheel is on, the timer function of heat-

ed steering wheel will be reset.

To reuse heated steering wheel, press

button again.

OYC046009

NOTICE

OHCA047707

To sound the horn, press the area

Do not install any cover or acces-

When the ignition switch is in the ON

indicated by the horn symbol on your

sory on the steering wheel. This

position or when the engine is run-

steering wheel (see illustration). The

cover or accessory could cause

ning, press the heated steering

horn will operate only when this area

damage to the heated steering

wheel button to warm the steering

is pressed.

wheel system.

wheel. The indicator on the button

will illuminate.

NOTICE

To turn the heated steering wheel off,

Do not strike the horn severely to

press the button again. The indicator

operate it, or hit it with your fist.

on the button will turn off.

Do not press on the horn with a

sharp-pointed object.

3-19

Convenient features of your vehicle

MIRRORS

Inside Rearview Mirror

Day/night rearview mirror

WARNING

(if equipped)

Before you start driving, adjust the

rearview mirror to the center on the

NEVER adjust the mirror while

view through the rear window.

driving. This may cause loss of

vehicle control resulting in an

WARNING

accident.

Night

Make sure your line of sight is

NOTICE

not obstructed. Do not place

objects in the rear seat, cargo

When cleaning the mirror, use a

area, or behind the rear head-

paper towel or similar material

rests which could interfere with

dampened with glass cleaner. Do

your vision through the rear

not spray glass cleaner directly on

Day

window.

the mirror as that may cause the

OHCA047670

liquid cleaner to enter the mirror

Make this adjustment before you

housing.

start driving and while the day/night

WARNING

lever is in the day position.

Pull the day/night lever towards you

To prevent serious injury during

to reduce glare from the headlights

an accident or deployment of

of the vehicles behind you during

the air bag, do not modify the

night driving.

rearview mirror and do not

Remember that you lose some

install a wide mirror.

rearview clarity in the night position.

3-20

Electric Chromic Mirror (ECM)

Blue Link® center

(For America only, if equipped)

The electric rearview mirror automat-

ically controls the glare from the

Rearview display

headlamp of the car behind you in

nighttime or low light driving condi-

tions.

When the engine is running, the

glare is automatically controlled by

Indicator

Sensor

the sensor mounted in the rearview

mirror. The sensor detects the light

OTLE045009

level around the vehicle, and auto-

matically adjusts to control the head-

To operate the electric rearview

lamp glare from vehicles behind you.

mirror:

OLF044021

Whenever the shift lever is placed in

• Press the ON/OFF button (1) to

For details, refer to the Blue Link®

R (Reverse), the mirror will automat-

turn the automatic dimming func-

Owner's Guide, Navigation Manual

ically go to the brightest setting in

tion off. The mirror indicator light

or Audio Manual.

order to improve the drivers view

will turn off.

behind the vehicle.

Press the ON/OFF button (1) to

turn the automatic dimming func-

Electric chromic mirror (ECM)

tion on. The mirror indicator light

with HomeLink® system,

will illuminate.

compass and Blue Link®

(if equipped)

• The mirror defaults to the ON posi-

tion whenever the ignition switch or

Your vehicle may be equipped with a

the Engine Start/Stop button is in

Gentex Automatic-Dimming Mirror

the ON position.

with a Z-Nav™ Electronic Compass

Display and an Integrated HomeLink®

Wireless Control System.

3-21

Convenient features of your vehicle

During nighttime driving, this feature

(7) Channel 2 button

Your mirror will automatically dim

will automatically detect and reduce

upon detecting glare from the vehi-

(8) Channel 3 button

rearview mirror glare while the com-

cles traveling behind you. The auto-

(9) Compass display

pass indicates the direction the vehi-

dimming function can be controlled

cle is pointed. The HomeLink®

(10) Rear light sensor

by pressing the Dimming ON/OFF

Universal Transceiver allows you to

button (4):

activate your garage door(s), electric

Automatic-Dimming Night Vision

gate, home lighting, etc.

Safety™ (NVS®) Mirror

1. Pressing and holding the button

(if equipped)

for 3 seconds turns the auto-dim-

ming function OFF which is indi-

The NVS® Mirror automatically

cated by the green Status

reduces glare by monitoring light lev-

Indicator LED turning off.

els in the front and the rear of the

vehicle. Any object that obstructs

2. Pressing and holding the button

either light sensor will degrade the

for 3 seconds again turns the auto-

automatic dimming control feature.

dimming function ON which is indi-

cated by the green Status Indicator

For more information regarding

LED turning on.

NVS® mirrors and other applica-

The mirror defaults to the ON posi-

tions, please refer to the Gentex

tion each time the vehicle is started.

website:

OAD045045N

www.gentex.com

Z-Nav™ Compass Display

(1) Blue Link Center button

(if equipped)

(2) Blue Link POI button

The NVS™ Mirror in your vehicle is

also equipped with a Z-Nav™

(3) Blue Link SOS button

Compass that shows the vehicle

(4) Compass control button &

Compass heading in the Display

Dimming ON/OFF button

Window using the 8 basic cardinal

(5) Status indicator LED

headings (N, NE, E, SE, etc.).

(6) Channel 1 button

3-22

Compass function

The Compass can be turned ON and

OFF and will remember the last state

when the ignition is cycled. To turn

the display feature ON/OFF:

1. Press and release the

button

within 1 second to turn the display

feature OFF.

2. Press and release the

button

again within 1 second to turn the

display back ON.

Additional options can be set with

press and hold sequences of the

button and are detailed below.

There is a difference between mag-

netic north and true north. To com-

pensate for this difference you will

need to adjust the Zone setting based

on where you live.

B520C05NF

3-23

Convenient features of your vehicle

To adjust the Zone setting:

If you need to recalibrate the com-

Integrated HomeLink® Wireless

pass:

Control System (if equipped)

1. Determine the desired Zone

Number based upon your current

1. Press and hold the

button for

The HomeLink® Wireless Control

location on the Zone Map.

more than 9 seconds. When the

System can replace up to three

compass memory is cleared a "C"

hand-held radio-frequency

(RF)

2. Press and hold the button for 6

will appear in the display.

transmitters with a single built-in

seconds, the current Zone

Number will appear on the display.

2. Drive the vehicle in 2 complete cir-

device. This innovative feature will

learn the radio frequency codes of

3. Pressing and holding the button

cles at less than 5 mph (8 km/h).

most current transmitters to operate

again will cause the numbers to

devices such as gate operators,

increment (Note: they will repeat

garage door openers, entry door

…13, 14, 15, 1, 2, …). Releasing

locks, security systems, even home

the button when the desired Zone

lighting. Both standard and rolling

Number appears on the display

code-equipped transmitters can be

will set the new Zone.

programmed by following the out-

4. Within about 5 seconds the com-

lined procedures.

pass will start displaying a com-

Additional HomeLink® information

pass heading again.

can be found at: www.homelink.com

or by calling 1-800-355-3515.

There are some conditions that can

Retain the original transmitter of the

cause changes to the vehicle mag-

RF device you are programming for

nets, such as installing a ski rack or

use in other vehicles as well as for

a CB antenna. Body repair work on

future HomeLink® programming. It is

the vehicle can also cause changes

also suggested that upon the sale of

to the vehicle’s magnetic field. In

the vehicle, the programmed

these situations, the compass will

HomeLink® buttons be erased for

need to be re-calibrated to quickly

security purposes.

correct these changes.

3-24

Programming HomeLink®

Programming

WARNING

Please note the following:

Flashing

Before programming HomeLink®

•

When programming a garage door

to a garage door opener or gate

opener, it is advised to park the

operator, make sure people and

vehicle outside of the garage.

objects are out of the way of the

•

It is recommended that a new bat-

device to prevent potential harm

tery be placed in the hand-held

or damage. Do not use the

transmitter of the device being pro-

HomeLink® with any garage door

grammed to HomeLink® for quicker

opener that lacks the safety stop

training and accurate transmission

and reverse features required by

of the radio-frequency signal.

U.S. federal safety standards (this

•

Some vehicles may require the igni-

includes any garage door opener

ODH044413N

tion switch to be placed in the ACC

model manufactured before April

(or "Accessories") position for pro-

To train most devices, follow these

1, 1982). A garage door that can-

gramming and/or operation of

instructions:

not detect an object - signaling

HomeLink®.

the door to stop and reverse -

1. For first-time programming, press

•

In the event that there are still pro-

does not meet current U.S. feder-

and hold the two outside buttons

gramming difficulties or questions

(

), HomeLink® Channel

al safety standards. Using a

garage door opener without

after following the programming

and Channel 3, until the indicator

steps listed below, contact

light begins to flash (after 10 sec-

these features increases the risk

of serious injury or death.

HomeLink®homelwww.homelink.com

onds). Release both buttons. Do

or by calling 1-800-355-3515.

not hold the buttons for longer

than 20 seconds.

3-25

Convenient features of your vehicle

4. Press and hold for 5 seconds then

Flashing

Information

release the programmed HomeLink®

Some devices may require you to

button up to two separate times to

replace this Programming step 3 with

activate the door. If the door does not

procedures noted in the "Gate

activate, press and hold the just-

Operator/Canadian Programming"

trained HomeLink® button and

chapter. If the HomeLink® indicator

observe the indicator light.

light does not change to a rapidly

• If the indicator light stays on con-

blinking light after performing these

stantly, programming is complete

steps,

contact HomeLink®

and your device should activate

www.homelink.com.

when the HomeLink® button is

ODH044414N

pressed and released.

2. Position the end of your hand-held

• If the indicator light blinks rapidly

transmitter

1-3 inches

(2-8 cm)

for 2 seconds and then turns to a

away from the HomeLink® button

constant light, continue with

you wish to program while keeping

"Programming" steps 5-7 to com-

the indicator light in view.

plete the programming of a rolling

code equipped device (most com-

3. Simultaneously press and hold

monly a garage door opener).

both the HomeLink® and hand-

held transmitter buttons until the

5. At the garage door opener receiver

HomeLink® indicator light changes

(motor-head unit) in the garage,

from a slow to a rapid blinking

locate the "learn" or "smart" button.

light. Now you may release both

This can usually be found where

the HomeLink® and hand-held

the hanging antenna wire is

transmitter buttons.

attached to the motor-head unit.

3-26

6. Firmly press and release the

Gate operator & Canadian program-

Reprogramming a single HomeLink®

"learn" or "smart" button.

(The

ming

button

name and color of the button vary

During programming, your handheld

To program a device to HomeLink®

by manufacturer). There are

transmitter may automatically stop

using a HomeLink® button previously

seconds to initiate step 7.

transmitting. Continue to press the

trained, follow these steps:

7. Return to the vehicle and firmly

Integrated HomeLink® Wireless

1. Press and hold the desired

press, hold for

2 seconds and

Control System button (note steps 2

HomeLink® button. DO NOT

release

the

programmed

through 3 in the Programming portion

release the button.

HomeLink® button. Repeat the

of this document) while you press

2. The indicator light will begin to flash

"press/hold/release" sequence a

and re-press ("cycle") your handheld

after 20 seconds. Without releasing

second time, and, depending on

transmitter every two seconds until

the HomeLink® button, proceed

the brand of the garage door

the frequency signal has been

with "Programming" step 2.

opener

(or other rolling code

learned. The indicator light will flash

equipped device), repeat this

slowly and then rapidly after several

sequence a third time to complete

seconds upon successful training.

For questions or comments, contact

the programming process.

HomeLink®omelwww.homelink.com or

1-800-355-3515.

Operating HomeLink®

HomeLink® should now activate your

To operate, simply press and release

rolling code equipped device.

the programmed HomeLink® button.

Activation will now occur for the

trained device

(i.e. garage door

opener, gate operator, security sys-

tem, entry door lock, home/office

lighting, etc.). For convenience, the

hand-held transmitter of the device

may also be used at any time.

3-27

Convenient features of your vehicle

Erasing HomeLink® buttons

Side View Mirrors

Information

Individual buttons cannot be erased.

This device complies with Part 15 of

However, to erase all three pro-

the FCC Rules.

grammed buttons:

Operation is subject to the following

1. Press and hold the two outer

three conditions:

HomeLink® buttons until the indi-

cator light begins to flash after 10

1. This device may not cause harmful

seconds.

interference, and

2. Release both buttons. Do not hold

2. This device must accept any inter-

ference received, including interfer-

for longer than 20 seconds.

ence that may cause undesired

The Integrated HomeLink® Wireless

operation.

Control System is now in the training

(learn) mode and can be pro-

3. The transceiver has been tested and

OHCA047012

grammed at any time following the

complies with FCC and Industry

Be sure to adjust mirror angles

appropriate

steps

the

Canada rules. Changes or modifi-

before driving.

Programming chapters above.

cations not expressly approved by

the party responsible for compli-

Your vehicle is equipped with both

ance could void the user's authority

left-hand and right-hand side view

NVS® is a registered trademark and

mirrors. The mirrors can be adjusted

to operate the device.

Z-Nav™ is a trademark of the Gentex

remotely with the remote switch. The

Corporation, Zeeland, Michigan.

mirror heads can be folded to help

HomeLink® is a registered trademark

prevent damage during an automatic

owned by Johnson Controls,

car wash or when passing through a

Incorporated, Milwaukee, Wisconsin.

narrow street.

FCC ID: NZLTLMHL4

The right side view mirror is convex.

IC: 4112A-TLMHL4

Objects seen in the mirror are closer

than they appear.

3-28

Use your interior side view mirror or

Blind spot mirror (if equipped)

WARNING

direct observation to determine the

actual distance of following vehicles

• Always check the road condi-

when changing lanes.

tion while driving for unex-

pected situations even though

WARNING

the vehicle is equipped with a

blind spot mirror.

Do not adjust or fold the side

• The blind spot mirror is a

view mirrors while driving. This

device made for convenience.

may cause loss of vehicle con-

Do not solely rely on the mir-

trol resulting in an accident.

ror but always pay attention to

OLF044477N

traffic around you.

NOTICE

• Do not scrape ice off the mirror

NOTICE

face; this may damage the sur-

Do not clean the mirror with harsh

face of the glass.

abrasives, fuel or other petroleum

• If the mirror is jammed with ice,

based cleaning products.

do not adjust the mirror by

force. Use an approved spray

de-icer (not radiator antifreeze)

spray, or a sponge or soft cloth

OLF044478N

with very warm water, or move

the vehicle to a warm place and

The Blind Spot Mirror (BSM) is a sup-

plemental mirror that helps reduce

allow the ice to melt.

the driver's blind spot by showing the

rear side area of the vehicle. The

blind spot mirror is equipped on the

left-hand side view mirror.

3-29

Convenient features of your vehicle

Side view mirror adjustment

NOTICE

•

The mirrors stop moving when

they reach the maximum adjust-

ing angles, but the motor contin-

ues to operate while the switch

is pressed. Do not press the

switch longer than necessary,

because this can damage the

motor.

•

Do not attempt to adjust the side

OHCR046011

view mirrors by hand, because

this can damage the motor.

Electric type (if equipped)

OHCA047725

1. Press either the L (driver's side) or

Manual type (if equipped)

R (passenger's side) button (1) to

The side view mirrors are equipped

select the side view mirror you

with a remote control for your con-

would like to adjust.

venience. It is operated by the control

2. Use the mirror adjustment control

lever in the bottom front corner of the

switch (2) to position the selected

window.

mirror up, down, left or right.

Before driving away, always check

3. After adjustment, put the button

that your mirrors are positioned so

into neutral

(center) position to

you can see behind you, both to the

prevent inadvertent adjustment.

left and right sides, as well as direct-

ly behind your vehicle. When using

the mirror, always exercise caution

when attempting to judge the dis-

tance of vehicles behind or along

side of you.

3-30

Folding the side view mirrors

NOTICE

(if equipped)

Do not fold the electric type side

view mirrors by hand. It could

cause motor failure.

OHCI047653

Electric type (if equipped)

The side view mirrors can be folded

OHCR046012

or unfolder by pressing the switch.

Manual type (if equipped)

To fold the side view mirrors, grasp

NOTICE

the housing of the mirror and then

fold it toward the rear of the vehicle.

The electric type side view mirrors

operates even though the ignition

switch is in the OFF position.

However, to prevent unnecessary

battery discharge, do not adjust

the mirrors longer than necessary

while the engine is not running.

3-31

Convenient features of your vehicle

WINDOWS

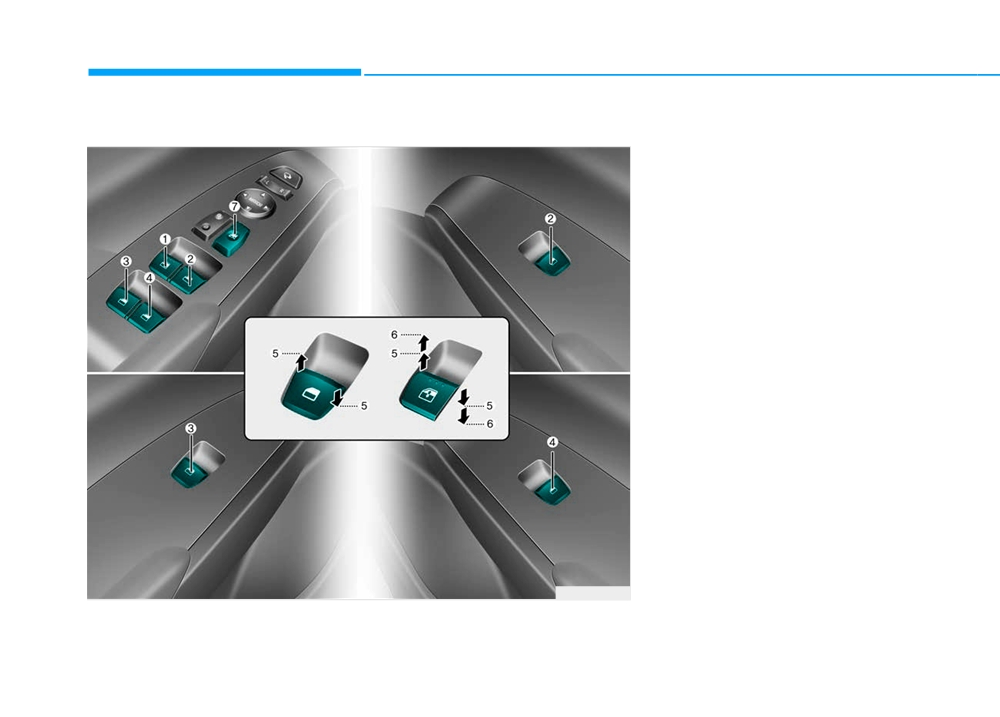

Power Windows (if equipped)

(1) Driver’s door power window

switch

(2) Front passenger’s door power

window switch

(3) Rear door (left) power window

switch

(4) Rear door (right) power window

switch

(5) Window opening and closing

(6) Automatic power window

(7) Power window lock switch

The ignition switch must be in the ON

position to be able to raise or lower

the windows. Each door has a Power

Window switch to control that door’s

window. The driver has a Power

Window Lock switch which can block

the operation of passenger windows.

The power windows will operate for

approximately 30 seconds after the

ignition switch is placed in the ACC

or LOCK/OFF position. However, if

the front doors are opened, the

Power Windows will not operate even

OHCM047013

within the 30 second period.

3-32

Window opening and closing

Auto down window (if equipped)

WARNING

Pressing the power window switch

down momentarily to the second

To avoid serious injury or death,

detent position (6) completely lowers

do not extend your head, arms

the window even when the switch is

or body outside the windows

released. To stop the window at the

while driving.

desired position while the window is

in operation, pull up or press down

Information

and release the switch.

•

In cold and wet climates, power win-

dows may not work properly due to

Auto up/down window

freezing conditions.

(if equipped)

•

While driving with the rear win-

OHCR046014

Pressing or pulling up the power win-

dows down or with the sunroof (if

To open:

dow switch momentarily to the sec-

equipped) opened

(or partially

ond detent position

(6) completely

Press the window switch down to the

opened), your vehicle may demon-

lowers or lifts the window even when

first detent position (5). Release the

strate a wind buffeting or pulsation

the switch is released. To stop the

switch when you want the window to

noise. This noise is normal and can

window at the desired position while

stop.

be reduced or eliminated by taking

the window is in operation, pull up or

the following actions. If the noise

press down and release the switch.

occurs with one or both of the rear

To close:

windows down, partially lower both

Pull the window switch up to the first

front windows approximately one

detent position (5). Release the win-

inch. If you experience the noise

dow switch when you want the win-

with the sunroof open, slightly close

dow to stop.

the sunroof.

3-33

Convenient features of your vehicle

To reset the power windows

Automatic reverse (if equipped)

Information

If the power windows do not operate

The automatic reverse feature is only

normally, the automatic power win-

active when the "Auto Up" feature is

dow system must be reset as follows:

used by fully pulling up the switch to

1. Place the ignition switch to the ON

the second detent.

position.

2. Close the window and continue

WARNING

pulling up on the power window

switch for at least one second.

Make sure body parts or other

If the power windows do not operate

objects are safely out of the way

properly after resetting, have the

before closing the windows to

system checked by an authorized

avoid injuries or vehicle damage.

HYUNDAI dealer.

OLF044032

Objects less than 0.16 inch (4 mm)

If a window senses any obstacle while

in diameter caught between the

it is closing automatically, it will stop

window glass and the upper win-

WARNING

and lower approximately 12 inches (30

dow channel may not be detected

cm) to allow the object to be cleared.

by the automatic reverse window

The automatic reverse feature

doesn't activate while resetting

If the window detects the resistance

and the window will not stop and

reverse direction.

the power window system. Make

while the power window switch is

sure body parts or other objects

pulled up continuously, the window

are safely out of the way before

will stop upward movement then

NOTICE

closing the windows to avoid

lower approximately 1 inch (2.5 cm).

injuries or vehicle damage.

Do not install any accessories on

If the power window switch is pulled

up continuously again within 5 sec-

the windows. The automatic reverse

feature may not operate.

onds after the window is lowered by

the automatic window reverse fea-

ture, the automatic window reverse

will not operate.

3-34

Power window lock switch

Manual windows (if equipped)

WARNING

Do not allow children to play

with the power windows. Keep

the driver's door power window

lock switch in the LOCK posi-

tion. Serious injury or death can

result from unintentional win-

dow operation by a child.

NOTICE

OHCR046015

•

To prevent possible damage to

OHCM027001

the power window system, do

The driver can disable the power

To raise or lower the window, turn the

not open or close two windows

window switches on the rear passen-

window regulator handle clockwise

or more at the same time. This

ger's doors by pressing the power

or counterclockwise.

will also ensure the longevity of

window lock switch.

the fuse.

When the power window lock switch

•

Never try to operate the main

WARNING

is pressed:

switch on the driver's door and

• The driver's master control can

the individual door window

When opening or closing the

operate all the power windows.

switch in opposite directions at

windows, make sure your pas-

• The front passenger's control can

the same time. If this is done, the

senger's arms, hands and body

operate the front passenger's power

window will stop and cannot be

are safely out of the way.

window.

opened or closed.

• The rear passenger's control can-

not operate the rear passenger's

power window.

3-35

Hyundai Accent (2018 year). Manual - part 6
