Hyundai Tiburon (2008 year). Manual - part 3

FEATURES OF YOUR HYUNDAI

B240A03GK-AAT

The purpose of the SRS is to provide the

According to the impact severity, seating posi-

Driver's and Passenger's Front Airbag

vehicle's driver and/or the front passenger with

tion and seat belt usage, the SRSCM(SRS

additional protection than that offered by the

Control Module) controls the airbag inflation.

Driver's Front Airbag

seat belt system alone in case of a frontal impact

Failure to properly wear seat belts can increase

of sufficient severity. The SRS uses sensors to

the risk or severity of injury in an accident.

gather information about the driver's seat posi-

tion, the driver's and front passenger's seat belt

Additionally, your Hyundai is equipped with an

usage and impact severity.

occupant classification system in the front

passenger's seat. The occupant classification

The driver's seat track position sensors, which

system detects the presence of a passenger in

are installed on the seat track, determine if the

the front passenger's seat and will turn off the

seats are fore or aft of a reference position. The

front passenger's airbag under certain condi-

seat belt buckle sensors determine if the driver

tions. For more detail, see "Occupant Classifi-

and front passenger's seat belts are fastened.

cation System" later in this section.

These sensors provide the ability to control the

SRS deployment based on how close the driver's

OGK016240

seat is to the steering wheel, whether or not the

Your Hyundai is equipped with an advanced

seat belts are fastened, and how severe the

Supplemental Restraint (Airbag) System. The

impact is.

indications of the system's presence are the

letters "SRS AIRBAG" embossed on the airbag

The advanced SRS offers the ability to control

pad cover in the steering wheel and the

the airbag inflation with two levels. A first stage

passenger's side front panel pad above the

level is provided for moderate-severity impacts.

glove box.

A second stage level is provided for more

severe impacts.

The Hyundai SRS consists of airbags installed

under the pad covers in the center of the

steering wheel and the passenger's side front

panel above the glove box.

1FEATURES OF YOUR HYUNDAI

NOTE:

Be sure to read information about the

CAUTION:

WARNING:

SRS on the labels provided on the topside

If a seat track position sensor or an occu-

of the sun visor.

Modification to the seat structure can

pant classification system is not working

Advanced airbags are combined with

adversely affect the seat track position

properly, the SRS airbag warning light

AIR

pre-tensioner seat belts to help provide

BAG

sensor and cause the airbag to deploy at

the instrument panel will illuminate be-

enhanced occupant protection in fron-

a different level than should be pro-

cause the SRS airbag warning light is con-

tal crashes. Front airbags are not in-

vided.

nected with the seat track position sensor

tended to deploy in collisions in which

Do not place any objects underneath the

and the occupant classification system. If

sufficient protection can be provided by

front seats as they could damage the

the SRS airbag warning light does not illu-

the pre-tensioner seat belt.

seat track position sensor or interfere

minate when the ignition key is turned to

If you are considering modification of

with the occupant classification sys-

the "ON" position, remains illuminated af-

your vehicle due to a disability, please

tem.

ter approximately 6 seconds when the igni-

contact the Hyundai Customer Assis-

Do not place any objects that may cause

tion key is turned to the "ON" position, or

tance Center at 1-800-633-5151.

magnetic fields near the front seat. These

if it illuminates while the vehicle is being

may cause a malfunction of the seat

driven, have an authorized Hyundai dealer

track position sensor.

inspect the advanced SRS airbag system as

soon as possible.

FEATURES OF YOUR HYUNDAI

WARNING:

Always use seat belts and child restraints -

Move your seat as far back as practical

Do not tamper or disconnect SRS wiring

every trip, every time, everyone! Airbags

from the front airbags, while still main-

or other components. Injuries could

inflate with considerable force and in the

taining control of the vehicle.

result from inadvertent deployment or

blink of an eye. Seat belts help keep occu-

Never sit or lean unnecessarily close to

failure of the airbag to deploy in a crash.

pants in proper position to obtain maxi-

the front or side airbags.

If the SRS airbag warning light (see page

mum benefit from the airbag. Even with

Never lean against the door or center

1-49) remains illuminated while the ve-

advanced airbags, improperly and unbelted

console - always sit in an upright posi-

hicle is being driven, have an authorized

occupants can be severely injured when

tion.

Hyundai dealer inspect the airbag sys-

the airbag inflates. Always follow the pre-

Do not allow an adult passenger to ride

tem as soon as possible.

cautions about seat belts, airbags and oc-

in the front seat when the “Passenger

Airbags can only be used once - have an

cupant safety contained in this manual.

Airbag OFF” indicator is illuminated,

authorized Hyundai dealer replace the

because the airbag will not deploy in the

airbag immediately after deployment.

To reduce the chance of serious or fatal

event of a moderate or severe frontal

The SRS is designed to deploy the front

injuries and receive the maximum safety

crash.

airbags only when an impact is suffi-

benefit from your restraint system:

Never place objects over or near any

ciently severe and when the impact angle

o Never place a child in any child or booster

airbag module (front or side impact

is within a range as measured from the

seat in the front seat (see child restraints

airbags), because these objects can in-

forward longitudinal axis of the vehicle.

1-31).

jure passengers in a crash.

The front airbags will not deploy in side,

o ABC - Always Buckle Children in the

Never place covers, blankets or after-

rear or rollover impacts. Additionally,

back seat. It is the safest place for

market seat warmers on the passenger

the airbags will only deploy once. Seat

children of any age to ride.

seat as these may interfere with the

belts must be worn at all times.

o Front and side impact airbags can injure

occupant classification system.

occupants improperly positioned in the

front seats.

1FEATURES OF YOUR HYUNDAI

WARNING:

Front airbags are not intended to deploy

No objects should be placed over or near

Children younger than 13 years must

in side-impact, rear-impact or rollover

the airbag modules on the steering

always be properly restrained in the rear

crashes. In addition, front airbags will

wheel, instrument panel, and the front

seat. Never allow children to ride in the

not deploy in frontal crashes below the

passenger's panel above the glove box,

front passenger seat. If a child over 13

deployment threshold.

because any such object could cause

must be seated in the front seat, he or

harm if the vehicle is in a crash severe

she must be properly belted and the seat

enough to cause the airbags to deploy.

should be moved as far back as possible.

If the airbags deploy, they must be re-

For maximum safety protection in all

placed by an authorized Hyundai dealer.

types of crashes, all occupants includ-

Deployed airbags WILL NOT inflate again

ing the driver should always wear their

and will provide no protection in subse-

seat belts whether or not an airbag is

Rear impact

quent collisions.

also provided at their seating position to

Do not tamper with or disconnect SRS

minimize the risk of severe injury or

wiring or other components of the SRS

death in the event of a crash. Do not sit

system. Doing so could result in injury,

or lean unnecessarily close to the airbag

due to accidental deployment of the

while the vehicle is in motion.

airbags or by rendering the SRS inopera-

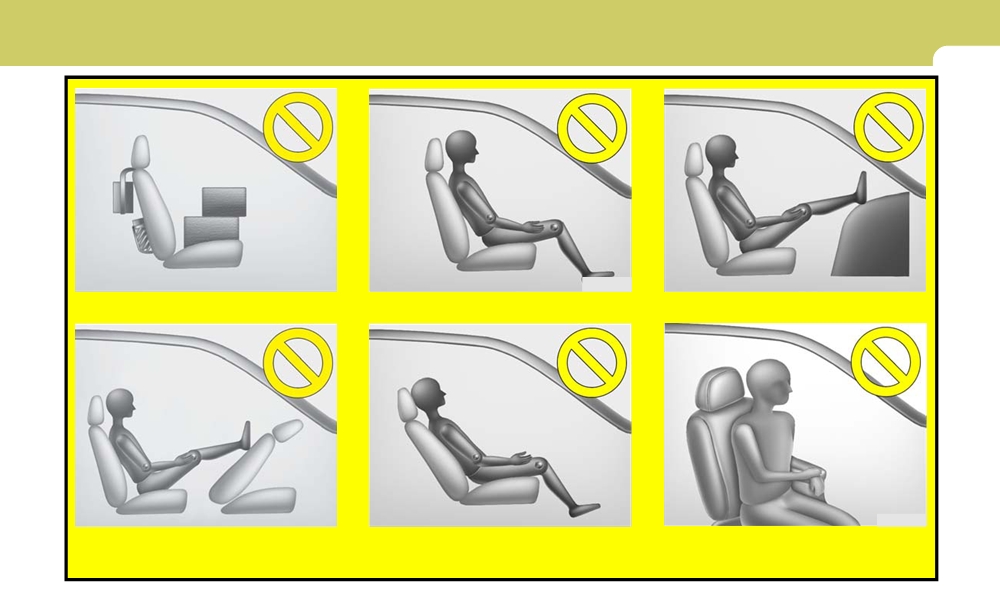

Sitting improperly or out of position can

tive.

result in serious or fatal injury in a crash.

Side Impact

Even though your vehicle is equipped

All occupants should sit upright with

Rollover

B240A02GK

with the occupant classification sys-

the seat back in an upright position,

tem, do not install a child restraint sys-

centered on the seat cushion with their

Move your seat as far back as practical

tem in the front passenger seat position.

seat belt on, legs comfortably extended

from the front airbags, while still main-

A child restraint system must never be

and their feet on the floor until the ve-

taining control of the vehicle. You and

placed in the front seat.

hicle is parked and the ignition key is

your passengers should never sit or lean

The infant or child could be severely

removed.

unnecessarily close to the airbags. Im-

injured or killed by an airbag deploy-

properly positioned drivers and passen-

ment in case of an accident.

gers can be severely injured by inflating

airbags.

FEATURES OF YOUR HYUNDAI

B240B04GK-AAT

12. Side Impact Airbag Module (If Installed)

SRS Components and Functions

13. Front Impact Sensor

WARNING:

The SRS airbag system must deploy very

The SRSCM continually monitors all elements

rapidly to provide protection in a crash.

while the ignition is "ON" to determine if a frontal

If an occupant is out of position because

or near-frontal impact is severe enough to

of not wearing a seat belt, the airbag may

require airbag deployment or pre-tensioner seat

forcefully contact the occupant causing

belt deployment.

serious or fatal injuries.

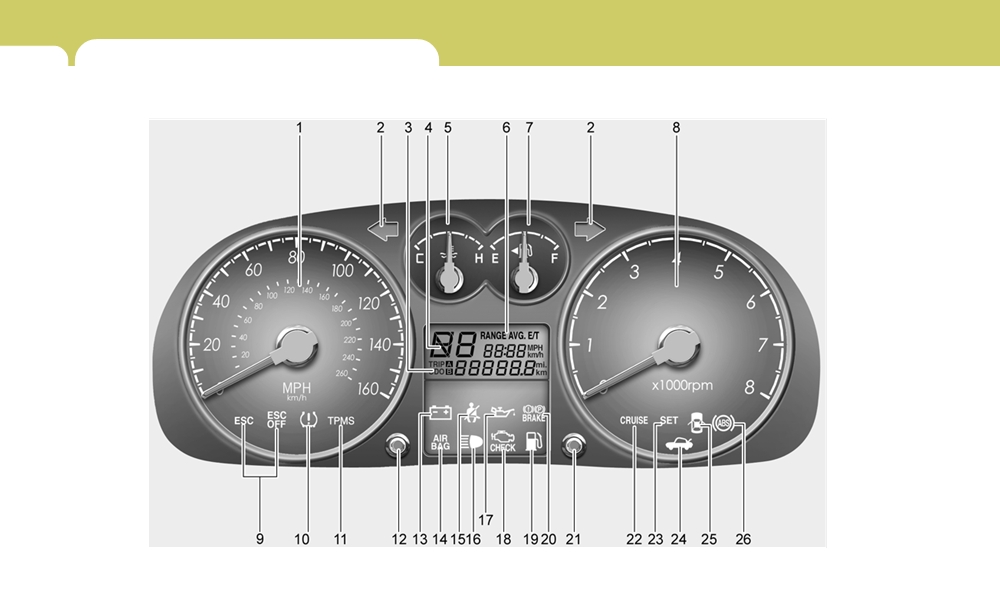

The SRS "AIRBAG" warning light on the instru-

ment panel will illuminate for about 6 seconds

after the ignition key is turned to the "ON"

position or after the engine is started, after which

the "AIRBAG" warning light should go out.

OGK0168003N

The SRS consists of the following components:

1. "PASSENGER AIR BAG OFF" Indicator

(Front passenger's seat only)

2. SRS "AIRBAG" warning light

3. Knee Bolster

4. Passenger's Airbag Module

5. Driver's Airbag Module

6. SRS Control Module (SRSCM)

7. Occupant Classification System

(Front passenger's seat only)

8. Driver's Seat Track Position Sensors

9. Driver's and Front Passenger's Seat Belt

B240B01L

Buckle Sensors

10. Side Impact Sensor (If Installed)

11. Retractor Pre-tensioner Assemblies

1FEATURES OF YOUR HYUNDAI

The airbag modules are located both in the

Passanger's Airbag

center of the steering wheel and in the front

passenger's panel above the glove box. When

the SRSCM detects a sufficiently severe impact

to the front of the vehicle, it will automatically

deploy the front airbags.

OGK016241

B240B03L

A fully inflated airbag, in combination with a

properly worn seat belt, slows the driver's or the

passenger's forward motion, reducing the risk

CAUTION:

of head and chest injury.

Do not install or place any accessories

(drink holder, cassette holder, sticker, etc)

B240B02L

After complete inflation, the airbag immediately

on the front passenger's panel above the

starts deflating, enabling the driver to maintain

Upon deployment, tear seams molded directly

glove box in a vehicle with a passenger's air

forward visibility and the ability to steer or

into the pad covers will separate under pres-

bag. Such objects may become dangerous

operate other controls.

sure from the expansion of the airbags. Further

projectiles and cause injury if the

opening of the covers then allows full inflation of

passenger's air bag inflates.

the airbags.

FEATURES OF YOUR HYUNDAI

B990A01GK-AAT

Occupant Classification System

CAUTION:

WARNING:

When installing a container of liquid air

If an airbag deploys, there may be a loud

freshener inside a vehicle, do not place it

noise followed by a fine dust released in

near the instrument cluster nor on the in-

the vehicle. These conditions are nor-

strument panel pad surface. If there is any

mal and are not hazardous - the airbags

leakage from the air freshener onto these

are packed in this fine powder. The dust

areas (instrument cluster, instrument panel

generated during airbag deployment

pad or air ventilator), it may damage these

may cause skin or eye irritation as well as

parts. If the liquid from the air freshener

aggravate asthma for some persons.

does leak onto these areas, wash them with

Always wash all exposed skin areas thor-

water immediately.

oughly with lukewarm water and a mild

soap after an accident in which the

airbags were deployed.

The SRS can function only when the

OGK036023N

Passenger's Airbag

ignition key is in the "ON" position. If the

Your vehicle is equipped with an occupant

SRS "AIRBAG" warning light does not

classification system in the front passenger's

illuminute, or continuously remains on

seat.

after illuminating for about 6 seconds

The occupant classification system is designed

when the ignition key is turned to the

to detect the presence of a properly-seated

"ON" position, or after the engine is

front passenger and determine if the

started, illuminates while driving, the

passenger's front air bag should be enabled

SRS is not working properly. If this oc-

(may inflate) or not. The driver's front air bag is

curs, have your vehicle immediately in-

not affected or controlled by the occupant clas-

spected by your Hyundai dealer.

sification system.

Before you replace a fuse or disconnect

a battery terminal, turn the ignition key

B240B05L

to the "LOCK" position or remove the

ignition key. Never remove or replace the

air bag related fuse(s) when the ignition

key is in the "ON" position. Failure to

heed this warning will cause the SRS

"AIRBAG" warning light to illuminate.

1FEATURES OF YOUR HYUNDAI

If the front passenger seat is occupied by a

Condition and operation in the front passenger occupant classification system

person that the system determines to be of adult

size, and he/she sits properly (sitting upright

Condition

Indicator/Warning light

Devices

with the seatback in an upright position, cen-

detected by the

tered on the seat cushion with their seat belt on,

occupant

"Passenger air

SRS warning

Front passen-

legs comfortably extended and their feet on the

classification

bag off"

Side air bag

light

ger air bag

floor), the "PASSENGER AIR BAG OFF" indi-

system

indicator light

cator will be turned off and the front passenger's

1. Adult *1

Off

Activated

air bag will be able to inflate, if necessary, in

frontal crashes.

2. Child*2 or

You will find the "PASSENGER AIR BAG OFF"

child

Off

Deactivated

Activated

indicator on the center facia panel. This system

restraint

detects the conditions 1~3 in the following table

system*3

and activates or deactivates front passenger

air bag based on these conditions.

3. Unoccupied

Off

Deactivated

*1)The system judges a person of adult size as an adult. When a smaller adult sits in the front

passenger seat, the system may recognize him/her as a child depending on his/her physique

and posture.

*2)Do not allow children to ride in the front passenger seat. When a larger child who has outgrown

a child restraint system sits in the front passenger seat, the system may recognize him/her as

an adult depending on his/her physique or posture.

*3)Never install a child restraint system on the front passenger seat.

WARNING:

Riding in an improper position or placing weight on the front passenger's seat when it is

unoccupied by a passenger adversely affects the occupant classification system (OCS).

FEATURES OF YOUR HYUNDAI

OVQ036013N

1KMN3663

1KMN3665

- Never put a heavy load in the front passen-

- Never sit with hips shifted towards the front

- Never place feet on the dashboard.

ger seat or seatback pocket.

of the seat.

OVQ036014N

1KMN3662

1KMN3664

- Never place feet on the front passenger

- Never excessively recline the front passen-

- Never lean on the center console.

seatback.

ger seatback.

- Never sit on one side of the front passenger

seat.

1FEATURES OF YOUR HYUNDAI

If the "PASSENGER AIR BAG OFF" indicator is

NOTE:

Proper position

still on, ask the passenger to move to the rear

The "PASSENGER AIR BAG OFF" indicator

seat.

illuminates for about 4 seconds after the

ignition key is turned to the "ON" position

or after the engine is started. If the front

passenger seat is occupied, the occupant

classification sensor will then classify the

WARNING:

front passenger after several more sec-

Do not allow an adult to ride in the front seat

onds.

when the “PASSENGER AIR BAG OFF”

indicator is illuminated, because the air bag

will not deploy in the event of a crash. If the

"PASSENGER AIR BAG OFF" indicator re-

mains illuminated after the passenger re-

WARNING:

B990A01O

positions themselves properly and the car

Do not put a heavy load in the front passen-

is restarted, we recommend that passenger

When an adult is seated in the front passenger

ger seatback pocket or on the front passen-

move to the rear seat because the

seat, if the "PASSENGER AIR BAG OFF" indi-

ger seat. Do not hang onto the front pas-

passenger's front air bag will not deploy.

cator is on, turn the ignition key to "LOCK" and

senger seat. Do not hang any items such as

Front seat passengers must stay properly

ask the passenger to sit properly (sitting upright

a seatback table on the front passenger

seated to avoid serious injury from a de-

with the seat back in an upright position, centered

seatback. Do not place feet on the front

ploying air bag.

on the seat cushion with their seat belt on, legs

passenger seatback. Do not place any items

comfortably extended and their feet on the floor).

under the front passenger seat. Any of

Restart the engine and have the person remain

these could interfere with proper sensor

in that position. This will allow the system to detect

operation.

the person and to enable the passenger air bag.

FEATURES OF YOUR HYUNDAI

CAUTION:

WARNING:

If the occupant classification system is not

Even though your vehicle is equipped

Do not sit on sharp objects such as tools

working properly, the SRS air bag warning

with the occupant classification sys-

when occupying the front passenger

light

on the instrument panel will illumi-

tem, never install a child restraint system

seat. This can adversely affect the occu-

nate because the passenger's front air bag

in the front passenger's seat. A deploy-

pant classification system.

is connected with the occupant classifica-

ing air bag can forcefully strike a child

Do not use accessory seat covers on the

tion system. If there is a malfunction of the

resulting in serious injuries or death.

front seats.

occupant classification system, the "PAS-

Any child under 13 years of age should

Accident statistics show that children

SENGER AIR BAG OFF" indicator will illu-

ride in the rear seat. Children too large

are safer if they are restrained in the rear,

minate and the passenger's front air bag

for child restraints should use the avail-

as opposed to the front seat. It is recom-

will not inflate in frontal impact crashes

able lap/shoulder belts. No matter what

mended that child restraints be secured

even if there is adult occupant in the front

type of crash, children of all ages are

in a rear seat, including an infant riding

passenger's seat. If the SRS air bag warning

safer when restrained in the rear seat.

in a rear-facing infant seat, a child riding

light does not illuminate when the ignition

If the "PASSENGER AIR BAG OFF" indi-

in a forward-facing child seat and an

key is turned to the "ON" position, remains

cator is illuminated when the front

older child riding in a booster seat.

illuminated after approximately 6 seconds

passenger's seat is occupied by an adult

Air bags can only be used once - have an

when the ignition key is turned to the "ON"

and he/she sits properly (sitting upright

authorized Hyundai dealer replace the

position, or if it illuminates while the vehicle

with the seatback in an upright position,

air bag immediately after deployment.

is being driven, have an authorized Hyundai

centered on the seat cushion with their

A smaller-stature adult who is not seated

dealer inspect the occupant classification

seat belt on, legs comfortably extended

correctly (for example: seat excessively

system and the SRS air bag system as soon

and their feet on the floor), have that

reclined, leaning on the center console,

as possible.

person sit in the rear seat.

or hips shifted forward in the seat) can

Do not modify or replace the front pas-

cause a condition where the advanced

senger seat. Don't place anything on or

frontal air bag system senses less seated

attach anything such as a blanket or

pressure than if the occupant were

after market seat heater to the front

seated properly (sitting upright with the

passenger seat. This can adversely af-

seatback in an upright position, cen-

fect the occupant classification system.

tered on the seat cushion with their seat

belt on, legs comfortably extended and

their feet on the floor).

1FEATURES OF YOUR HYUNDAI

B990B02MC-AAT

Important Safety Notes on the Side Im-

Side Impact Airbag

pact Airbag System

WARNING:

This condition can result in an adult

Following is a number of safety points concern-

potentially being misclassified and illu-

ing this system which should always be ob-

mination of the "PASSENGER AIR BAG

served to ensure risk of injury is reduced in an

OFF" indicator.

accident.

WARNING:

The side impact airbag is supplemental

to the driver's and the passenger's seat

belt systems and is not a substitute for

them. Therefore your seat belts must be

B990B02Y

worn at all times while the vehicle is in

Your Hyundai is equipped with a side impact

motion. The airbags deploy only in cer-

airbag in each front seat. The purpose of the

tain side impact conditions.

airbag is to provide the vehicle's driver and/or

For best protection from the side impact

the front passenger with additional protection

airbag system and to avoid being injured

than that offered by the seat belt alone. The side

by the deploying side impact airbag,

impact airbags are designed to deploy only

both front seat occupants should sit in

during certain side-impact collisions, depend-

an upright position with the seat belt

ing on the crash severity, angle, speed and point

properly fastened. The driver's hands

of impact. The side impact airbags are not

should be placed on the steering wheel

designed to deploy in all side impact situations.

at the 9:00 and 3:00 o'clock positions.

The passenger's arms and hands should

be placed on their laps.

Do not use any accessory seat covers.

Use of seat covers could prevent or

reduce the effectiveness of the system.

FEATURES OF YOUR HYUNDAI

B240C04A-AAT

SRS Care

WARNING:

The SRS is virtually maintenance free and there

Do not install any accessories on the

are no parts you can safely service by yourself.

side or near the side impact airbag.

If the SRS "AIRBAG" warning light does not

Do not place any objects over the airbag

illuminate, or continuously remains on, have

or between the airbag and yourself.

your vehicle immediately inspected by your

Do not place any objects (an umbrella,

Hyundai dealer.

bag, etc.) between the front door and the

Any work on the SRS system, such as remov-

front seat. Such objects may become

ing, installing, repairing, or any work on the

dangerous projectiles and cause injury

steering wheel must be performed by a qualified

if the supplemental side impact airbag

Hyundai technician. Improper handling of the

inflates.

airbag system may result in serious personal

B240C01HP

To prevent unexpected deployment of

injury.

the side impact airbag that may result in

personal injury,avoid impact to the side

airbag sensor when the ignition key is

on.

WARNING:

Do not install a child restraint system in

the front passenger seat position. A

child restraint system must never be

placed in the front seat. The infant or

child could be severely injured or killed

by an airbag deployment in case of an

accident.

Modification to SRS components or wir-

ing, including the addition of any kind of

badges to the pad covers or modifica-

tions to the body structure, can ad-

versely affect SRS performance and lead

to possible injury.

1FEATURES OF YOUR HYUNDAI

B240D02JM-AAT

Additional Safety Precautions

Never let passengers ride in the cargo

WARNING:

area (trunk) or on top of a folded-down

For cleaning the airbag pad covers, use

If your car was flooded and has soaked

back seat. All occupants should sit upright,

only a soft, dry cloth or one which has

carpeting or water on the floor, you

fully back in their seats with their seat belts

been moistened with plain water. Sol-

shouldn't try to start the engine; have

on and their feet on the floor.

vents or cleaners could adversely affect

the car towed to an authorized Hyundai

Passengers should not move out of or

the airbag covers and proper deploy-

dealer.

change seats while the vehicle is mov-

ment of the system.

ing. A passenger who is not wearing a seat

No objects should be placed over or near

belt during a crash or emergency stop can

the airbag modules on the steering

be thrown against the inside of the vehicle,

wheel, instrument panel, and the front

against other occupants, or out of the ve-

passenger’s panel above the glove box,

hicle.

because any such object could cause

Each seat belt is designed to restrain one

harm if the vehicle is in a crash severe

occupant. If more than one person uses the

enough to cause the airbags to inflate.

same seat belt, they could be seriously

If the airbags inflate, they must be re-

injured or killed in a collision.

placed by an authorized Hyundai dealer.

Do not use any accessories on seat

Do not tamper with or disconnect SRS

belts. Devices claiming to improve occu-

wiring, or other components of the SRS

pant comfort or reposition the seat belt can

system. Doing so could result in injury,

reduce the protection provided by the seat

due to accidental inflation of the airbags

belt and increase the chance of serious

or by rendering the SRS inoperative.

injury in a crash.

If components of the airbag system must

Passengers should not place hard or

be discarded, or if the vehicle must be

sharp objects between themselves and

scrapped, certain safety precautions

the airbags. Carrying hard or sharp objects

must be observed. Your Hyundai dealer

on your lap or in your mouth can result in

knows these precautions and can give

injuries if an airbag inflates.

you the necessary information. Failure

to follow these precautions and proce-

dures could increase the risk of personal

injury.

FEATURES OF YOUR HYUNDAI

Keep occupants away from the airbag

covers. All occupants should sit upright, fully

back in their seats with their seat belts on and

WARNING:

their feet on the floor. If occupants are too

o Sitting improperly or out of position can

close to the airbag covers, they could be

cause occupants to be shifted too close

injured if the airbags inflate.

to a deploying airbag, strike the interior

Do not attach or place objects on or near

structure or be thrown from the vehicle

the airbag covers. Any object attached to

resulting in serious injury or death.

or placed on the front or side impact airbag

o Always sit upright with the seatback in

covers could interfere with the proper opera-

an upright position, centered on the

tion of the airbags.

seat cushion with your seat belt on, legs

Do not modify the front seats. Modifica-

comfortably extended and your feet on

tion of the front seats could interfere with the

the floor.

operation of the supplemental restraint sys-

tem sensing components or side impact

airbags.

Adding Equipment to or Modifying Your

Do not place items under the front seats.

Placing items under the front seats could

Airbag-Equipped Vehicle.

interfere with the operation of the supple-

If you modify your vehicle by changing your

mental restraint system sensing compo-

vehicle's frame, bumper system, front end or

nents and wiring harnesses.

side sheet metal or ride height, this may affect

Never hold an infant or child on your lap.

the operation of your vehicle's airbag system.

The infant or child could be seriously injured

or killed in the event of a crash. All infants and

children should be properly restrained in

appropriate child safety seats or seat belts

in the rear seat.

1FEATURES OF YOUR HYUNDAI

INSTRUMENT CLUSTER AND INDICATOR LIGHTS

B260A03GK-AAT

OGK046028N

FEATURES OF YOUR HYUNDAI

1. Speedometer

14. SRS (AIRBAG) Warning Light

2. Turn Signal Indicator Light

15. Seat Belt Warning Light

3. Odometer/Trip Odometer

16. High Beam Indicator Light

4. Automatic Transaxle Position Indicator Light (If installed)

17. Low Oil Pressure Warning Light

5. Coolant Temperature Gauge

18. Malfunction Indicator Light (MIL)

6. Trip Computer (if installed)

19. Low Fuel Warning Light

7. Fuel Gauge

20. Parking Brake/Low Brake Fluid Level Warning Light

8. Tachometer

21. Trip Computer Reset Knob (If installed)

9. Electronic Stability Control (ESC) Indicator Light (If installed)

22. CRUISE Indicator Light (If installed)

10. Low Tire Pressure Telltale

23. CRUISE SET Indicator Light (If installed)

11. TPMS (Tire Pressure Monitoring System) Malfunction Indicator

24. Tail Gate Open Warning Light

12. Trip Odometer Reset Knob

25. Door Ajar Warning Light

13. Charging System Warning Light

26. ABS Service Reminder Indicator (SRI)

Content .. 1 2 3 4 ..
