Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-6
Vehicle certification label / 8-6
Tire specification and pressure label / 8-7
Engine number / 8-7
Consumer information / 8-8
Reporting safety defects / 8-9
Binding arbitration / 8-9
Specifications, Consumer information,
8
Reporting safety defects
Specifications, Consumer information, Reporting safety defects
DIMENSIONS
BULB WATTAGE
I010000AFD-EU
I030000AFD-EU
Item
in (mm)
Light Bulb
Wattage
Overall length
176.2 (4475)
Headlights (Low)
55
Overall width
69.9 (1775)
Headlights (High)
55
Front turn signal/Position lights
21/5
Overall height
59.8 (1520)
Side repeater lights*
LED
61.1/60.9 (1552/1546)
P195/65R15
Front fog lights*
27
(aluminium/steel)
Front tread
Front side marker lights
5
P205/55R16
60.6 (1538)
Stop and tail lights
28/8
P215/45R17
60.2 (1528)
Rear turn signal lights
27
61.0/60.8 (1550/1544)
P195/65R15
Back-up lights
16
(aluminium/steel)
Rear side marker lights
5
Rear tread
P205/55R16
60.5 (1536)
High mounted stop light
LED
P215/45R17
60.1 (1527)
License plate lights
5
Wheelbase
106.3 (2700)
Front map lamps*
10
Center dome lamps
10
Luggage room lamp*
5
Glove box lamp*
5
Vanity mirror lamps*
5
* : If equipped
8 2
Specifications, Consumer information, Reporting safety defects
TIRES AND WHEELS
I020000AFD-EU
Inflation pressure
Tire
Wheel lug nut torque
Item
Wheel size
psi (kPa)
size
lb•ft (kg•m, N•m)
Front
Rear
P195/65R15
5.5J×15
Full size tire
P205/55R16
6.0J×16
32 (220)
32 (220)
65~79
P215/45R17
7.0Jx17
(9~11, 88~107)
Compact
60
60
T125/80D15
4.0T×15
spare tire *
(420)
(420)
* : If equipped
8 3
Specifications, Consumer information, Reporting safety defects
RECOMMENDED LUBRICANTS AND CAPACITIES
I040000BFD-EU
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant
Volume
Classification
Engine oil *1 *2 (drain and refill)
Recommends
API Service SM*3,
4.23 US qt. (4.0 l)
ILSAC GF-4 or above
Manual transaxle fluid
2.11 US qt. (2.0 l)
API Service GL-4 (SAE 75W-85, fill for-life)
DIAMOND ATF SP-III, SK ATF SP-III or
Automatic transaxle fluid
6.97 US qt. (6.6 l)
other brands meeting the SP-III
specification approved by Hyundai Motor Co.
MIXTURE, Antifreeze with water
Coolant
6.97 US qt. (6.6 l)
(Ethylene glycol base coolant for aluminum radiator)
Brake/Clutch fluid
0.7~0.8 US qt. (0.7~0.8 l)
FMVSS116 DOT-3 or DOT-4
Fuel
14 US gal. (53 l)
-
*1 Refer to the recommended SAE viscosity numbers on the next page.
*2 Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*3 If the API service SM engine oil is not available in your country, you are able to use API service SL.
8 4
Specifications, Consumer information, Reporting safety defects
I040100BFD-EU
Engine oil viscosity (thickness) has an
When choosing an oil, consider the range
Recommended SAE viscosity
effect on fuel economy and cold weather
of temperature your vehicle will be oper-
number
operation
(engine start and engine oil
ated in before the next oil change.
flowability). Lower viscosity engine oils
Proceed to select the recommended oil
CAUTION
can provide better fuel economy and cold
viscosity from the chart.
weather performance, however, higher
Always be sure to clean the area
viscosity engine oils are required for sat-
around any filler plug, drain plug, or
isfactory lubrication in hot weather. Using
dipstick before checking or drain-
oils of any viscosity other than those rec-
ing any lubricant. This is especially
ommended could result in engine dam-
important in dusty or sandy areas
age.
and when the vehicle is used on
unpaved roads. Cleaning the plug
Temperature Range for SAE Viscosity Numbers
and dipstick areas will prevent dirt
and grit from entering the engine
°C
-30
-20
-10
0
10
20
30
40
50
Temperature
and other mechanisms that could
(°F)
-10
0
20
40
60
80
100
120
be damaged.
Gasoline
10W-30
Engine Oil *1
5W-20, (5W-30)
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
8 5
Specifications, Consumer information, Reporting safety defects

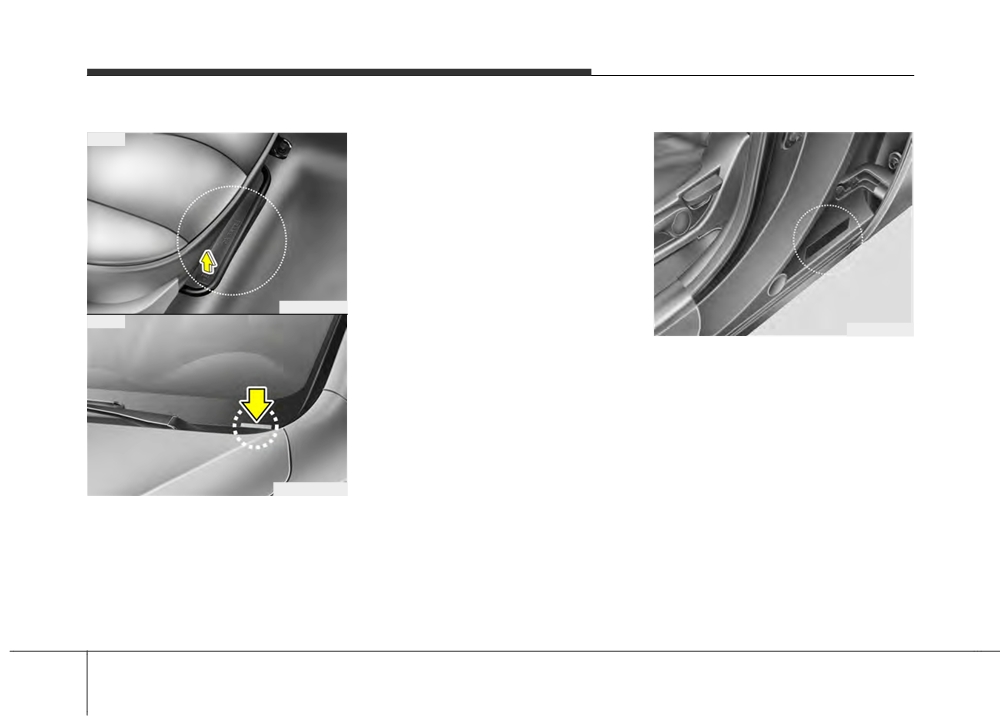

VEHICLE IDENTIFICATION
VEHICLE CERTIFICATION
NUMBER (VIN)
LABEL
The number is punched on floor under
Type A
the passenger seat. To check the num-
ber, remove the cover.(Type A)
The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.(Type B)
OHD086001
Type B
OHD086007
H020000AUN
The vehicle certification label attached
on the driver’s side center pillar gives the
vehicle identification number (VIN).
OFD087002
H010000AFD
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
8 6
Specifications, Consumer information, Reporting safety defects

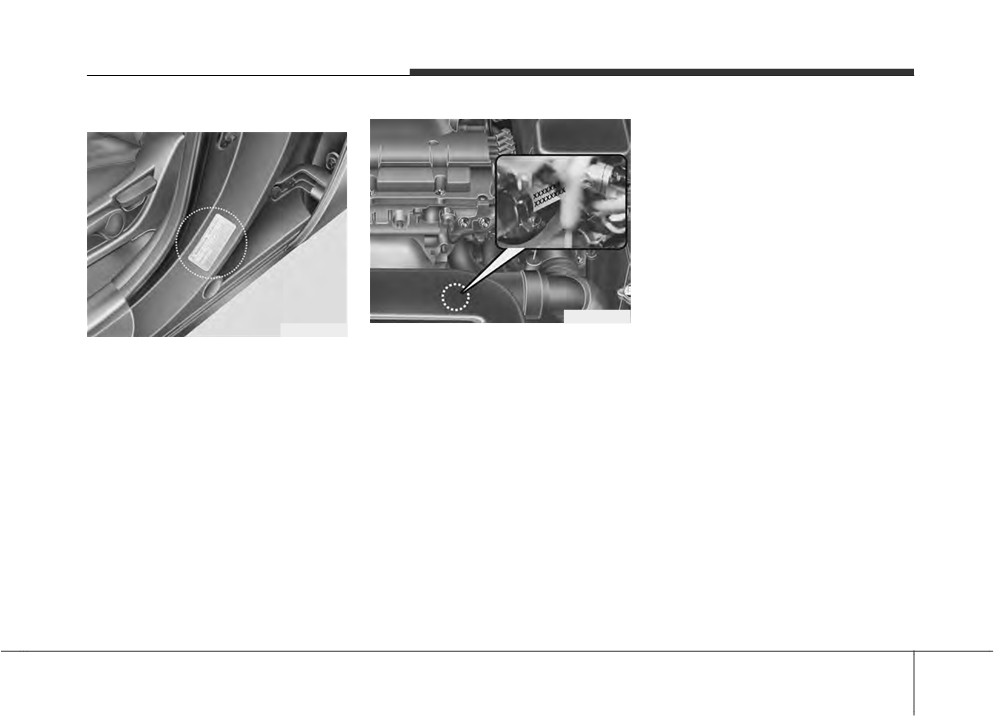

TIRE SPECIFICATION AND
ENGINE NUMBER
PRESSURE LABEL
OFD087005
OHD086003
H04000AUN-EE
H030000AUN
The engine number is stamped on the
The tires supplied on your new vehicle
engine block as shown in the drawing.
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
8 7
Specifications, Consumer information, Reporting safety defects
CONSUMER INFORMATION
H050000AEN
Eastern Region: Connecticut, Delaware,
Central Region: Illinois, Indiana, lowa,
This consumer information has been pre-
Maine, Massachusetts, New Hampshire,
Kentucky,
Michigan,
Minnesota,
pared in accordance with regulations
New Jersey, New York, Pennsylvania,
Nebraska, North Dakota, South Dakota,
issued by the National Highway Traffic
Rhode Island, Vermont.
Ohio, Wisconsin, Kansas, Missouri.
Safety Administration of the U.S.
Department of Transportation. Your
Eastern Region
Central Region
Hyundai dealer will help answer any
1100 Cranbury South River Road
1705 Sequoia Drive
questions you may have as you read this
Jamesburg, NJ 08831
Aurora, Illinois 60506
information.
(800) 633-5151
(800) 633-5151
Hyundai motor vehicles are designed
and manufactured to meet or exceed all
Southern Region: Florida, Georgia,
Western Region: Alaska, Hawaii,
Maryland, North Carolina, South
Arizona, Colorado, ldaho, Montana,
applicable safety standards.
Carolina, Virginia, West Virginia.
Nevada, Oregon, Utah, Washington,
Wyoming.
For your safety, however, we strongly
urge you to read and follow all directions
Southern Region
in this Owner's Manual, particularly the
270 Riverside Parkway, Suite A
Western Region
information under the headings
Austell, GA 30168
10550 Talbert Avenue
"NOTICE", "CAUTION" and "WARN-
(800) 633-5151
P.O.Box 20850
ING".
Fountain Valley, California 92728-0850
South Central Region: Alabama,
(800) 633-5151
If, after reading this manual, you have
Arkansas, Louisiana, Mississippi, New
any questions regarding the operation of
Mexico, Oklahoma, Tennessee, Texas.
California Region: California
your vehicle, please contact your nearest
Hyundai Motor America Regional Office
South Central Region
California Region
as listed in the following:
1421 South Beltline Road, Suite 400
10550 Talbert Avenue
Coppell, TX 75019
P.O. Box 20850
(800) 633-5151
Fountain Valley, California 92728-0850
(800) 633-5151
8 8
Specifications, Consumer information, Reporting safety defects
REPORTING SAFETY DEFECTS
BINDING ARBITRATION (U.S.A ONLY)
H070000AFD
H090000AEN
This Binding Arbitration Agreement shall
If you believe that your vehicle has a
Any claim or dispute you may have relat-
be governed by and interpreted under
defect which could cause a crash or
ed to your vehicle's warranty or the duties
the Federal Arbitration Act, 9 U.S.C. sec-
could cause injury or death, you should
contemplated under the warranty, includ-
tions
1-16. Judgment upon any award
immediately inform the National Highway
ing claims related to the refund or partial
may be entered in any court having juris-
Traffic Safety Administration (NHTSA) in
refund of your vehicle's purchase price
diction.
addition to notifying HYUNDAI MOTOR
(excluding personal injury or product lia-
You may revoke this Arbitration
AMERICA. If NHTSA receives similar
bility claims), shall be resolved by binding
Agreement by (1) written notice or (2)
complaints, it may open an investigation,
arbitration. Binding arbitration shall be
electronic notice. Written notice must be
and if it finds that a safety defect exists in
administered by and through the
delivered (via certified mail) to Hyundai
a group of vehicles, it may order a recall
American Arbitration Association (AAA).
Motor America, Attn: Consumer Affairs,
and remedy campaign. However, NHTSA
You will not be responsible for paying fil-
10550 Talbert Avenue, P.O. Box 20849,
cannot become involved in individual
ing and hearing fees above $275.00. All
Fountain Valley, CA 92728-0849.
problems between you, your dealer, or
other arbitration costs shall be borne by
Electronic notice must be submitted at
HYUNDAI MOTOR AMERICA.
Hyundai Motor America. You are not
the following website address: http://war-
To contact NHTSA, you may call the
responsible to pay any of the costs
ranty-arbitration.hyundaiUSA.com.
Vehicle Safety Hotline toll-free at 1-888-
Hyundai incurs.
Notice must be received within 90 days
327-4236 (TTY: 1-800-424-9153); go to
This Binding Arbitration Agreement shall
after you purchase your vehicle.
http://www.safercar.gov; or write to:
not deprive you of any remedies avail-
Administrator, NHTSA, 1200 New Jersey
able to you under applicable law. The
Avenue, SE., West Building Washington,
parties are waiving their right to seek
DC 20590. You can also obtain other
remedies in court, including the right to a
information about motor vehicle safety
jury trial.
8 9
