FEATURES OF YOUR HYUNDAI

ZB110G2-E

SB210E1-E

CAUTION:

TURN SIGNAL INDICATOR

OVERDRIVE OFF INDICATOR

Operation of the engine with low oil pres-

LIGHT

sure may result in serious damage to the

LIGHT (Not all models)

The blinking green arrow on the instrument

engine.

When the overdrive (4th gear) switch is turned

panel shows the direction indicated by the turn

off and the operation of overdrive (4th gear) is

signals. If the arrow comes on but does not

Should the oil pressure light fail to extinguish

cancelled, the overdrive warning light (O/D OFF)

blink, blinks more rapidly than normal or does

after starting or illuminate when the engine is

will be illuminated. When the switch is at the on

not blink at all, a malfunction in the turn signal

running, the engine must be stopped immedi-

position, the gearbox will operate in the normal

system is indicated.

ately. If the engine oil level is low, add a suffi-

fully automatic mode and the warning light will

cient quantity of oil to raise the level to the full

B260P02Y-AAT

be extinguished.

marking on the dip stick. Restart the engine and

ABS SERVICE REMINDER

ZB110J2-E

check that the warning light is extinguished.

INDICATOR (SRI) (Not all models)

HIGH BEAM INDICATOR

Should the light still be illuminated, stop the

When the key is turned to the “ON” position, the

LIGHT

engine immediately and seek assistance from

ABS light will come on and then go off in a few

This light is coloured blue and should illuminate

the nearest Hyundai dealer.

seconds.

only when the headlight upper beam is on.

If the ABS light remains on, comes on while

ZB110L3-E

driving, or does not come on when the key is

B260E02A-GAT

PARKING BRAKE, BRAKE

turned to the “ON” position, this indicates that

SEAT BELT REMINDER LIGHT

CIRCUIT FAILURE

there may be a problem with the ABS.

If this occurs, have your vehicle checked by

WARNING LIGHT

your Hyundai dealer as soon as possible. The

The seat belt reminder light comes on until your

This light will be illuminated when the hand

normal braking system will still be operational,

seat belt is fastened when the ignition key is

brake is applied and the ignition on, and should

but without the assistance of the anti-lock brake

turned from the "OFF" position to "ON" or

go out when the hand brake is released. The

system.

"START".

vehicle should not be driven until the hand

brake has been released and the light go out. It

CAUTION:

ZB110K2-E

also will be illuminated if the brake fluid level in

If the both ABS SRI and Parking Brake/

OIL PRESSURE WARNING

the reservoir falls to the MIN. mark. If the light

Brake fluid level warning lights remain "ON"

LIGHT

illuminates while driving pull off the road if

or come on while driving, there may be a

The oil pressure warning light will illuminate

possible and stop immediately. Contact your

problem with E.B.D (Electronic brake force

when insufficient oil pressure exists for safe

nearest authorized dealer and have the system

distribution).

engine operation.

checked.

If this occurs, avoid sudden stops and have

The light should illuminate when the ignition is

your vehicle checked by your Hyundai dealer

turned on and should be extinguished as soon

as soon as possible.

as the engine is started.

1-18

FEATURES OF YOUR HYUNDAI

driving, shift to a lower gear for additional en-

YB110C1-A

Warning Light Operation

gine braking and stop the car as soon as it is

SRS (Airbag) SERVICE

The parking brake/brake fluid level warning

safe to do so.

REMINDER INDICATOR

light should come on when the parking brake is

(Not all models)

applied and the ignition switch is turned to "ON"

ZB110M2-E

The SRS service reminder indicator (SRI) comes

or "START". After the engine is started, the light

CHARGING WARNING LIGHT

on and flashes for about

6 seconds after the

should go out when the parking brake is re-

leased.

ignition key is turned to the “ON” position or

This red warning light indicates malfunctioning

after the engine is started, after which it will go

If the parking brake is not applied, the warning

of the alternator and electrical charging system.

out.

light should come on when the ignition switch is

If this warning light glows when the ignition

turned to "ON" or "START", then go out when

This light also comes on when the SRS is not

switch is in the "ON" position (engine off), the

the engine starts. If the light comes on at any

working properly.

bulb and electrical wiring are satisfactory. The

other time, you should slow the vehicle and

If the SRI does not come on, or continuously

light should go out when the engine is started.

bring it to a complete stop in a safe location off

remains on after flashing for about 6 seconds

If the light glows when the engine is running, the

the roadway.

when you turned the ignition key to the “ON”

alternator and electrical system should be

The brake warning light indicates that the brake

position or started the engine, or if it comes on

checked as soon as possible.

fluid level in the brake master cylinder is low

while driving, have the SRS inspected by an

and hydraulic brake fluid conforming to DOT 3

authorized Hyundai Dealer.

or DOT 4 specifications should be added. After

B260L01A-GAT

DOOR AJAR WARNING LIGHT

adding fluid, if no other trouble is found, the car

ZB110R1-E

should be immediately and carefully driven

to a Hyundai dealer for inspection. If further

The door ajar warning light warns you that a

BRAKE PAD WEAR WARNING SOUND

trouble is experienced, the vehicle should not

door is not completely closed.

When the brake pads of the front brakes be-

be driven at all but taken to a dealer by a

come worn to almost the limit of use, a

professional towing service or some other safe

ZB110P2-E

metalfriction squealing sound will be heard as a

method.

LOW FUEL LEVEL WARNING

warning to the driver that the brakes should be

Your Hyundai is equipped with dual-diagonal

LIGHT

checked. When this sound is heard, replace the

braking systems. This means you still have

The low fuel level warning light comes on when

brake pads with new ones.

braking on two wheels even if one of the dual

the fuel tank is approaching empty. When it

ZB110Q2-A

systems should fail. With only one of the dual

comes on, you should add fuel as soon as

MALFUNCTION INDICATOR

systems working, more than normal pedal trav-

possible. Driving with the fuel level warning light

el and greater pedal pressure are required to

on or with the fuel level below "E" can cause the

LIGHT

stop the car. Also, the car will not stop in as

engine to misfire.

This light illuminates when there is a malfunc-

short a distance with only half of the brake

tion of an exhaust gas related component, and

system working. If the brakes fail while you are

the system is not functioning properly so that

1-19

FEATURES OF YOUR HYUNDAI

the exhaust gas regulation values are not sat-

ZB110S1-E

B290A02A-AAT

isfied. This light will also illuminate when the

FUEL GAUGE

ENGINE COOLANT TEMPERATURE

ignition key is turned to the “ON” position, and

GAUGE

then it will go out in a few seconds. If it illumi-

nates while driving, or does not illuminate when

the ignition key is turned to the “ON” position,

take your car to your nearest authorized Hyundai

dealer and have the system checked.

B900A01A-GAT

ACOUSTIC WARNING SOUND

(Not all models)

The acoustic warning chime sounds when the

B280A01X

tail lights are on and the door in driver side is

B290A01X

open. This prevents the battery from discharg-

The needle on the gauge indicates the fuel level

ing when the car is left with the tail lights on.

in the fuel tank. The fuel capacity is given in

WARNING:

The chime sounds until the tail lights are turned

section 9.

Never remove the radiator cap when the

off.

engine is hot. The engine coolant is under

NOTE:

pressure and could erupt and cause severe

The engine should not be operated below

burns. Wait until the engine is cool before

the “E” mark of the fuel gauge and with the

removing the radiator cap.

low fuel level warning lamp on, or serious

engine damage or misfire may result.

The needle on the engine coolant temperature

gauge should stay in the normal range. If it

moves across the dial to “H” (Hot), pull over and

stop as soon as possible and turn off the

engine. Then open the hood and check the

coolant level and the water pump drive belt. If

you suspect cooling system trouble, have your

cooling system checked by Hyundai dealer as

soon as possible.

1-20

FEATURES OF YOUR HYUNDAI

ZB110U1-A

ZB120A1-E

ZB120C1-A

SPEEDOMETER

MULTI FUNCTION SWITCH

HEADLIGHT SWITCH

Turn Signal Operation

B300A01X-DAG

B340C01X-DAG

B340B01X-DAG

Your Hyundai’s speedometer is calibrated in

To operate the headlights, turn the barrel on the

miles per hour (on the outer scale) and kilome-

end of the multi-function switch. The first posi-

To signal an intention to turn right, the switch

ters per hour (on the inner scale).

tion turns on the parking lights, sidelights, tail

lever should be pulled down. To signal an

lights and instrument panel lights. The second

intention to turn left, the switch lever should be

position turns on the headlights.

ZB110V1-E

pushed upwards. In both instances, the turn

ODOMETER

signal lamps on one side of the car will flash

and the warning lamp located in the instrument

ZB120D1-E

The odometer records the total driving distance

cluster will flash in sympathy. Upon completion

HIGH AND LOW BEAM

in miles, and is useful for keeping a record for

of the manoeuvre, the lever will, under normal

To turn on the headlight high beams, push the

maintenance intervals.

circumstances, return to the "Off" position.

lever forward (away from you). For low beams,

However, if the manoeuvre involved only a

pull the lever back (toward you). The appropri-

ZB110W1-E

small movement of the steering wheel, the

ate headlight beam indicator light will come on

TRIP ODOMETER

signal may need to be cancelled manually. If

at the same time.

The trip odometer may be used to more accu-

either turn signal indicator flashes more rapidly

rately record trip distances. Push the reset

than normal or refuses to flash at all, a malfunc-

knob to set the counter to zero.

tion of the turn signal system may exist.

1-21

FEATURES OF YOUR HYUNDAI

B340E01A-AAT

ZB130A1-E

YB130B1-B

HEADLIGHT FLASHER

WINDSCREEN WIPER AND

WINDSHIELD WASHER OPERATION

WASHER SWITCH

OFF

B340E01X-DAG

B350B01X-DAG

B350A01X-DAG

To flash the headlights, pull the switch lever

To use the windshield washer, pull the wiper/

toward you, then release it. The headlights can

The windscreen wiper switch has three posi-

washer lever toward the steering wheel. When

be flashed even though the headlight switch is

tions.

the washer lever is operated, the wipers auto-

in the "OFF" position.

matically make two passes across the wind-

1. Intermittent operation

shield. The washer continues to operate until

2. Low speed operation

the lever is released.

3. High speed operation

NOTE:

o Do not operate the washer more than 15

To prevent damage to the wiper system, do

seconds at a time or when the fluid res-

not attempt to wipe away heavy accumula-

ervoir is empty.

tions of snow or ice.

o In icy or freezing weather, be sure the

Accumulated snow and ice should be re-

wiper blades are not frozen to the glass

moved manually. If there is only a light layer

prior to operating the wipers.

of snow or ice, operate the heater in the

o In areas where water freezes in winter,

defrost mode to melt the snow or ice before

use windshield washer antifreeze.

using the wiper.

1-22

FEATURES OF YOUR HYUNDAI

B390A01X-GAT

reason, do not operate the washer when the

Loading condition

Switch position

REAR WINDOW WIPER AND WASHER

washer fluid reservoir is empty.

(Not all models)

Driver only

Driver + front passenger

B340G02X-GAT

HEADLIGHT LEVELING DEVICE SYS-

Full passengers

TEM

(including driver)

Full passengers (including

driver) + Permissible load

Driver + Permissible load

AB160A1-A

HAZARD WARNING SYSTEM

B390A01X-DAG

To operate the rear wiper and washer, turn the

barrel on the end of the multifunction switch.

B340G01A-DAG

1. OFF

2. When the point indicates the

, the rear

To adjust the headlight beam level according to

windshield wiper starts to operate continu-

the number of the passengers and the loading

ously.

weight in the luggage area, turn the beam

3. The washer fluid will be spray onto the rear

leveling switch. The higher the number of the

winshield by indicating the point onto the

switch position, the lower the headlight beam

The wiper operates continuously after the

level. Always keep the headlight beam at the

XV10590E

washer fluid is sprayed.

proper leveling position, or headlights may daz-

The hazard warning system should be used

zle other road users. Listed below are the

whenever you find it necessary to stop the car

Do not operate the washer continuously for

examples of recommanded switch settings. For

in a hazardous location. When you must make

more than 15 seconds or when the fluid reser-

loading conditions other than those listed be-

such an emergency stop, always pull off the

voir is empty; this could damage the system.

low, adjust the switch position so that the beam

roadway as far as possible.

Do not operate the wiper when the window is

level may be the nearest as the condition ob-

To turn on the hazard warning lights, push the

dry; this can result in scratching as well as

tained according to the list.

hazard switch. This causes all turn signal lights

premature wiper blade wear. For the same

to blink. The hazard warning lights will operate

1-23

FEATURES OF YOUR HYUNDAI

even though the key is not in the ignition. To

zontal movement of the cloth should be

Pressing "R" between 10 : 30 and 11 : 29

turn off the hazard warning lights, push the

made when cleaning the glass and care

changes the readout to 11 : 00 Pressing "R"

hazard switch.

should be exercised to ensure that the heat-

between 11 : 30 and 12 : 29 changes the

ing elements are not damaged by rings or

readout to 12 : 00

jewellery whilst the glass is being cleaned.

SB250A1-E

ZB210A1-A

HEATED REAR WINDOW

NOTE:

CIGAR LIGHTER

The engine must be running for the heated

rear window to operate.

ZB190A1-A

DIGITAL CLOCK (Not all models)

XV10600E-DAG

B420A01X.DAG

To operate the heated rear window depress the

switch shown. The heated rear window will

For the cigarette lighter to work, the key must

automatically turn off after 15 minutes or when

be in the "ACC" position or the "ON" position.

the ignition is turned off.

To use the cigarette lighter, push it all the way

B400A01A-DAG

The system may be turned off manually by

into its socket. When the element has heated,

depressing the switch again.

the lighter will pop out to the "ready" position.

There are three control buttons for the digital

Do not hold the cigarette lighter pressed in. This

clock. Their functions are:

CAUTION:

can damage the heating element and create a

The inside of the rear windscreen should

fire hazard.

HOUR - Push "H" to advance the hour indicat-

never be cleaned with a hard or sharp imple-

If it is necessary to replace the cigarette lighter,

ed.

ment since damage to the heating element

use only a genuine Hyundai replacement or its

MIN

- Push "M" to advance the minute indi-

may occur. The glass should only be cleaned

approved equivalent.

cated.

with a soft cloth or chamois leather with the

RESET - Push "R" to reset minutes to ":00" to

use only of a mild detergent or proprietary

facilitate resetting the clock to the

glass cleaner where necessary. Only hori-

correct time. When this is done:

1-24

FEATURES OF YOUR HYUNDAI

CAUTION:

B490A01X-GAT

ZB270A1-A

Do not use electric accessories or equip-

INTERIOR LIGHT

OUTSIDE REAR VIEW MIRROR

ment other than the Hyundai genuine parts

in the socket.

B430A01X-GAT

FRONT ASHTRAY

B490A01X

B510A01A-DAG

The interior courtesy light has a

3-position

The outside rear view mirror lever type is

switch. The three positions are:

equipped with remote control for your conve-

nience. It is operated by the control lever in the

o " z " In the "MIDDLE" position, the interior

bottom front corner of the window.

courtesy light comes on when any door is

Before driving away, always check that your

B430A02X.DAG

opened, then goes out when it is closed.

mirror is positioned so you can see directly

The front ashtray may be opened by pulling it

o "OFF" In the "LEFT" position, the light stays

behind you. When using the mirror, always

out by its grip. To remove the ashtray to empty

off even though a door is open.

exercise caution when attempting to judge the

or clean it, press down on the spring-loaded tab

o "ON" In the "RIGHT" position, the light stays

distance of vehicles behind you.

inside the ashtray and pull it all the way out.

on at all times.

CAUTION:

If the mirror control is jammed with ice, do

not attempt to break it free using the control

handle or by manipulating the face of the

mirror. Use an approved spray de-icer (not

radiator antifreeze) to release the frozen

mechanism or move the vehicle to a warm

place and allow the ice to melt.

1-25

FEATURES OF YOUR HYUNDAI

AB270D1-A

ZB280A1-A

ZB290A1-E

FOLDING THE OUTSIDE REAR VIEW

DAY/NIGHT REAR VIEW MIRROR

PARKING BRAKE

MIRRORS

B520A01A

XV10740E

B510C01A-DAG

Your Hyundai is equipped with a day/night

The hand brake must always be set when the

To fold the outside rear view mirrors, push them

inside rear view mirror.

vehicle is to be left unattended. When the hand

towards the rear.

The "night" position is selected by flipping the

brake is applied, and the ignition key is at the

The outside rear view mirrors can be folded

tab at the bottom of the mirror toward you. In the

"ON" position, the hand brake warning lamp will

rearward for parking in restricted areas.

"night" position, the glare of headlights of cars

be illuminated. Before driving the vehicle, the

behind you is reduced.

hand brake must be fully released and the

WARNING:

warning lamp extinguished.

Do not adjust or fold it while the vehicle

moving.

o To set the hand brake, apply the foot brake

This could result in loss of control, and an

and pull the hand brake lever up with the

accident causing death, serious injury, or

button depressed. Release the button when

property damage.

the brake is fully applied.

o To release the hand brake, apply the foot

brake and pull up the hand brake lever

slightly. Depress the button and lower the

lever.

1-26

FEATURES OF YOUR HYUNDAI

B550A01S-DAT

B110A01X-GAT

sengers to sit on the cargo area while the

HIGH-MOUNTED REAR STOPLIGHT

FOLDING REAR SEATBACK AND SEAT

car is moving as this is not a proper seating

CUSHION

position and no seat belts are available for

<AMICA>

use when the seat back is folded down. This

could result in serious injury or death in

case of an accident or a sudden stop. Ob-

jects should not extend higher than the top

of the front seats. This could allow cargo to

slide forward and cause injury or damage

during sudden stops.

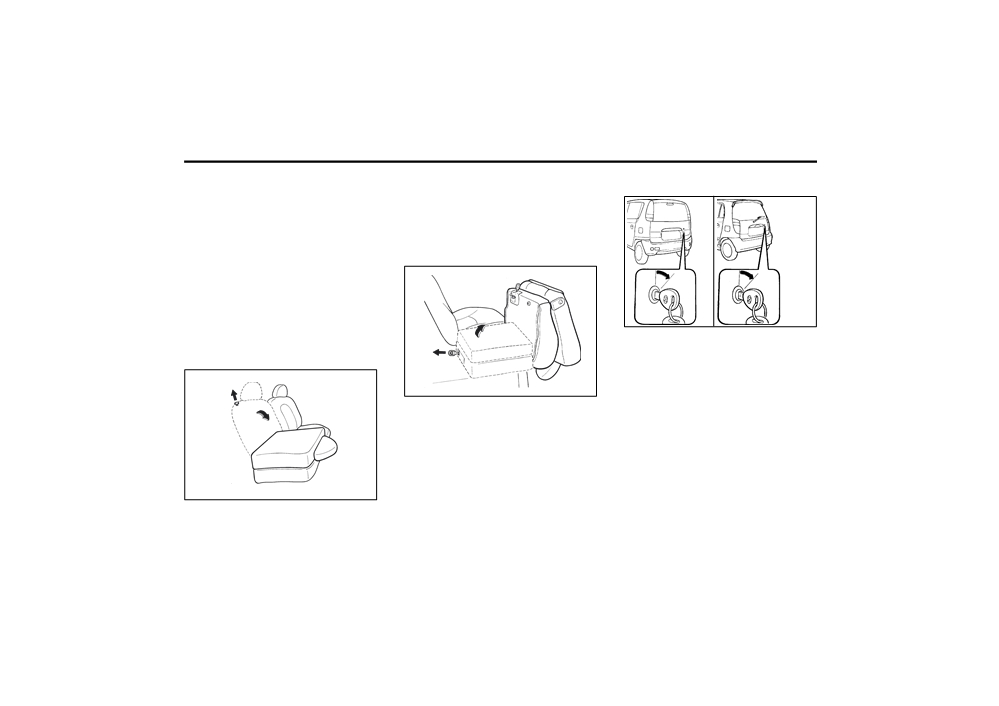

For greater convenience, the entire seatback

and seat cushion may be folded down and up.

B550A01X.DAG

B550A01V.DAG

B110A01X

o To unlock the seatback, pull up on the

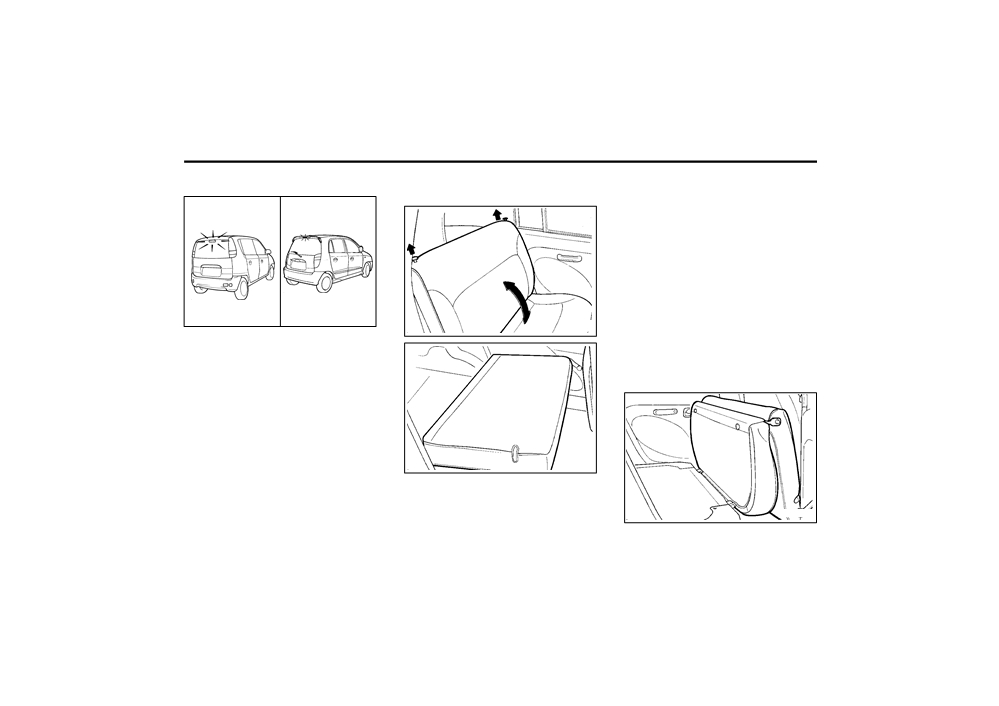

In addition to the lower-mounted rear stoplights

seatback locking knob, then pull forward on

on either side of the car, the high mounted rear

the seatback.

stoplight in the centre of the rear window or

o After being folded down rear seat back, fold-

installed in the rear spoiler also comes on when

up the seat cushion.

the brakes are applied.

B110A02X

WARNING:

The purpose of the fold-down rear seat back

and the fold-up rear seat cushion is to allow

B110A03X

you to carry more objects than could other-

wise be accommodated. Do not allow pas-

1-27

FEATURES OF YOUR HYUNDAI

WARNING:

The entire seatback and seat cushion may be

B540A01X-GAT

o When you return the rear seat to its

folded down and up individually.

TAIL GATE (Not all models)

upright position, always be sure it has

o To unlock the seatback, pull up on the

<AMICA>

locked into position by pulling and push-

seatback locking knob, then pull forward on

ing on the top of the seatback.

the seatback.

o When you return the rear seat to its

o After being folded down rear seat, pull the

upright position after being folded down

lever on the rear side of the seat cushion to

and folded up, be careful not to damage

fold-up the seat cushion.

the seat belt webbing or buckle. In addi-

tion, do not allow the seat belt webbing

or buckle to get caught or pinched in the

rear seat.

B540A02X/

B540A01V

B110B01X-GAT

WARNING:

Folding rear seatback and seat

The tail gate should always be kept com-

cushion individually (Not all models)

pletely closed while the vehicle is in motion.

If it is left open or ajar, poisonous exhaust

gases may enter the car resulting in serious

B110B02X

injury or death to the occupants. See addi-

tional warnings concerning exhaust gases

WARNING:

on page 2-1.

o When you return the rear seat to its

upright position, always be sure it has

o The tail gate is opened by first turning the

locked into position by pulling and push-

key clockwise to release the lock, then rais-

ing on the top of the seatback.

ing the door manually.

o When you return the rear seat to its

o To close, lower the tail gate, then press

upright position after being folded down

down on it until it locks. To be sure the tail

and folded up, be careful not to damage

B110B01X

gate is securely fastened, always try to pull

the seat belt webbing or buckle. In addi-

it up again.

tion, do not allow the seat belt webbing

or buckle to get caught or pinched in the

rear seat.

1-28

FEATURES OF YOUR HYUNDAI

B540D01X-GAT

B360A01A-GAT

To turn on the rear fog lights, push the switch.

Remote Tail Gate Release

FRONT FOG LIGHT SWITCH

They will come on when the headlights are

(Not all models)

turned on.

(Not all models)

<AMICA>

JB360A1-A

REMOTE FUEL-FILLER LID

RELEASE (Not all models)

B540D02X.DAG

XVA1150E

B540D01V.DAG

To turn on the front fog lights, push the switch.

The tail gate is opened by pulling the lever to

They will come on when the headlight switch is

release the lock, then raising the tail gate man-

in the first or second position.

ually.

B560A01V.DAG

To close, lower the tail gate, then press down

B360B01A-GAT

on it until it locks. To be sure the tail gate is

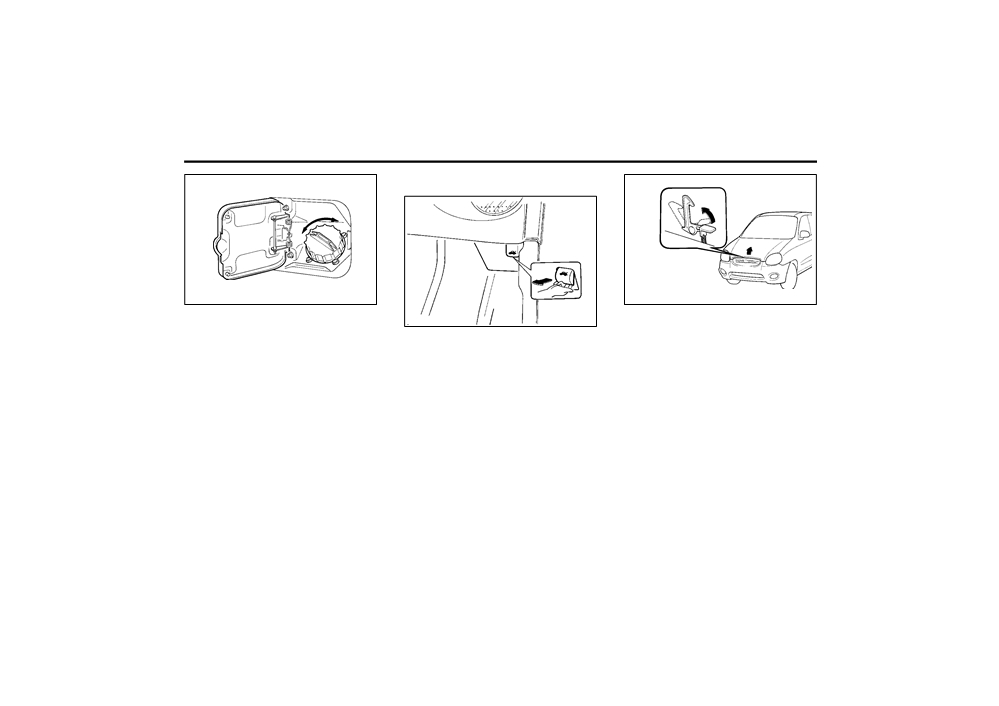

The fuel-filler lid may be opened from inside the

REAR FOG LIGHT SWITCH

securely fastened, always try to pull it up again.

vehicle by pulling up on the fuel-filler lid opener

located on the front floor area on the left side of

WARNING:

the car.

The tail gate should always be kept com-

pletely closed while the vehicle is in motion.

NOTE:

If it is left open or ajar, exhaust gases may

If the fuel-filler lid will not open because ice

enter the car and serious illness may result.

has formed around it, tap lightly or push on

the lid to break the ice and release the lid.

Do not pry on the lid. If necessary, spray

around the lid with an approved de-icer fluid

(do not use radiator anti-freeze) or move the

vehicle to a warm place and allow the ice to

XV10729E

melt.

1-29

FEATURES OF YOUR HYUNDAI

B570A01A-EAT

BONNET RELEASE

B560A02A

B570A02A

WARNING:

XV10860E

WARNING:

Gasoline vapors are dangerous. Before re-

Make sure that the support rod has been

fueling, always stop the engine and never

1. Pull the release knob to unlatch the bonnet.

released prior to closing the bonnet. Always

allow sparks or open flames near the filler

2. Press the safety catch lever up and lift the

double check to be sure that the bonnet is

area. If you need to replace the filler cap, use

bonnet.

firmly latched before driving away. If it is not

a genuine Hyundai replacement part.

3. Hold the bonnet open with the support rod.

latched, the bonnet could fly open while the

If you open the fuel filler cap during high

vehicle is being driven, causing a total loss

ambient temperatures, a slight “pressure

Before closing the bonnet, return the support

of visibility, which might result in an acci-

sound” may be heard. This is normal and

rod to its clip to prevent it from rattling. Lower

dent. The support rod must be inserted

not a cause for concern.

the bonnet until it is about 1 ft. (30 cm) above

completely into the hole provided in the

Whenever you open the fuel filler cap, turn

the closed position and let it drop. Make sure

bonnet whenever you inspect the engine

it slowly.

that it locks into place.

compartment. This will prevent the bonnet

from falling and possibly injuring you. Do

not move the vehicle with the bonnet in the

raised position, as vision is obstructed and

the bonnet could fall or be damaged.

1-30

FEATURES OF YOUR HYUNDAI

ZB380A2-A

B630A02X-EAT

o Always drive your vehicle at a moderate

SUN-VISOR

ROOF RACK (Not all models)

speed.

o To use the roof rails as a roof rack, you

must fit the roof rails with two or more

crossrails or equivalent.

WARNING:

In case of hectical steering movements

or bad fixation the luggage can fall from

the vehicle and injure persons or prop-

erty. Make sure that the luggage is prop-

erly fixed and avoid sudden movement

(e.g.dashing start, fast turning

XV10880E

B630A01X

manoeuvres, hard cornering, sudden

braking) Check frequently whether the

Your Hyundai is equipped with a sun visor to

If your Hyundai has a roof rack, you can load

roof rack is properly fastened.

give the driver and front passenger either fron-

things on top of your vehicle. Crossrails and

Voluminous, large, long or flat objects

tal or side ward shade. The sun visors are fitted

fixing components to adapt the roof rack on

can change the aerodynamic drag of ve-

on both sides on standard models. To reduce

your vehicle may be obtained from an autho-

hicle or can suddenly been lifted by the

glare or to shut out direct rays of the sun, turn

rized Hyundai dealer.

wind. The driver could lose control of the

the sun visor down to block the annoyance.

Hyundai dealers are prepared to provide high

car and provoke an accident and injuries.

A vanity mirror is provided on the back of the

quality service that may be required.

For this reason, drive at reduced speed

sun visor for the front passenger.

when you transport such objects.

CAUTION:

The maximum load limit of the roof rack

NOTE:

o The following specifications are recom-

including luggage load is 66 lb.

The Supplemental Restraint System (SRS)

mended when loading cargo or luggage.

label containing useful information can be

ROOF RACK

66 lb (30 kg)

found on the back of each sun visor.

o Loading cargo or luggage above 66 lb (30

WARNING:

kg) on the roof rack may damage your

Do not place the sun visor in such a manner

vehicle.

that it obscures visibility of the roadway,

o When you carry large objects, never let

traffic or other objects.

them hang over the rear or the sides of

your vehicle.

1-31

FEATURES OF YOUR HYUNDAI

AB420A1-F

B680A01X-GAT

B670B02X-GAT

HORN (With Airbag)

HEATING AND VENTILATION

Fan Speed Control (Blower Control)

(Not all models)

HNV.OM057

B670B02X-DAG

B680A02X-DAG

Press either of the side buttons on the steering

This is used to turn the blower fan on and off

wheel to sound the horn.

There are four controls for the heating and

and to select the fan speed.

cooling system. They are:

The blower fan speed, and therefore the vol-

ZB420A1-E

ume of air delivered from the system, may be

HORN

1. Fan Speed Control.

controlled manually by setting the blower con-

This is used to turn the fan on and select the

trol between the "1" and "4" position.

fan speed.

2. Air Flow Control.

This is used to direct the flow of air. Air can

be directed to the floor, dashboard outlets,

or windshield. Five symbols are used to

represent Face, Bi-Level, Floor, Floor-De-

frost and Defrost air positions.

3. Air Intake Control.

This allows you to select fresh outside air or

to circulate inside air.

B610B01A

4. Temperature Control.

This is used to turn the heating system on

Press the centre hub of the steering wheel to

and off and to select the degree of heating

sound the horn.

desired.

1-32

FEATURES OF YOUR HYUNDAI

B670C02A-AAT

compartment becoming stale. In addition

Air Intake Control

prolonged use of the air conditioning with

the "

" mode selected may result in the

air within the passenger compartment be-

coming excessively dry.

B670D02A-AAT

Air Flow Control

B670D01X-DAG

B670C03A-DAG

Face-Level

Selecting the “Face” mode will cause air to be

This is used to select fresh outside air or

discharged through the face level vents.

recirculation inside air.

Fresh

Recirculation

B670D03A-DAG

With the " " mode selected, air enters the

This is used to direct the flow of air. Air can be

vehicle from outside and is heated or cooled

directed to the floor, dashboard outlets, or wind-

according to the other functions selected.

shield. Five symbols are used to represent

With the "

" mode selected, air from within

Face, Bi-Level, Floor, Floor-Defrost and De-

the passenger compartment is drawn through

frost air position.

the heating system and heated or cooled ac-

cording to the other functions selected.

B670D02X-DAG

NOTE:

It should be noted that prolonged operation

Bi-Level

of the heating system in " " mode will give

Air is discharged through the face vents and the

rise to misting of the windshield and side

floor vents. This makes it possible to have

windows and the air within the passenger

cooler air from the dashboard vents and warm-

er air from the floor outlets at the same time.

1-33

FEATURES OF YOUR HYUNDAI

B690A01A-AAT

HEATING CONTROLS

B670D03X-DAG

B670D05X-DAG

Floor-Level

Defrost-Level

B680A02X-DAG

Air is discharged through the floor vents.

Air is discharged through the windshield defrost

For normal heating operation, set the air intake

vents.

control to the position and the air flow control

to the

position.

B670E02A-AAT

Temperature Control

For faster heating, the air intake control should

be set in the position. If the windows fog up,

set the air flow control to the position and the

air intake control to the

position.

For maximum heat, move the temperature con-

trol to “Warm”.

B670D04X-DAG

Floor-Defrost Level

Air is discharged through the windshield defrost

B670E03A-DAG

vents and the floor vents.

This is used to turn the heating system on and

off and to select the degree of heating desired.

1-34

Content .. 8 9 10 11 ..
