Hyundai i30 / Elantra Neos. Body repair manual - part 37

CORROSION PROTECTION

CP-11

BFDCP6118

BFDCP6116

BFDCP6117

B - B

C - C

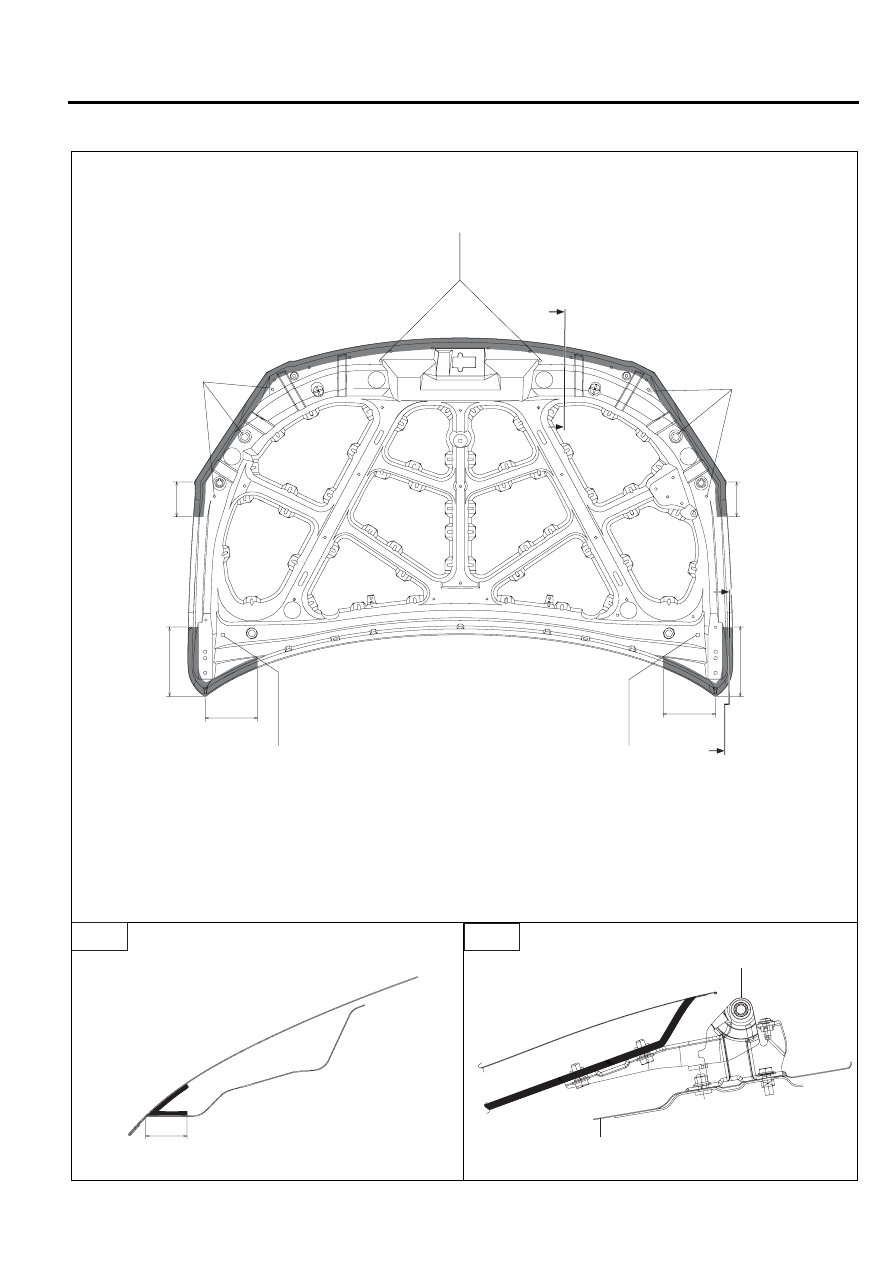

[ HOOD ]

Wax injection hole

Wax injection hole

Wax injection hole

Wax injection hole

Hood hinge assembly

Cowl side upper panel

Wax injection hole

100mm

200mm

100mm

200mm

150mm

150mm

B

B

C

C

30mm

HOOD

CP-12

CORROSION PROTECTION

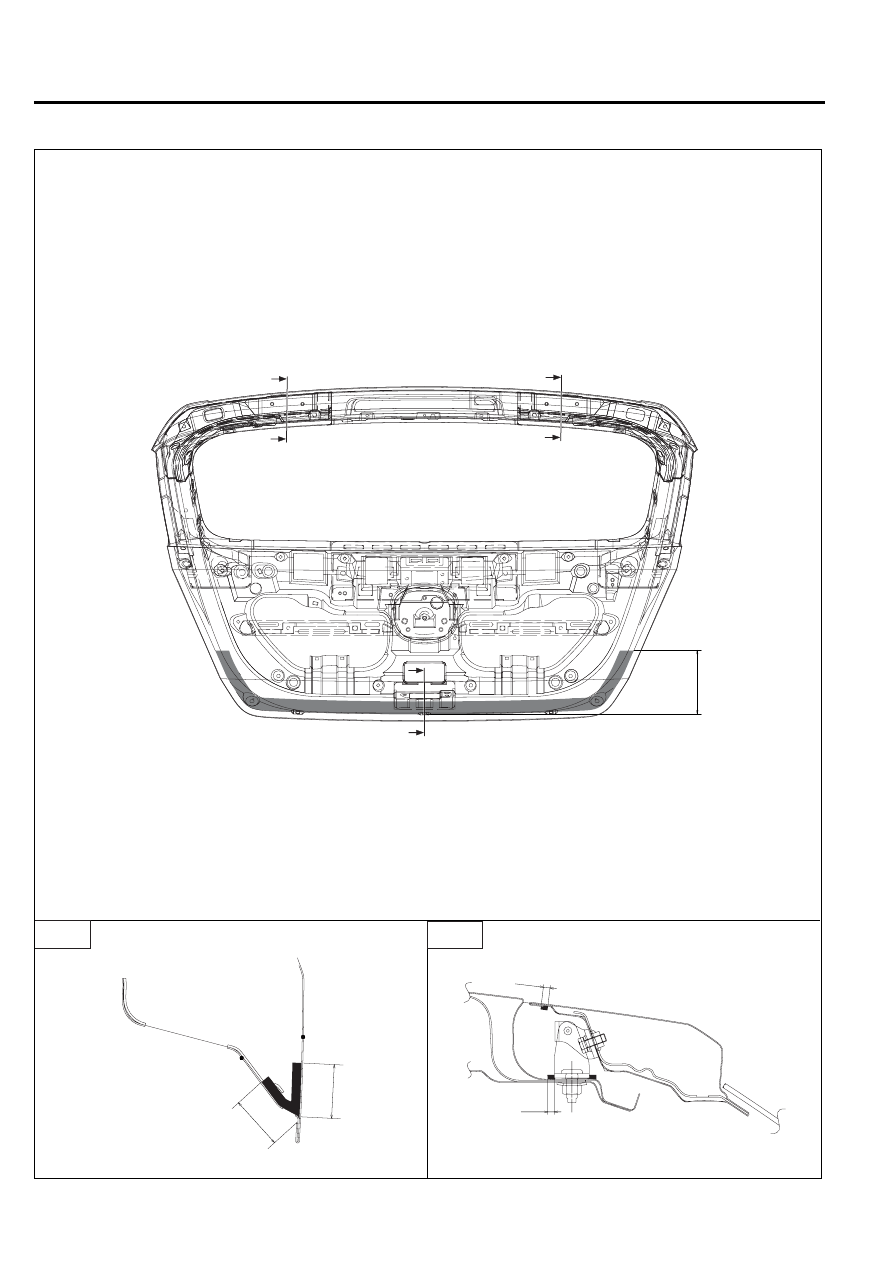

TAIL GATE

BFDCP6121

BFDCP6119

BFDCP6120

D - D

E - E

150mm

30mm

30mm

5mm

5mm

E

E

E

E

D

D

CORROSION PROTECTION

CP-13

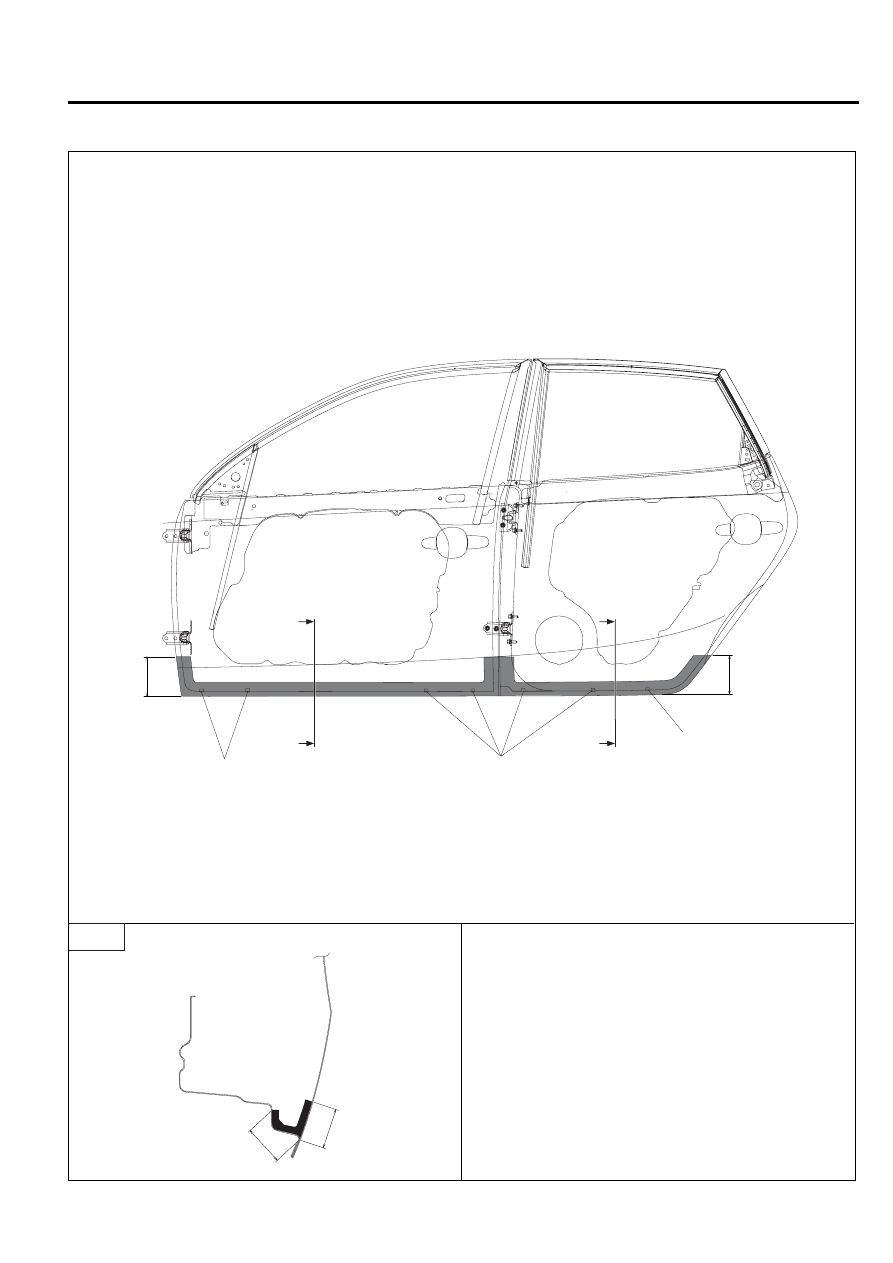

FRONT DOOR & REAR DOOR

BFDCP6122

BFDCP6123

F - F

130mm

30mm

30mm

F

F

F

F

130mm

Wax injection hole

Wax injection hole

Wax injection hole

CP-14

CORROSION PROTECTION

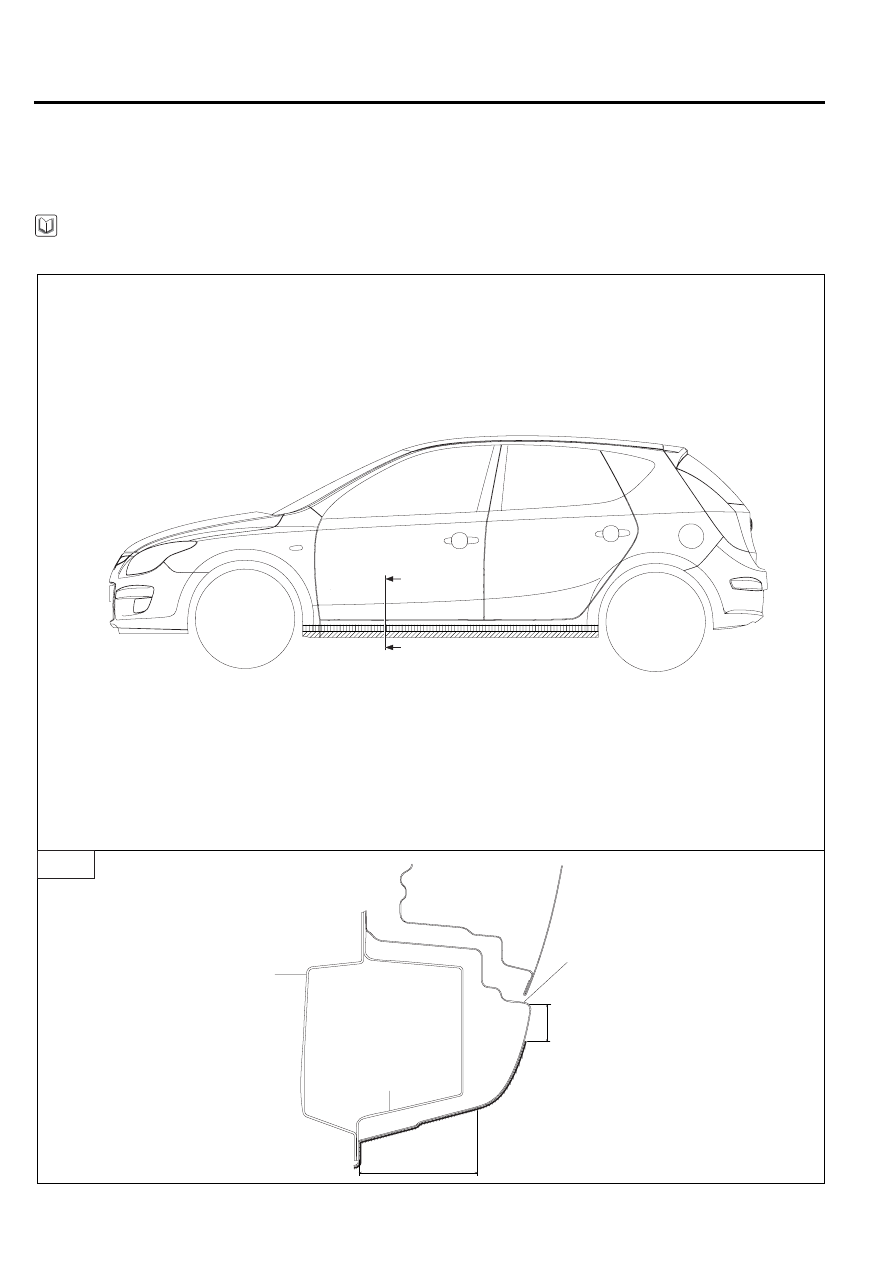

UNDER BODY ANTI-CORROSION AGENT

The undersides of the floor and wheel house are undercoated to provide greater corrosion resistance. Therefore, when such
panel is replaced or repaired, apply under body anti-corrosion agent to that part.

NOTE

Do not apply the under body anti-corrosion agent to come in contact with tires, muffler and exhaust pipe.

BFDCP6115

BFDCP6114

A - A

A

A

25mm

80mm

Side sill inner panel

Side outer panel

Side sill outer

front reinforcement
