Hyundai i30 / Elantra Neos. Body repair manual - part 8

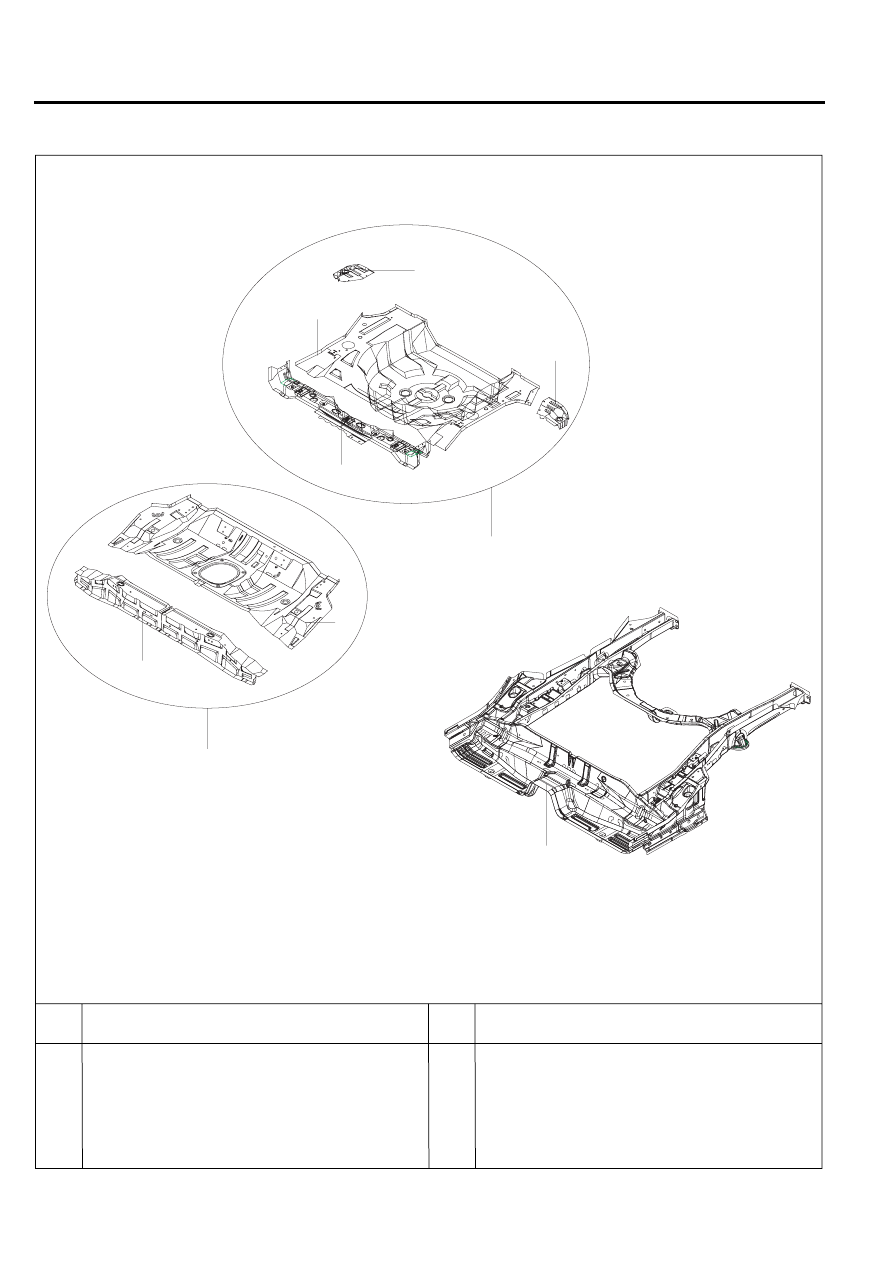

BC-20

BODY CONSTRUCTION

REAR FLOOR PANEL

BFDBC6155

1

2

3

4

5

6

7

8

9

PART NAME

No.

Rear floor front complete panel assembly

Rear floor exteansion assemby

Rear floor front panel

Rear floor complete member assembly

Rear floor rear complete panel assemby

Rear floor center cross upper member assemby

Rear floor rear panel assembly

Rear floor side panel (RH)

Rear floor side panel (LH)

PART NAME

No.

1

3

4

7

8

9

5

2

6

BODY CONSTRUCTION

BC-21

BFDBC6156

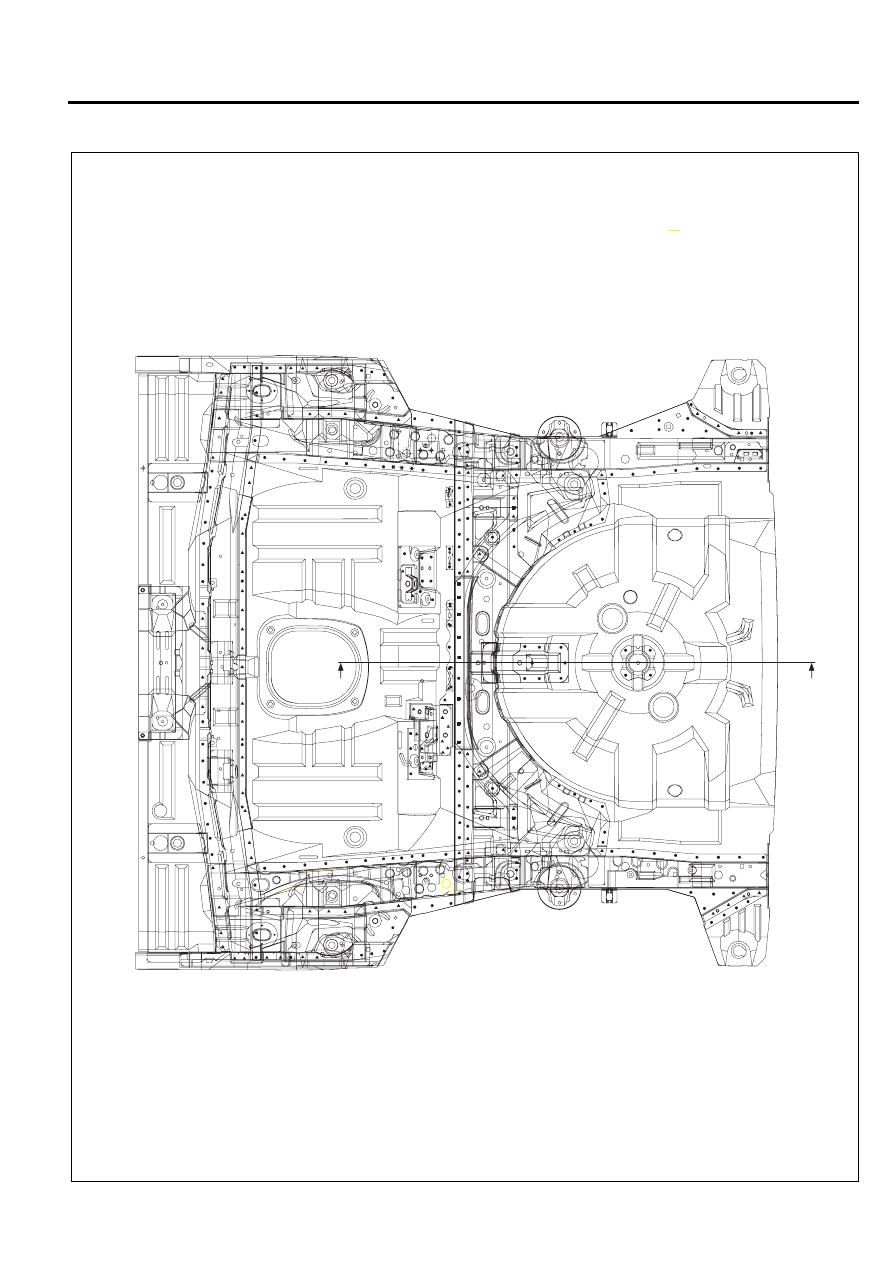

< Cross-Sectional Views >

A

A

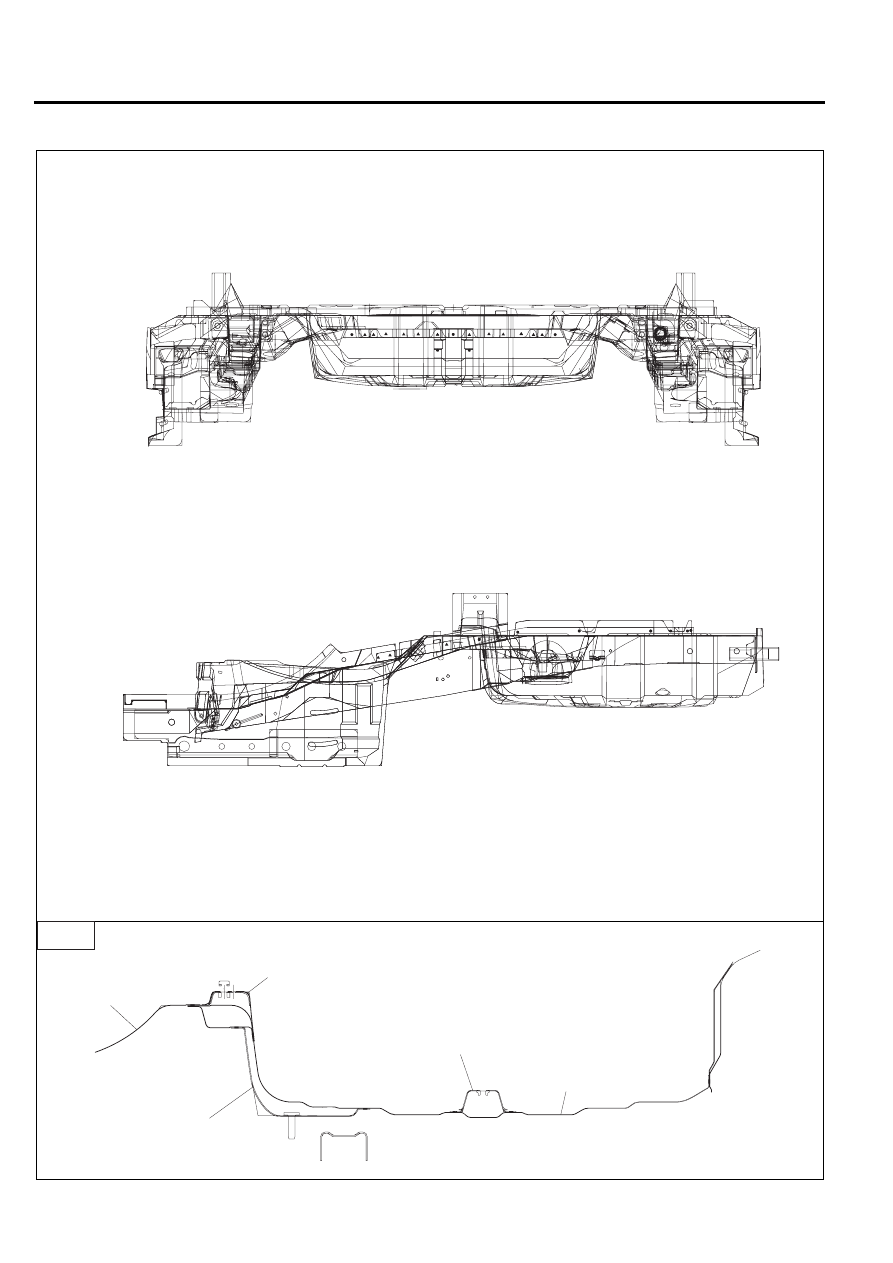

BC-22

BODY CONSTRUCTION

BFDBC6160

BFDBC6161

A - A

Rear floor front panel

Rear floor complete

member assembly

Rear floor center cross upper member assembly

Rear floor rear panel assembly

Spare tire mounting bracket assembly

< Cross-Sectional Views >

[ REAR VIEW ]

[ SIDE VIEW]

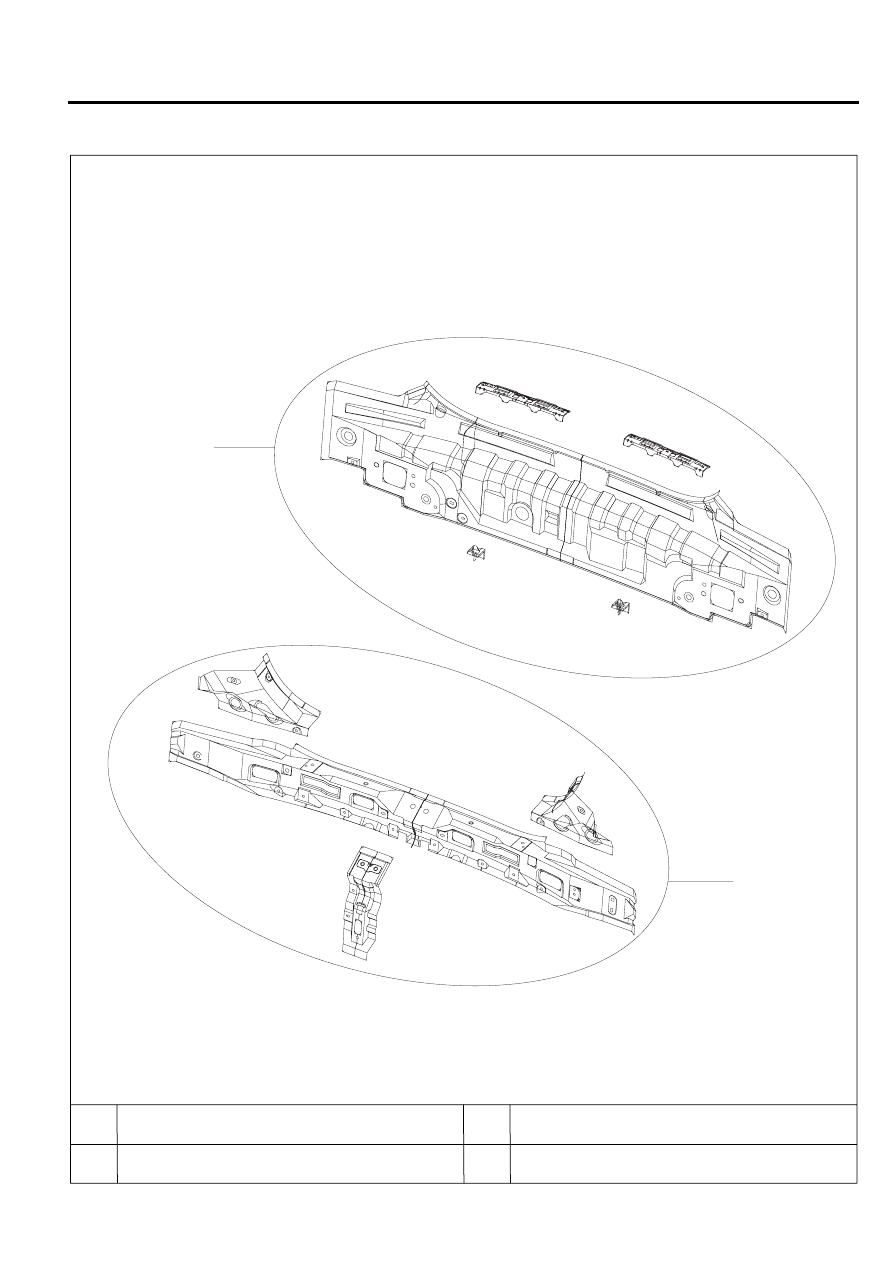

BODY CONSTRUCTION

BC-23

BFDBC6162

1

2

Back panel assembly

PART NAME

No.

Rear transverse member assembly

PART NAME

No.

1

2

BACK COMPLETE PANEL
