Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

*2:Models with LKAS
*3:Models without LKAS

Circuit Protected

Amps

Back Up

10 A

Audio

10 A

Fan Timer

7.5 A

24 Right Headlight Low Beam

10 A

Left Headlight Low Beam

10 A

ABS/VSA ECU

−

7.5 A

−

578

Fuses

Fuse Locations

Han

lin
g the U

expected

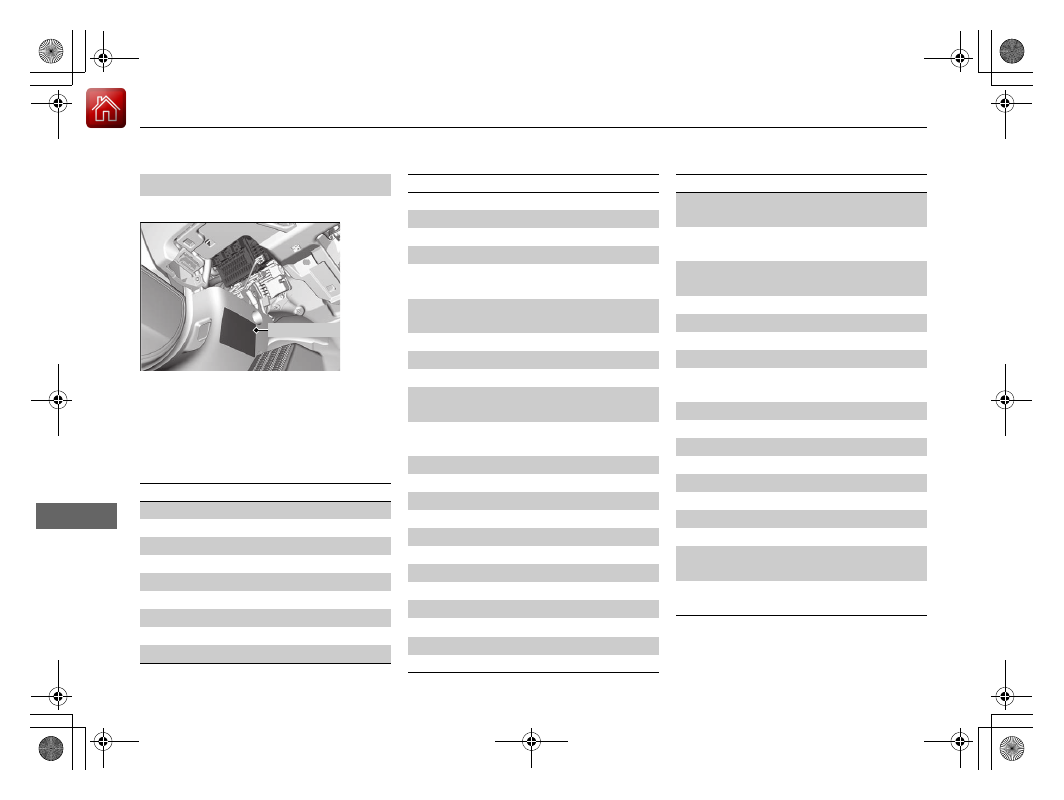

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

■

Circuit protected and fuse rating

■

Interior Fuse Box

Fuse Label

Circuit Protected

Amps

A/C

7.5 A

DRL

7.5 A

−

Meter

7.5 A

SRS

7.5 A

Option

(7.5 A)

MISS SOL

10 A

Fuel Pump

20 A

ABS/VSA

7.5 A

−

Front Wiper

7.5 A

ACG

15 A

Rear Accessory Power Socket

(Console Compartment)

(20 A)

Driver’s Power Seat

Reclining

(20 A)

Moonroof

(20 A)

Front Seat Heaters

(20 A)

−

Passenger Side Door

Unlock

10 A

Driver Side Rear Door

Unlock

10 A

Driver’s Door Lock

10 A

Passenger Side Door Lock

10 A

Driver’s Door Unlock

10 A

SRS

10 A

Illumination

10 A

Key Lock

7.5 A

Parking Lights

10 A

Lumbar Support

(10 A)

29 Right Headlight High Beam

10 A

Washer

15 A

SMART

(10 A)

Driver’s Power Window

20 A

Circuit Protected

Amps

Front Passenger’s Power

Window

20 A

Rear Driver Side Power

Window

20 A

Rear Passenger Side Power

Window

20 A

36 Driver’s Power Seat Sliding

(20 A)

ACCESSORY

7.5 A

−

Left Headlight High Beam

10 A

Front Accessory Power Socket

(Console Panel)

20 A

41 Driver Side Rear Door Lock

10 A

Door Lock

20 A

Audio

(7.5 A)

ACM

(20 A)

Rear Seat Heaters

(15 A)

Premium Amp

(20 A)

−

Passenger’s Power Seat

Reclining

(20 A)

Passenger’s Power Seat

Sliding

(20 A)

Circuit Protected

Amps

* Not available on all models

579

Fuses

Inspecting and Changing Fuses

Han

lin
g the U

expected

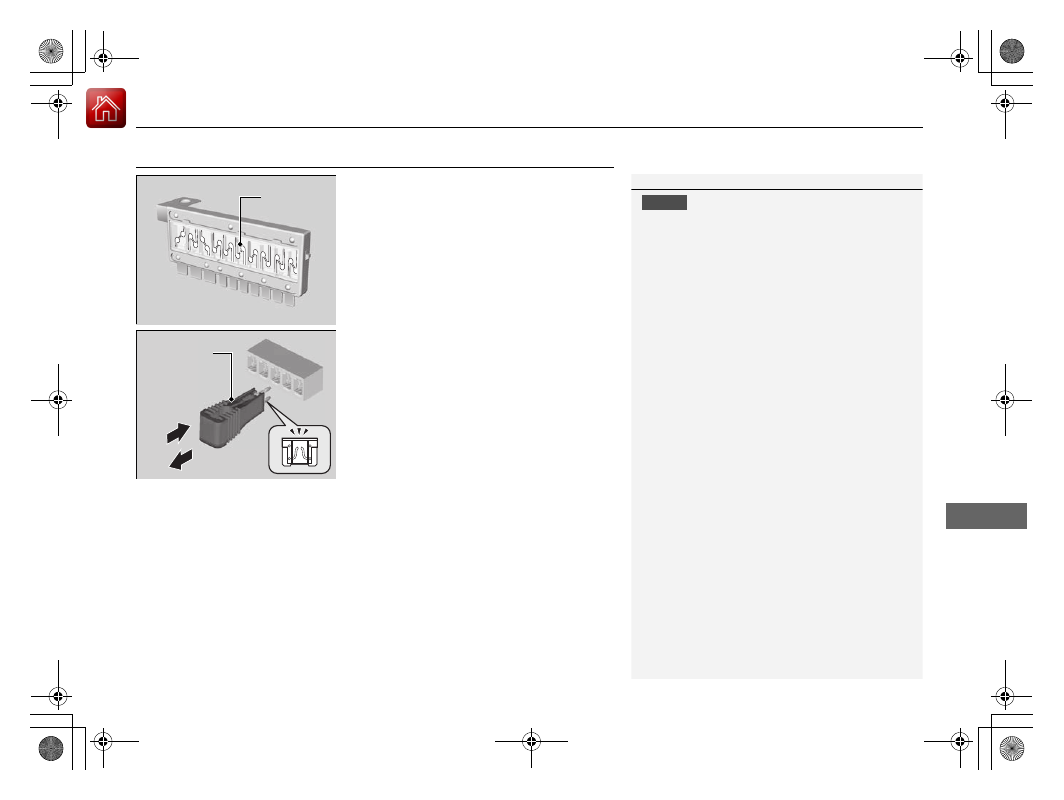

Inspecting and Changing Fuses

1. Turn the ignition switch to LOCK

(

. Turn

headlights and all accessories off.

2. Remove the fuse box cover.
3. Check the large fuse in the engine

compartment.

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of
an ignition switch.

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 576 to 5 78.

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined
Fuse

Blown Fuse

Fuse Puller

580

Han

lin
g the U

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

582

Info

ation

Specifications

■

Vehicle Specifications

*1: LX-S models
*2: Except LX-S models
*3: LX models
*4: Except LX models

Model

Honda Accord Coupe

No. of Passengers:
Front

Rear

Total

Weights:
Gross Vehicle
Weight Rating

U.S.: 4,189 lbs (1,900 kg)

4,255 lbs (1,930 kg)

Canada: 1,900 kg

1,930 kg

Gross Axle Weight
Rating (Front)

U.S.: 2,271 lbs (1,030 kg)

2,315 lbs (1,050 kg)

Canada: 1,040 kg

1,055 kg

Gross Axle Weight
Rating (Rear)

U.S.: 1,962 lbs (890 kg)

2,006 lbs (910 kg)

Canada: 890 kg

910 kg

Air Conditioning:
Refrigerant Type

HFC-134a (R-134a)

Charge Quantity

15.0 – 16.8 oz (425 – 475 g)

Lubricant Type

ND-OIL 8

4-cylinder models

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

144 cu-in (2,356 cm

)

Spark Plugs

NGK

DILKAR7G11GS
DILKAR7H11GS

DENSO

DXE22HQR-D11S

Fuel:
Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

17.2 US gal (65 ℓ)

Tank Capacity

U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ

■

Light Bulbs

*5: Models with halogen headlights
*6: Models with LED headlights
*7: Models with bulb type parking lights
*8: Models with LED type parking/daytime running lights

Headlights (Low Beam)

55W (H11)

LED

Headlights (High Beam)

60W (HB3)

LED

Fog Lights

LED

Front Turn Signal/Side Marker/Parking Lights

*5, *7

Front Turn Signal/Side Marker Lights

*5, *8

28/8W (Amber)

Front Turn Signal Lights

LED

Front Side Marker Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Brake Lights

21W

Rear Side Marker/Taillights

LED

Back-Up Lights

16W

Rear Turn Signal Lights

21W (Amber)

High-Mount Brake Light

LED

Rear License Plate Lights

Trunk Light

Interior Lights

Map Lights

Ceiling Light

Vanity Mirror Lights

1.4W

* Not available on all models

583

Specifications

Continued

Info

ation

■

Brake/Clutch Fluid

■

Continuously Variable Transmission
(CVT) Fluid

■

Manual Transmission Fluid

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

HCF-2

Capacity

Change

3.9 US qt (3.7 ℓ)

Specified

Honda Manual Transmission Fluid

Capacity

Change

2.0 US qt (1.9 ℓ)

■

Engine Oil

■

Engine Coolant

*1: Continuously variable transmission (CVT) models
*2: Manual transmission models

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.2 US qt (4.0 ℓ)

Change
including
filter

4.4 US qt (4.2 ℓ)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.66 US gal (6.28 ℓ)

1.66 US gal (6.30 ℓ)

(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)

■

Tire

*3: U.S. LX-S and Canadian LX models
*4: U.S. EX, EX-L models and Canadian EX models
*5: Canadian Touring models

Regular

Size

215/55R17 94V

235/45R18 94V

235/40R19 96V

Pressure
psi (kPa [kgf/cm

])

Front

33 (225 [2.3])

*3, *4

33 (230 [2.3])

Rear

33 (225 [2.3])

*3, *4

32 (220 [2.2])

Compact
Spare

Size

T135/90D16 102M

*3, *4

T135/80D17 103M

Pressure
psi (kPa [kgf/cm

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7 1/2J

18 x 8J

19 x 8J

Compact Spare

16 x 4T

17 x 4T

*4, *5

584

Specifications

Info

ation

■

Vehicle Specifications

*1: Manual transmission models
*2: Automatic transmission models

Model

Honda Accord Coupe

No. of Passengers:
Front

Rear

Total

Weights:
Gross Vehicle
Weight Rating

U.S.: 4,387 lbs (1,990 kg)

4,475 lbs (2,030 kg)

Canada: 1,990 kg

2,030 kg

Gross Axle Weight
Rating (Front)

U.S.: 2,403 lbs (1,090 kg)

2,513 lbs (1,140 kg)

Canada: 1,090 kg

1,145 kg

Gross Axle Weight
Rating (Rear)

U.S.: 2,006 lbs (910 kg)
Canada: 910 kg

Air Conditioning:
Refrigerant Type

HFC-134a (R-134a)

Charge Quantity

15.0 – 16.8 oz (425 – 475 g)

Lubricant Type

ND-OIL 8

6-cylinder models

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

212 cu-in (3,471 cm

)

Spark Plugs

NGK

ILZKR7B11

DENSO

SXU22HCR11

Fuel:
Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

17.2 US gal (65 ℓ)

Tank Capacity

U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ

■

Light Bulbs

*3: Models with halogen headlights
*4: Models with LED headlights

Headlights (Low Beam)

55W (H11)

LED

Headlights (High Beam)

60W (HB3)

LED

Fog Lights

LED

Parking/Daytime Running Lights

LED

Front Turn Signal/Side Marker Lights

28/8W (Amber)

Front Turn Signal Lights

LED

Front Side Marker Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Brake Lights

21W

Rear Side Marker/Taillights

LED

Back-Up Lights

16W

Rear Turn Signal Lights

21W (Amber)

High-Mount Brake Light

LED

Rear License Plate Lights

Trunk Light

Interior Lights

Map Lights

Ceiling Light

Vanity Mirror Lights

1.4W

Courtesy Lights

2CP

585

Specifications

Info

ation

■

Brake/Clutch Fluid

■

Automatic Transmission Fluid

■

Manual Transmission Fluid

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda ATF DW-1
(automatic transmission fluid)

Capacity

Change

3.3 US qt (3.1 ℓ)

Specified

Honda Manual Transmission Fluid

Capacity

Change

2.2 US qt (2.1 ℓ)

■

Engine Oil

■

Engine Coolant

*1: Manual transmission models
*2: Automatic transmission models

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.2 US qt (4.0 ℓ)

Change
including
filter

4.5 US qt (4.3 ℓ)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.66 US gal (6.3 ℓ)

1.72 US gal (6.5 ℓ)

(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)

■

Tire

*3: U.S. EX-L V6 models
*4: U.S. Touring models and Canadian V6 Touring models

Regular

Size

235/45R18 94V

235/40R19 96V

Pressure
psi (kPa [kgf/cm

])

Front

33 (225 [2.3])

33 (230 [2.3])

Rear

32 (220 [2.2])

*3, *4

Compact
Spare

Size

T135/90D16 102M

T135/80D17 103M

Pressure
psi (kPa [kgf/cm

])

60 (420 [4.2])

Wheel Size

Regular

18 x 8J

19 x 8J

Compact Spare

16 x 4T

17 x 4T

586

Info

ation

Identification Numbers

Vehicle Identification Number (VIN), Engine Number
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.

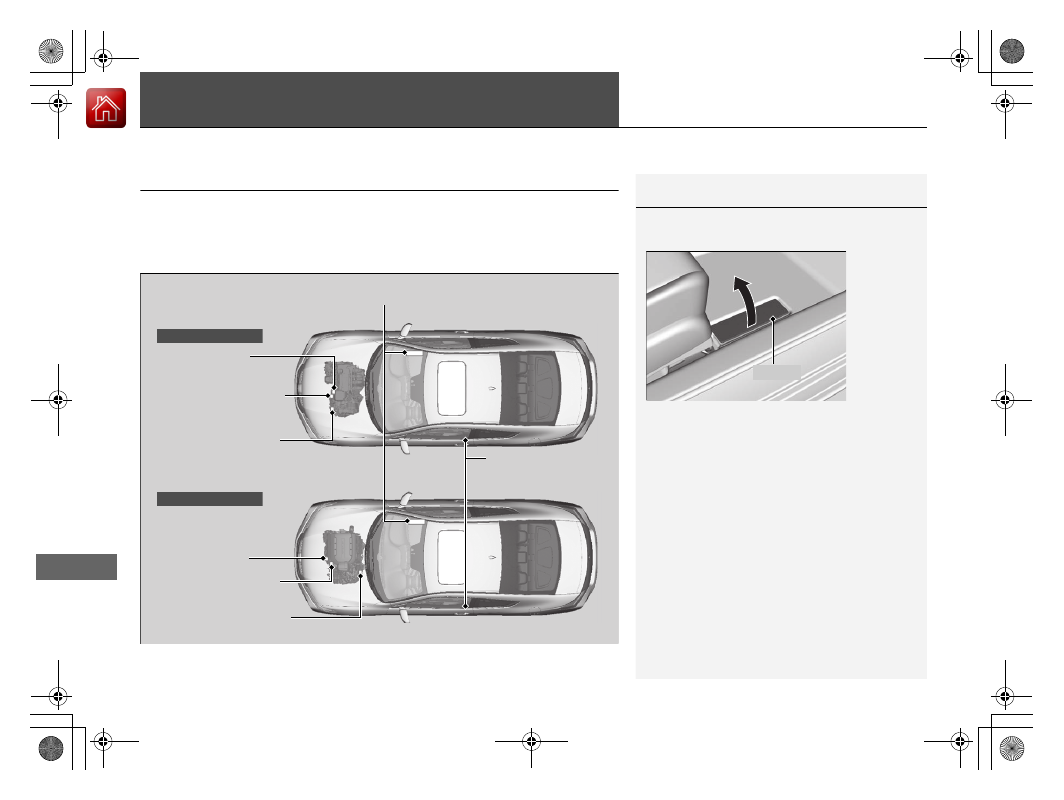

Vehicle Identification Number (VIN), Engine Number and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Cover

Vehicle Identification Number

Engine Number

Certification Label/
Vehicle Identification
Number

Manual Transmission
Number

Continuously Variable
Transmission (CVT)
Number

6-cylinder models

4-cylinder models

Engine Number

Automatic Transmission
Number

Manual Transmission
Number

587

Info

ation

Devices that Emit Radio Waves

The following products and systems on your vehicle emit radio waves when in
operation.

Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.

This device complies with Industry Canada Standard RSS-Gen/210/251/310.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

Audio System
Bluetooth® Audio
Bluetooth® HandsFreeLink®
Bluetooth® Universal Transceiver
Immobilizer System
Keyless Access System

Remote Transmitter
Wireless Charger

* Not available on all models

588

Info

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety.

589

Continued

Info

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.

To check if they are set, turn the ignition switch to ON

(

, without starting the

engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20

seconds.

5. Keep the vehicle in

(

P (automatic transmission/CVT) or

(

N (manual

transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.

6. Let the engine idle with your foot off the accelerator for 20 seconds.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

Testing of Readiness Codes

The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see a dealer.

590

Emissions Testing

Testing of Readiness Codes

Info

ation

7. Select a nearby, lightly traveled major highway where you can maintain a speed

of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in

(

D (automatic/CVT) or 5th (manual). Do not use cruise control. When traffic

allows, drive for 90 seconds without moving the accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If you cannot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then repeat it two
more times (for a total of 90 seconds).

8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions

allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.

9. Park the vehicle and leave the engine off for 30 minutes.

591

Continued

Info

ation

Warranty Coverages

■

U.S. Owners

Your new vehicle is covered by these warranties:

New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.

Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.

Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.

Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.

Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.

Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.

592

Warranty Coverages

Info

ation

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.

Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.

Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.

■

Canadian Owners

Please refer to the warranty manual that came with your vehicle.

593

Info

ation

Authorized Manuals

■

Service Express

For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.

■

For U.S. Owners:

Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.

■

For Canadian Owners:

Please contact a dealer to order any manuals that you may require.

Content .. 35 36 37 38 ..
