Fig. 85: Removing Shift Lever & Clutch Fork
Courtesy of FORD MOTOR CO.

14. If necessary, remove the shift lever and the clutch fork (3N139).

1. Drive the manual shaft retaining pin through the clutch fork.

2. Remove the shift lever and the clutch fork.

15. Remove and discard the O-ring.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 86: Removing O-Ring
Courtesy of FORD MOTOR CO.

16. Remove the axle shaft (3A381).

1. Remove the snap ring.

2. Remove the axle shaft.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

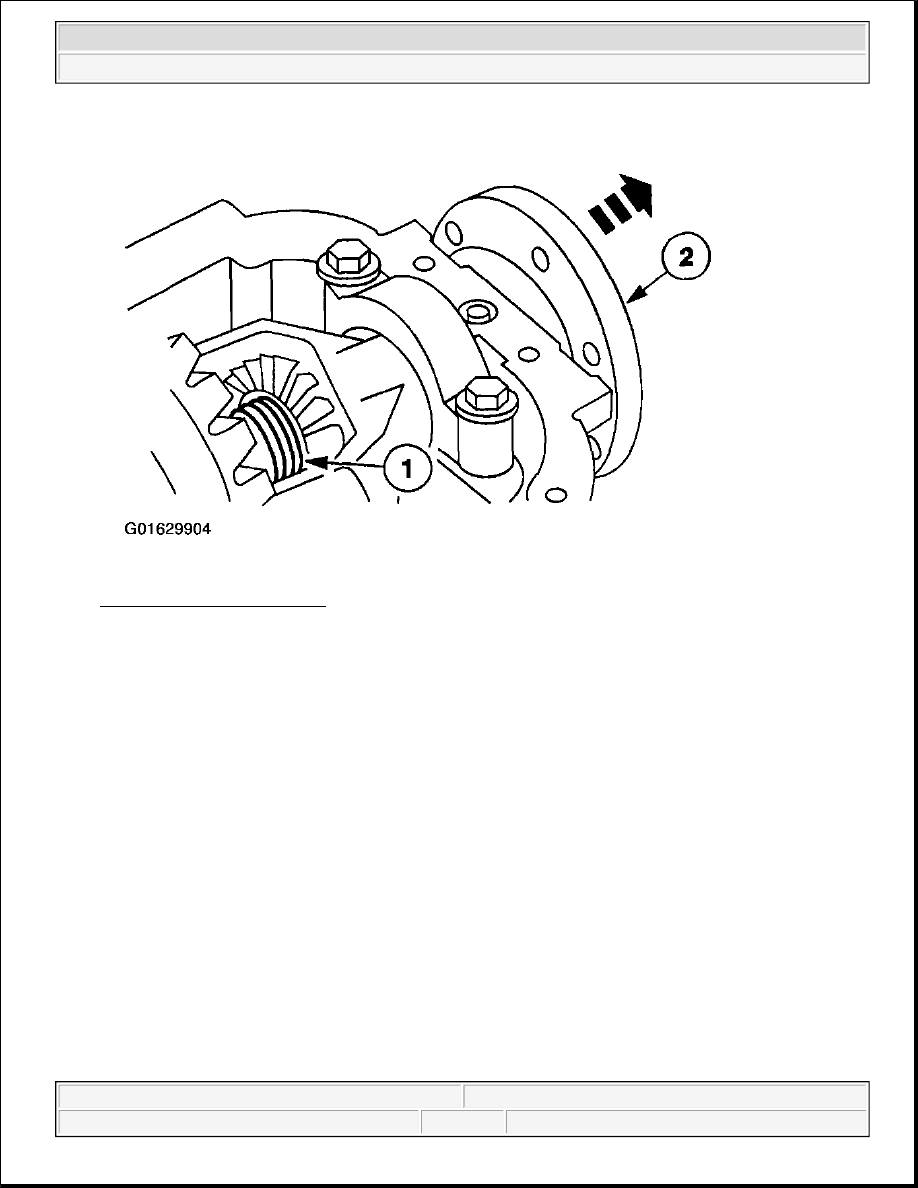

Fig. 87: Removing Axle Shaft
Courtesy of FORD MOTOR CO.

CAUTION: The housing spreader adapter bolts must have the minimum

specified thread engagement in the carrier.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

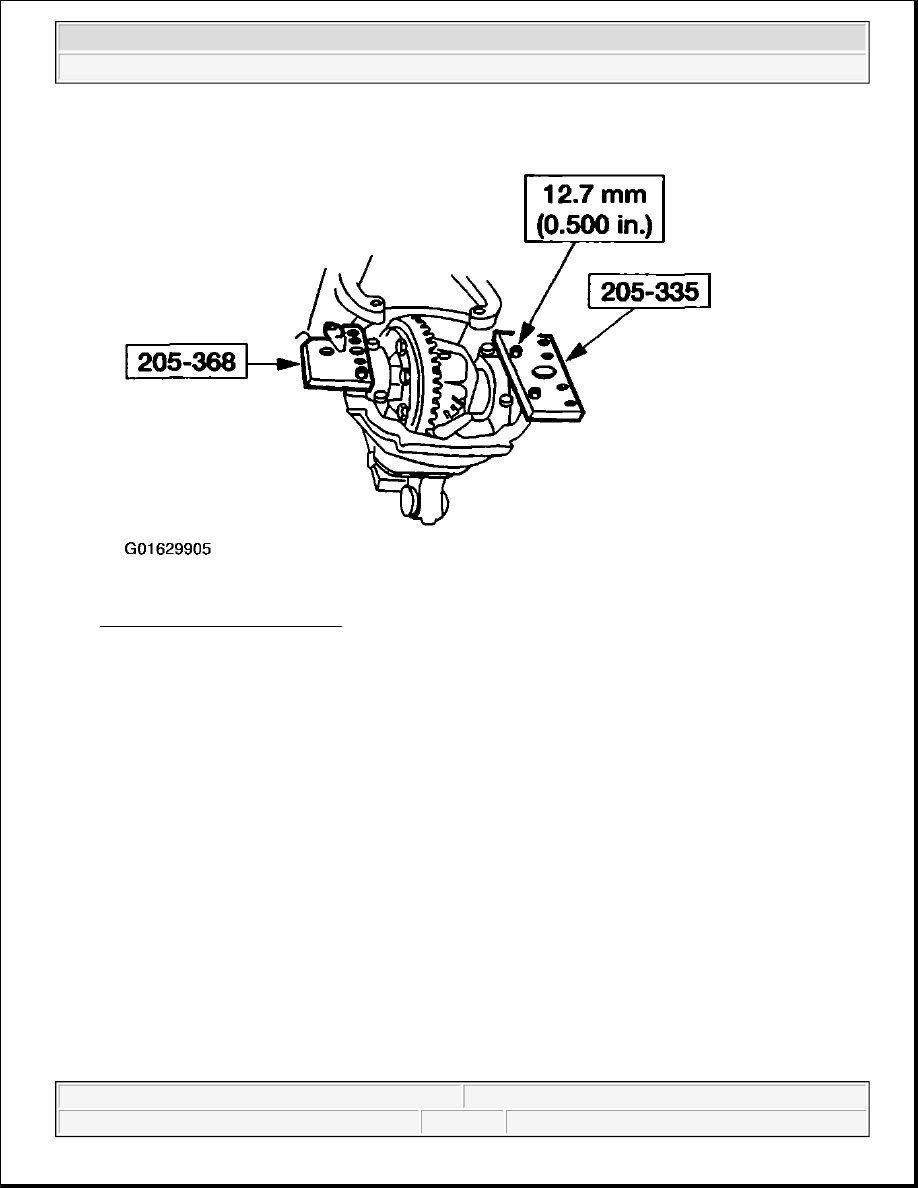

Fig. 88: Installing Special Tools
Courtesy of FORD MOTOR CO.

17. Install the special tools.

18. Position the special tool on the spreader adapters.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup
