PINPOINT TESTS

Pinpoint Test A: Yellow ABS Warning Indicator Is Always On

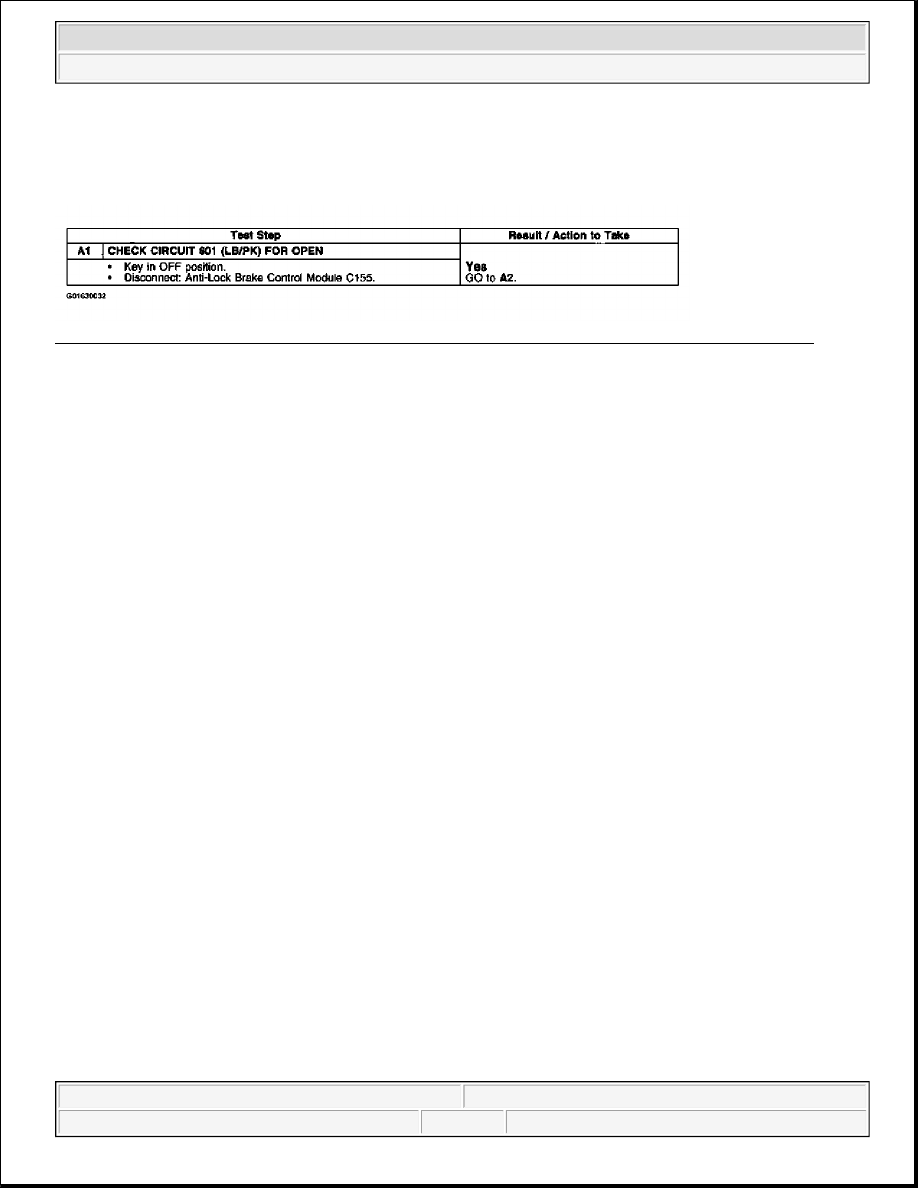

Fig. 5: Pinpoint Test A: Yellow ABS Warning Indicator Is Always On - Diagnostic Chart (Step A1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

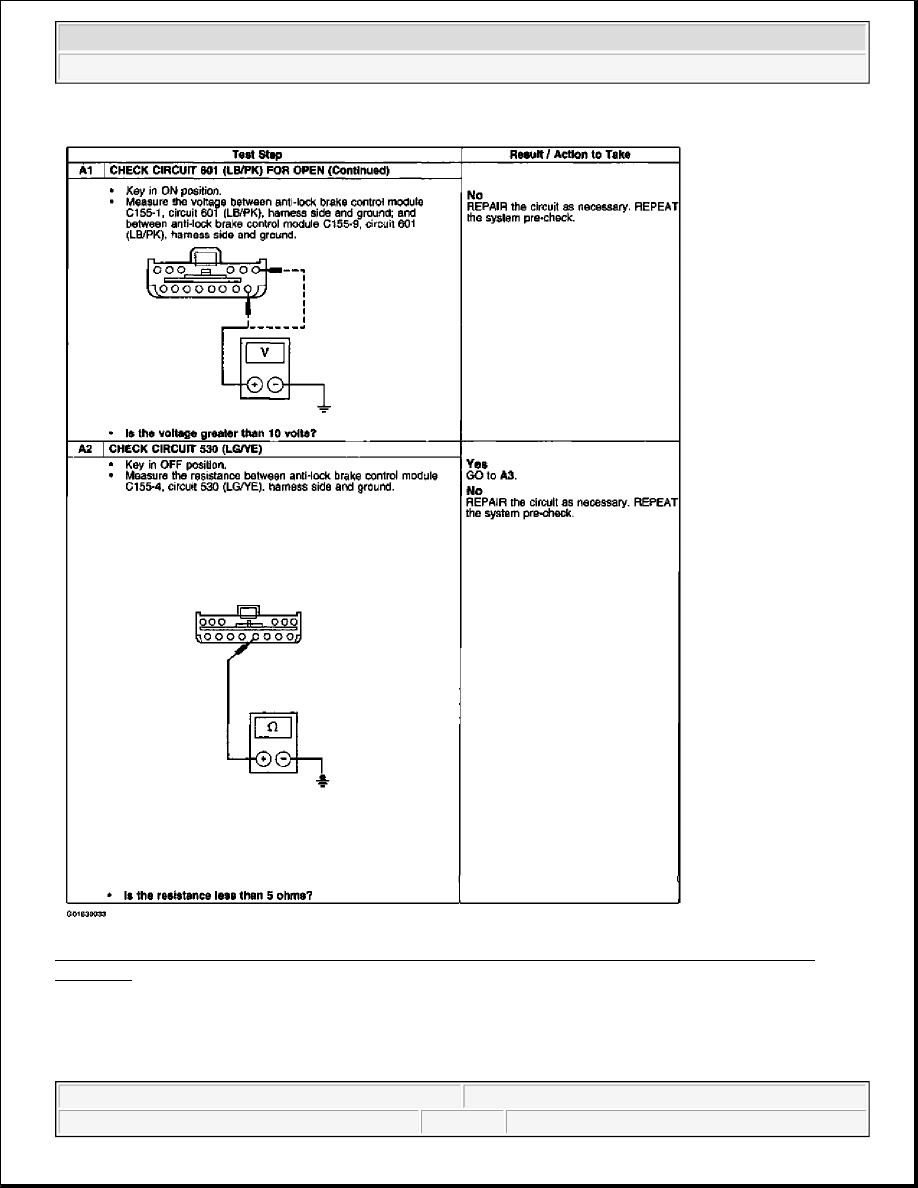

Fig. 6: Pinpoint Test A: Yellow ABS Warning Indicator Is Always On - Diagnostic Chart (Steps A1
Cont.-A2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

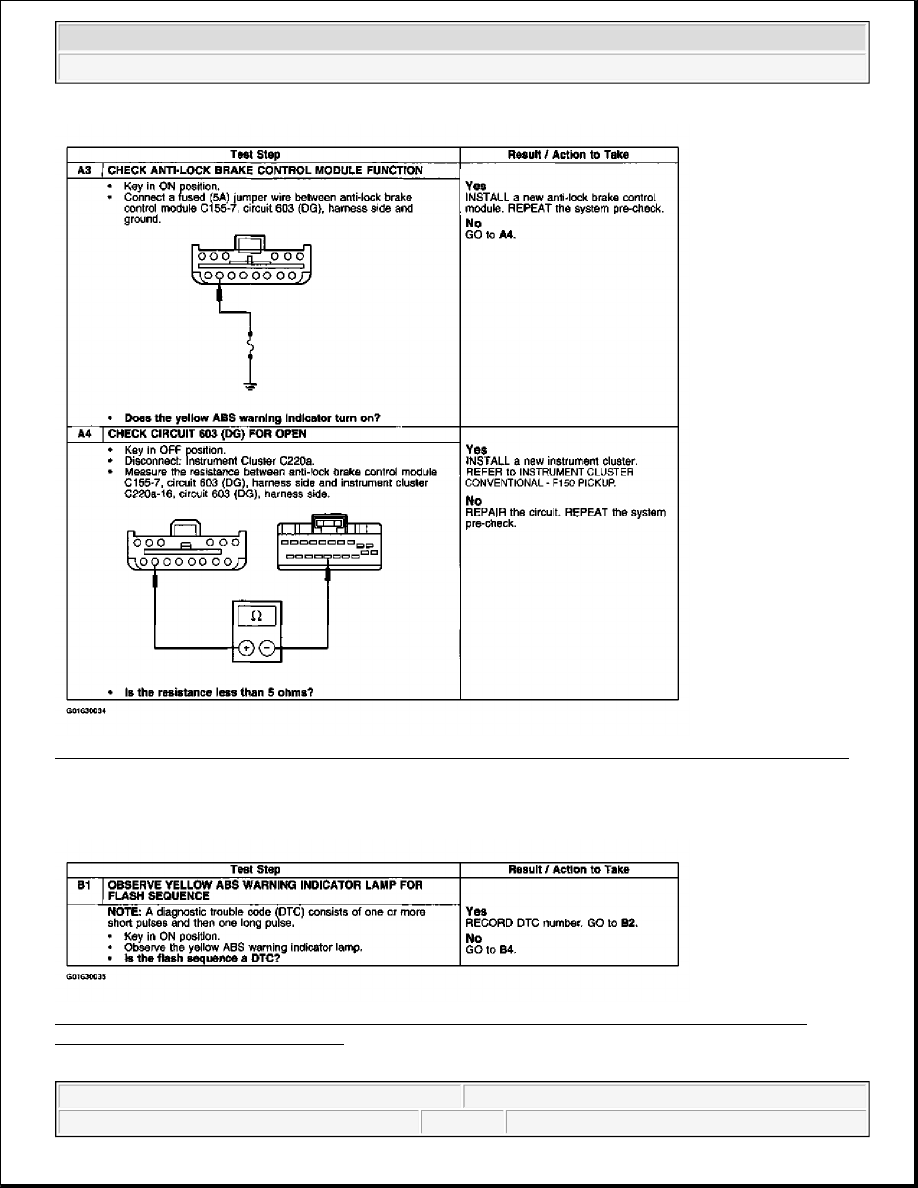

Fig. 7: Pinpoint Test A: Yellow ABS Warning Indicator Is Always On - Diagnostic Chart (Steps A3-A4)
Courtesy of FORD MOTOR CO.

Pinpoint Test B: Yellow ABS Warning Indicator Self-Checks Ok But Automatically Begins Flashing

Fig. 8: Pinpoint Test B: Yellow ABS Warning Indicator Self-Checks Ok But Automatically Begins
Flashing - Diagnostic Chart (Step B1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

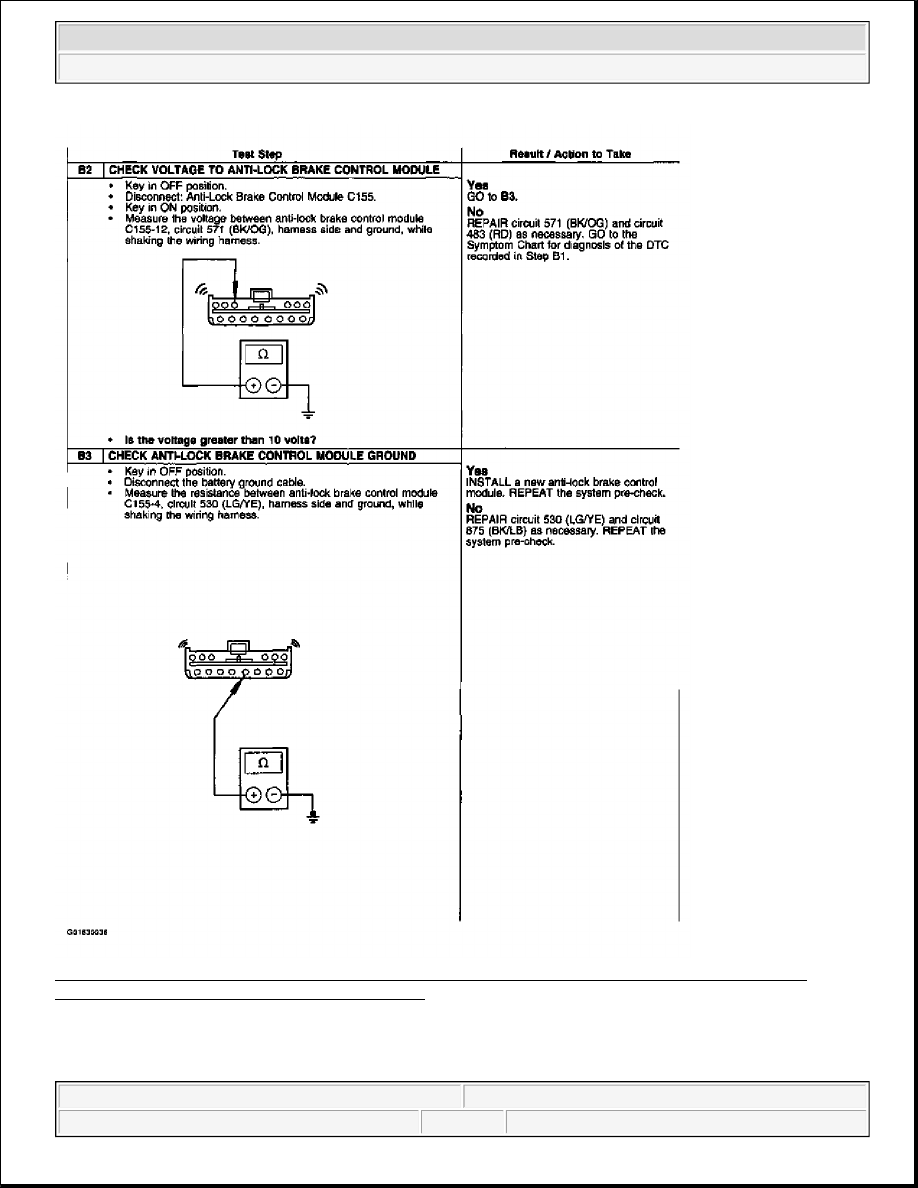

Fig. 9: Pinpoint Test B: Yellow ABS Warning Indicator Self-Checks Ok But Automatically Begins
Flashing - Diagnostic Chart (Steps B2 Cont.-B3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup
