Ford F150 Pickup. Manual - part 320

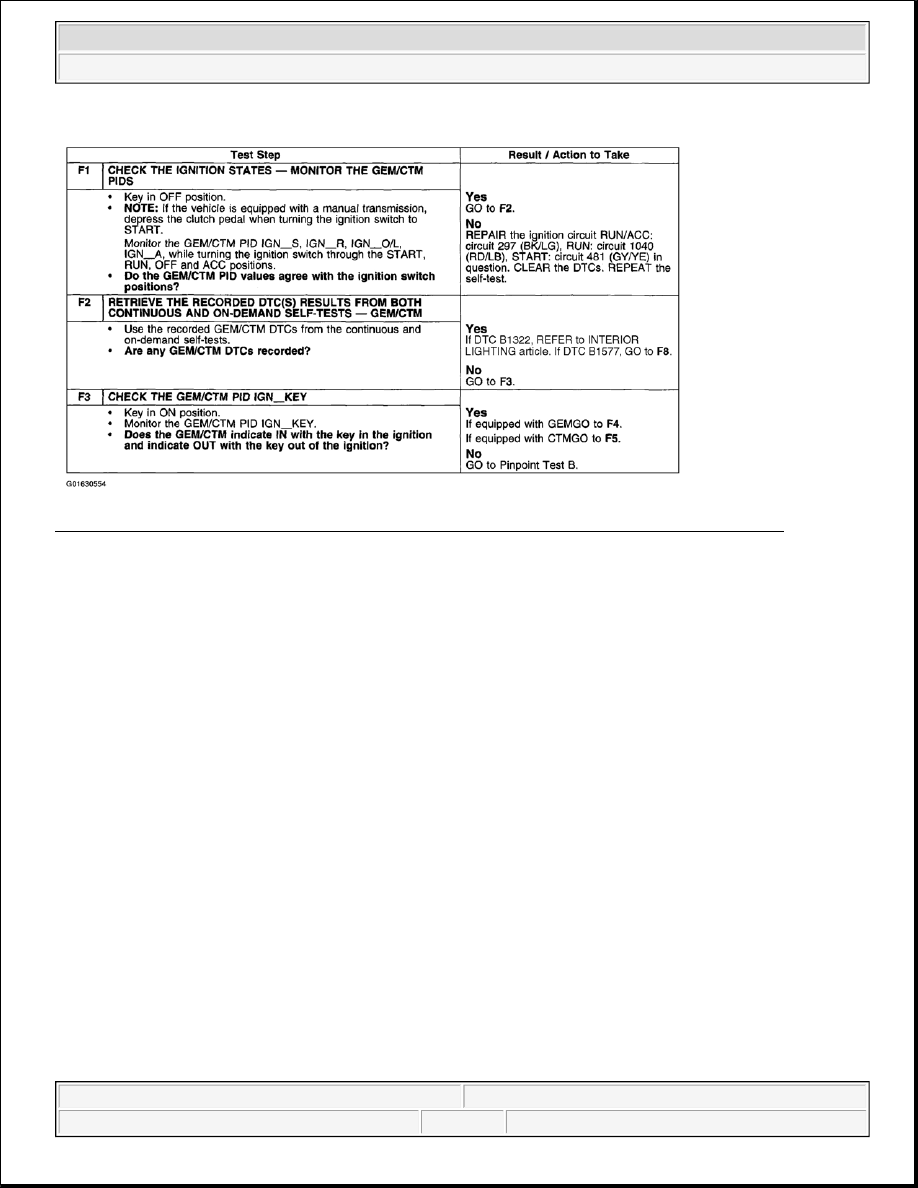

Fig. 14: Pinpoint Test F: Headlamp On Reminder Chime Does Not Operate Correctly (F1 - F3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup

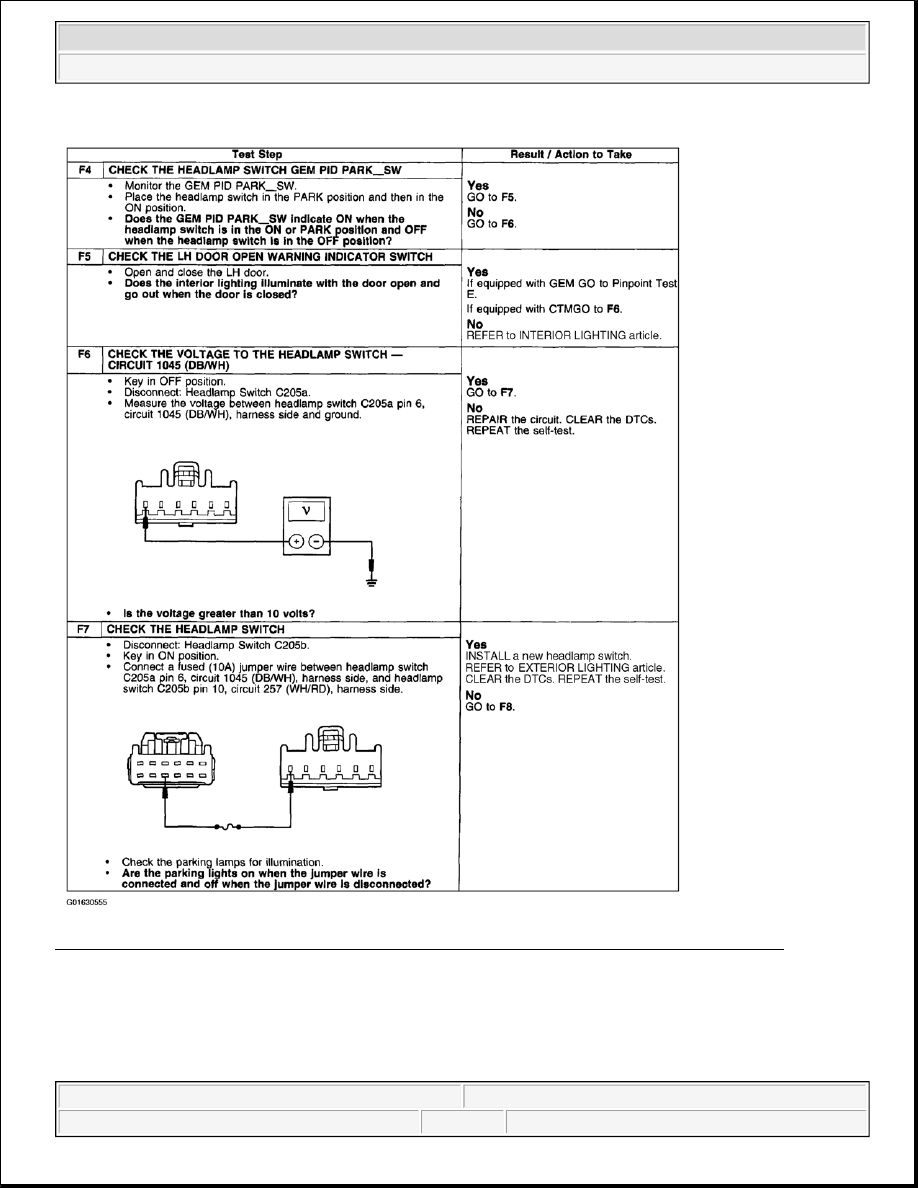

Fig. 15: Pinpoint Test F: Headlamp On Reminder Chime Does Not Operate Correctly (F4 - F7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup

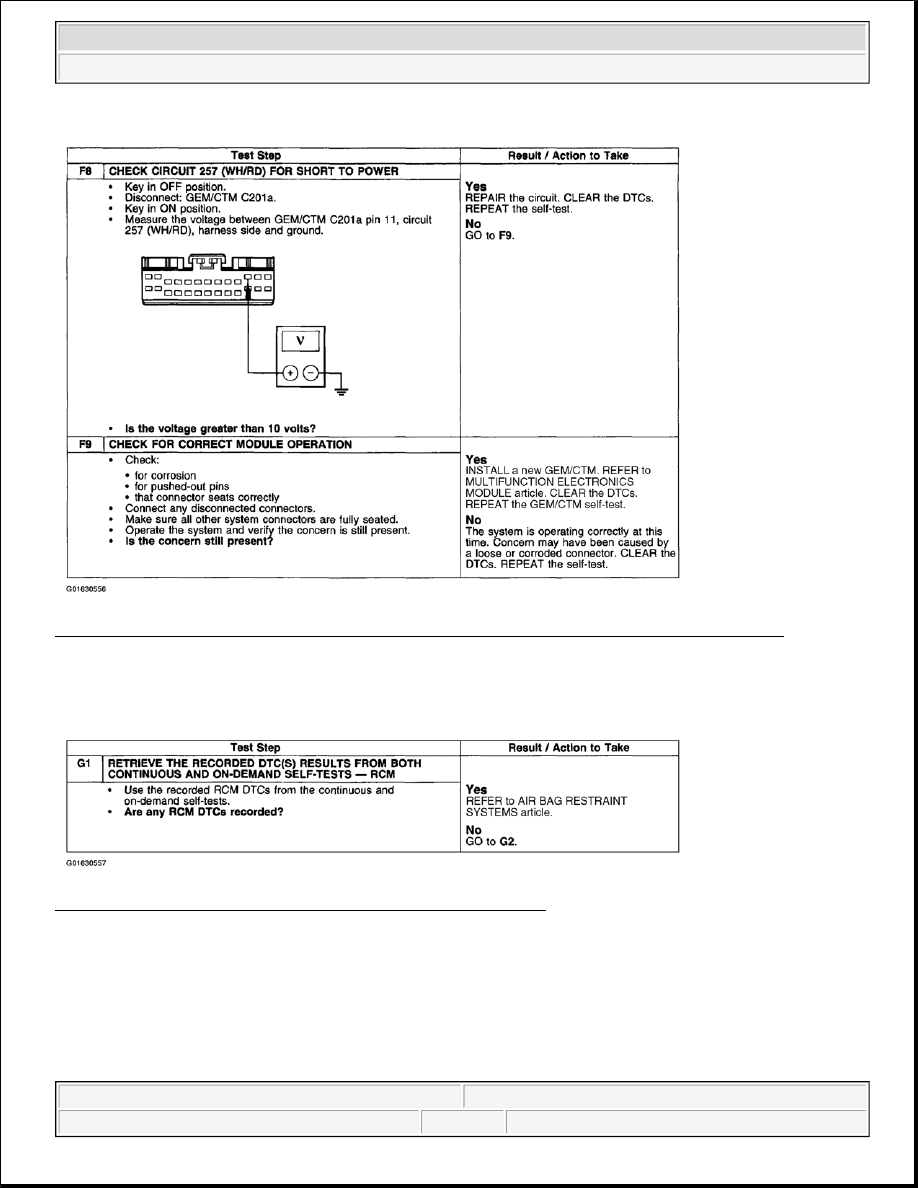

Fig. 16: Pinpoint Test F: Headlamp On Reminder Chime Does Not Operate Correctly (F8 - F9)
Courtesy of FORD MOTOR CO.

PINPOINT TEST G: A CHIME IS INOPERATIVE - AIR BAG

Fig. 17: Pinpoint Test G: A Chime Is Inoperative - Air Bag (G1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup



Fig. 18: Pinpoint Test G: A Chime Is Inoperative - Air Bag (G2 - G4)
Courtesy of FORD MOTOR CO.




2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup
