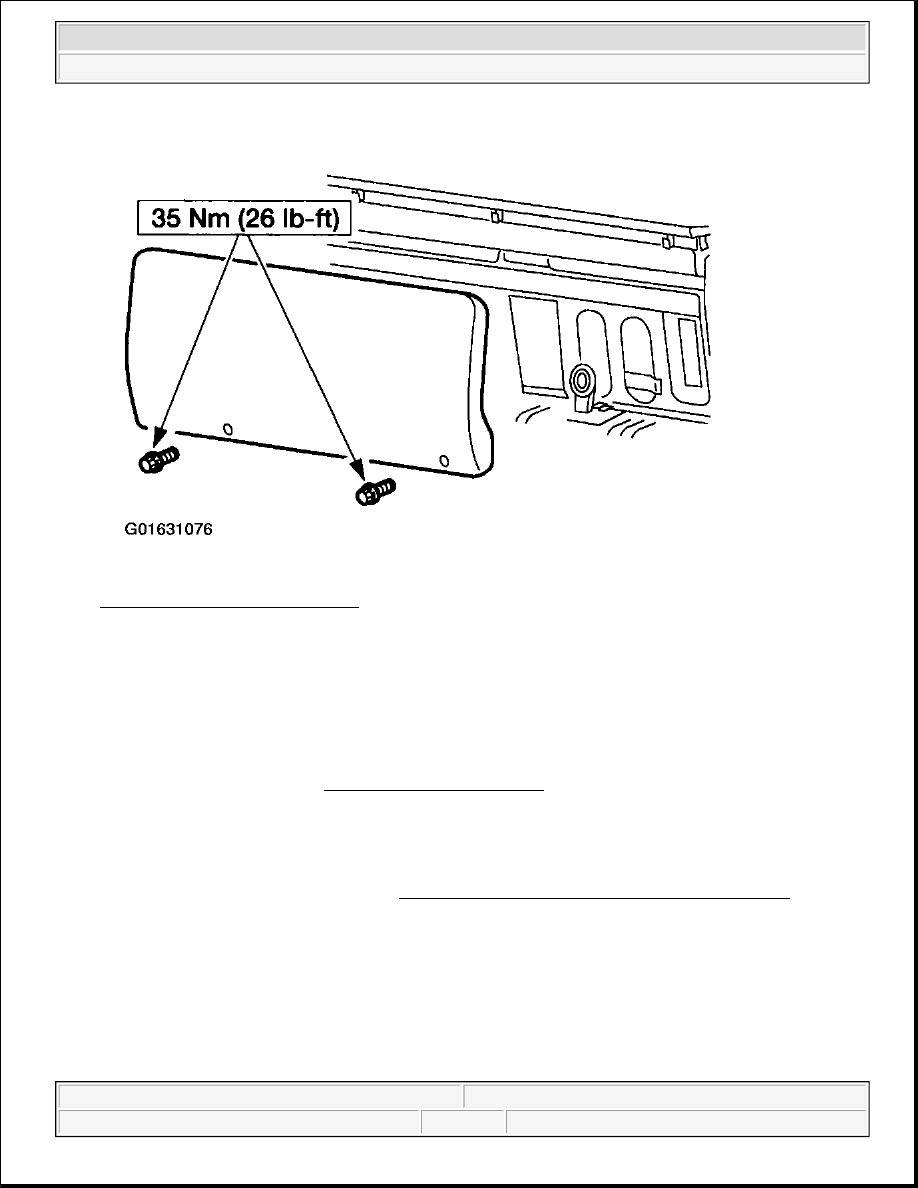

Fig. 90: Installing Rear Seat Back
Courtesy of FORD MOTOR CO.

REAR WINDOW GLASS - REGULATOR AND MOTOR

Removal and Installation

Vehicles with rear bench seat

1. Remove the rear seat. Refer to REAR SEAT -- SUPERCAB .

Vehicles with rear bucket seats

2. Position the rear seats forward.

3. Remove the rear center console. Refer to REAR DOOR WINDOW GLASS - SUPERCREW .

4. Remove the rear trim panel.

1. Remove the four pin-type retainers.

2. Remove the three bolts and one nut.

NOTE:

RH side shown, LH side similar.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

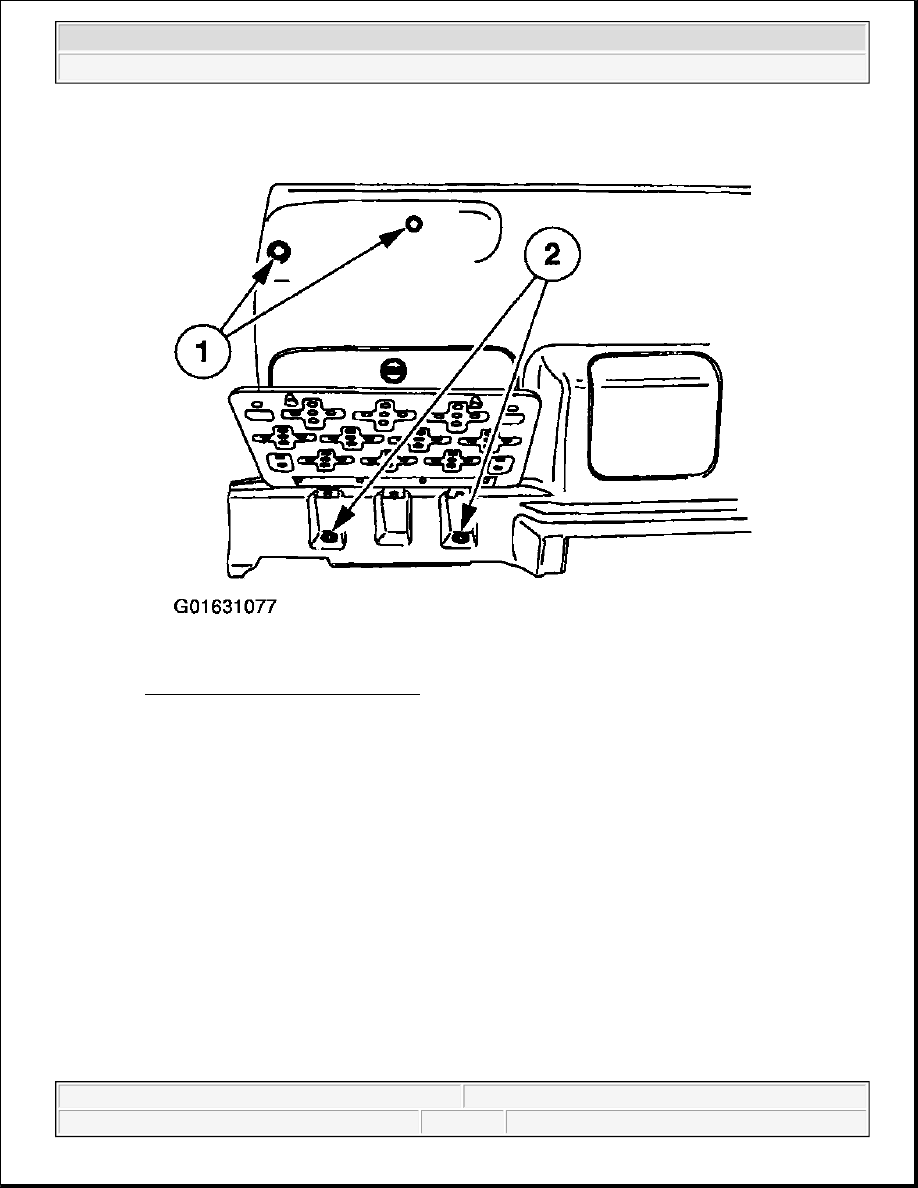

Fig. 91: Removing Rear Trim Panel
Courtesy of FORD MOTOR CO.

All vehicles

5. Position aside the RH safety belt guide.

1. Lift up on the safety belt guide cover.

2. Remove the safety belt guide bolt.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

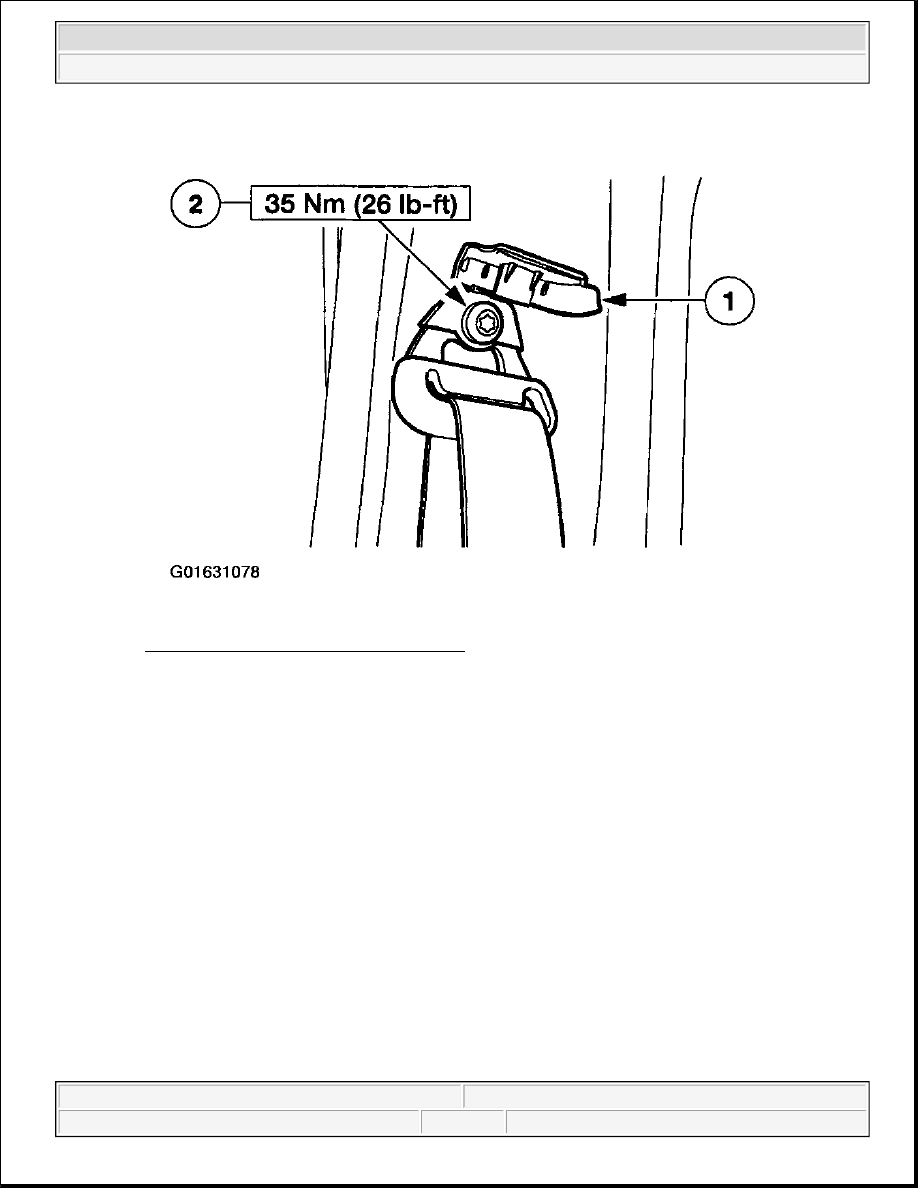

Fig. 92: Positioning RH Safety Belt Guide
Courtesy of FORD MOTOR CO.

6. Remove the RH upper rear corner trim panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

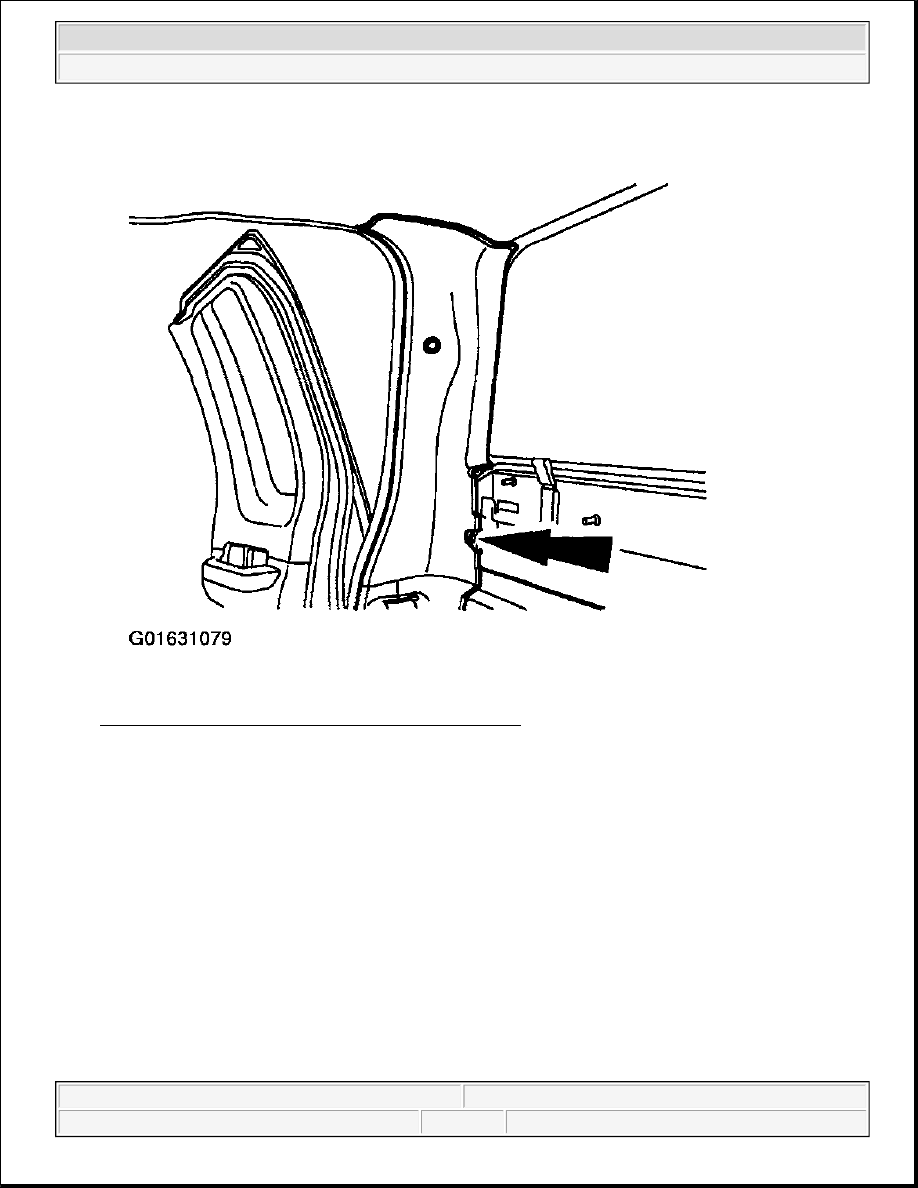

Fig. 93: Removing RH Upper Rear Corner Trim Panel
Courtesy of FORD MOTOR CO.

NOTE:

RH side shown, LH side similar.
