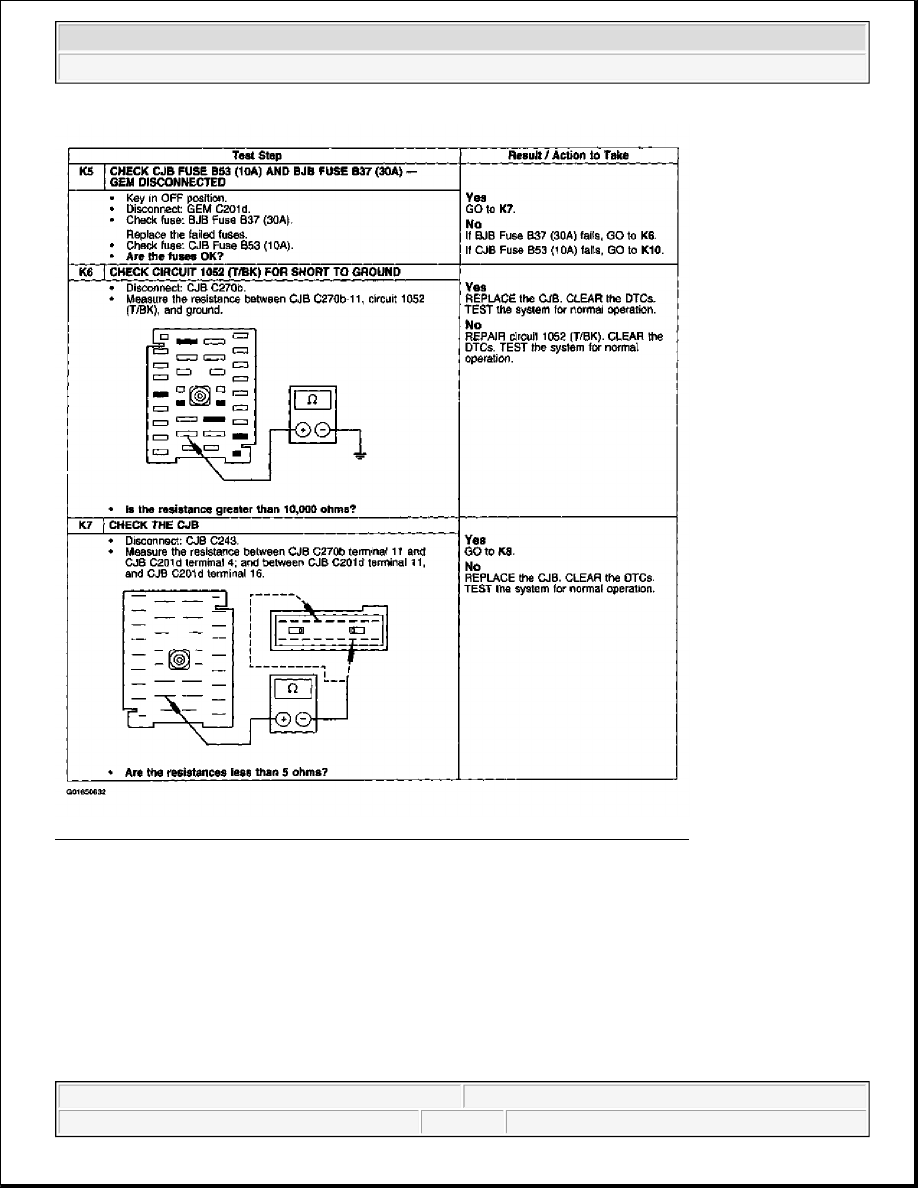

Fig. 100: Pinpoint Test K: No Communication With Module - GEM (Steps K5-K7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

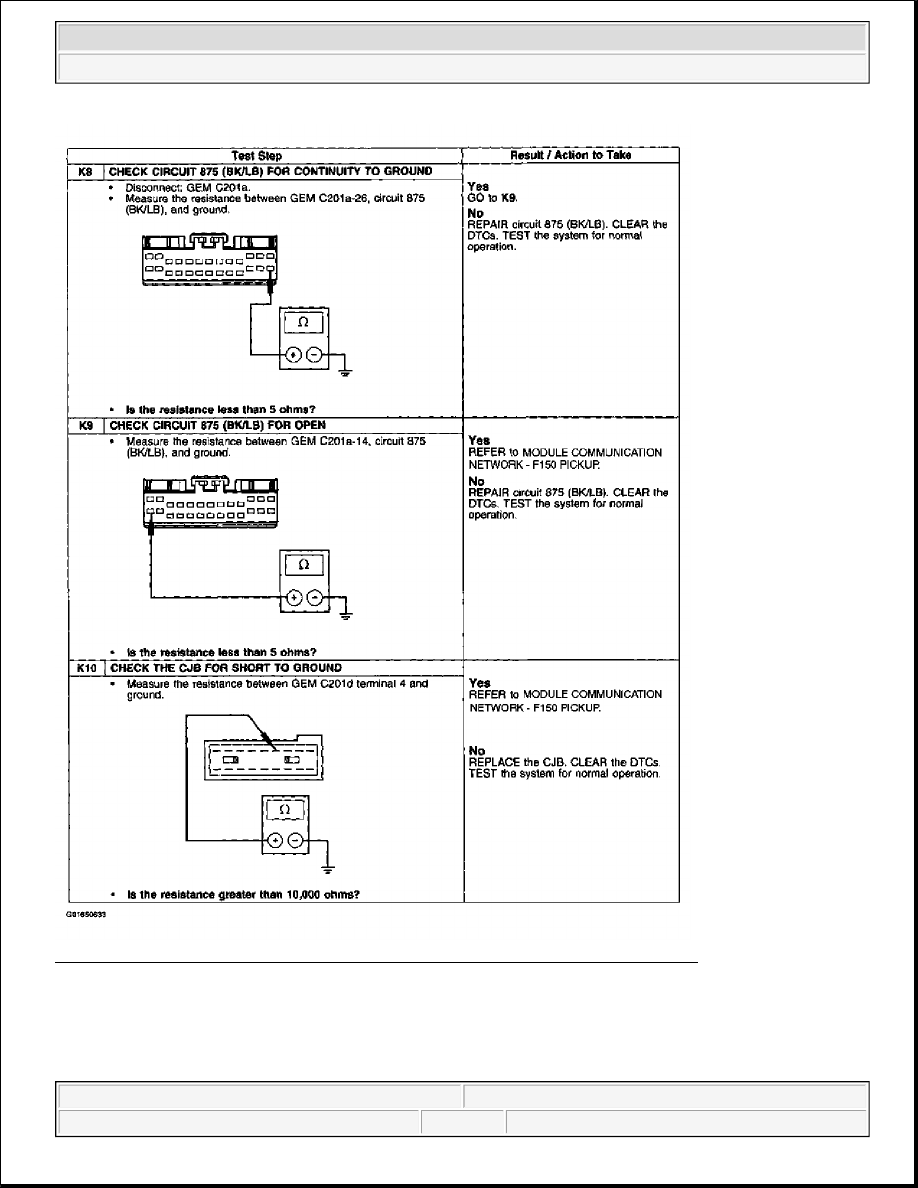

Fig. 101: Pinpoint Test K: No Communication With Module - GEM (Steps K8-K10)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup



2003 TRANSMISSIONS

Transfer Case - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

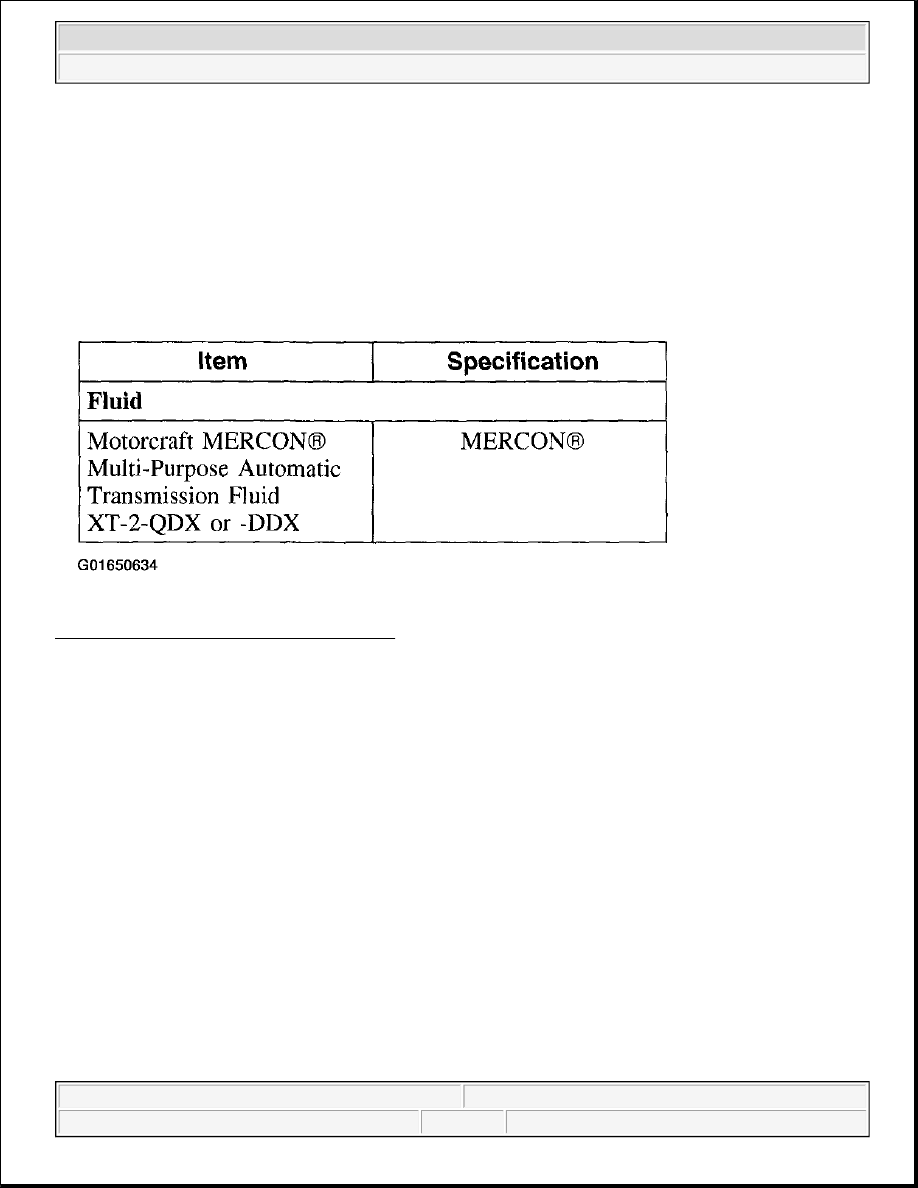

Fig. 1: Transfer Case General Specifications
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup





2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

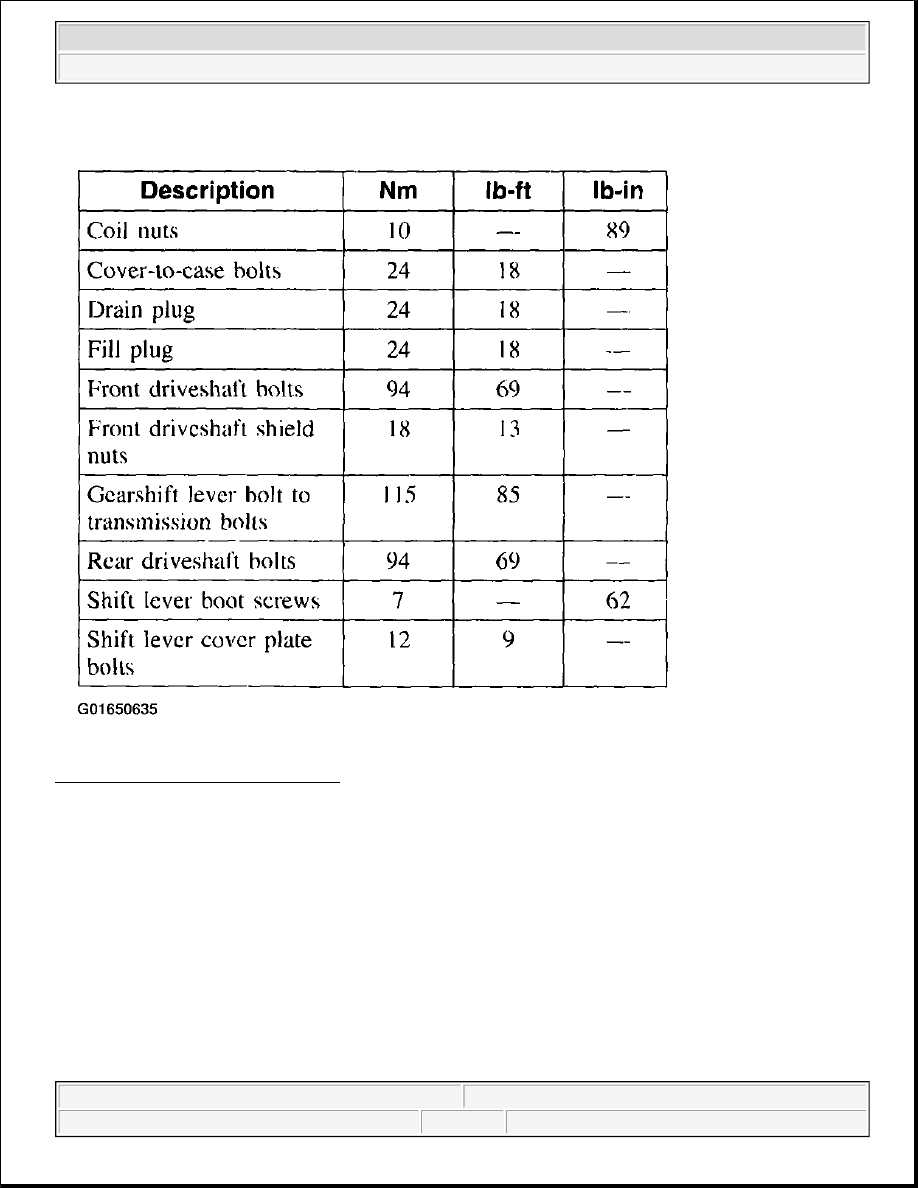

Fig. 2: Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
