Fig. 119: Removing Front Seat
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Installation

1. To install, reverse the removal procedure.

z

Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .

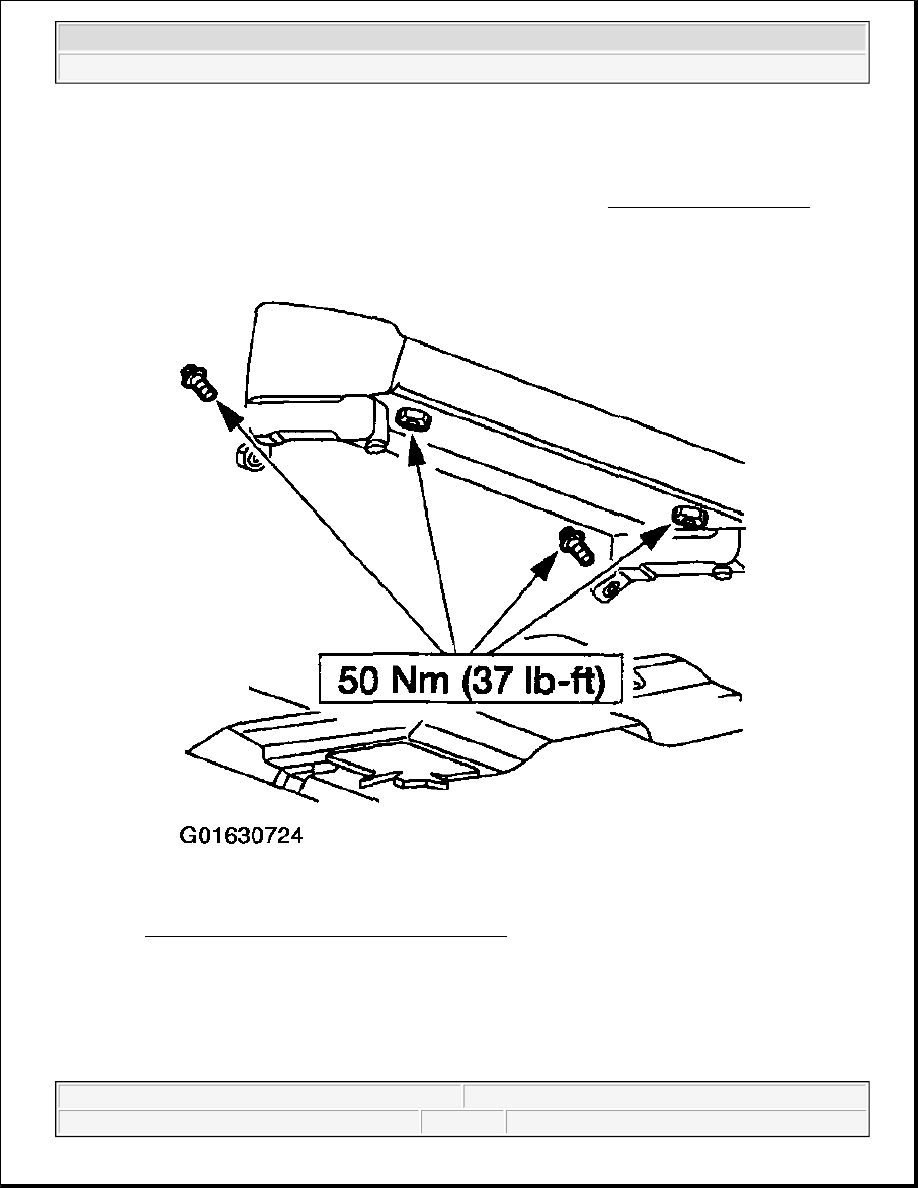

Fig. 120: Installing Front Full Bench Seat Bolts
Courtesy of FORD MOTOR CO.

FRONT SEAT - 60 PERCENT

Removal



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



1. Remove the 60 percent front bench.

1. Remove the seat riser bolts and the safety belt bolt.

2. Remove the nut.

3. Disconnect the electrical connectors (if equipped) and remove the seat.

NOTE:

Removing the 60 percent front bench requires more than one technician.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

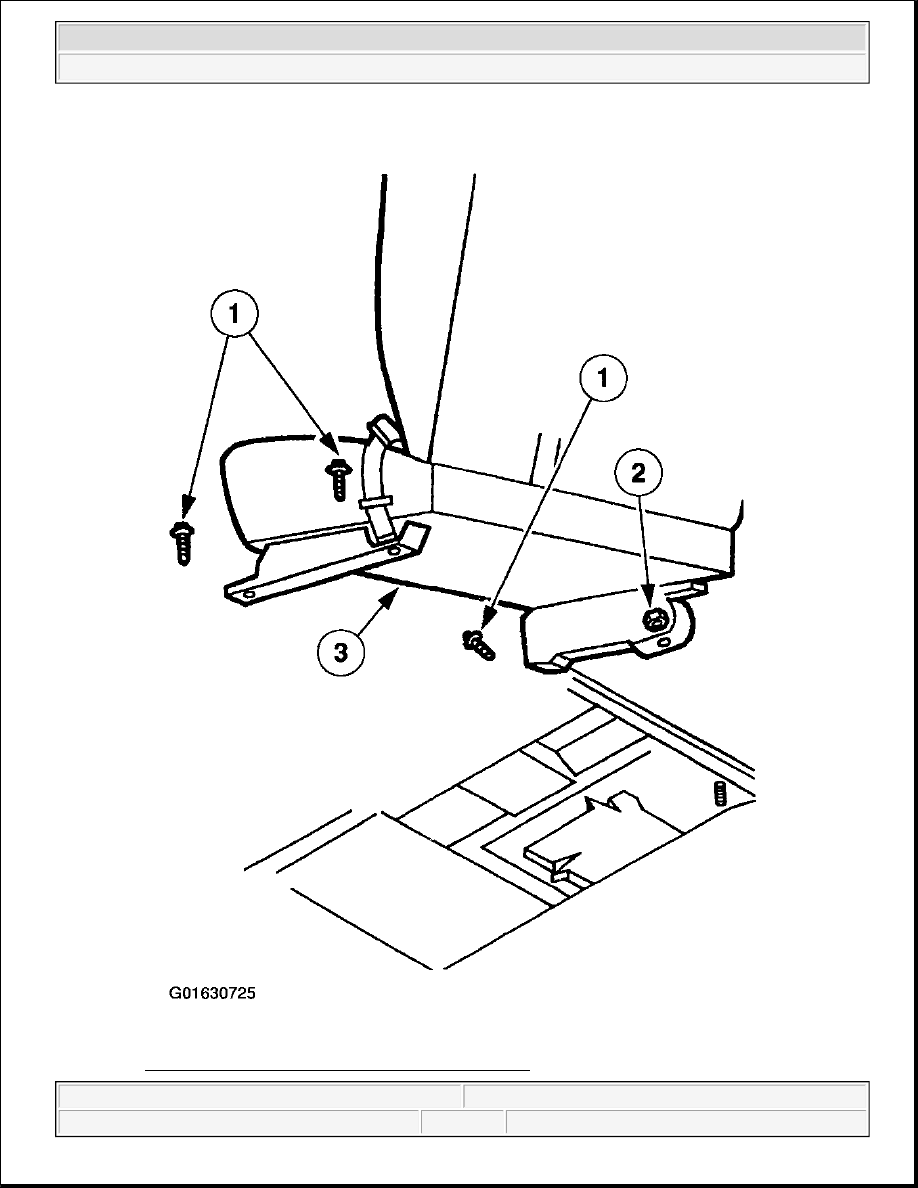

Fig. 121: Removing Front Bench Seat - 60 Percent
