Ford F150 Pickup. Manual - part 1909

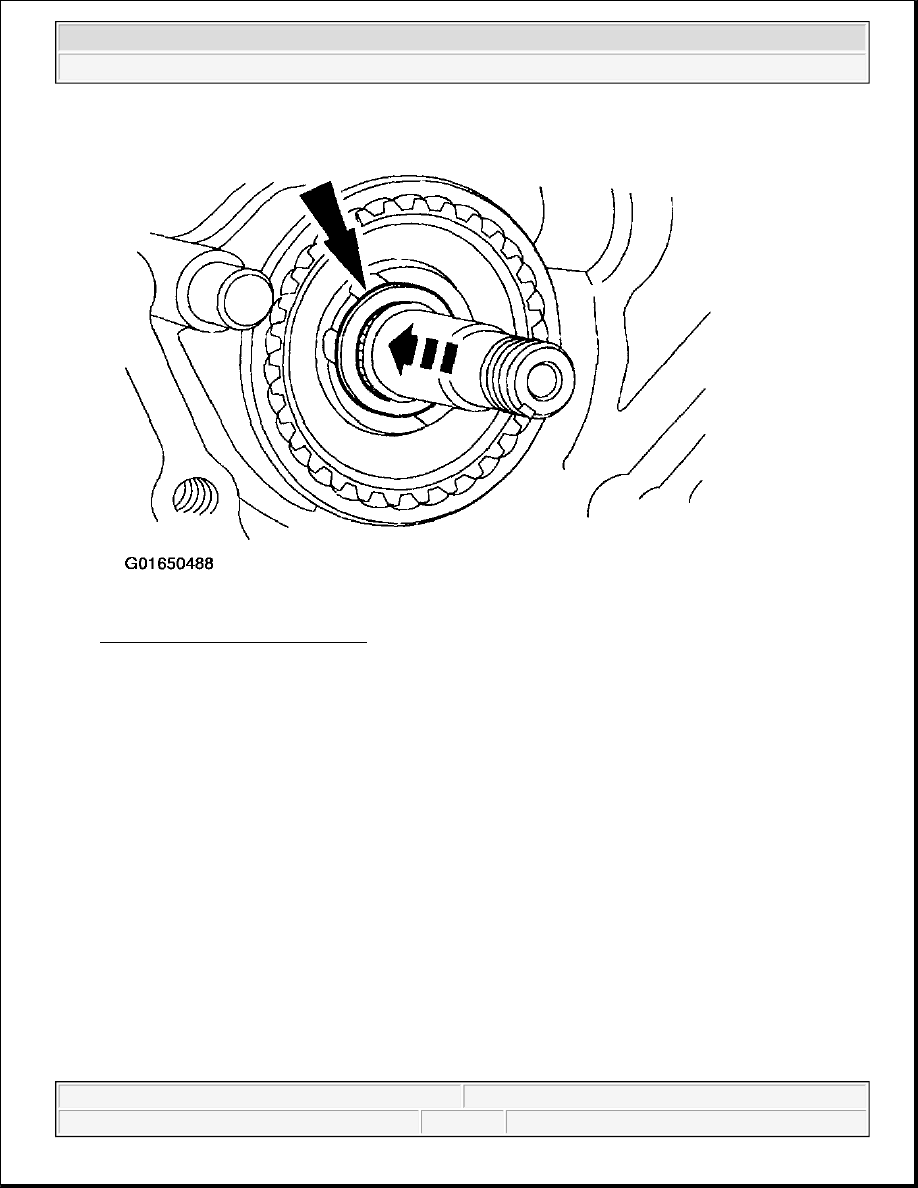

Fig. 178: Installing Thrust Washer
Courtesy of FORD MOTOR CO.

32. Install the countershaft reverse gear.

1. Install the reverse synchronizer blocking ring.

2. Install the two countershaft reverse gear bearings.

3. Install the countershaft reverse gear.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

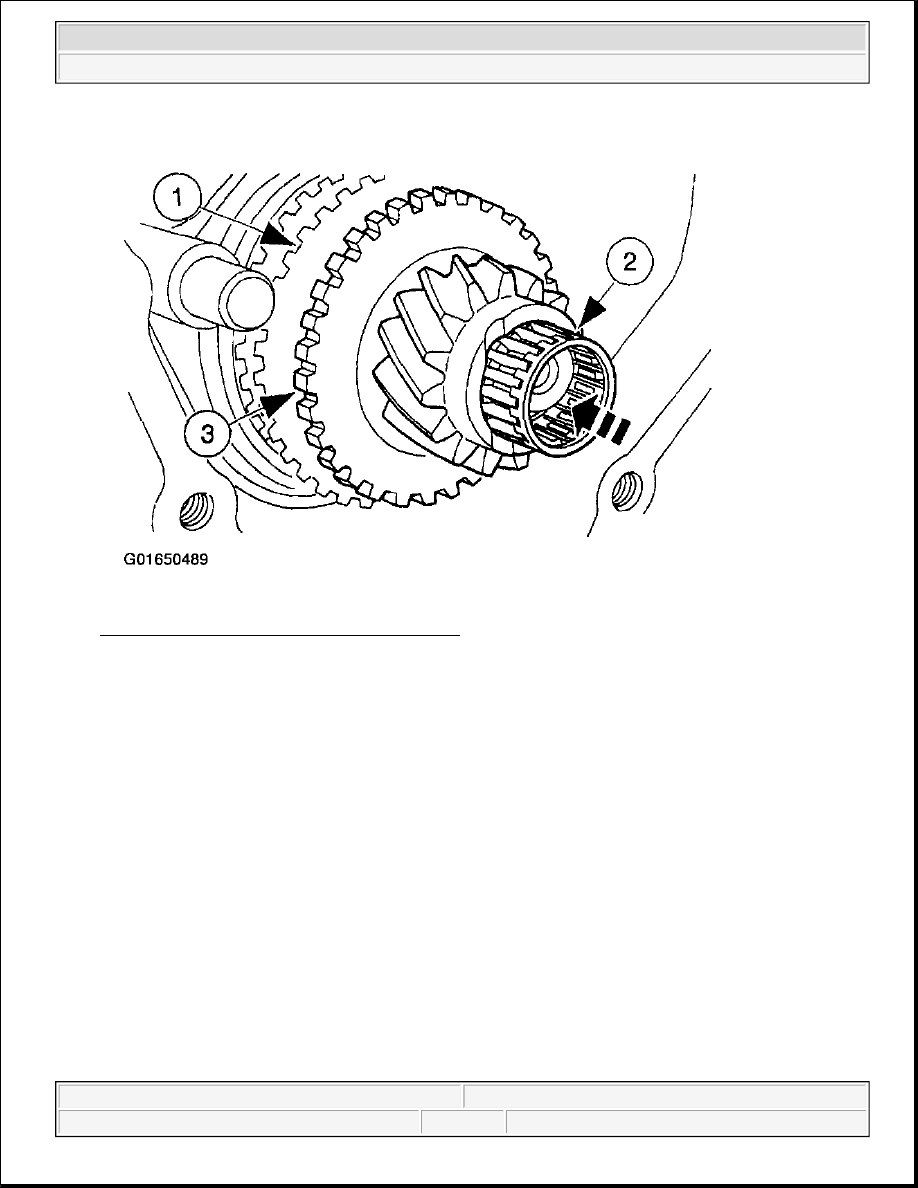

Fig. 179: Installing Countershaft Reverse Gear
Courtesy of FORD MOTOR CO.

33. Measure the countershaft reverse gear end play.

z

Install the thrust washer and hold it against the shoulder on the countershaft while checking end
play.

z

Determine the correct thrust washer to obtain correct end play.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

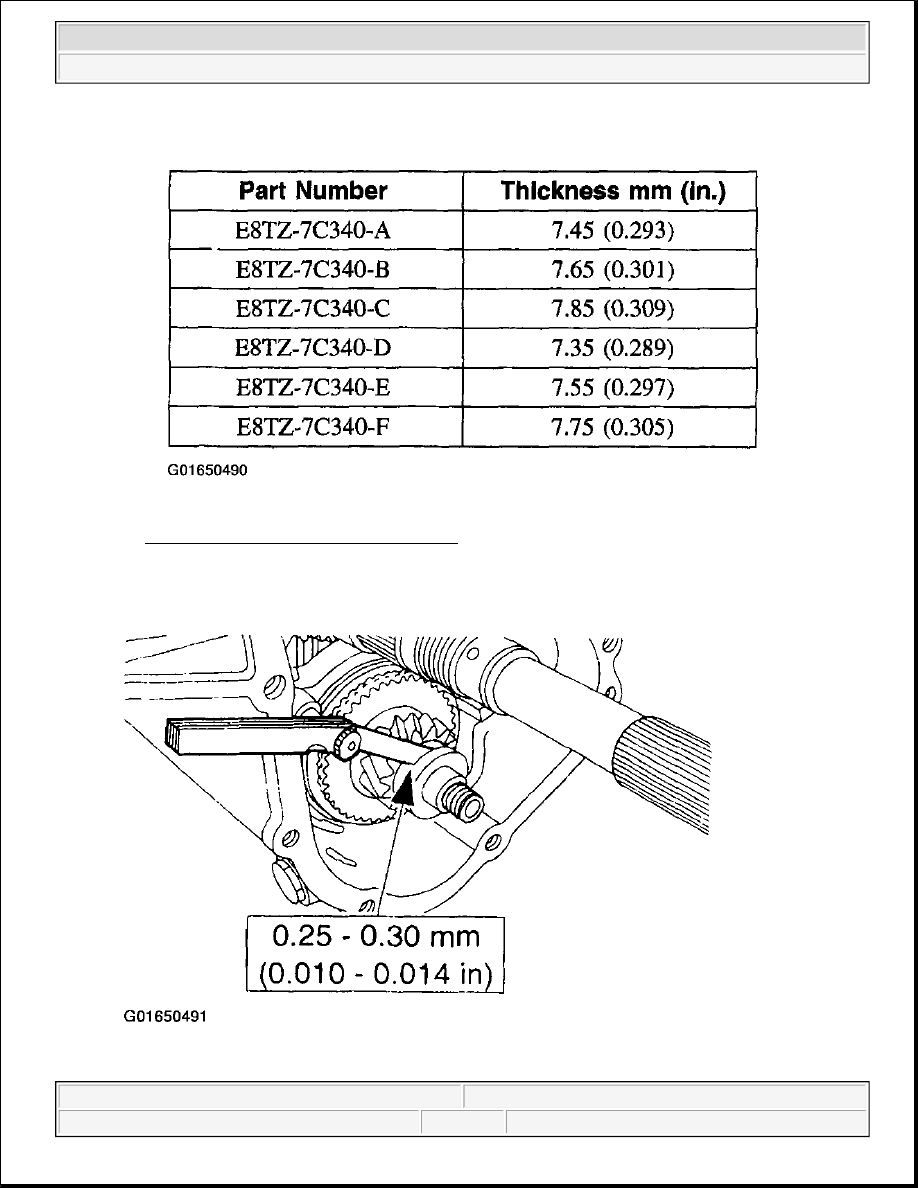

Fig. 180: Thrust Washer Selection Chart
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



Fig. 181: Measuring Countershaft Reverse Gear End Play
Courtesy of FORD MOTOR CO.

34. Install the output shaft spacer.

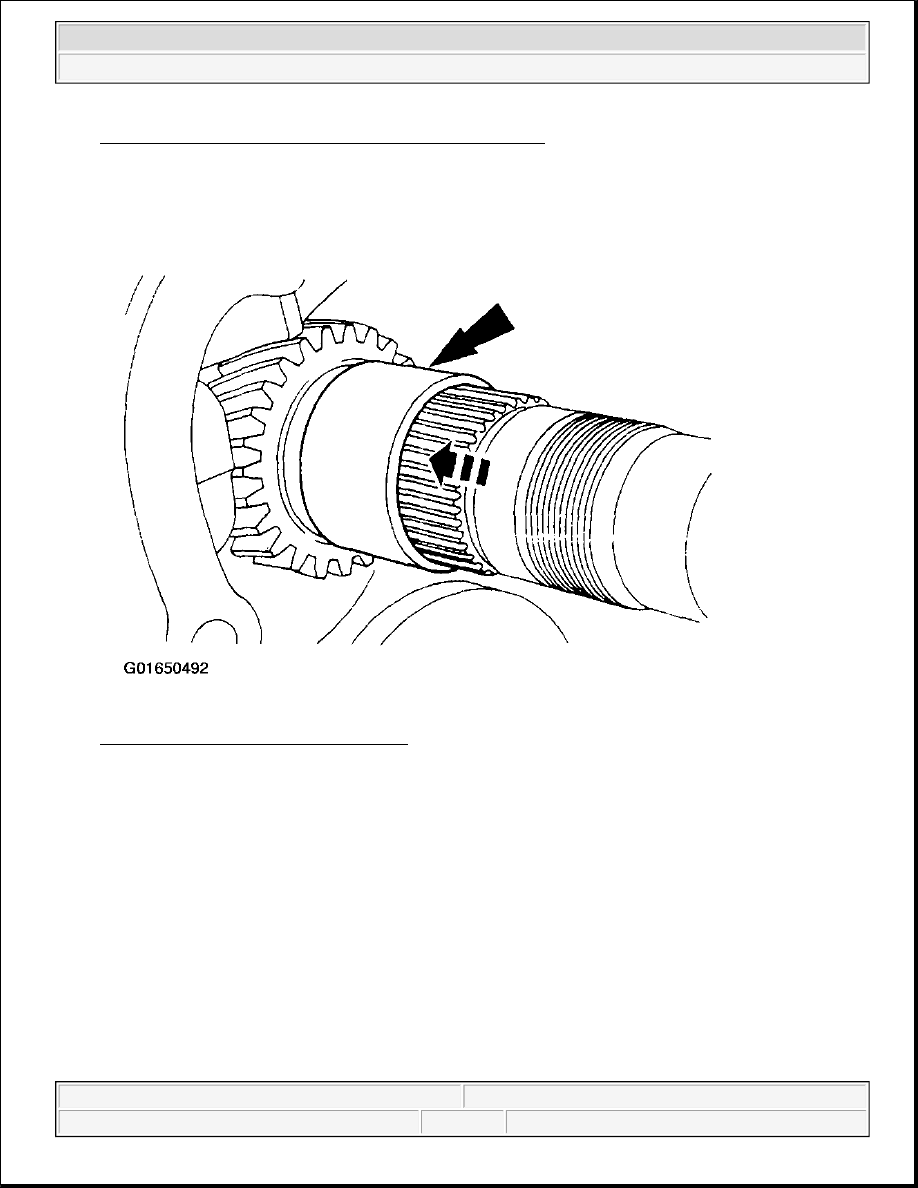

Fig. 182: Installing Output Shaft Spacer
Courtesy of FORD MOTOR CO.

35. Install the output shaft reverse gear.
