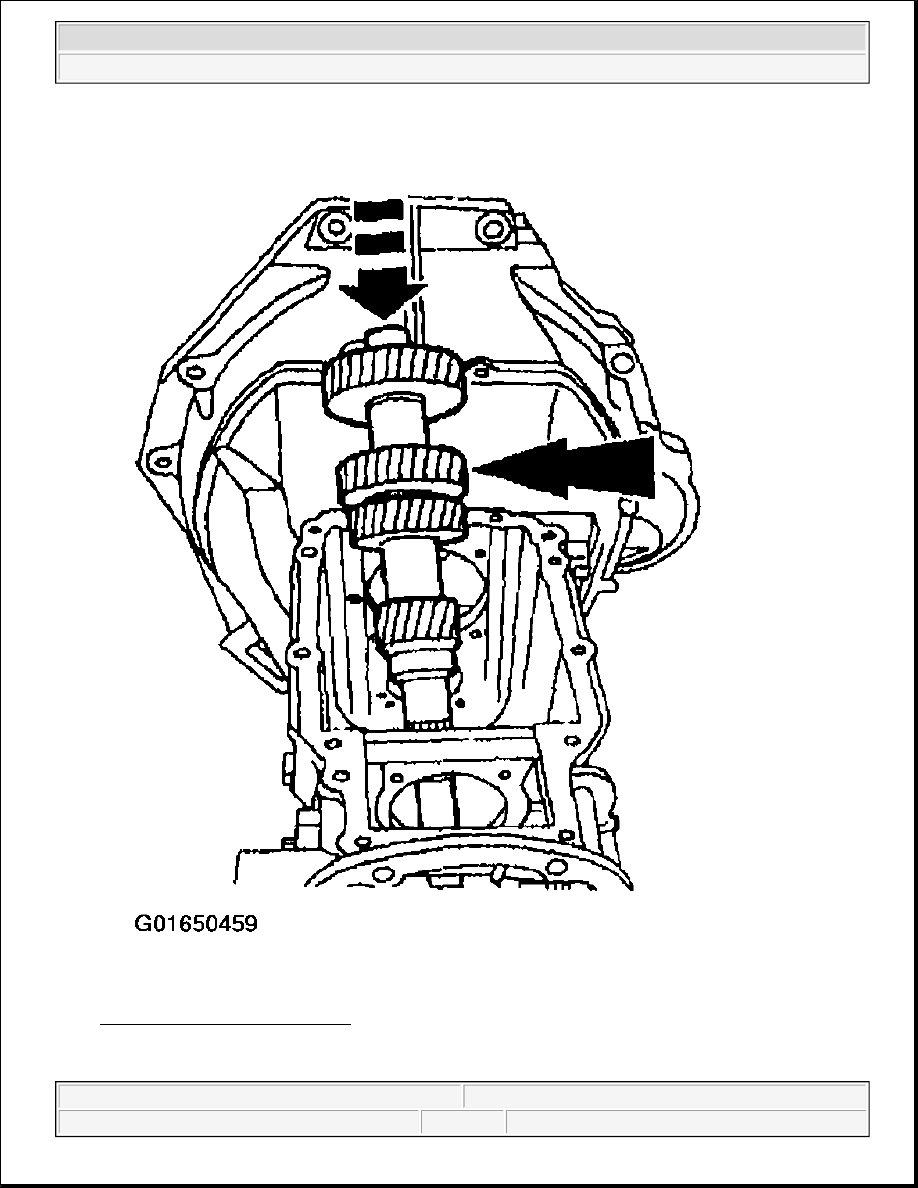

Fig. 149: Installing Countershaft
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



2. Position the input shaft into the transmission.

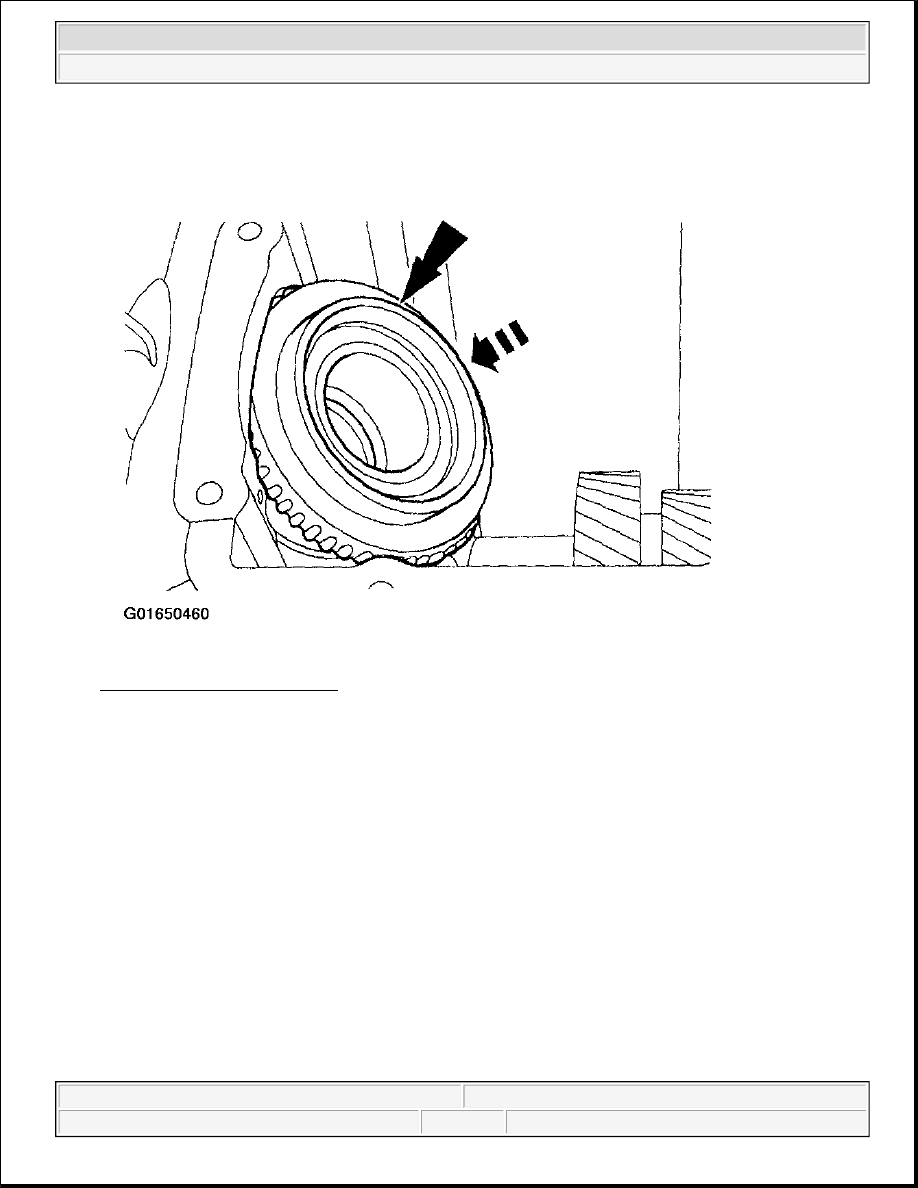

Fig. 150: Installing Input Shaft
Courtesy of FORD MOTOR CO.

NOTE:

Make sure the fourth gear synchronizer blocking ring is in place.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

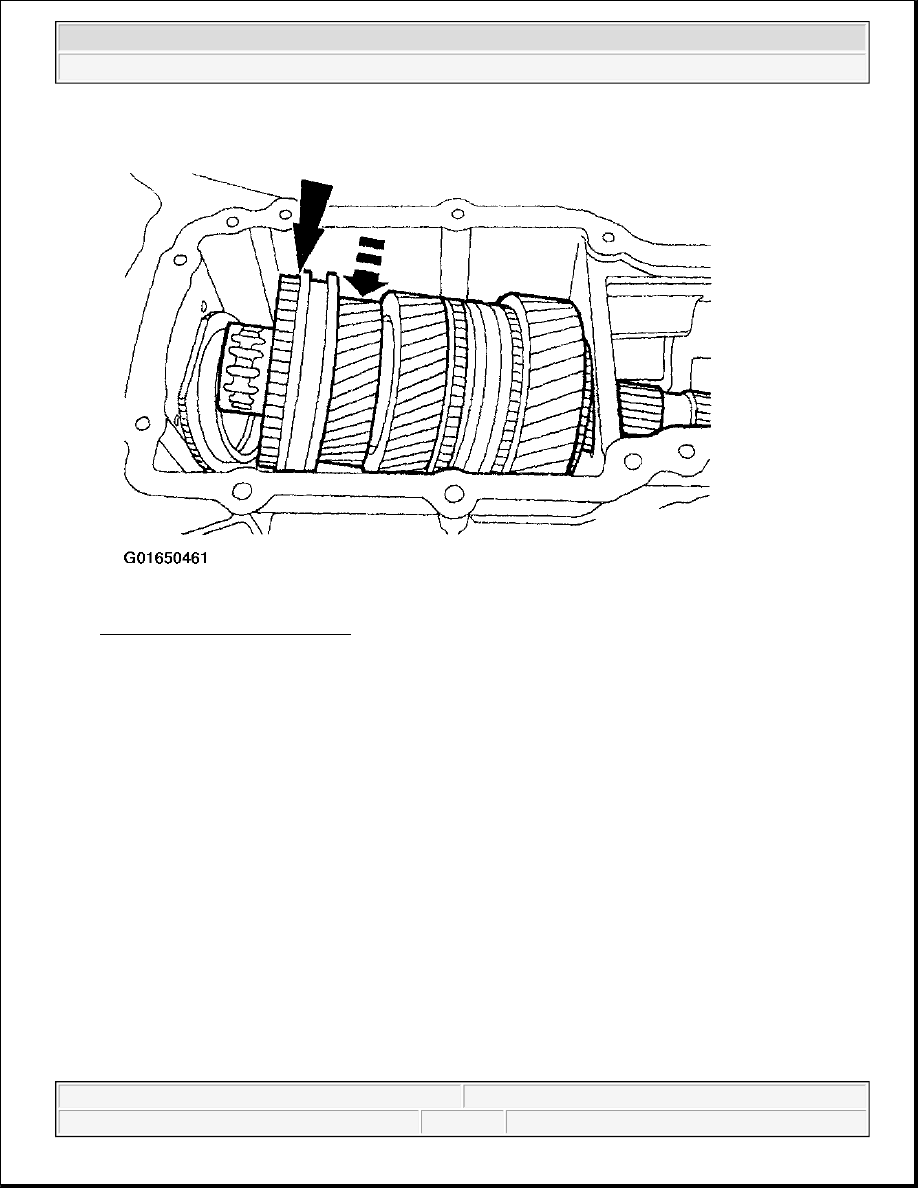

Fig. 151: Installing Output Shaft
Courtesy of FORD MOTOR CO.

3. Install the output shaft.

4. Mate the input shaft and output shaft together.

5. Install the center countershaft bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

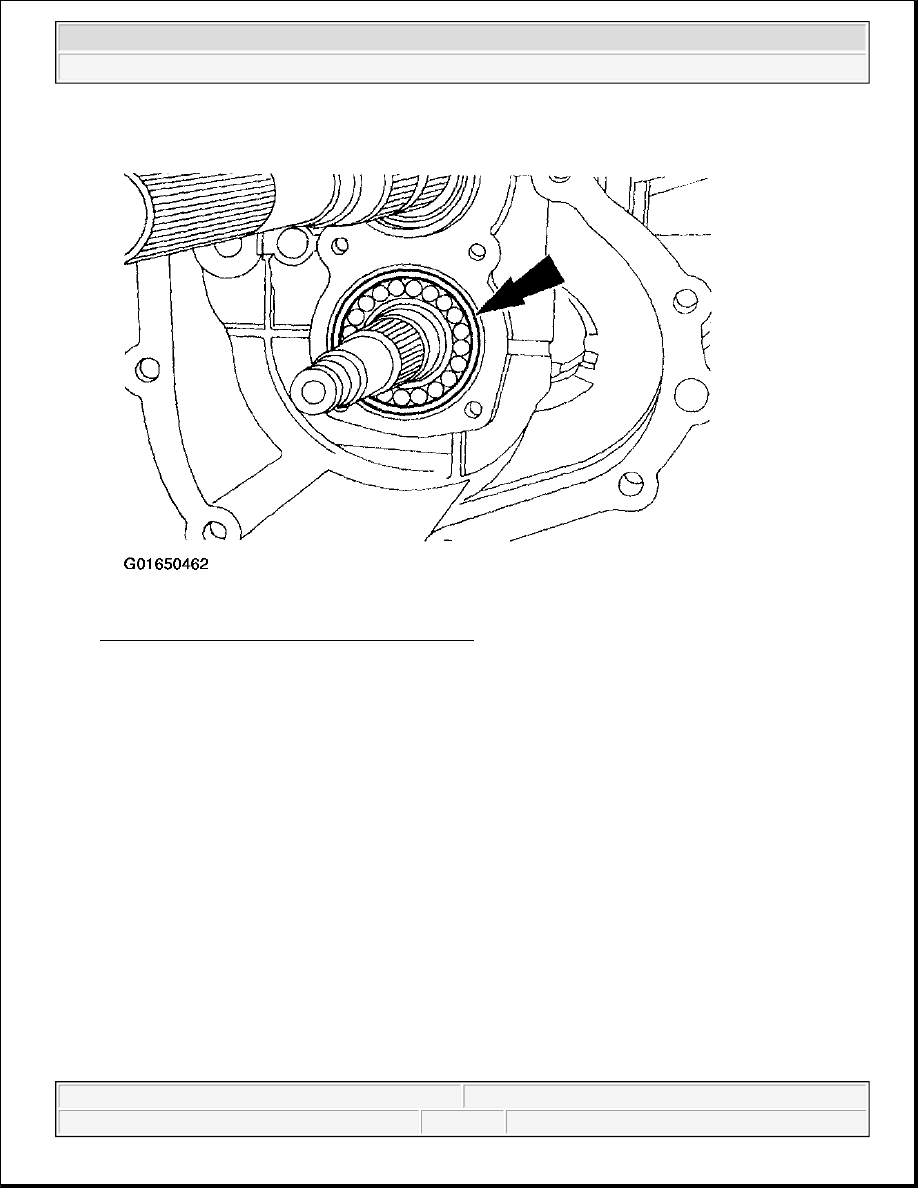

Fig. 152: Installing Center Countershaft Bearing
Courtesy of FORD MOTOR CO.

6. Install the output shaft center bearing.
