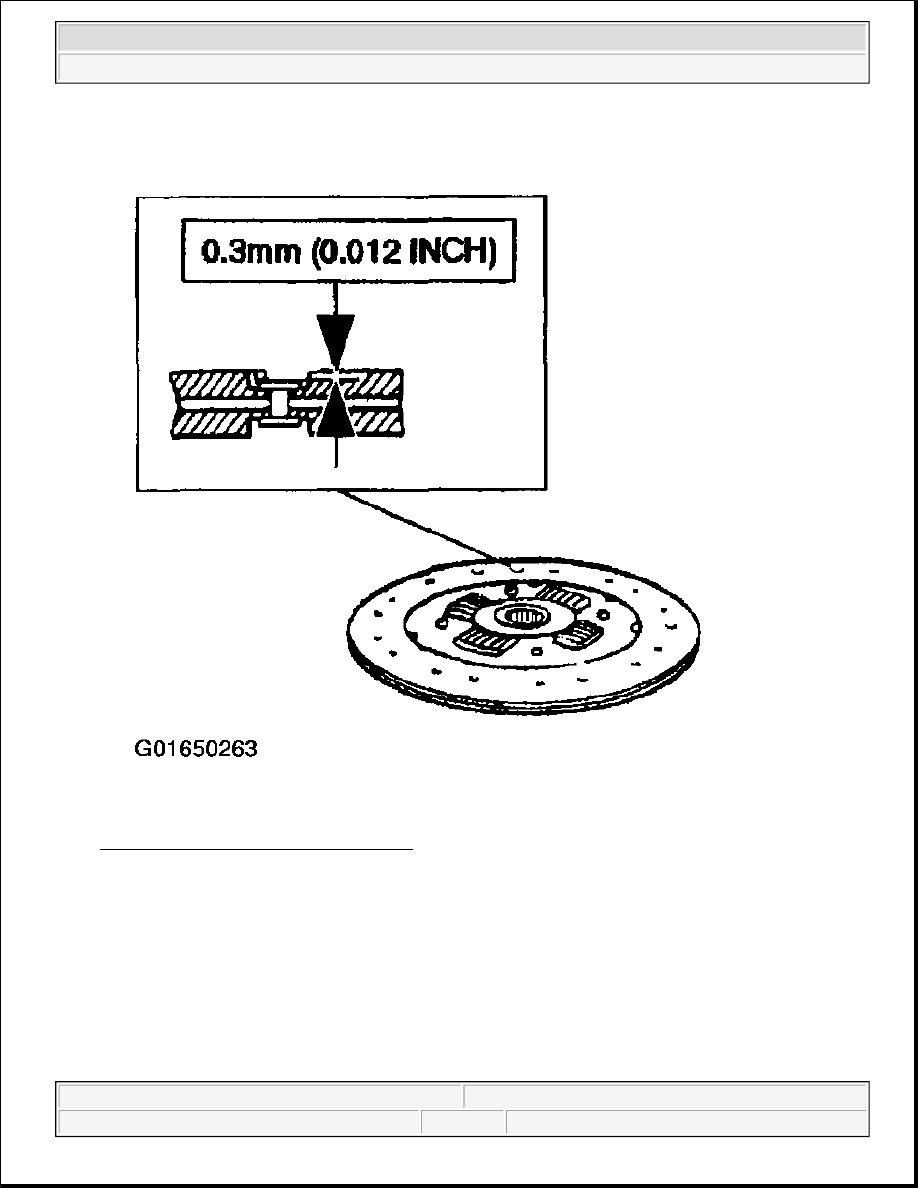

Fig. 32: Measuring Depth Of Rivet Head
Courtesy of FORD MOTOR CO.

4. Use (A) Dial Indicator/Magnetic Base to inspect the (B) clutch disc runout.

z

Replace the clutch disc if not within specification.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission, Clutch & Transfer Case - General Information - F150 Pickup

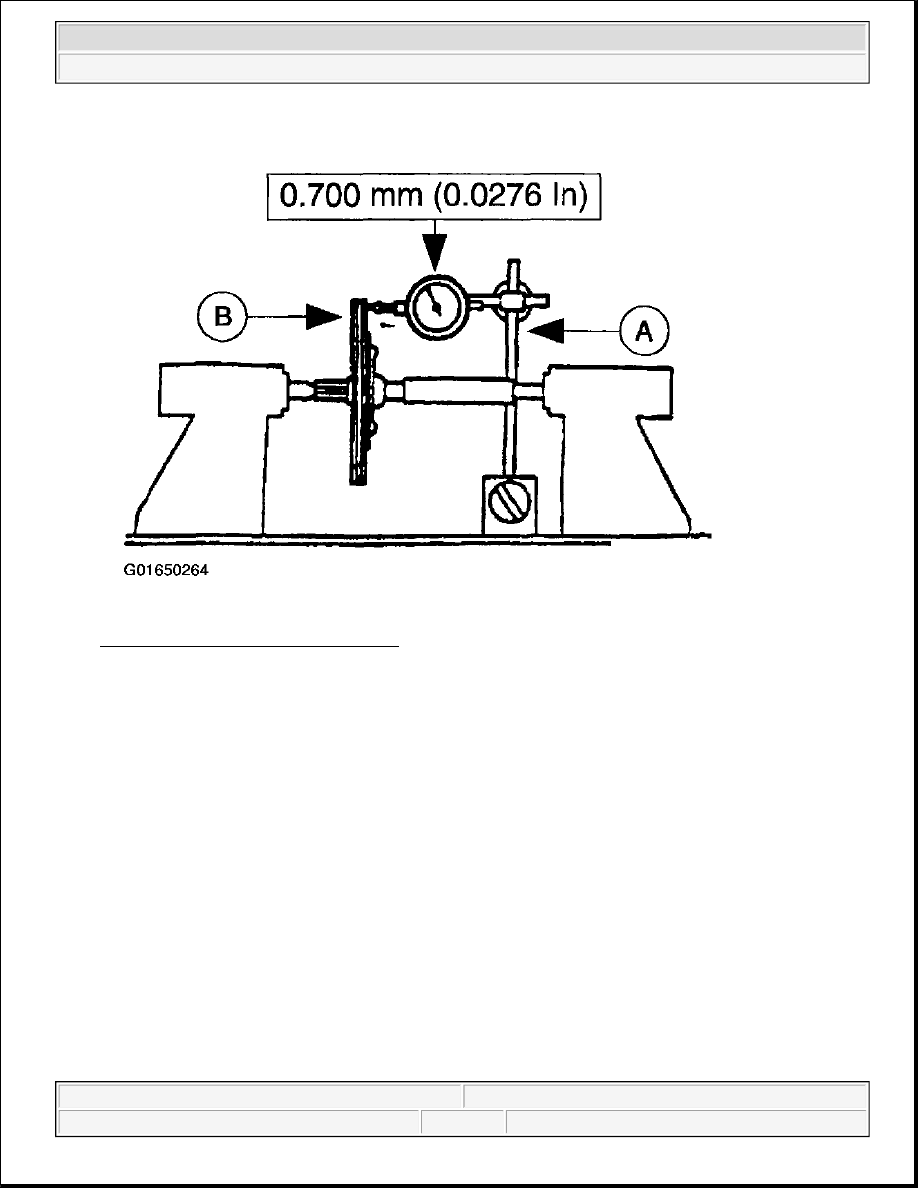

Fig. 33: Inspecting Clutch Disc Runout
Courtesy of FORD MOTOR CO.

PRESSURE PLATE CHECK

1. Inspect clutch pressure plate for excessive wear.

z

Replace clutch pressure plate (7563) if necessary.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission, Clutch & Transfer Case - General Information - F150 Pickup

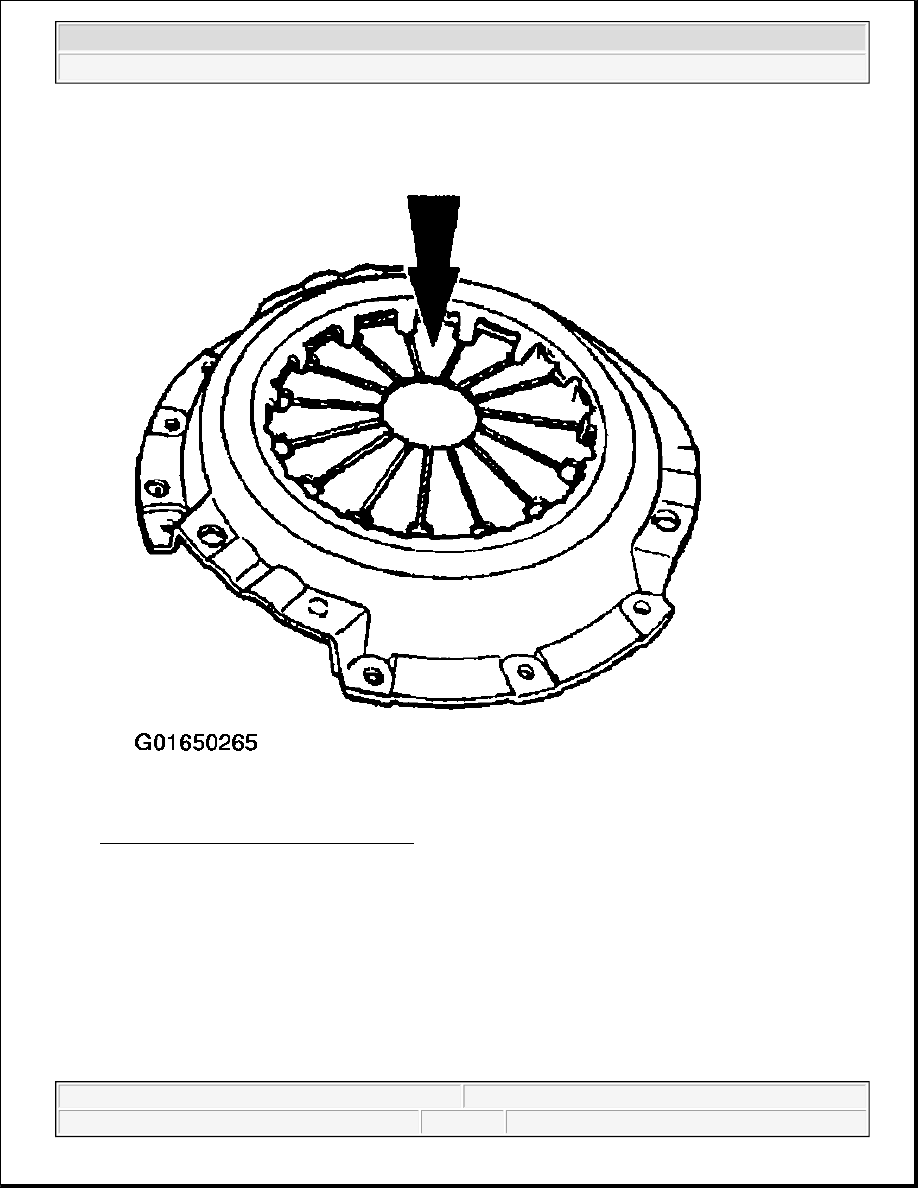

Fig. 34: Inspecting Clutch Pressure Plate
Courtesy of FORD MOTOR CO.

FLYWHEEL CHECK

1. Inspect flywheel for:

z

Cracks.

z

Heat checks or other damage.

z

Machine friction surface of if scored or worn.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission, Clutch & Transfer Case - General Information - F150 Pickup

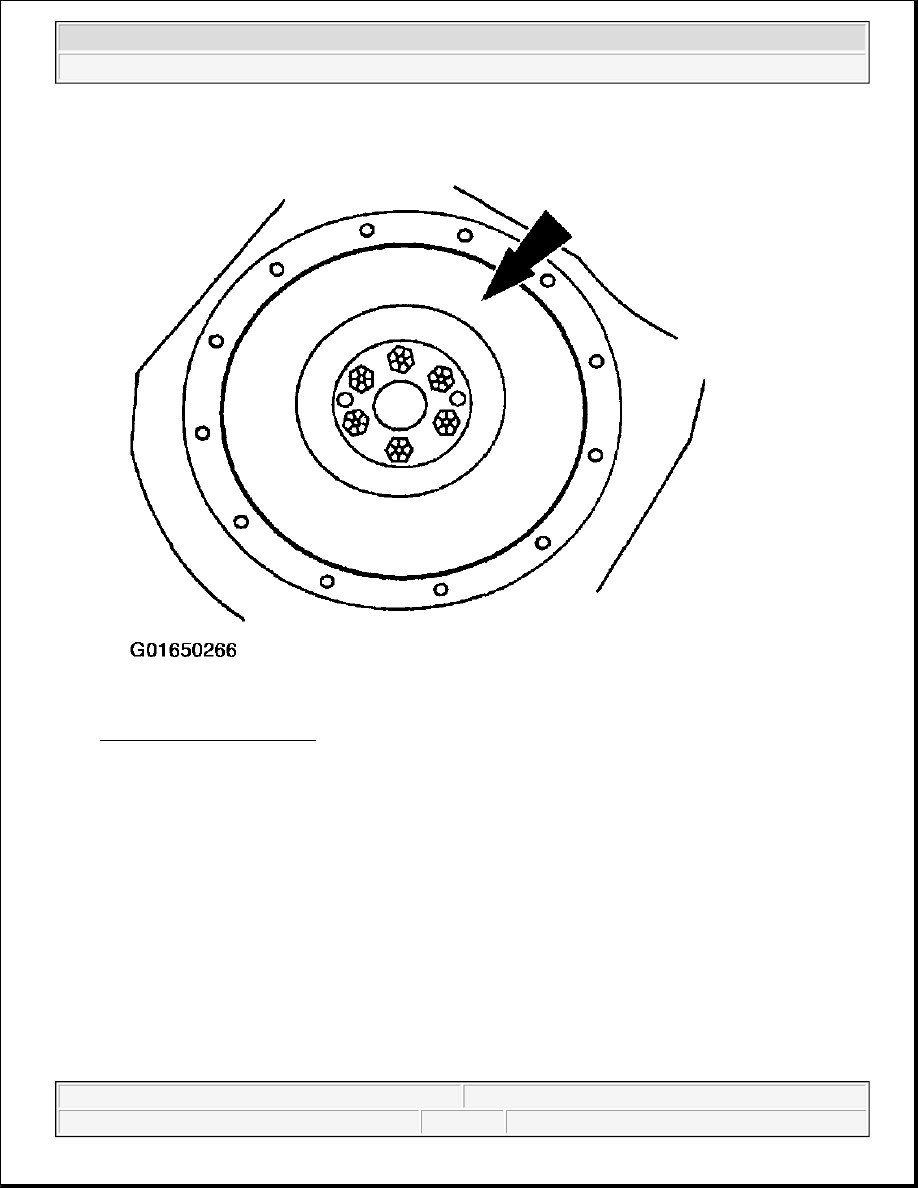

Fig. 35: Inspecting Flywheel
Courtesy of FORD MOTOR CO.

FLYWHEEL RUNOUT CHECK

Special Tool(s)



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission, Clutch & Transfer Case - General Information - F150 Pickup
