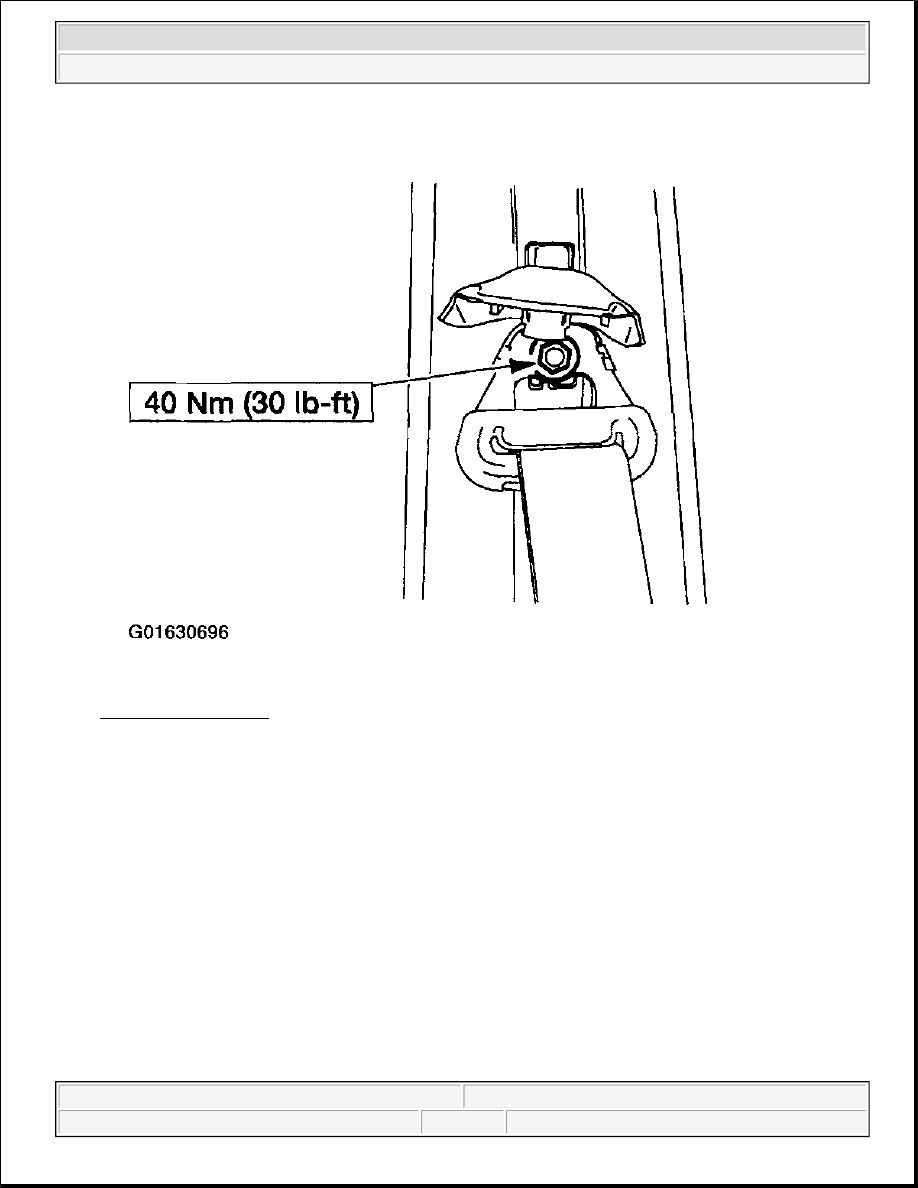

Fig. 92: Installing Nut
Courtesy of FORD MOTOR CO.

15. Position the safety belt guide. Install the nut. Close the safety belt guide cover.

16. Install the passenger side rear scuff plate.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

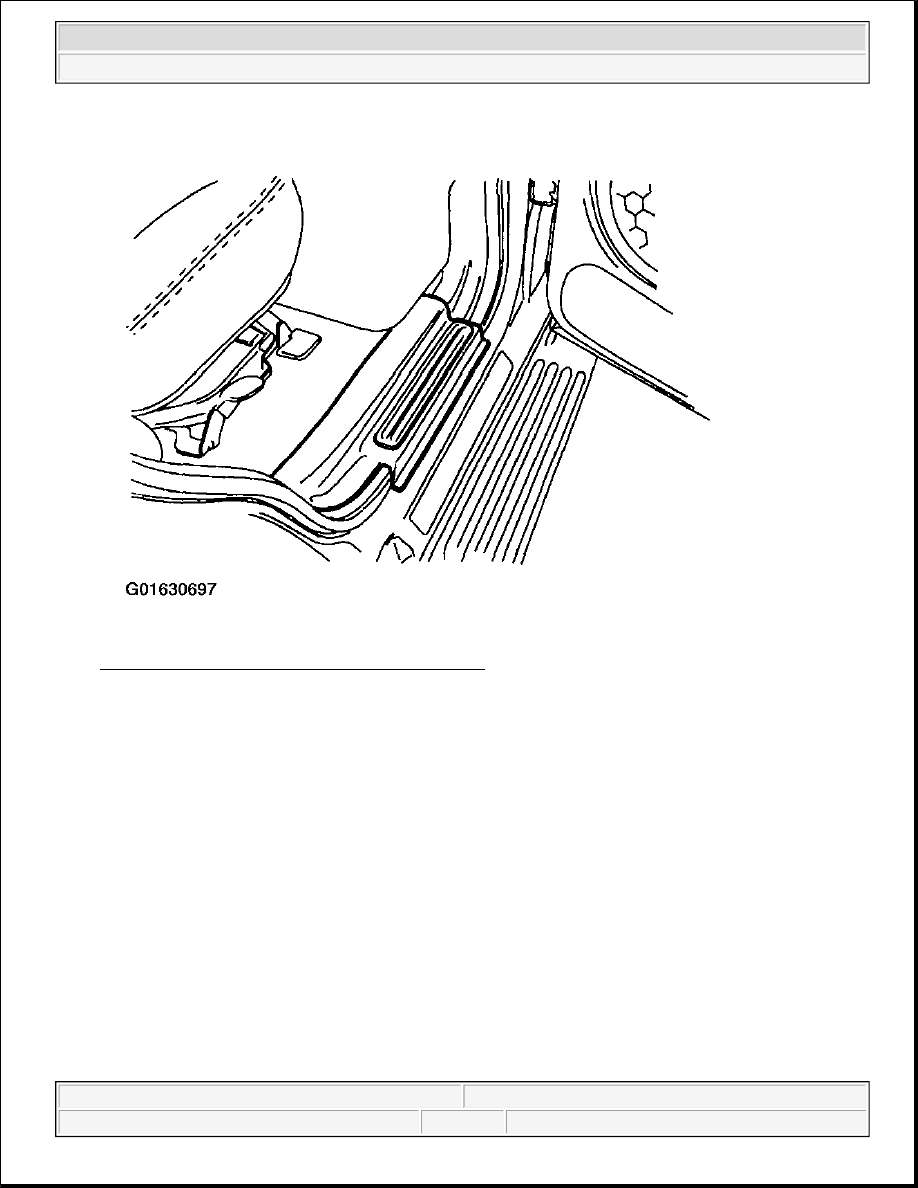

Fig. 93: Installing Passenger Side Rear Scuff Plate
Courtesy of FORD MOTOR CO.

17. Install the passenger side front scuff plate.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

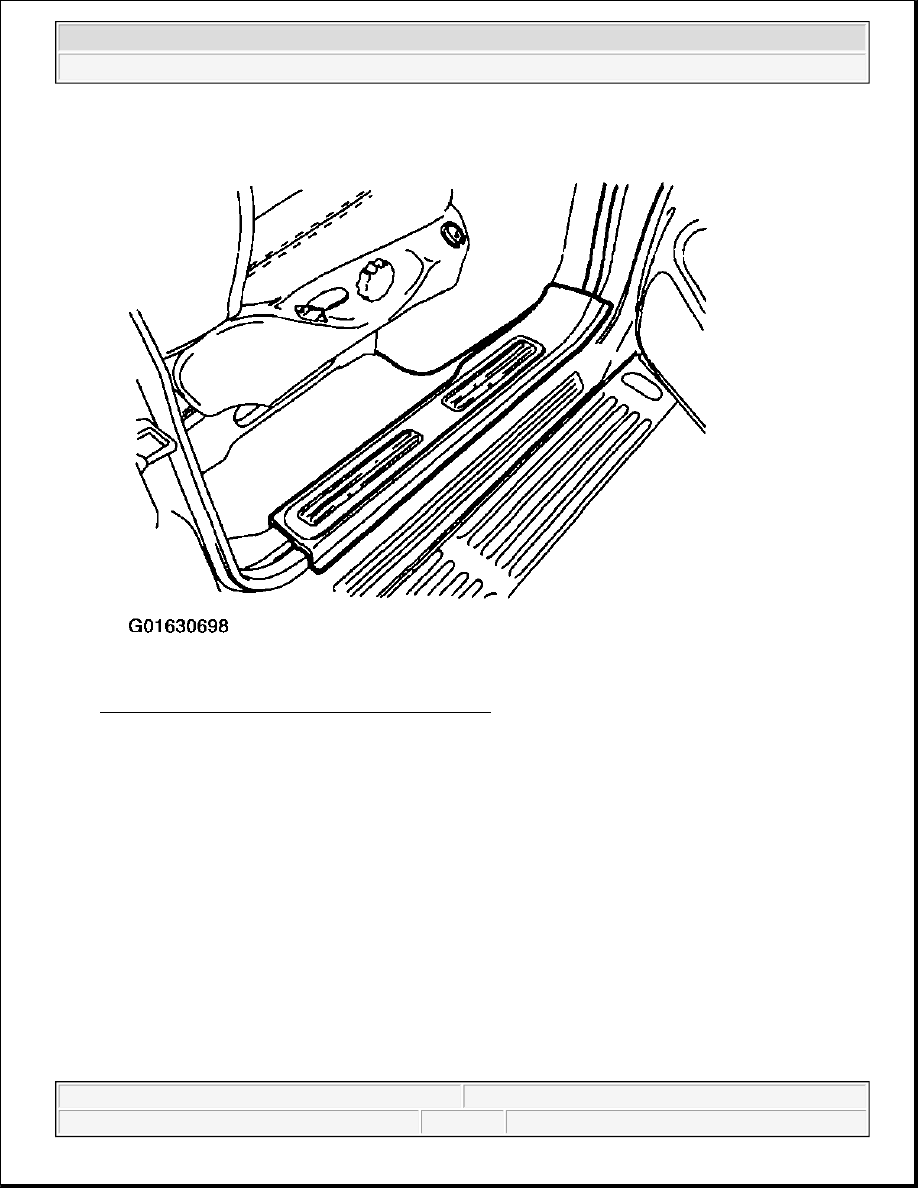

Fig. 94: Installing Passenger Side Front Scuff Plate
Courtesy of FORD MOTOR CO.

SuperCab with safety belt buckle pretensioners - seat integrated restraints (SIR)

18. From under the driver seat, remove the restraint system diagnostic tool from the driver seat safety belt

buckle pretensioner floor electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

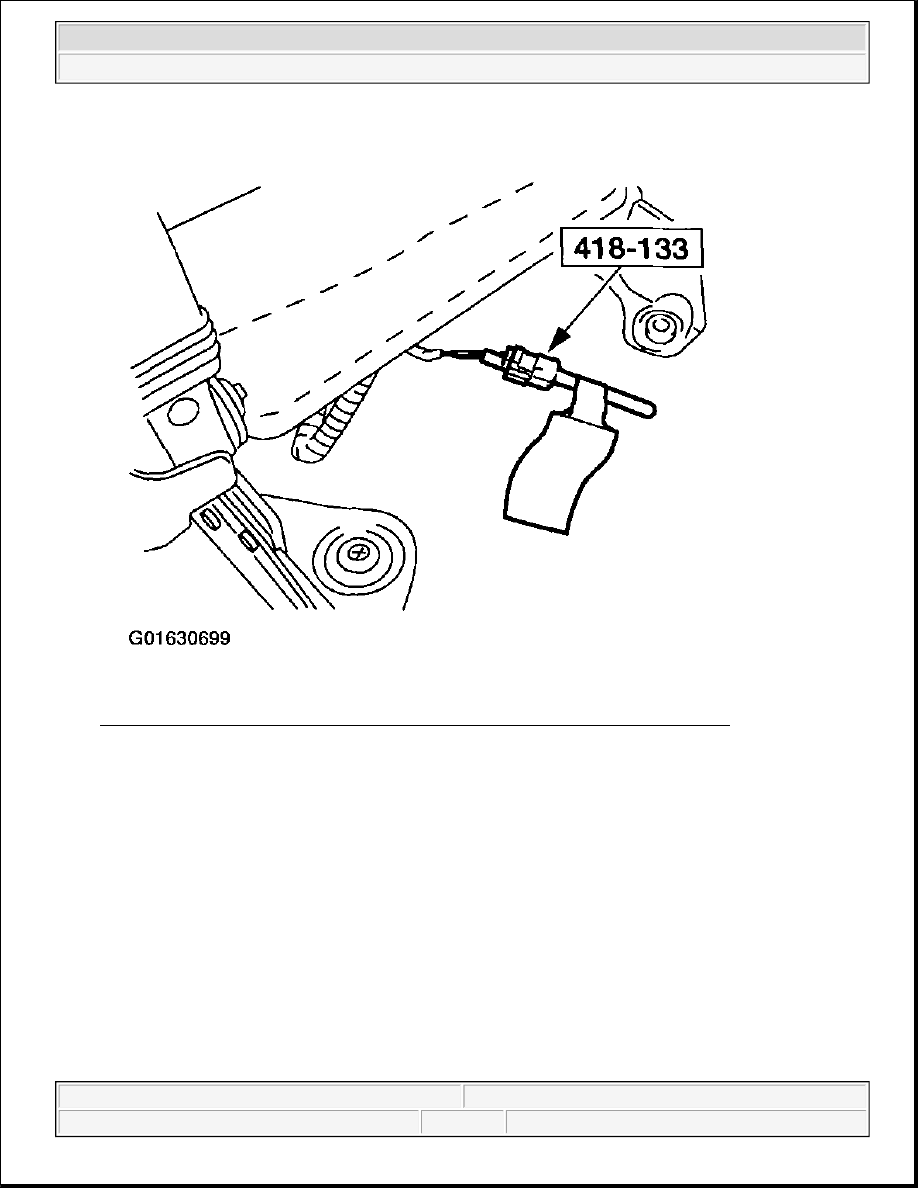

Fig. 95: Removing Restraint System Diagnostic Tool From Driver Seat Safety Belt
Courtesy of FORD MOTOR CO.

19. From under the driver seat, connect the driver seat safety belt buckle pretensioner electrical connector.
