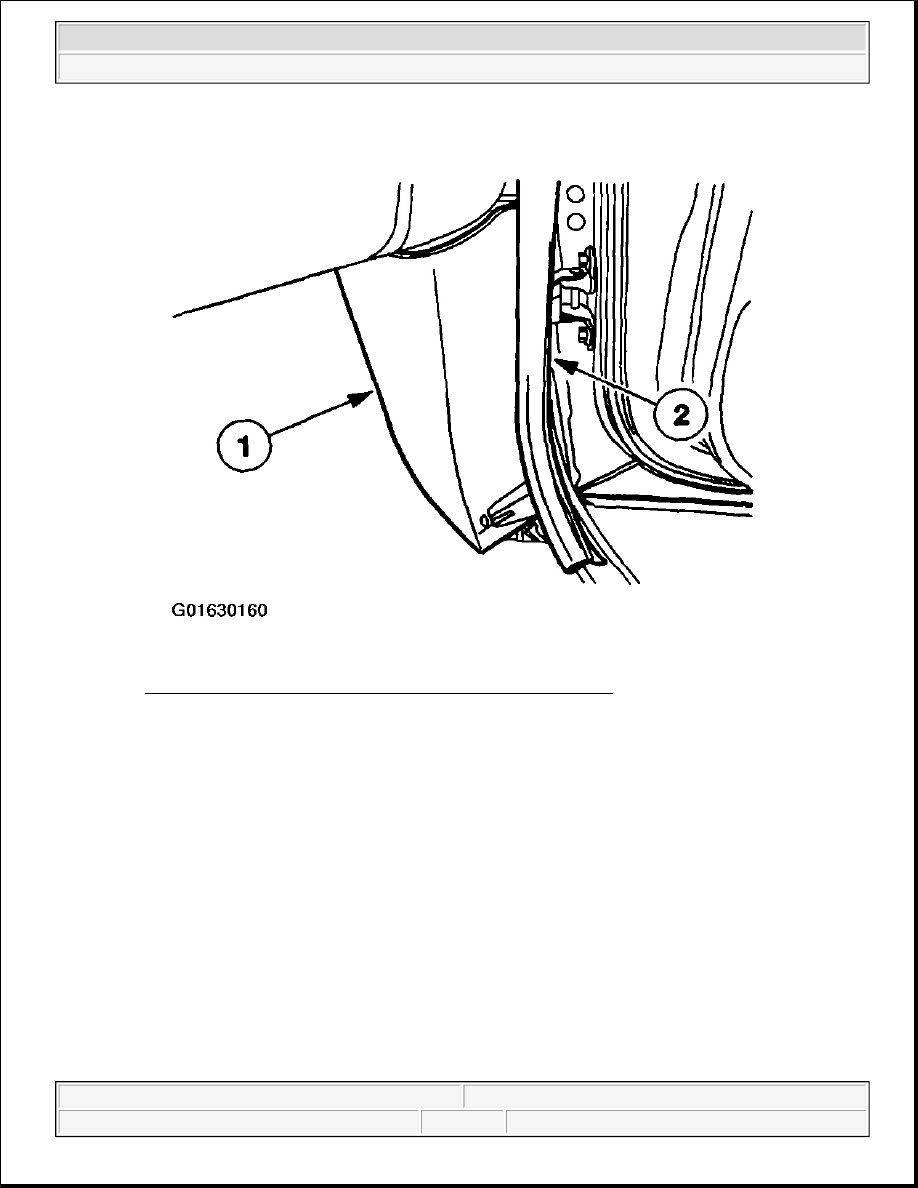

Fig. 3: locating Weatherstrip And Passenger Side Kick Panel
Courtesy of FORD MOTOR CO.

5. Disconnect and detach the electrical connector.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup

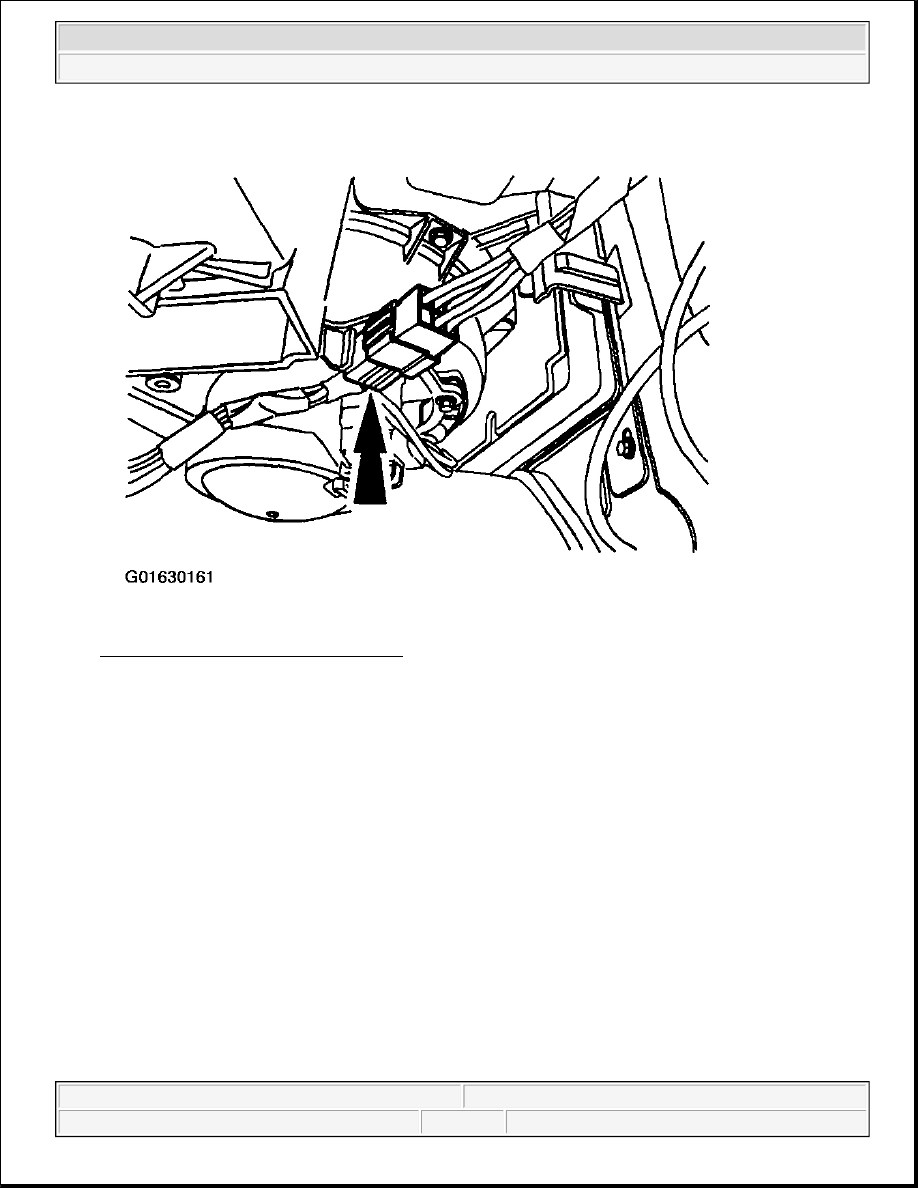

Fig. 4: Identifying Electrical Connector
Courtesy of FORD MOTOR CO.

6. Position back the carpet.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup

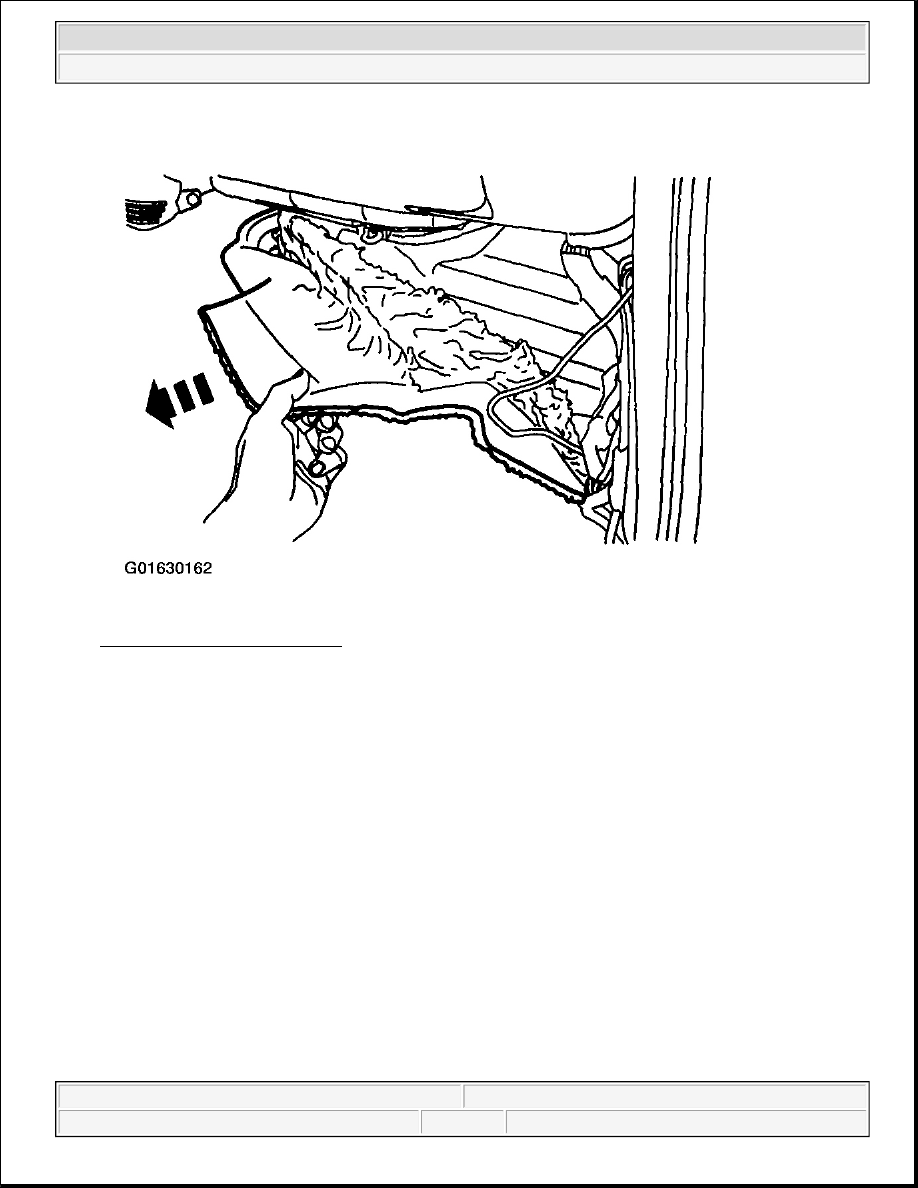

Fig. 5: Positioning Back Carpet
Courtesy of FORD MOTOR CO.

EATC Vehicles

7. Disconnect the aspirator tube and remove the screw.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup

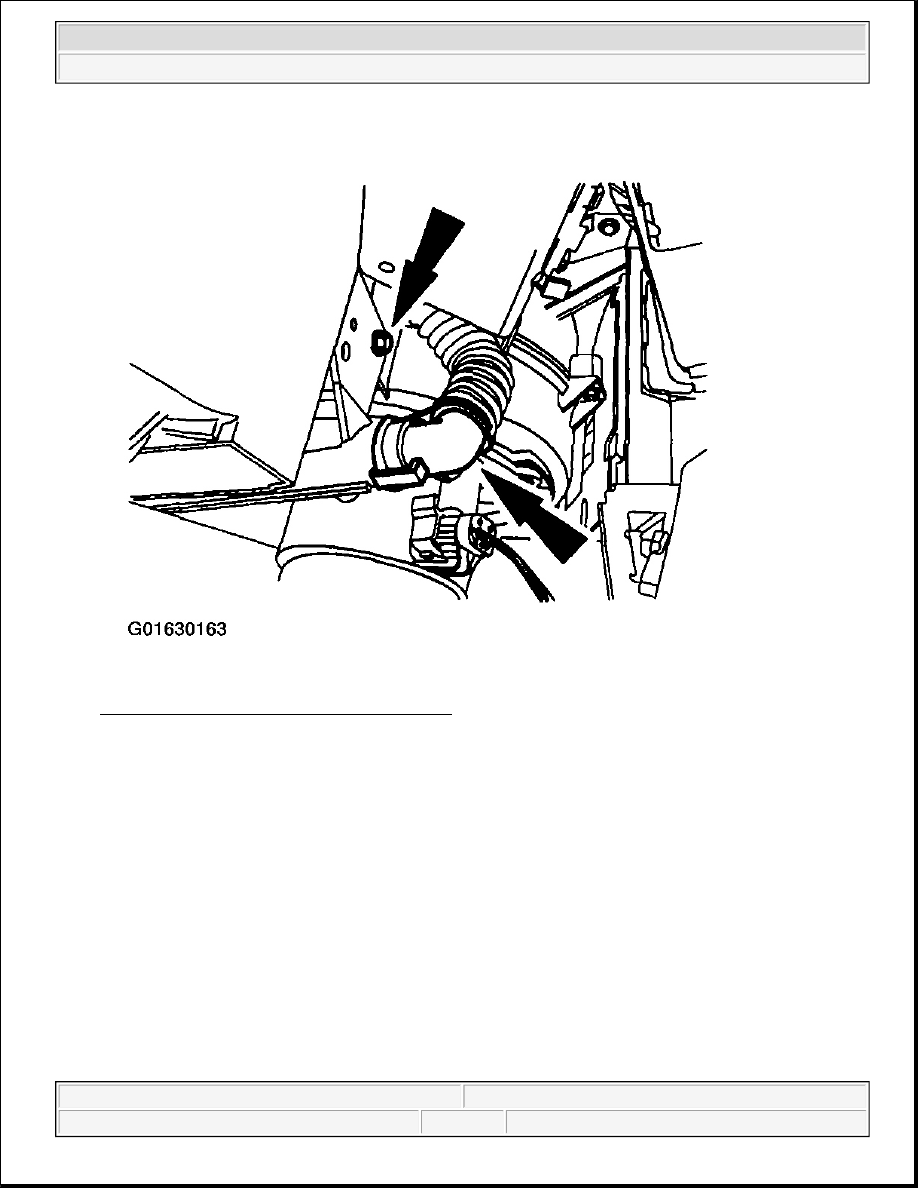

Fig. 6: Identifying Aspirator Tube And Screw
Courtesy of FORD MOTOR CO.

8. Remove the aspirator tube extension.

1. Remove the screws.

2. Remove the aspirator tube extension.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup
