Ford F150 Pickup. Manual - part 1697

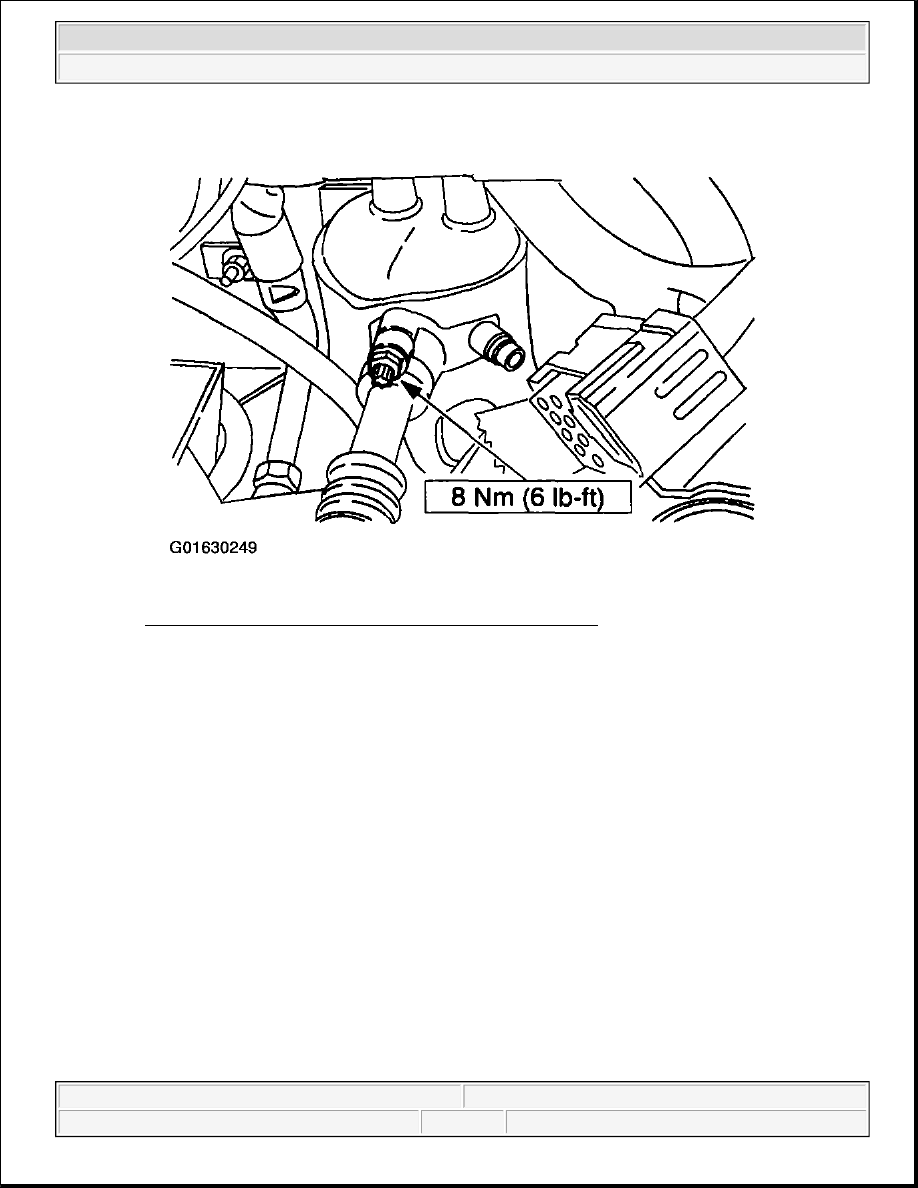

Fig. 75: View Of Disconnecting Manifold And Tube Fitting
Courtesy of FORD MOTOR CO.

8. Remove the accumulator bracket clamping bolt.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



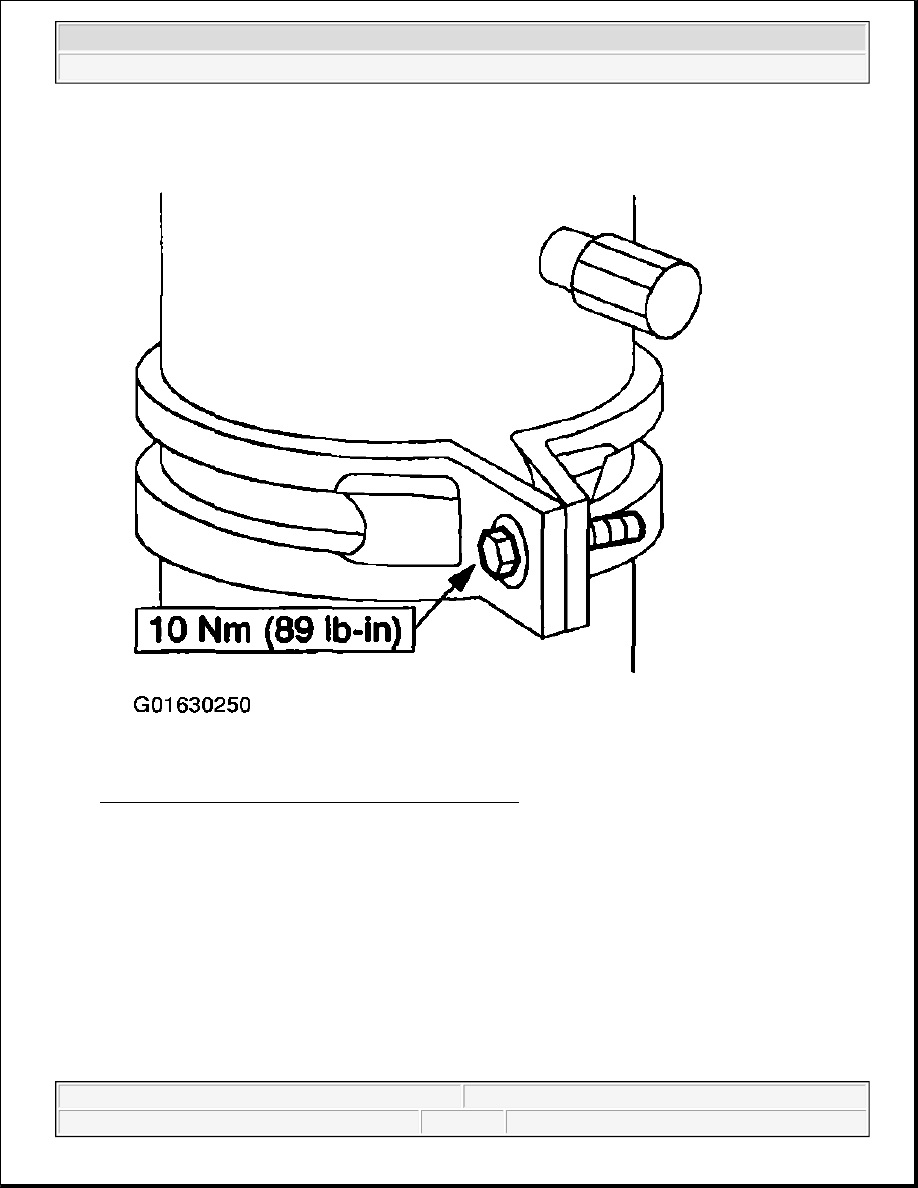

Fig. 76: Locating Accumulator Bracket Clamping Bolt
Courtesy of FORD MOTOR CO.

9. Disconnect the suction accumulator/drier spring lock coupling from the A/C evaporator core (19860).

z

Discard the O-ring seals.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



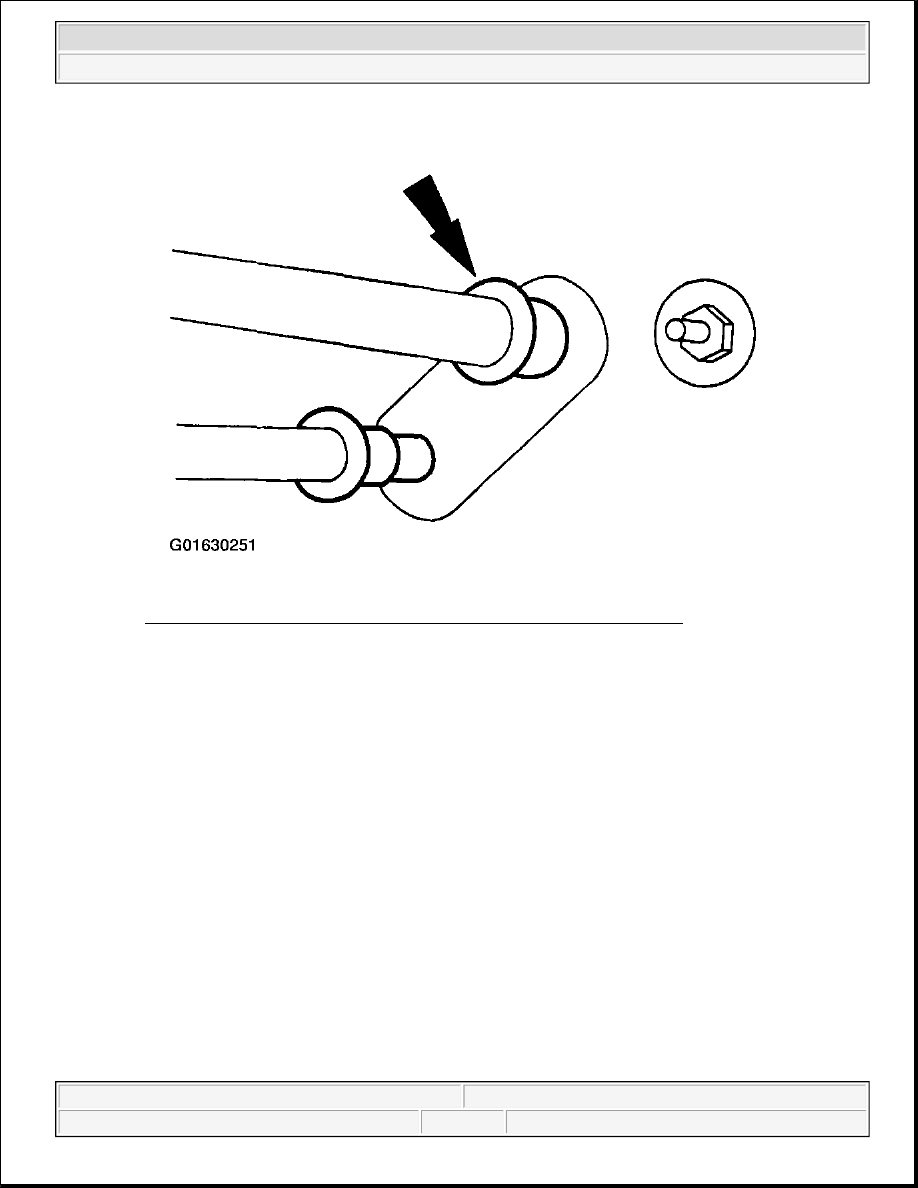

Fig. 77: Identifying Suction Accumulator/Drier Spring Lock Coupling
Courtesy of FORD MOTOR CO.

10. Remove the suction accumulator.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

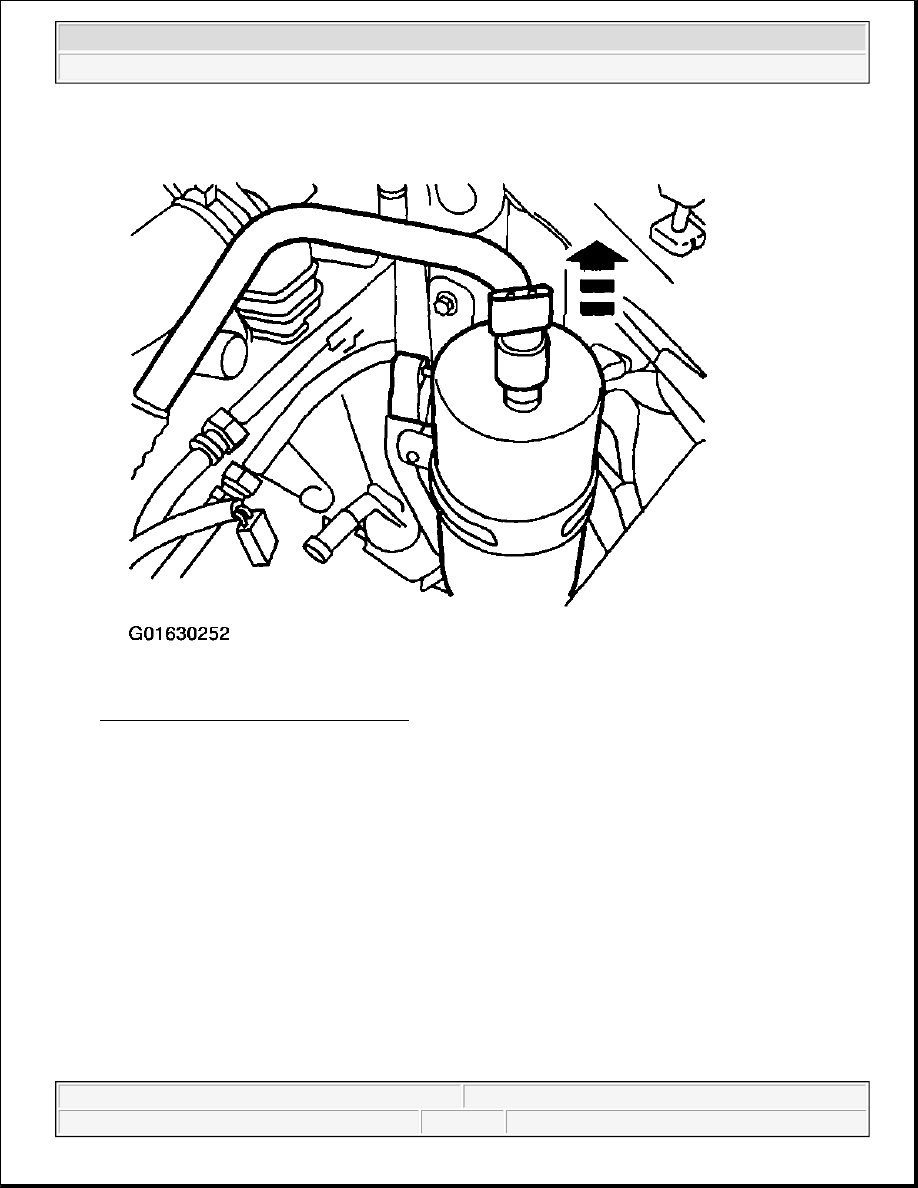

Fig. 78: Removing Suction Accumulator
Courtesy of FORD MOTOR CO.

11. Remove the A/C cycling switch (19E561) from the top of the suction accumulator (19C836).



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
