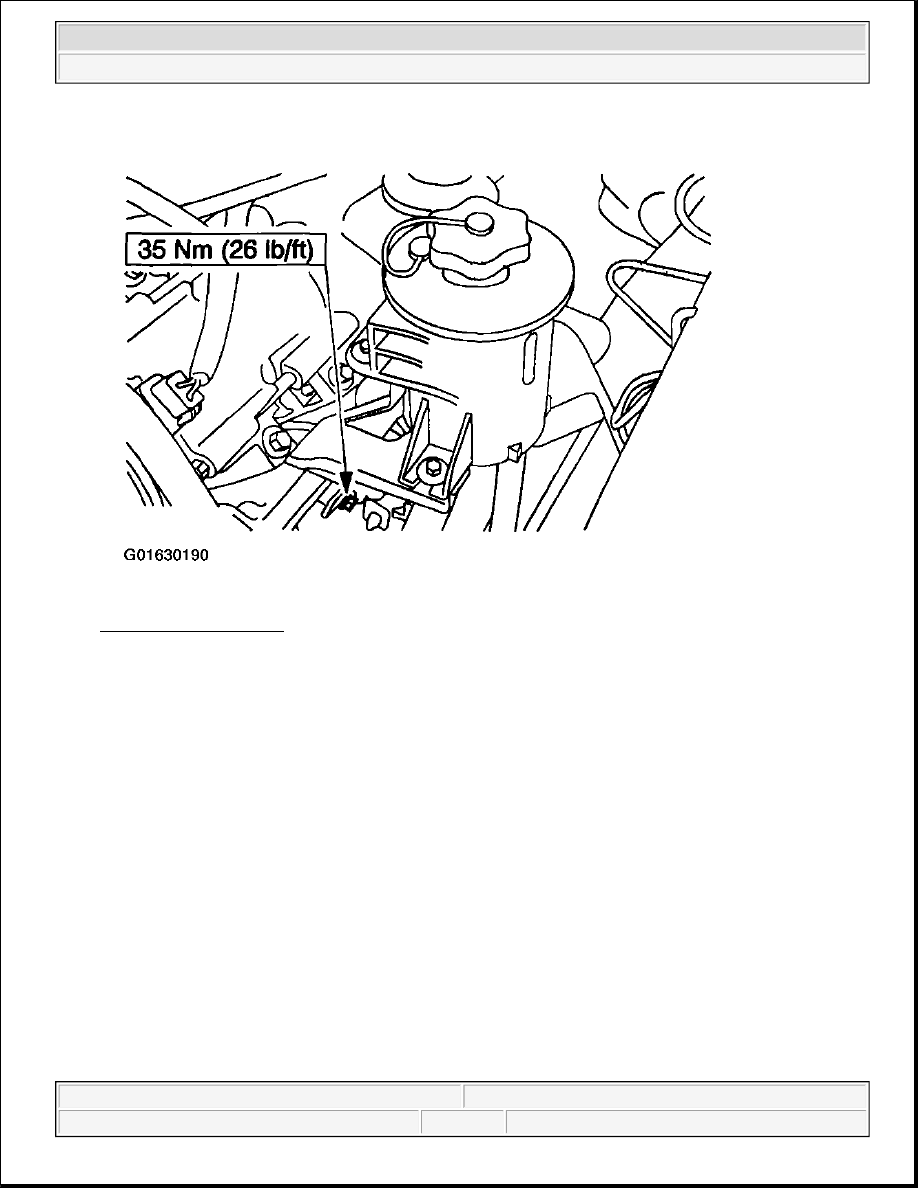

Fig. 16: Identifying Bolt
Courtesy of FORD MOTOR CO.

6. Remove the bolts and remove the A/C compressor.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

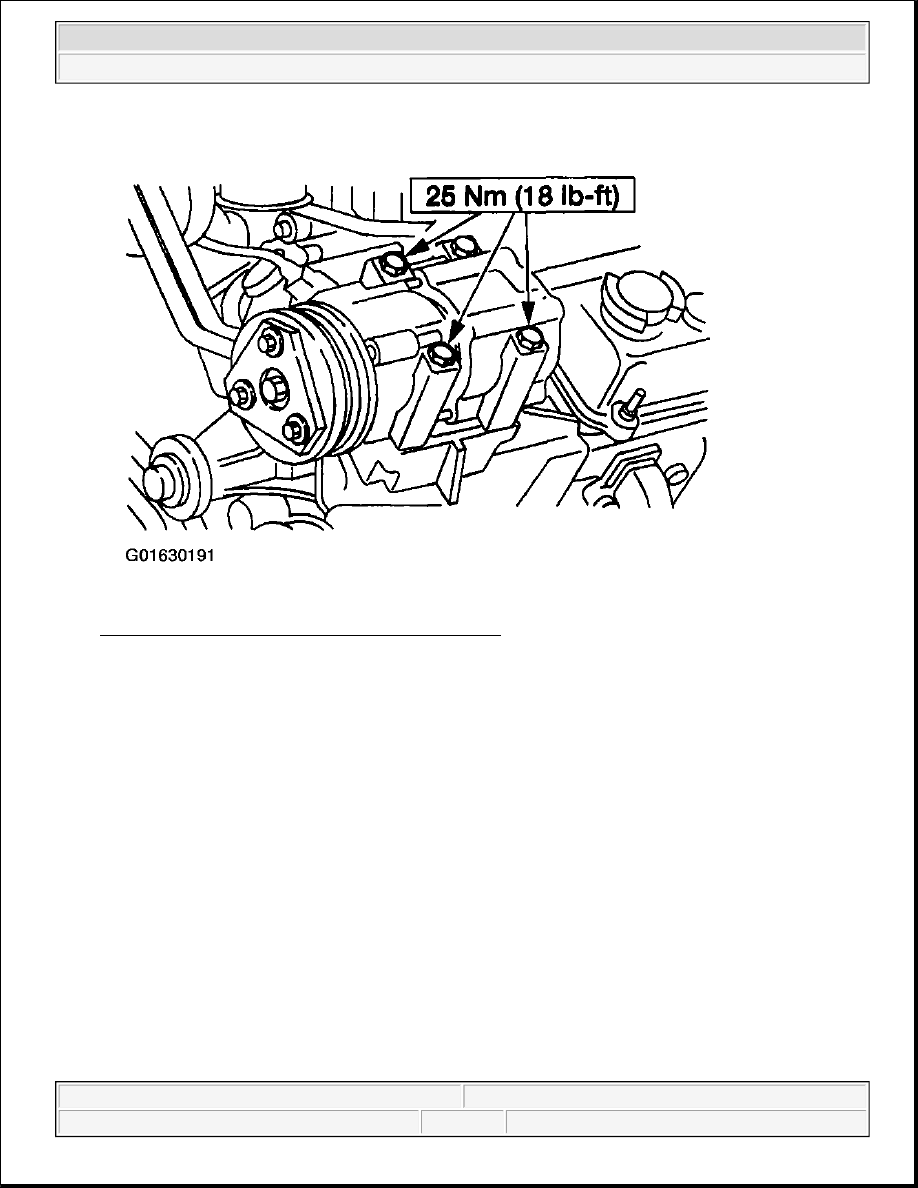

Fig. 17: Identifying A/C Compressor Removing Bolt
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

z

Install new O-rings lubricated in clean PAG oil.

z

If filtering of the air conditioning system is not to be performed, correctly oil match the system with
clean PAG oil. Refer to CLIMATE CONTROL SYSTEM .

8. If filtering of the refrigerant system is not to be performed, evacuate, leak-test, and charge the refrigerant

system. Refer to CLIMATE CONTROL SYSTEM .

AIR CONDITIONING (A/C) COMPRESSOR - 4.6L AND 5.4L

Material



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

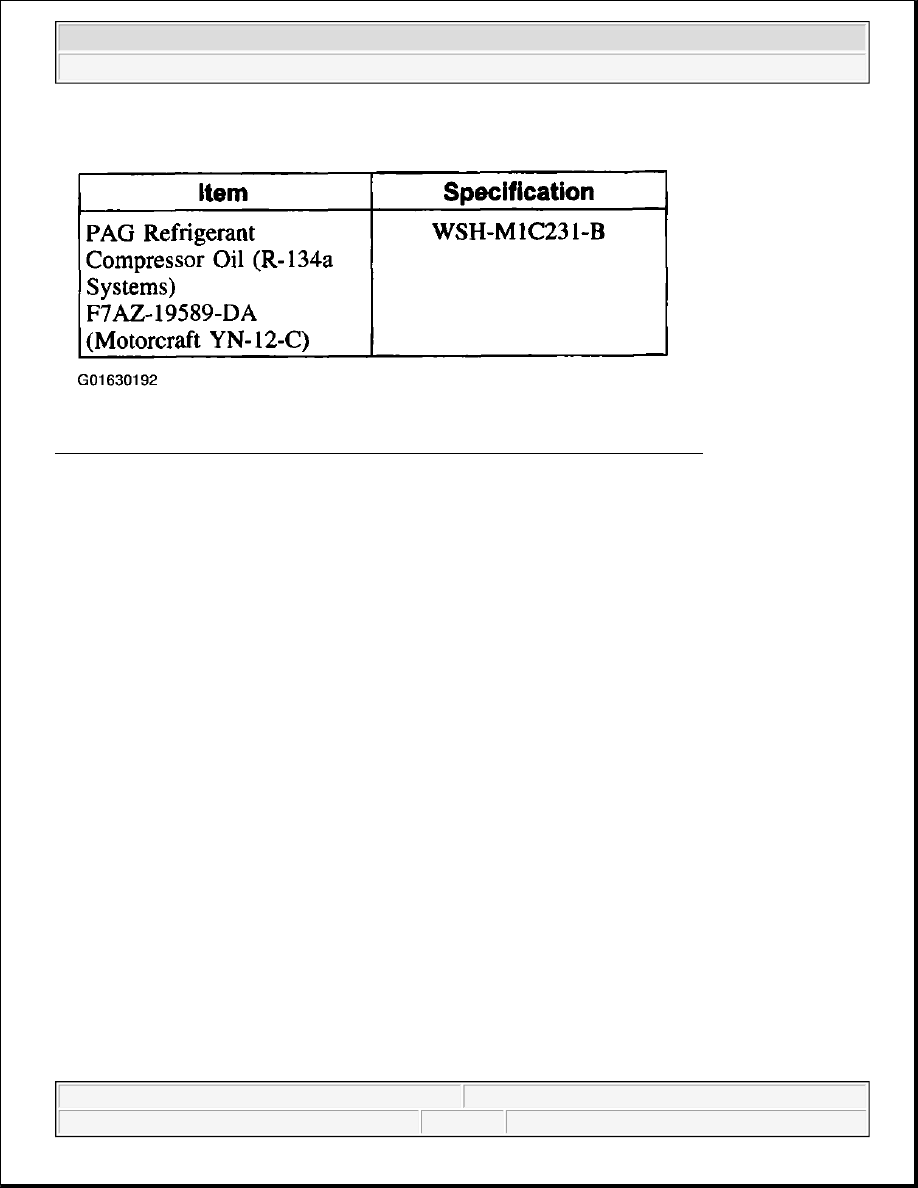

Fig. 18: Air Conditioning (A/C) Compressor - 4.6L And 5.4L Material Specifications
Courtesy of FORD MOTOR CO.

Removal and Installation

z

If A/C flushing equipment is available, carry out flushing of the air conditioning system prior to
installing a new air conditioning compressor (19703). Refer to CLIMATE CONTROL SYSTEM .

z

If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a
new air conditioning compressor has been installed. Refer to CLIMATE CONTROL SYSTEM .

z

Install a new evaporator core orifice (19D990) as directed by the A/C flushing or filtering
procedure.

z

Install a new suction accumulator (19C836) as directed by the A/C flushing or filtering procedure.

1. If flushing of the air conditioning system has not been performed, recover the refrigerant. Refer to

CLIMATE CONTROL SYSTEM .

2. Remove the drive belt from the A/C compressor pulley.

3. Raise and support the vehicle.

4. Disconnect the A/C compressor electrical connector.

CAUTION: If installing a new air conditioning compressor due to an internal failure of

the old unit, you must carry out the following procedures to remove
contamination from the air conditioning system.

NOTE:

Installation of a new suction accumulator is not required when repairing the air
conditioning system except when there is physical evidence of system
contamination from a failed A/C compressor or damage to the suction
accumulator.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

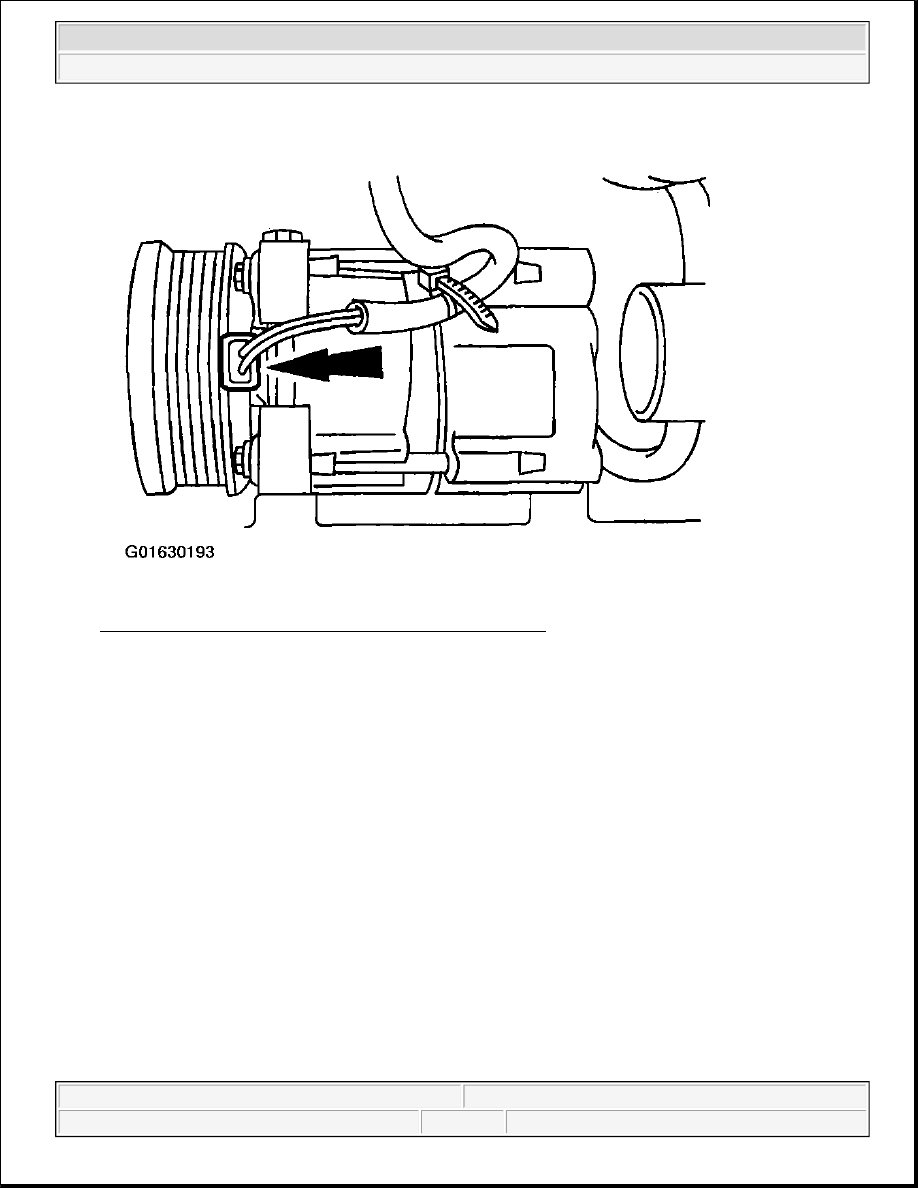

Fig. 19: Identifying A/C Compressor Electrical Connector
Courtesy of FORD MOTOR CO.

5. Disconnect the crankshaft position sensor connector.
