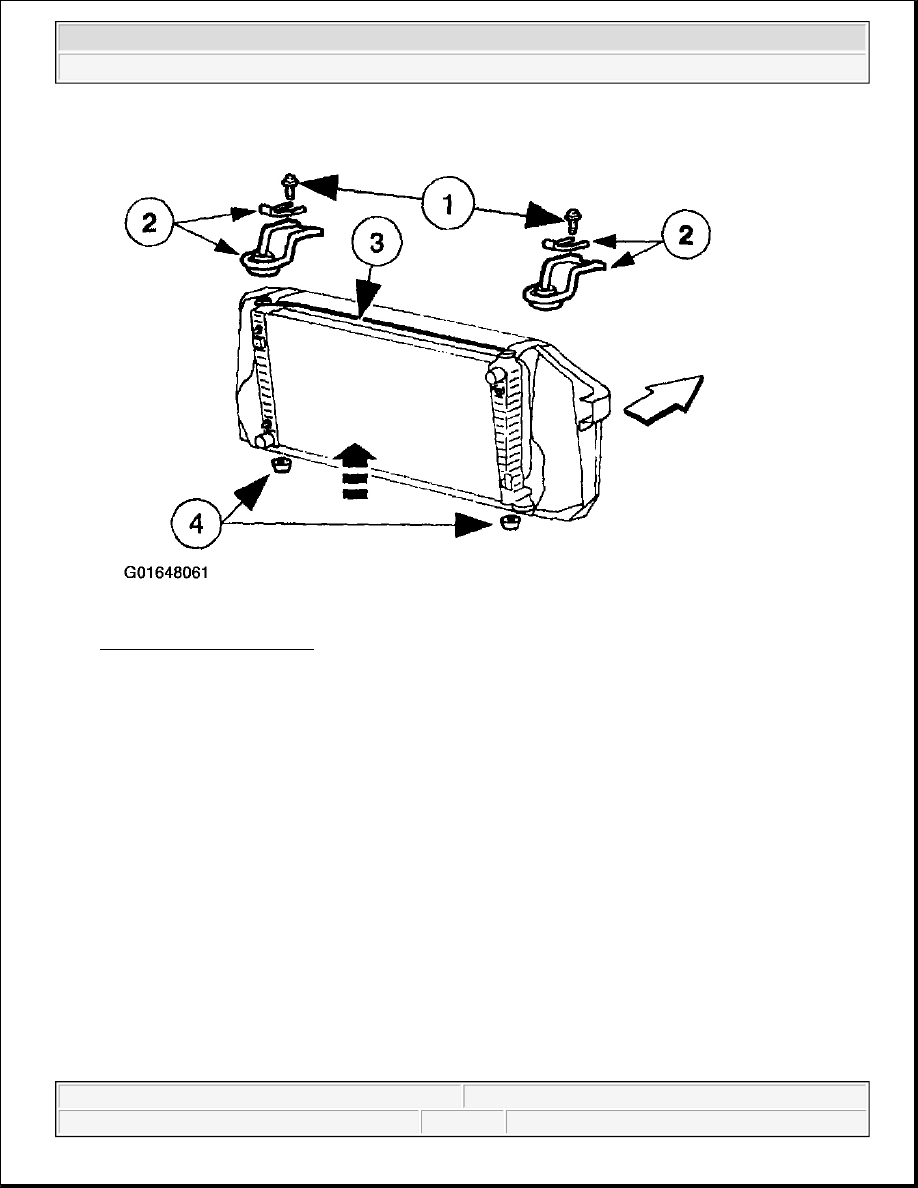

Fig. 39: Removing Radiator
Courtesy of FORD MOTOR CO.

Installation

1. Install the radiator.

1. Install the radiator mounting insulators.

2. Position the radiator on the radiator mounting insulators.

3. Position the upper radiator support brackets and the jack handle retainers.

4. Install the bolts.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup



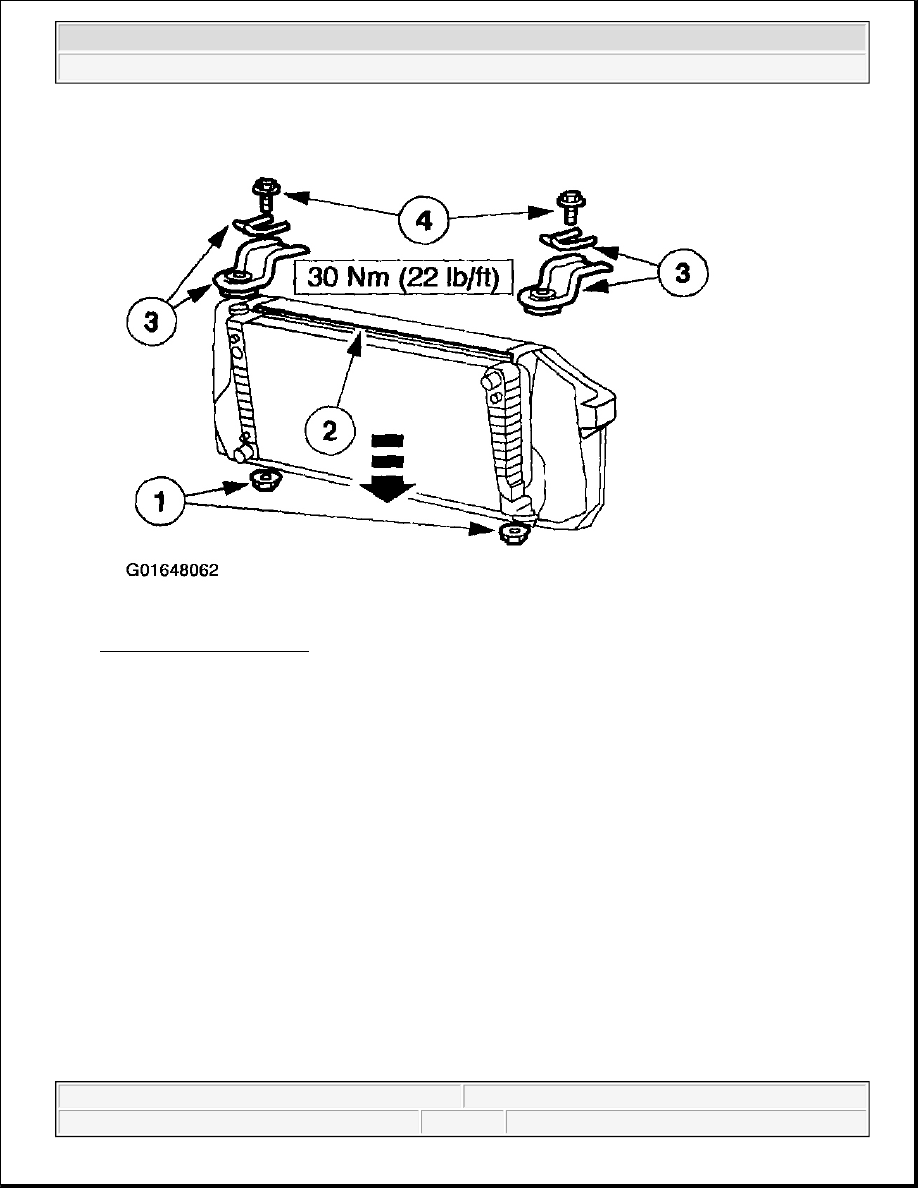

Fig. 40: Installing Radiator
Courtesy of FORD MOTOR CO.

2. Connect the lower radiator hose to the radiator.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup



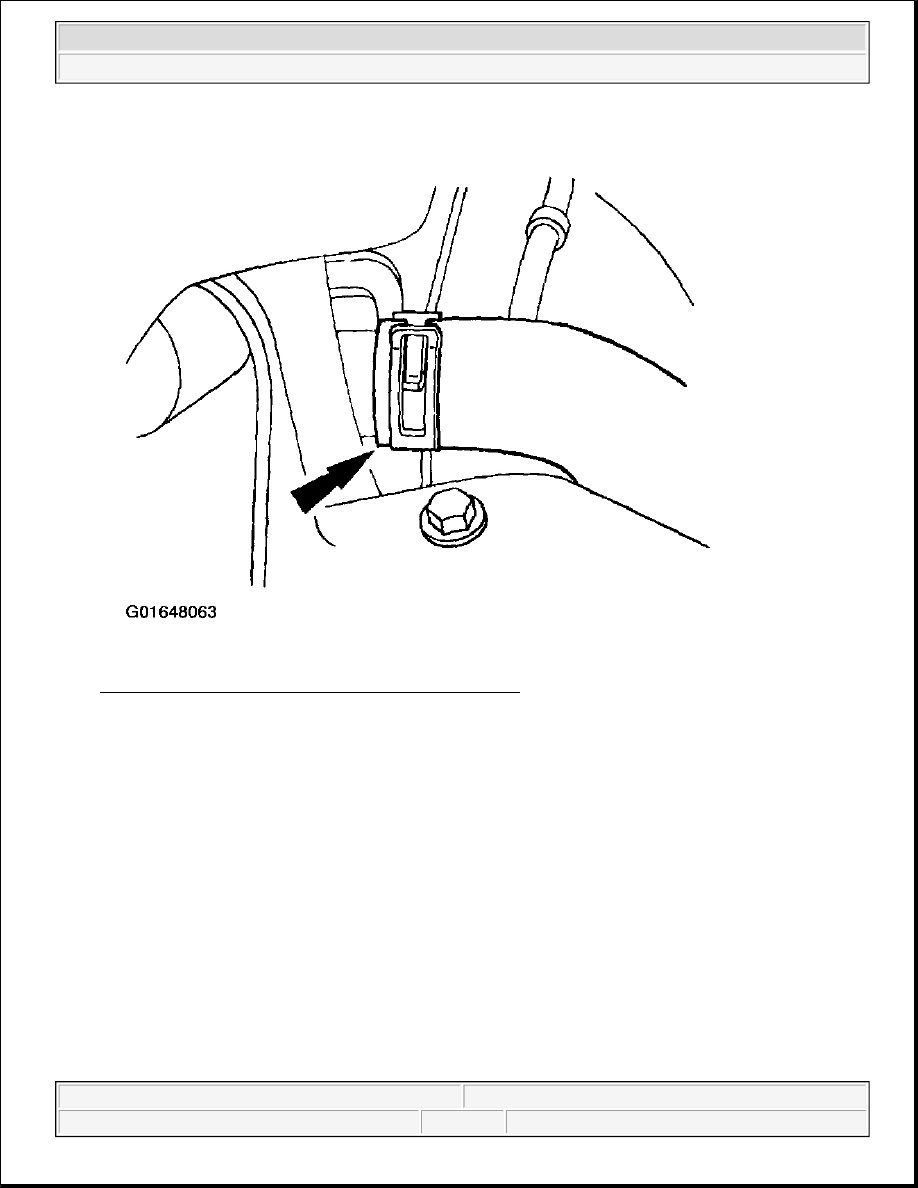

Fig. 41: Connecting Lower Radiator Hose To Radiator
Courtesy of FORD MOTOR CO.

3. On automatic transmission equipped vehicles, connect the transmission fluid cooler lines.

1. Connect the lower transmission fluid cooler line.

2. Connect the upper transmission fluid cooler line.

NOTE:

To avoid disturbing the transmission oil cooler fittings, use a backup
wrench.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup



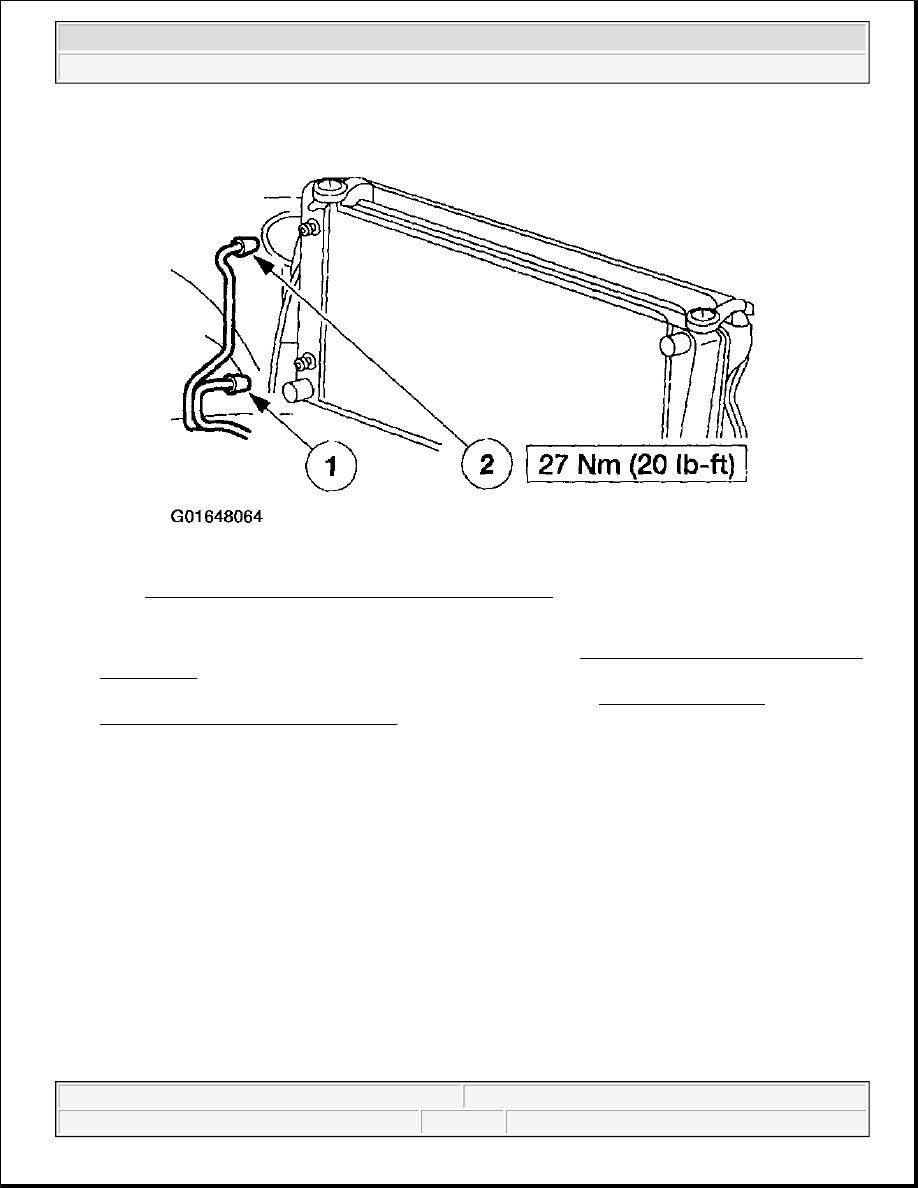

Fig. 42: Connecting Transmission Fluid Cooler Lines
Courtesy of FORD MOTOR CO.

4. Install the fan blade assembly. For additional information, refer to COOLING FAN-BLADE, CLUTCH

& SHROUD .

5. Refill the engine cooling system. For additional information, refer to COOLING SYSTEM

DRAINING, FILLING & BLEEDING .

COOLING FAN - BLADE, CLUTCH & SHROUD

Special Tool(s)
