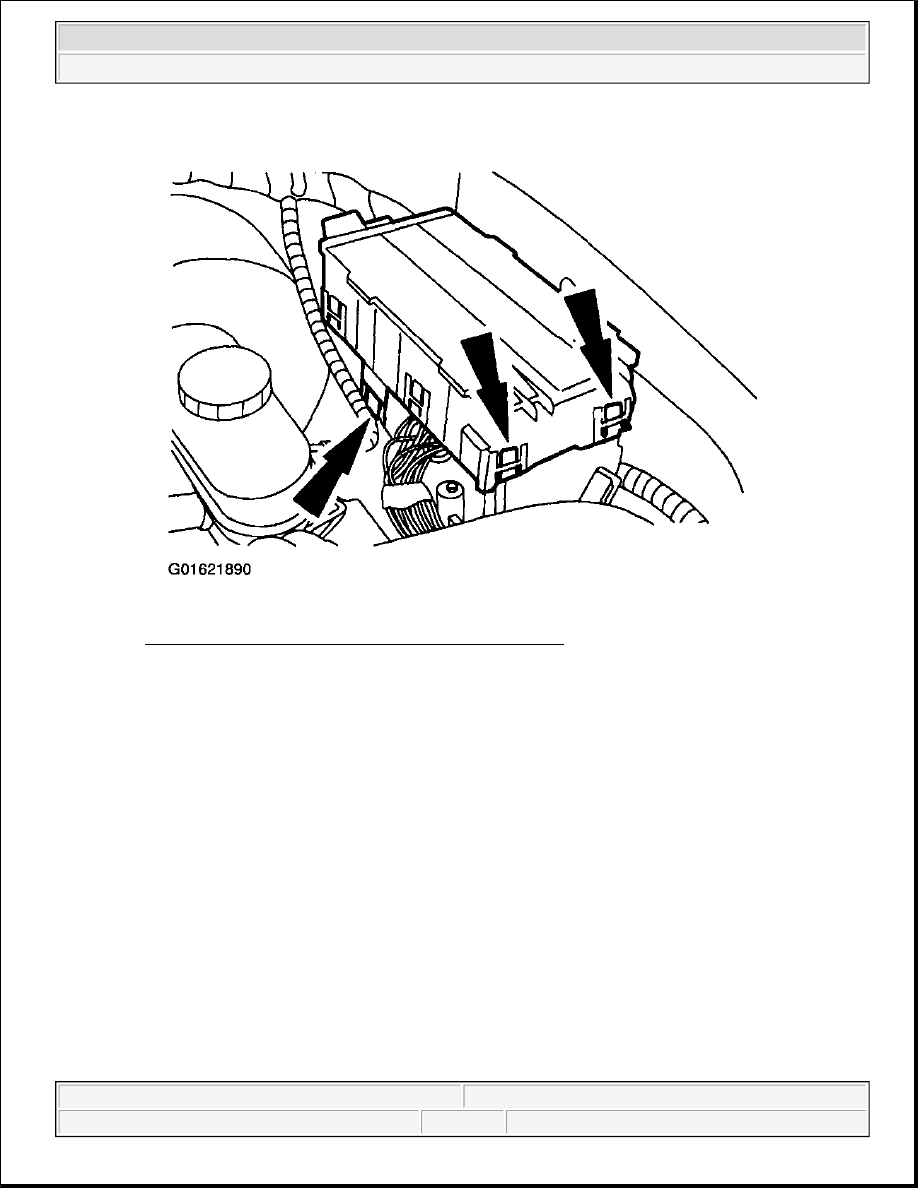

Fig. 3: Releasing Battery Junction Box Mounting Tabs
Courtesy of FORD MOTOR CO.

7. Remove the bulkhead electrical connectors from inside the engine compartment.

1. Loosen the bolts.

2. Disconnect the bulkhead electrical connectors.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



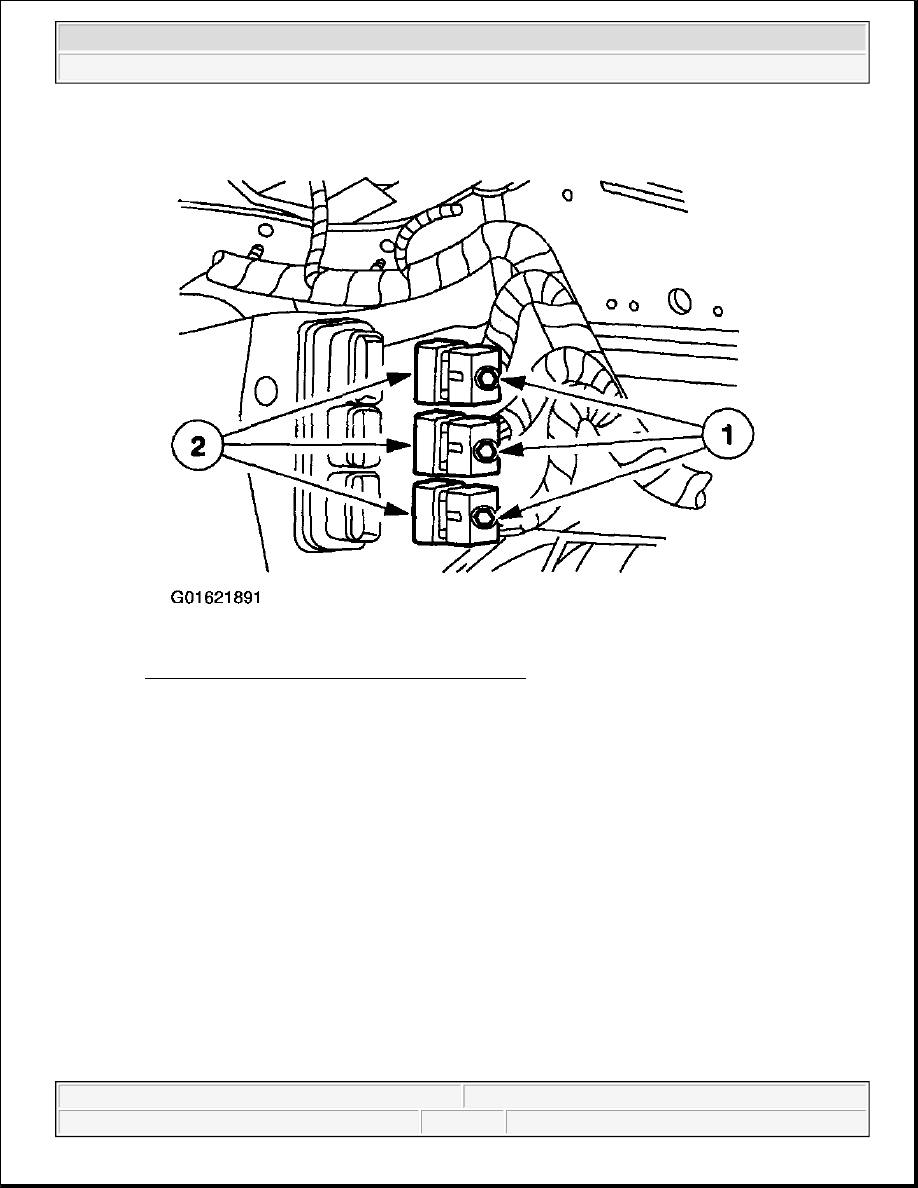

Fig. 4: Removing Bulkhead Electrical Connectors
Courtesy of FORD MOTOR CO.

8. Remove the bulkhead electrical connector insulator.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



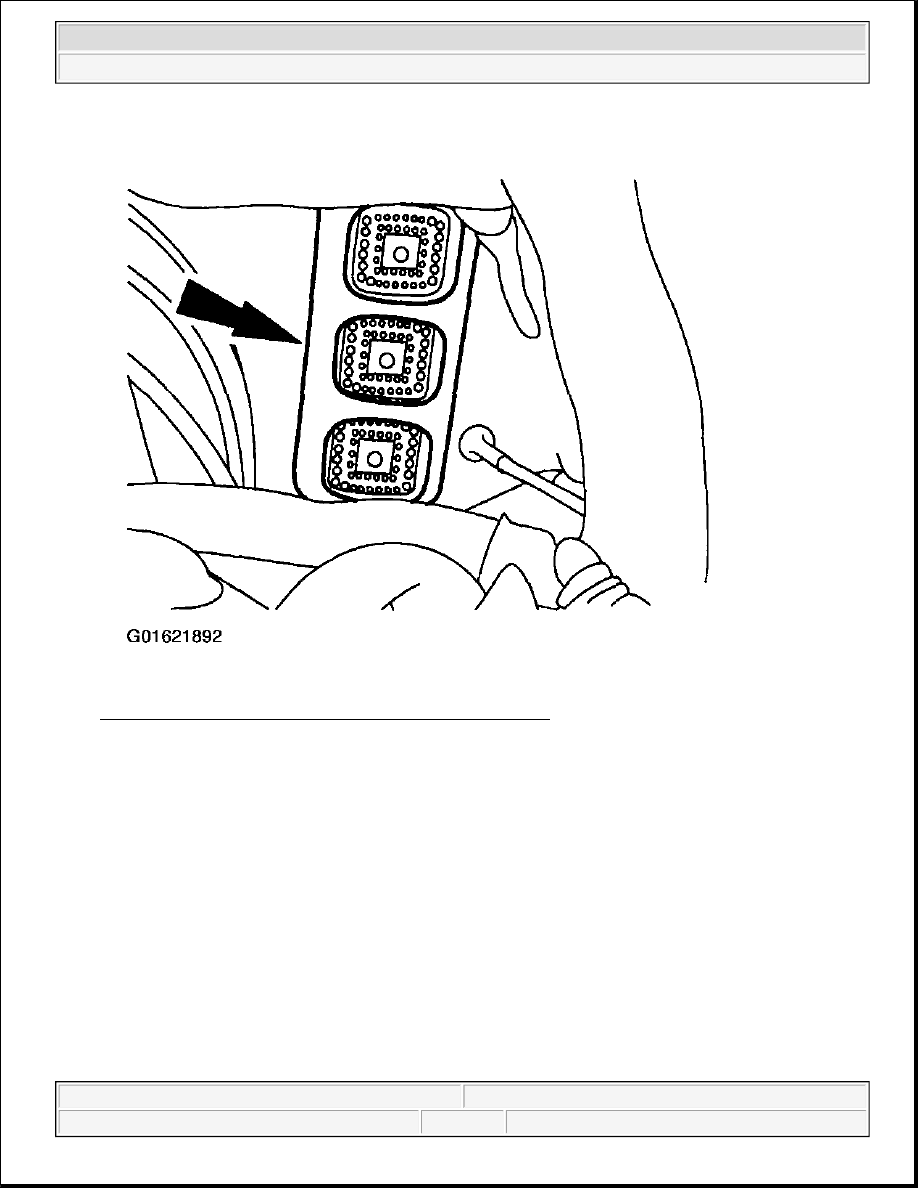

Fig. 5: Removing Bulkhead Electrical Connector Insulator
Courtesy of FORD MOTOR CO.

9. Unclip the bulkhead electrical connectors from the dash panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



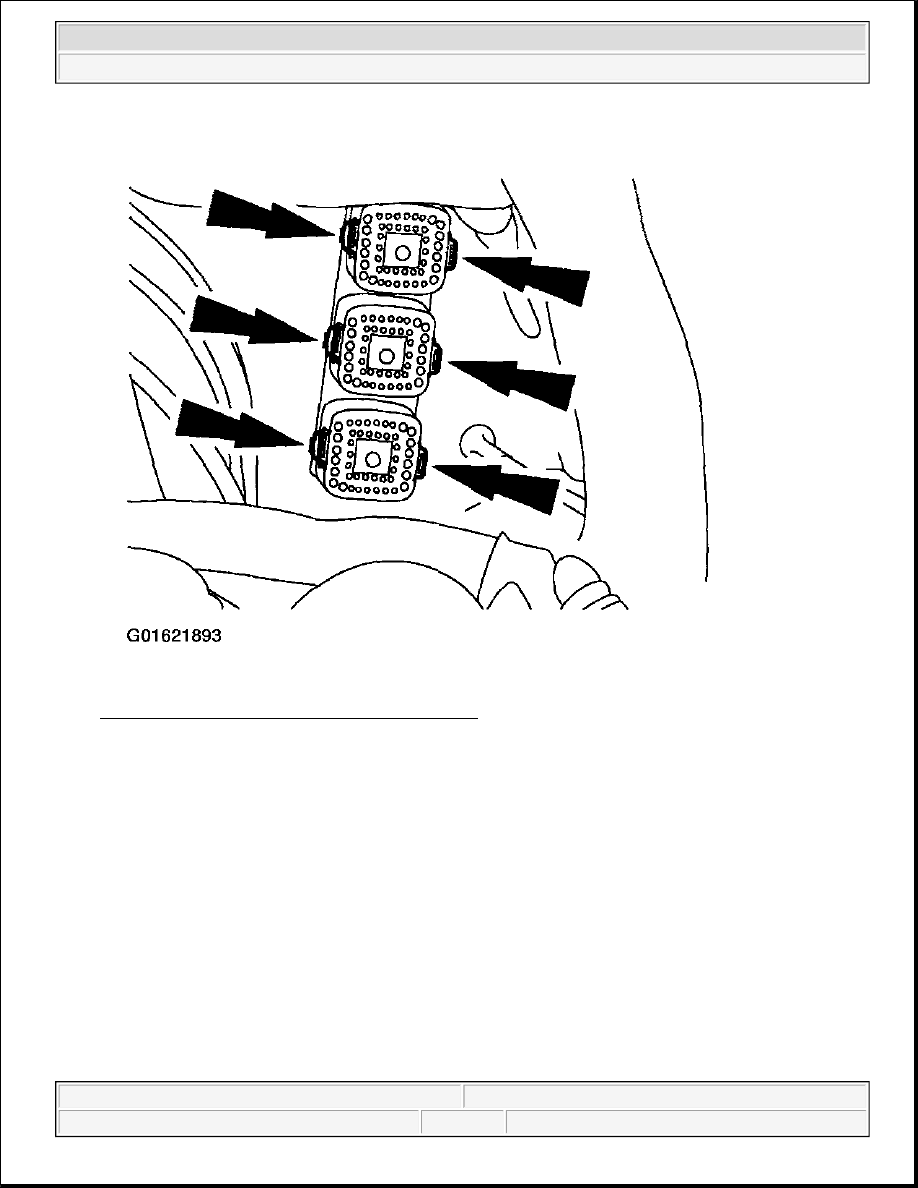

Fig. 6: Uncliping Bulkhead Electrical Connectors
Courtesy of FORD MOTOR CO.

10. If equipped, remove the valance panel.

z

Remove the two pin-type retainers and release the expander clip.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup
