Ford F150 Pickup. Manual - part 66

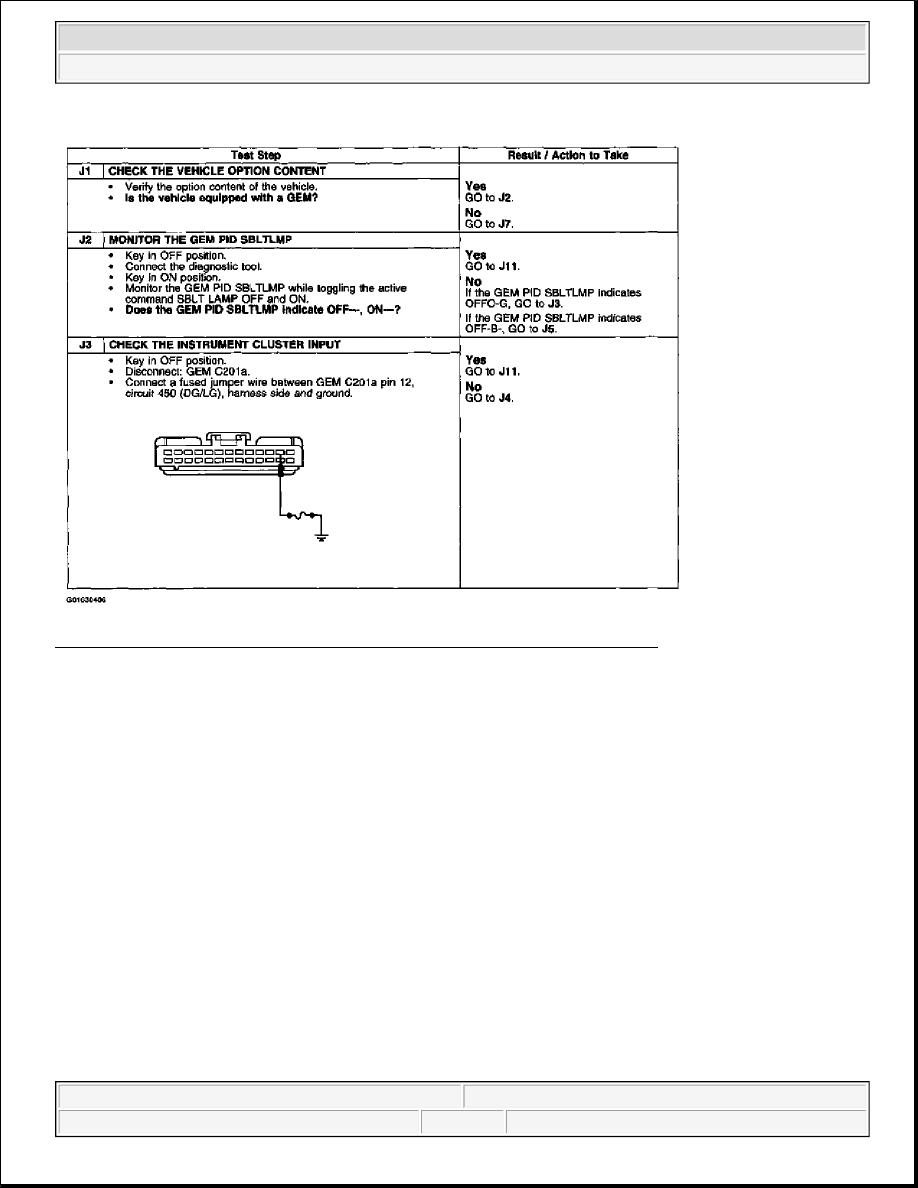

Fig. 28: Pinpoint Test J: Safety Belt Warning Indicator Is Inoperative (J1 - J3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

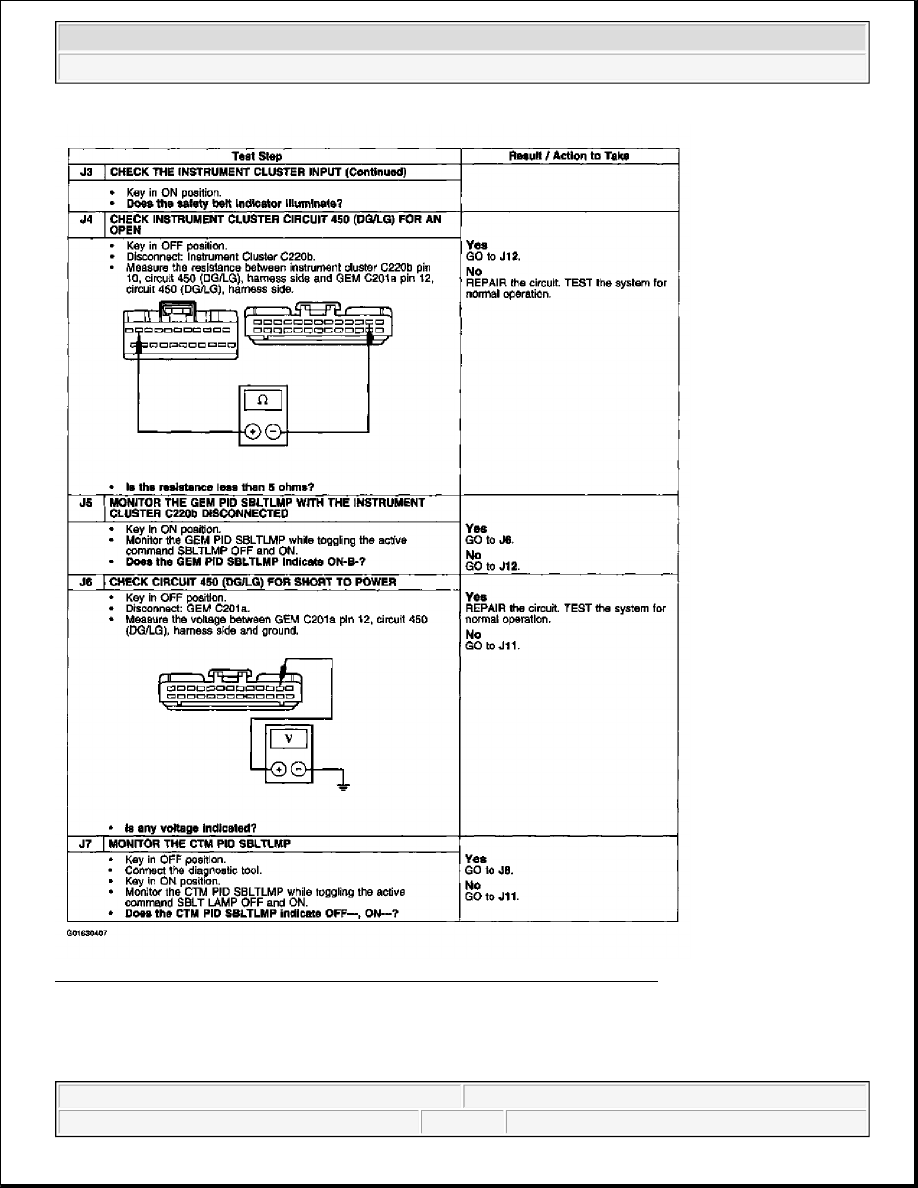

Fig. 29: Pinpoint Test J: Safety Belt Warning Indicator Is Inoperative (J3 - J7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

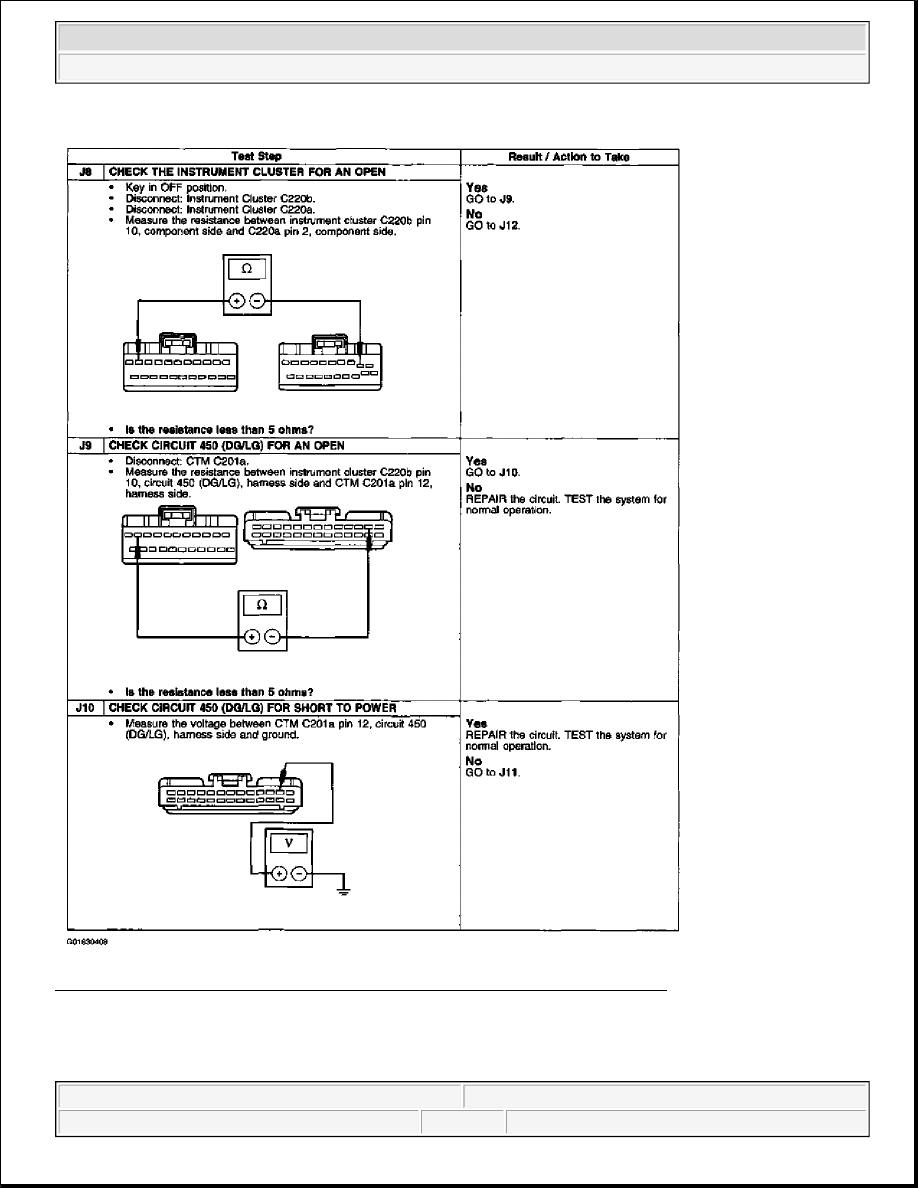

Fig. 30: Pinpoint Test J: Safety Belt Warning Indicator Is Inoperative (J8 - J10)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

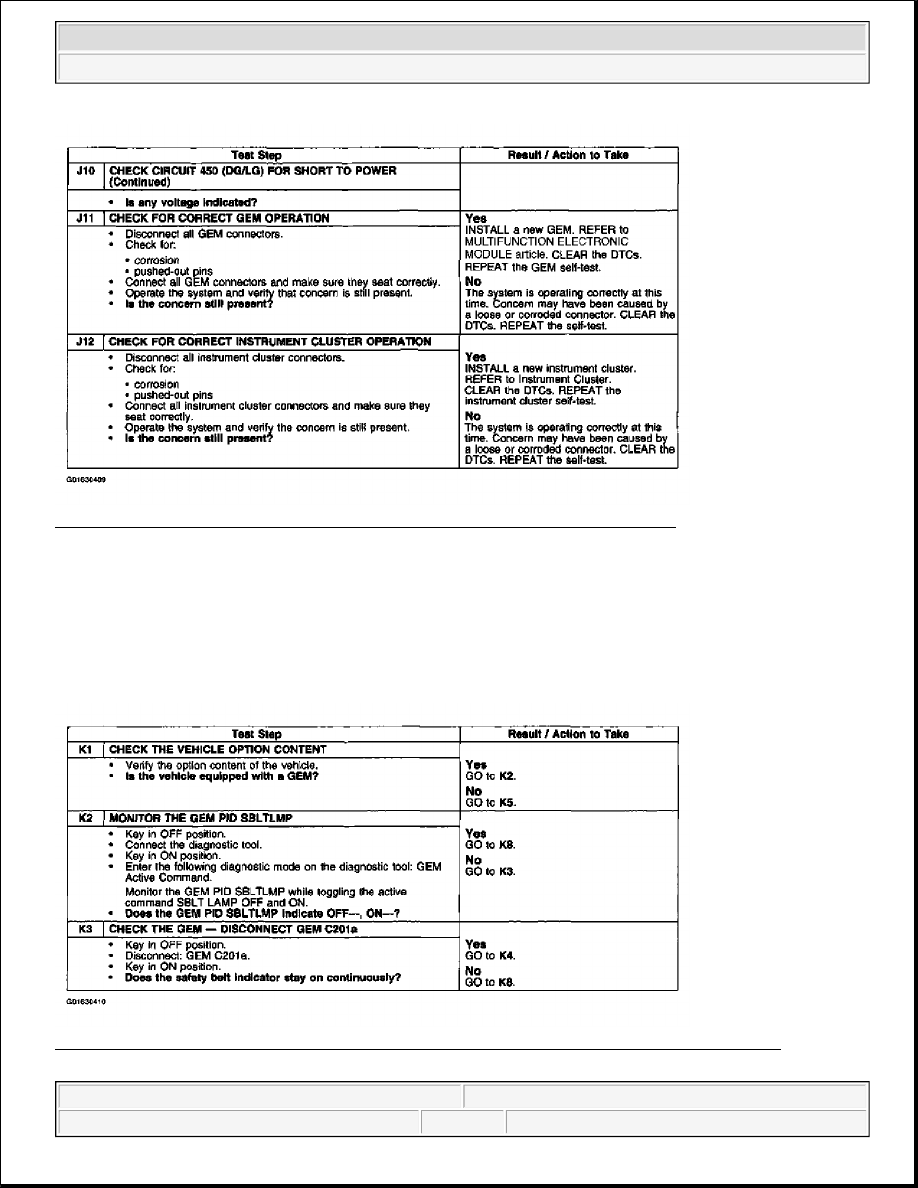

Fig. 31: Pinpoint Test J: Safety Belt Warning Indicator Is Inoperative (J10 - J12)
Courtesy of FORD MOTOR CO.

PINPOINT TEST K: THE SAFETY BELT WARNING INDICATOR DOES NOT OPERATE CORRECTLY (CHIME
IS OPERATIVE)

Fig. 32: Pinpoint Test K: Safety Belt Warning Indicator Does Not Operate Correctly (K1 - K3)
Courtesy of FORD MOTOR CO.

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup
