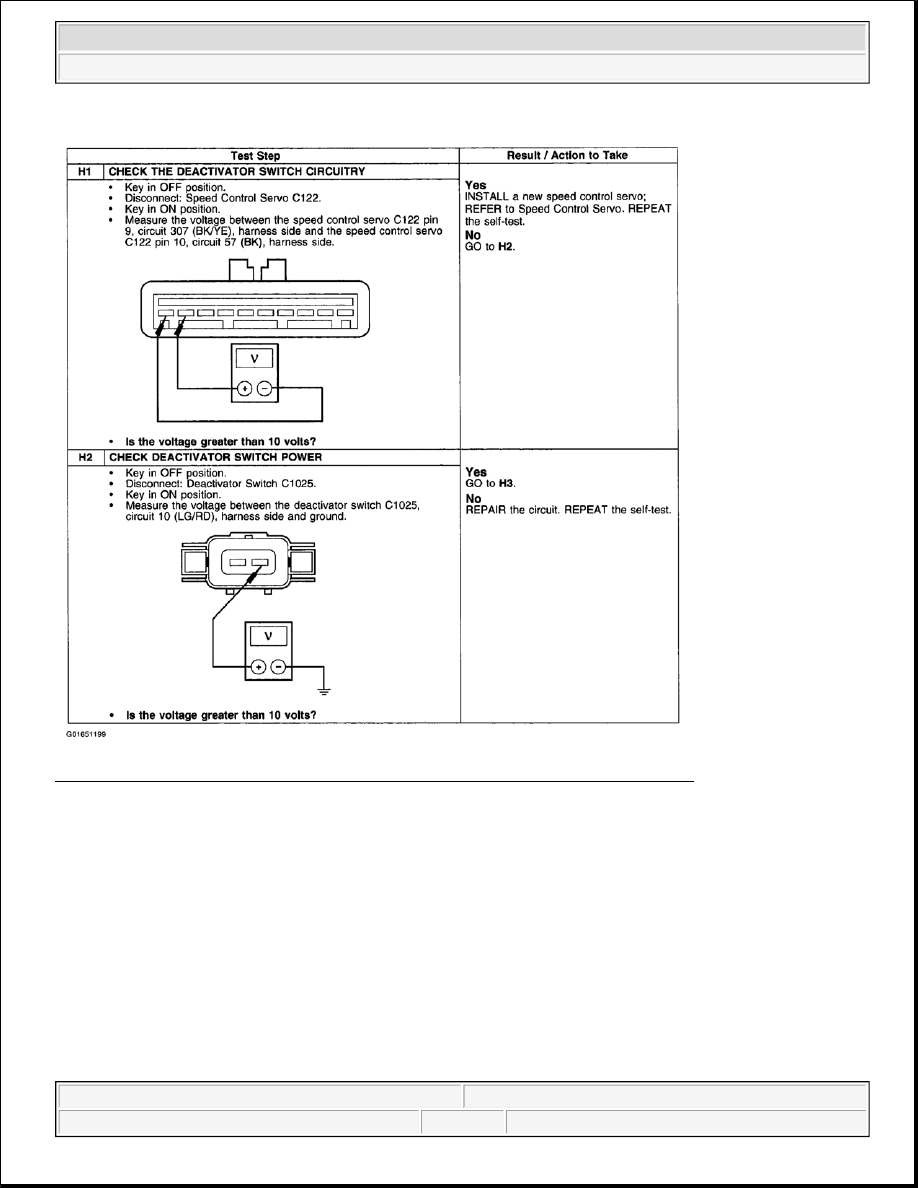

Fig. 28: Flash Code 3 - Deactivator Switch Circuit Failure: Pinpoint Test H1 To H2
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

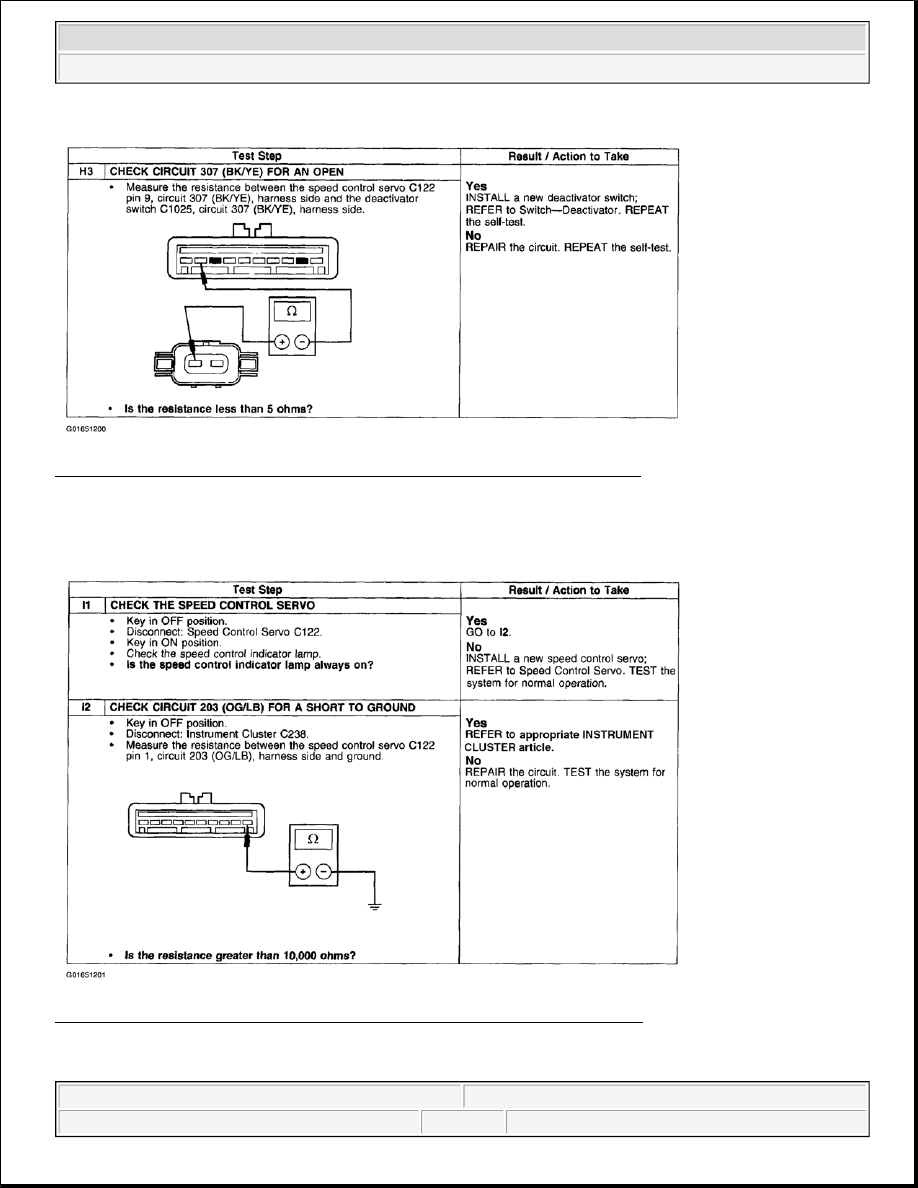

Fig. 29: Flash Code 3 - Deactivator Switch Circuit Failure: Pinpoint Test H3
Courtesy of FORD MOTOR CO.

Pinpoint Test I: Speed Control Indicator Lamp Is Always On

Fig. 30: Speed Control Indicator Lamp Is Always On: Pinpoint Test I1 To I2
Courtesy of FORD MOTOR CO.

Pinpoint Test J: Speed Control Indicator Is Inoperative



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

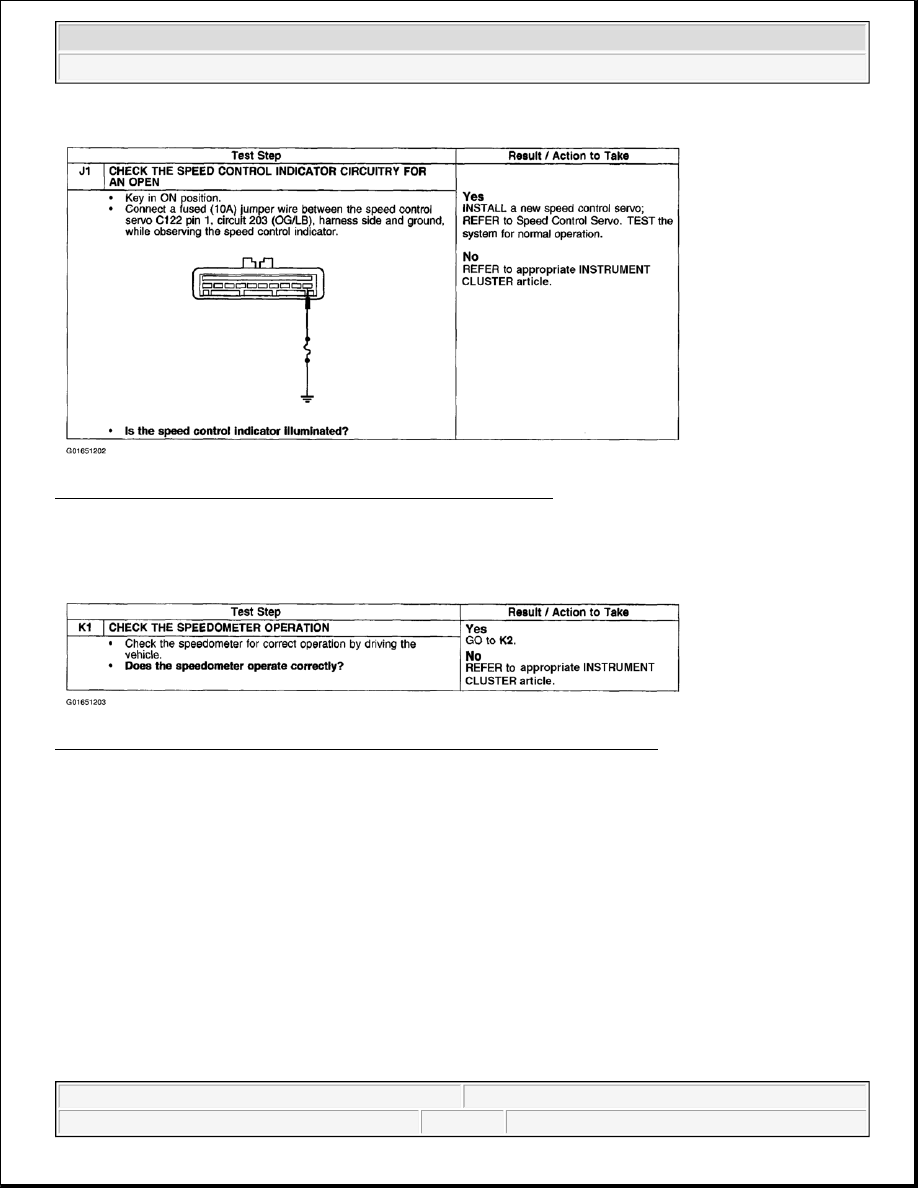

Fig. 31: Speed Control Indicator Is Inoperative: Pinpoint Test J1
Courtesy of FORD MOTOR CO.

Pinpoint Test K: Flash Code 4 - Vehicle Speed Sensor Circuit Failure

Fig. 32: Flash Code 4 - Vehicle Speed Sensor Circuit Failure: Pinpoint Test K1
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



Fig. 33: Flash Code 4 - Vehicle Speed Sensor Circuit Failure: Pinpoint Test K2
Courtesy of FORD MOTOR CO.

REMOVAL AND INSTALLATION

SPEED CONTROL CABLE

Removal and Installation

1. Remove the screws and the accelerator control splash shield.

NOTE:

5.4L 2 Valve Triton V8 shown; others are similar.
