Chevrolet Silverado / GMC Sierra. Service manual - part 2902

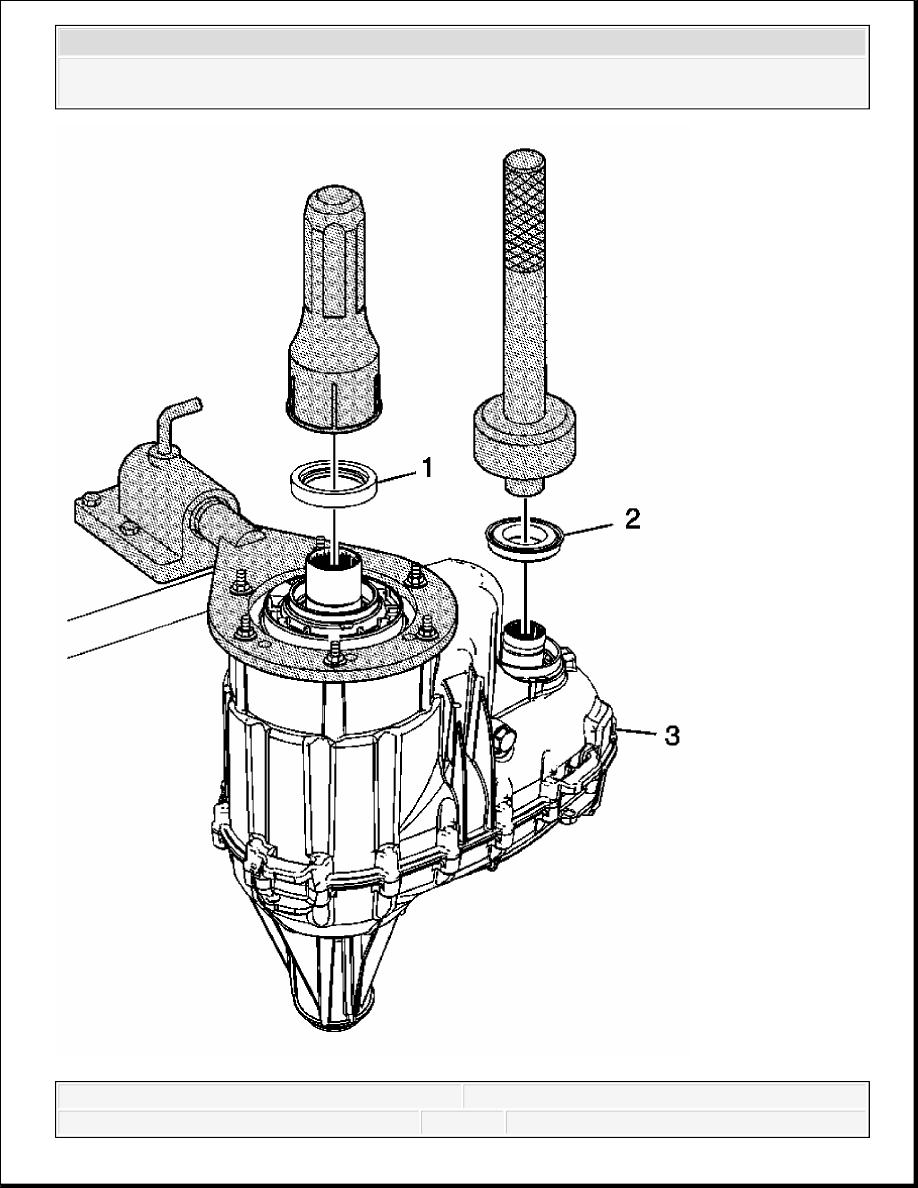

Input Shaft Seal and Front Output Shaft Seal Installation
2
Bolt/Screw
Tighten: 18 N.m (13 lb ft)
NOTE:
Refer to Fastener Notice .
3
Transfer Case Oil Fill Plug
Tip: Apply pipe sealant GM P/N 12346004
(Canadian P/N 10953480) to the oil fill plug before
installation.
Tighten: 18 N.m (13 lb ft)
4
Transfer Case Oil Drain Plug
Tip: Apply pipe sealant GM P/N 12346004
(Canadian P/N 10953480) to the oil drain plug
before installation.
Tighten: 18 N.m (13 lb ft)
5
Transfer Case Vent
Tip: Apply retaining compound GM P/N 12377901
(Canadian P/N 10953504) to the vent pipe before
installation, if removed during disassembly.
6
Vehicle Speed Sensor O-Ring Seal
Tip: Lightly lubricate the O-ring with clean
DEXRON®VI.
7
Vehicle Speed Sensor Assembly
Tighten: 17 N.m (13 lb ft)
8
Transfer Case Access Hole Plugs (Qty: 2)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
