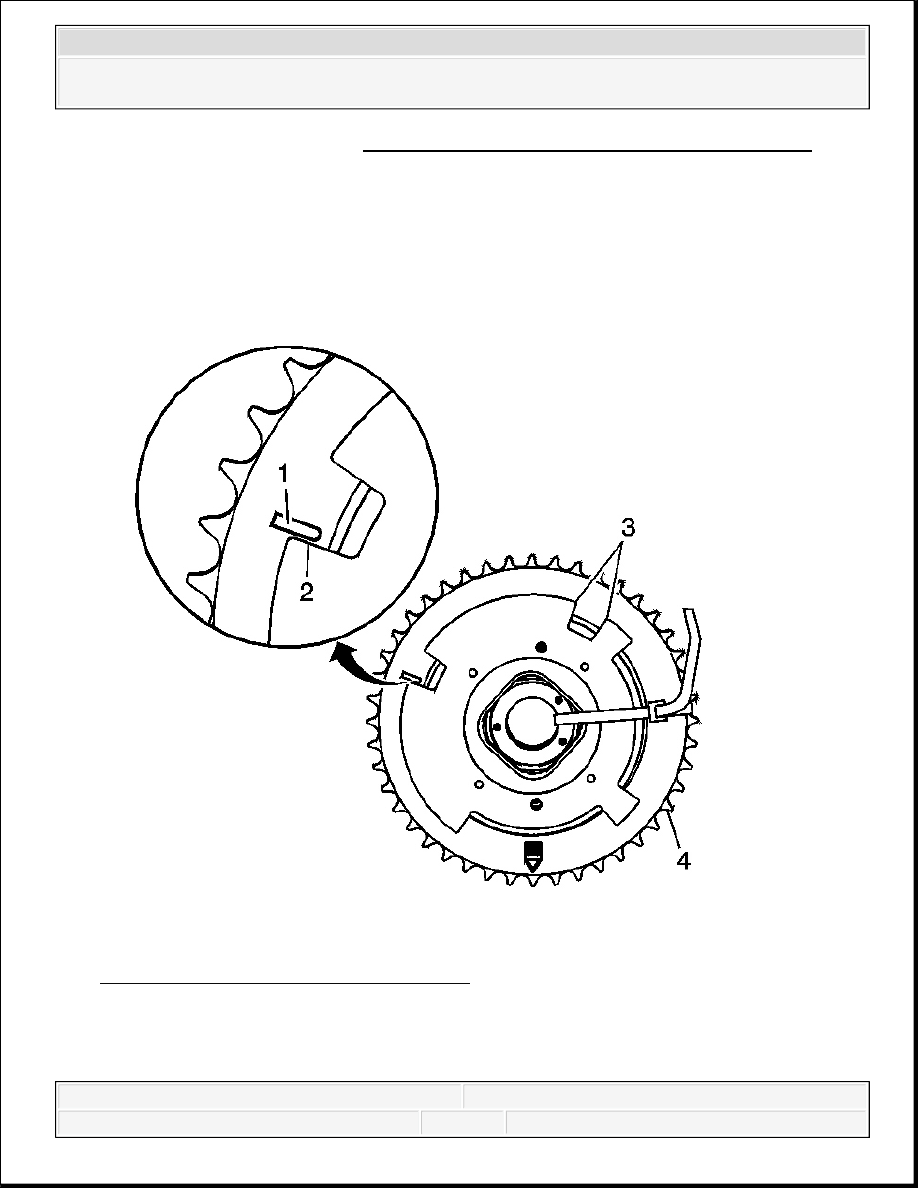

2. Dry the components with compressed air. 3. Inspect the timing chain (1) for binding or wear. 4. Inspect the camshaft position (CMP) sensor raised areas (2) for nicks or damage. 5. Inspect for worn, damaged, or chipped teeth (3). 6. Inspect for a damaged keyway (4). 7. Inspect for worn oil pump drive splines (5). Fig. 73: View Of Timing Chain Tensioner Inspection Points
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
