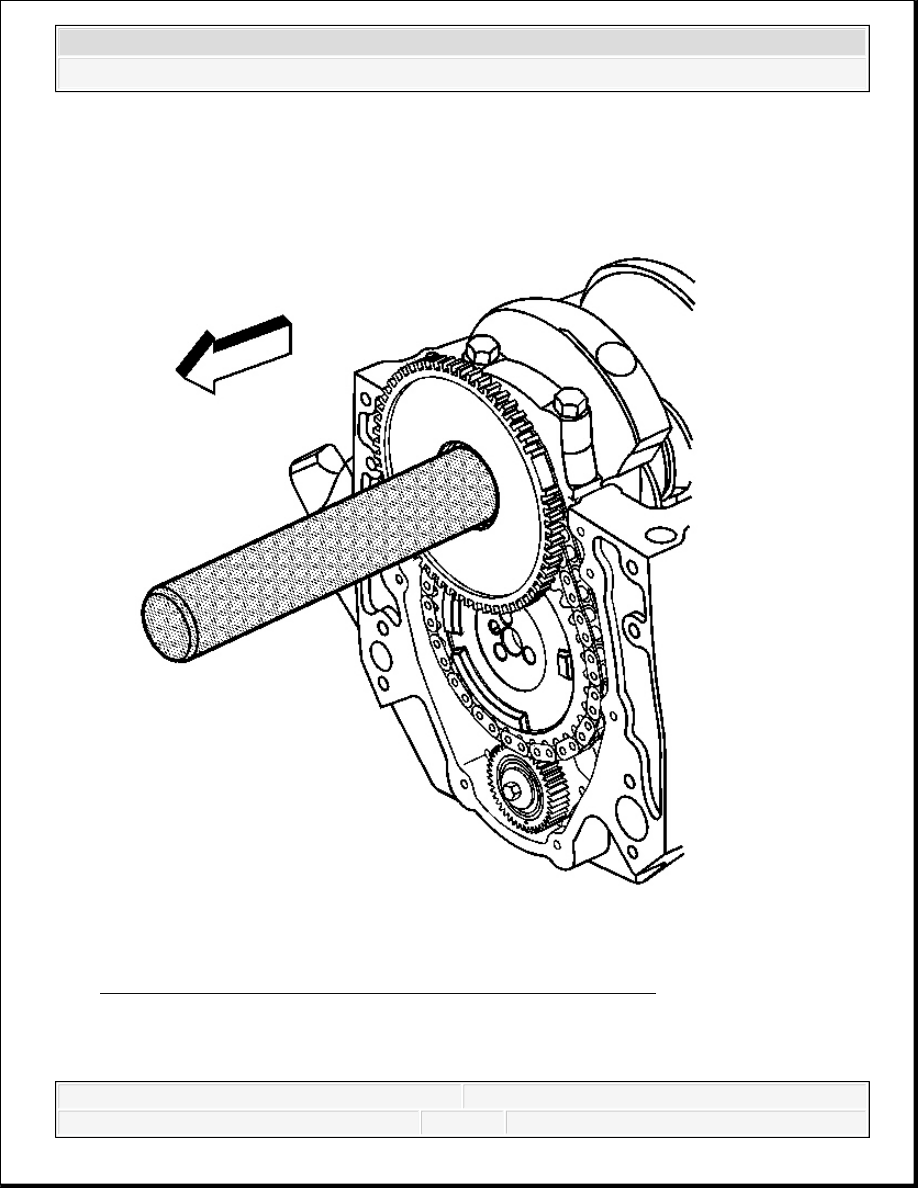

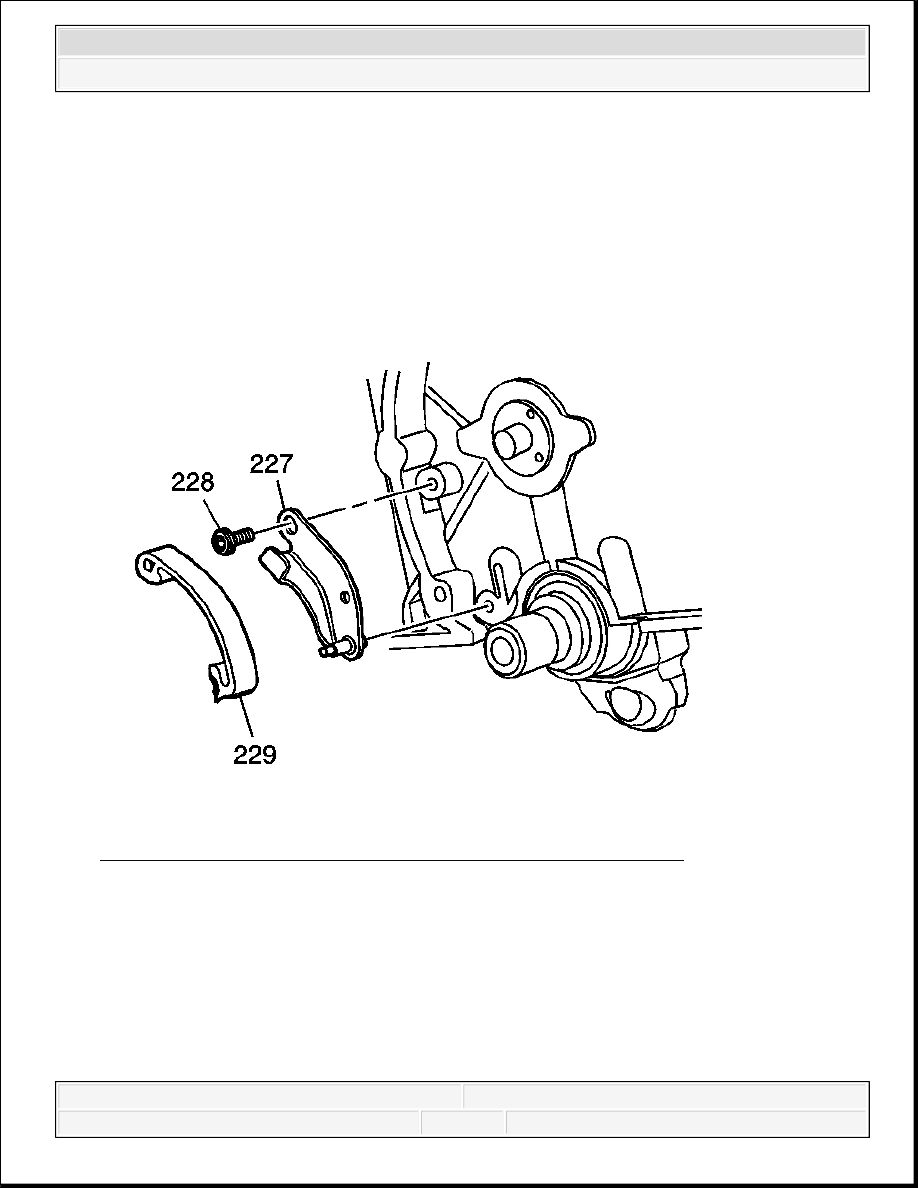

7. Install camshaft sprocket bolts. Tighten: Tighten the camshaft sprocket bolts to 25 N.m (18 lb ft). Fig. 655: View Of Timing Chain Tensioner Bracket, Bolt & Shoe 8. Install the timing chain tensioner bracket and bolt (227 and 228). Tighten: Tighten the timing chain tensioner bracket bolt to 12 N.m (106 lb in). the camshaft. To do so may dislodge the expansion cup plug, IMPORTANT: The timing chain tensioner shoe snaps onto the tensioner bracket. Ensure that the shoe is fully seated before
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
|
