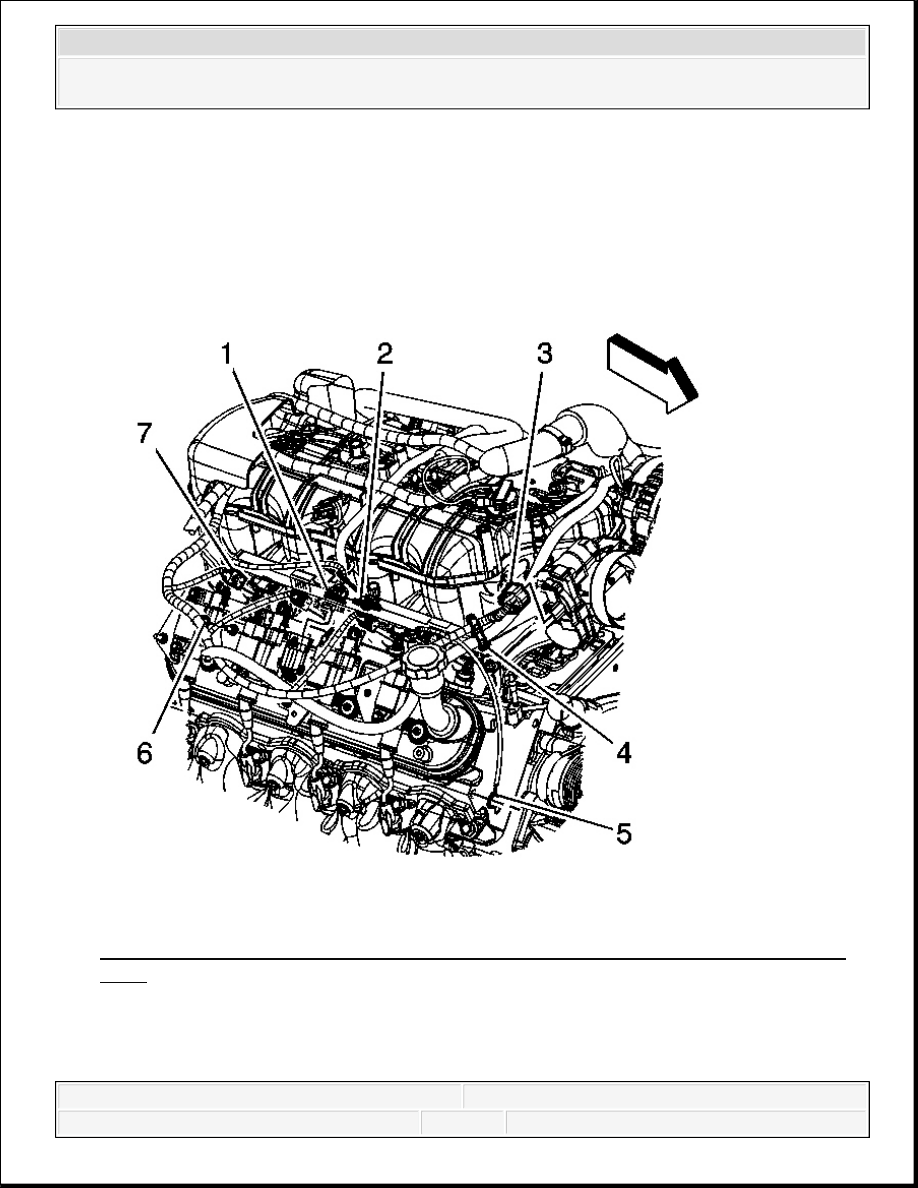

8. Disconnect the engine harness electrical connector (1) from the ignition coil harness electrical connector. 9. Disconnect the engine harness electrical connectors (3) from the left side fuel injectors. 10. Remove the engine harness clip (4) from the ignition coil bracket stud. Fig. 111: View Of CPA Retainer, Engine Harness Electrical Connectors & Harness 11. Remove the CPA retainer (2). 12. Disconnect the engine harness electrical connector (1) from the ignition coil harness
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
