Back Door Opener Switch Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the back door protector assembly (

See page 47-47

4. Remove the back door upper trim board assembly (

See page 48-45

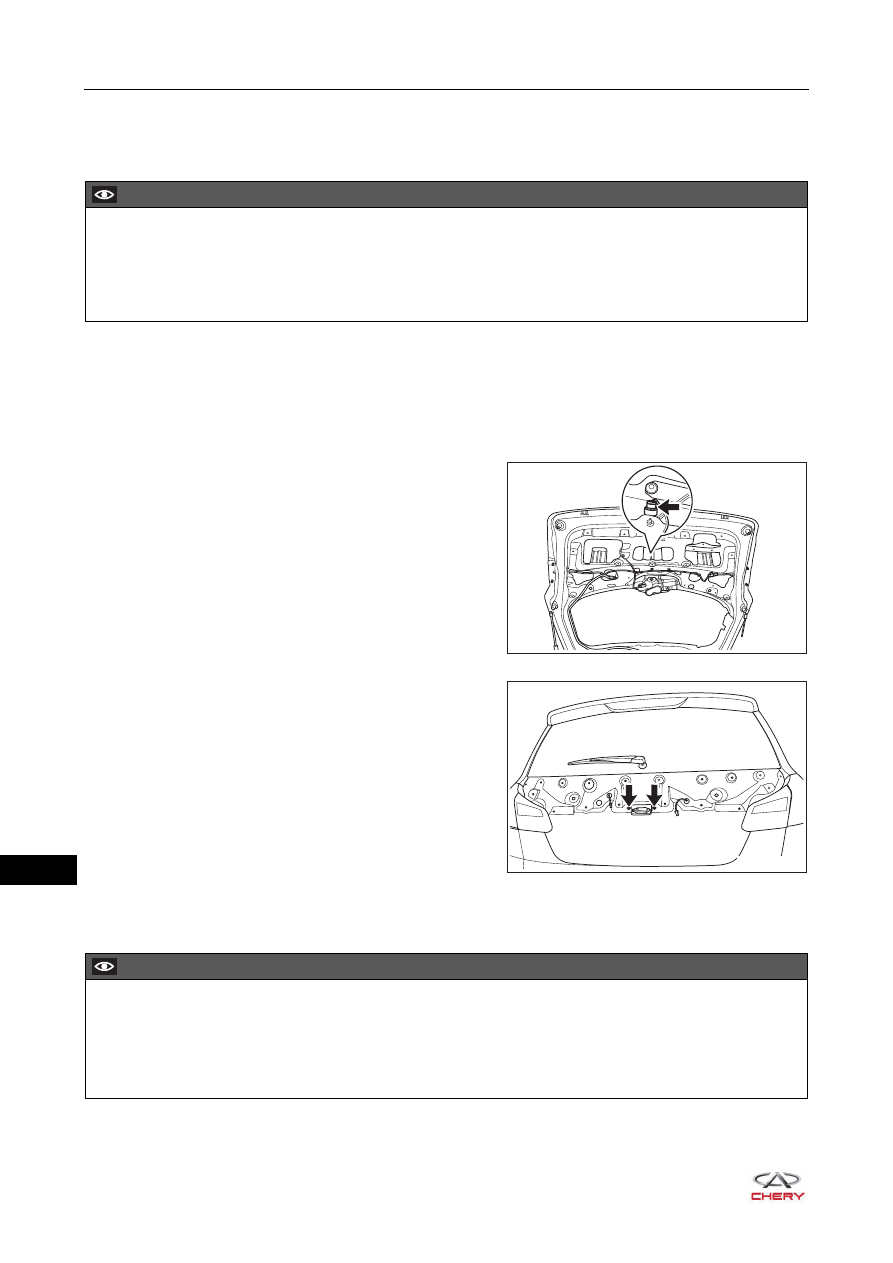

5. Remove the back door opener switch assembly.

a. Disconnect the back door opener switch connector

(arrow).

b. Remove 2 fixing bolts from the back door opener

switch assembly, and remove the back door opener
switch assembly.



(Tightening torque: 10 ± 1 N·m)

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing back door opener switch

assembly.

 Try to prevent body paint surface from being scratched when removing back door opener switch

assembly.

RT21370261

RT21370300

CAUTION

 Make sure damaged clips are replaced and back door opener switch assembly is installed in place when

installing back door opener switch assembly.

 Install connector in place when installing back door opener switch assembly.
 Make sure each function can operate properly after installing back door opener switch assembly.

47–

Back Door Air Spring Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.

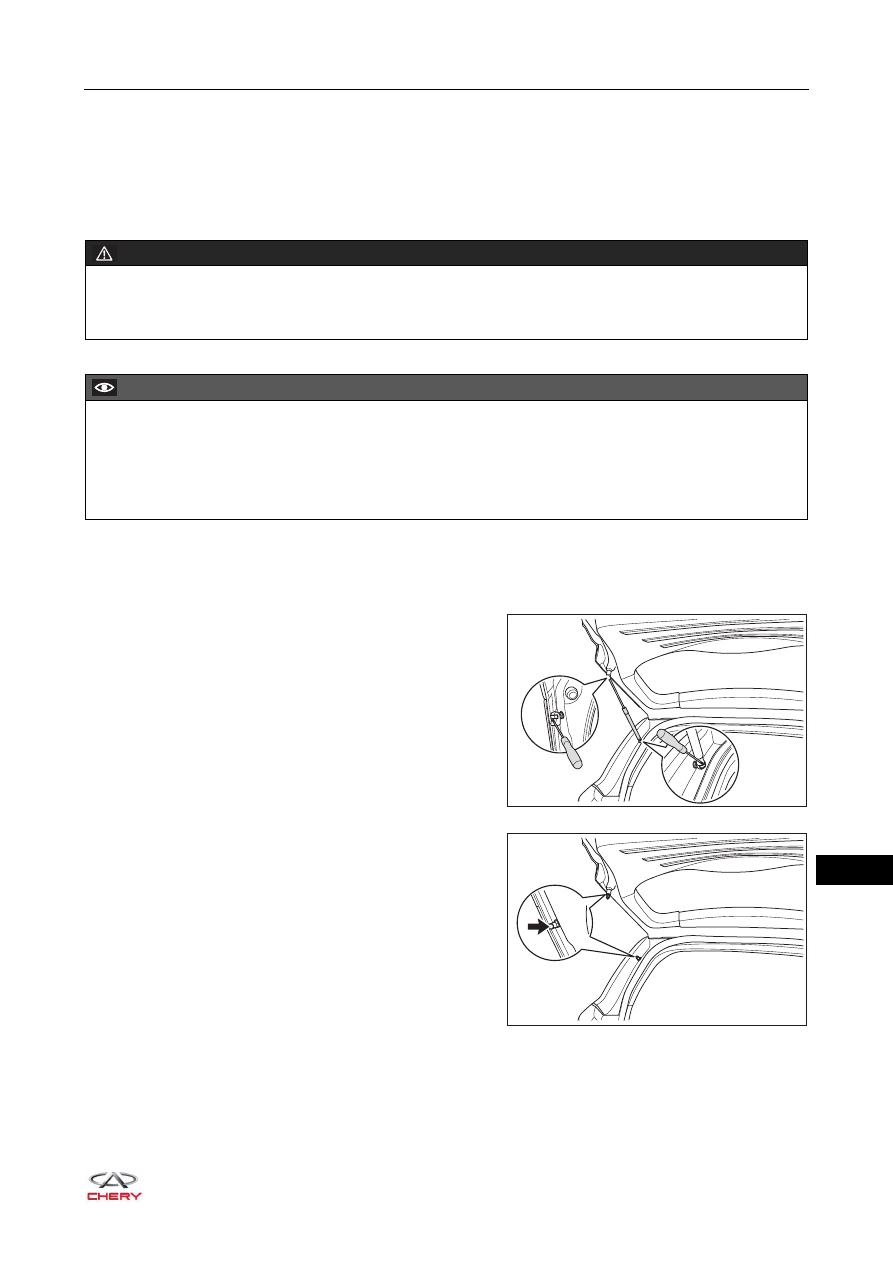

3. Remove the back door left air spring assembly.

a. Using a screwdriver wrapped with protective tape, pry

off the back door air spring upper clip.

b. Using a screwdriver wrapped with protective tape, pry

off the back door air spring lower clip and remove the
back door left air spring assembly.

4. Remove the back door air spring ball pin (arrow).



(Tightening torque: 10 ± 1 N·m)

WARNING

 When removing back door air spring assembly, an assistant is needed to hold back door. Prevent back

door from dropping or sudden closing to cause accidents during operation.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing back door air spring assembly.
 Try to prevent body paint surface from being scratched when removing back door air spring assembly.
 When installing back door air spring assembly, prevent back door from dropping to damage body during

operation.

RT21470820

RT21470830

47–

Installation

Installation is in the reverse order of removal.

WARNING

 When removing back door air spring assembly, an assistant is needed to hold back door. Prevent back

door from dropping or sudden closing to cause accidents during operation.

CAUTION

 Try to prevent body paint surface from being scratched when installing back door air spring assembly.
 Make sure back door air spring and back door air spring assembly clip are fitted closely after installing

back door air spring assembly.
