Chery Tiggo 5 (T21). Service manual - part 505

 47–

36

47

Rear Door Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear left door inside handle assembly.

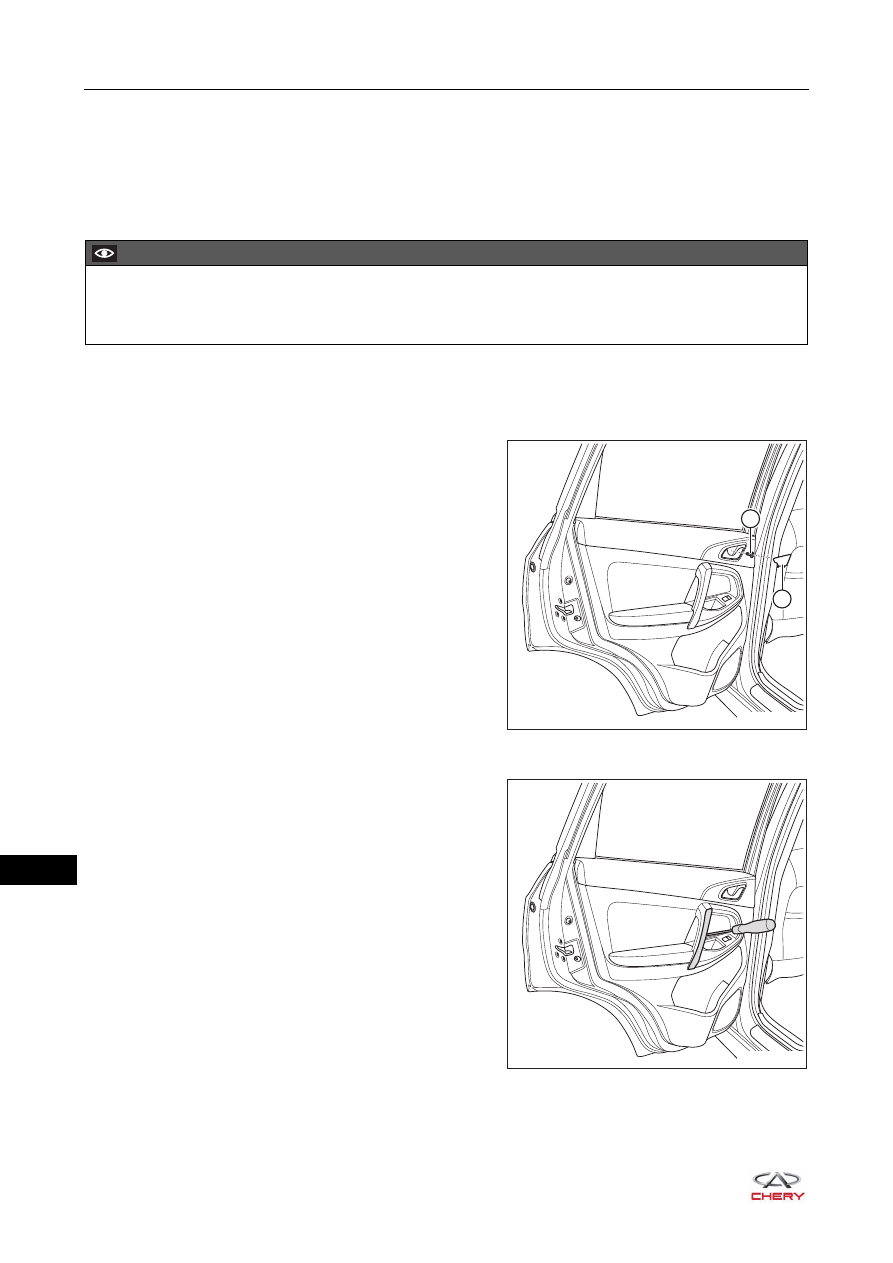

a. Using a screwdriver wrapped with protective tape, pry

up the rear door inside handle screw cover (1).

b. Remove the fixing screw (2) from the rear door inside

handle assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

4. Remove the rear left door assist grip cover.

a. Using a screwdriver wrapped with protective tape, pry

up the claws on rear door assist grip cover, and
remove the rear left door assist grip cover.

5. Remove the rear left door power glass regulator switch assembly (

See page 43-55

).

6. Remove the rear left door protector assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear door protector assembly.
 Avoid damage to rear door protector surface when removing rear door protector assembly.

2

1

RT21470540

RT21470550

 47–

37

47

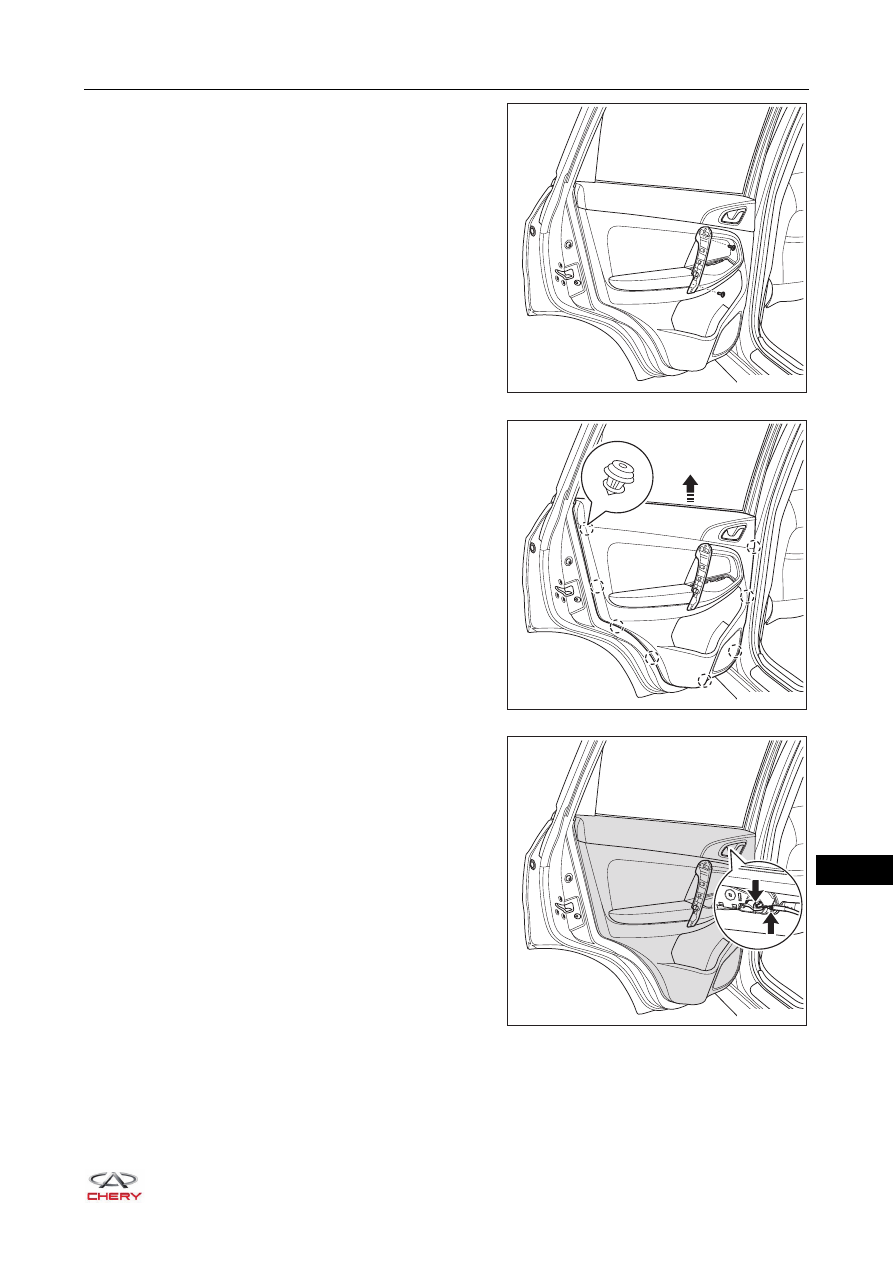

a. Remove 2 fixing screws from the rear door assist grip

assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

b. Using an interior crow plate, pry off the clips from the

rear door protector assembly, and remove the rear
door protector assembly in the direction of arrow as
shown in the illustration.

c. Disengage the rear door inside handle cable (arrow)

from the slot.

d. Remove the rear left door protector assembly.

RT21470560

RT21470570

RT21470580

 47–

38

47

7. Remove the rear left door inside handle assembly.

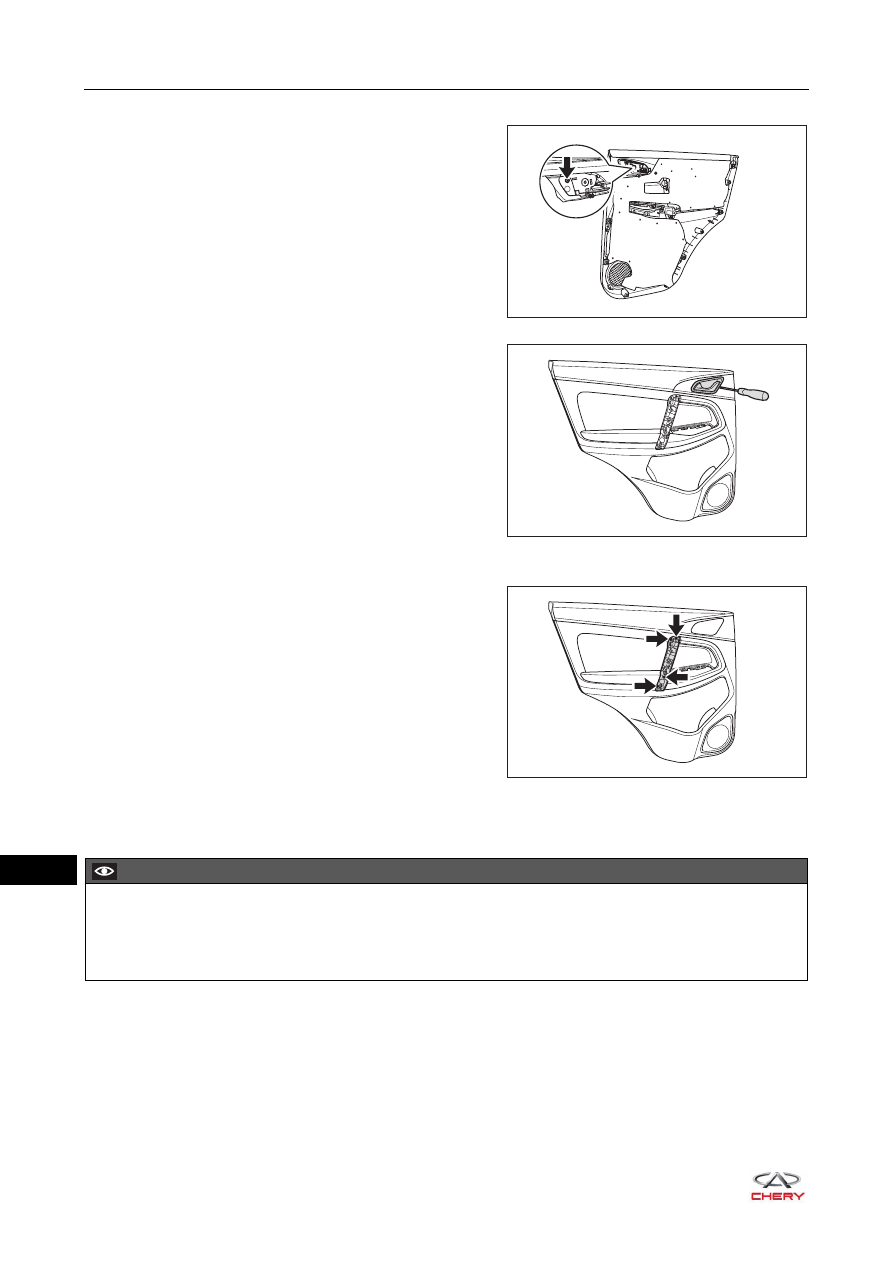

a. Remove the fixing screw (arrow) from the rear door

inside handle assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

b. Using a screwdriver wrapped with protective tape, pry

up the claws on rear door inside handle assembly.

c. Remove the rear door inside handle assembly from

the rear door protector assembly.

8. Remove the rear door assist grip assembly.

a. Remove 4 fixing screws (arrow) from the rear door

assist grip assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

b. Remove the rear door assist grip assembly from the

rear door protector assembly.

Installation

Installation is in the reverse order of removal.

RT21470590

RT21470600

RT21470610

CAUTION

 Make sure damaged clips are replaced and rear door protector assembly is installed in place when

installing rear door protector assembly.

 Make sure inside handle assembly can operate properly after installing rear door protector assembly.

 47–

39

47

Rear Door Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear left door trim board garnish.

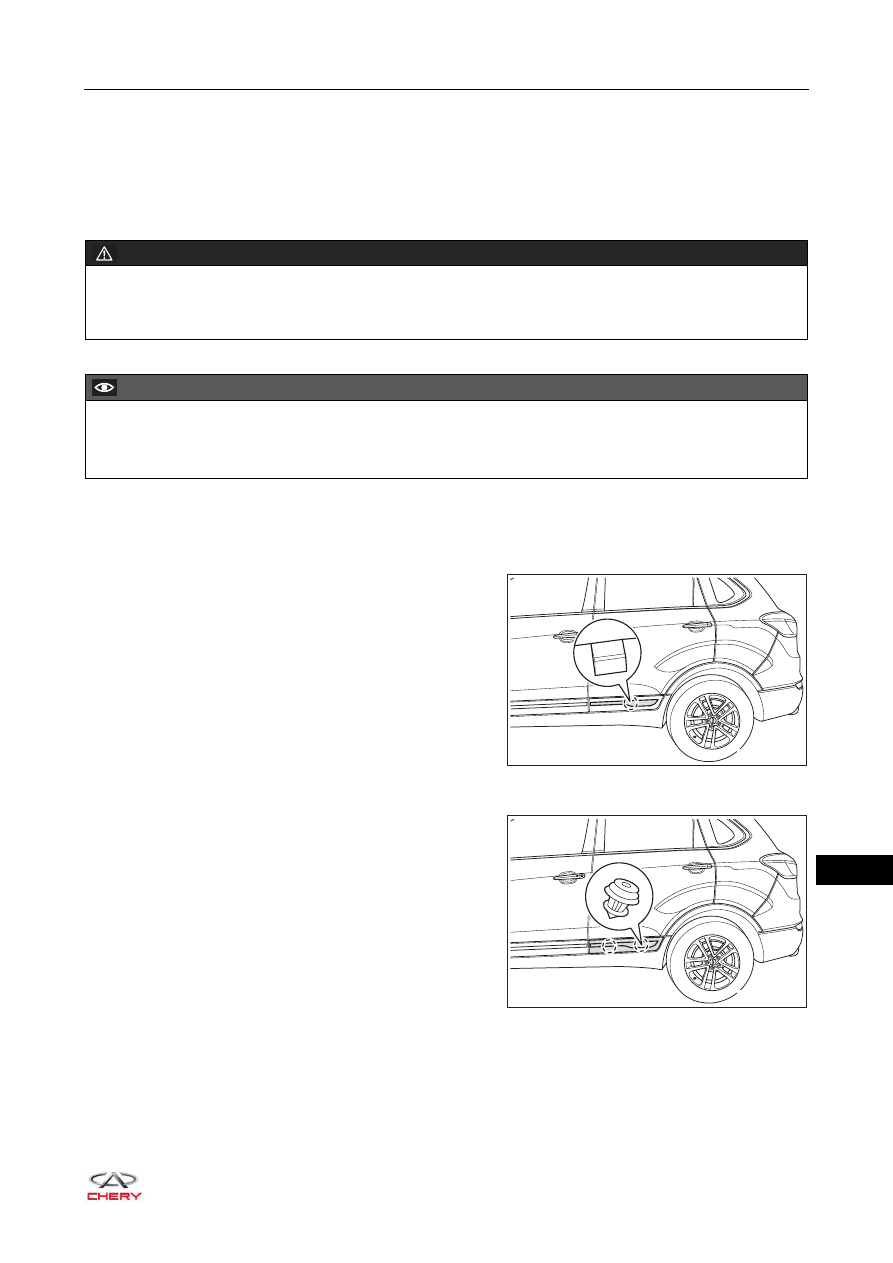

a. Using a screwdriver wrapped with protective tape, pry

up the claws on rear door trim board garnish.

b. Remove the rear left door trim board garnish.

4. Remove the rear left door trim board assembly.

a. Using a screwdriver wrapped with protective tape, pry

up the clips on rear door trim board assembly.

b. Remove the rear left door trim board assembly.

WARNING

 When removing rear door assembly, an assistant is needed to hold rear door to prevent rear door from

dropping to cause accidents during operation.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear door assembly,.
 Try to prevent body paint surface from being scratched when removing rear door assembly.

RT21470641

RT21470642
