Installation

Installation is in the reverse order of removal.

Inspection

After installing the rear seat assembly, check the basic functions of rear seat assembly, and confirm that the
following functions operates normally:

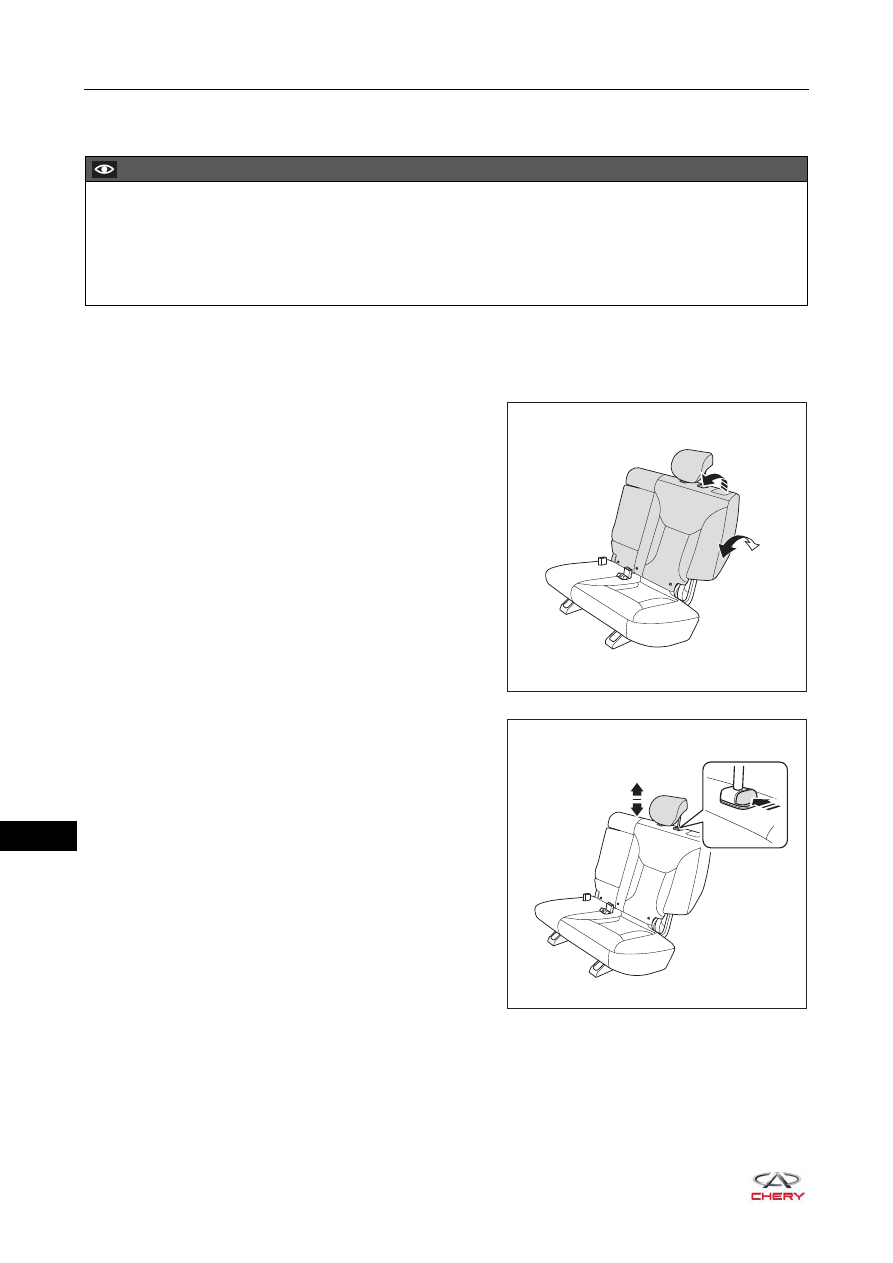

1. Pull up the seatback unlock mechanism assembly, and

check if the rear seatback is difficult to move, stuck, etc.
Repair or replace as necessary.

2. Press the headrest guide w/ button, move the headrest

up and down, and check if the headrest is difficult to
move, stuck, etc. If the above conditions occur, repair or
replace in time.

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing rear seat assembly.
 Be careful not to damage the body paint surface when installing rear seat assembly.
 Avoid scratch or damage to the carpet when installing rear seat assembly.
 Make sure that the seat belt buckle is not under the seat cushion when installing rear seat cushion.

RT21460550

RT21460540

46–

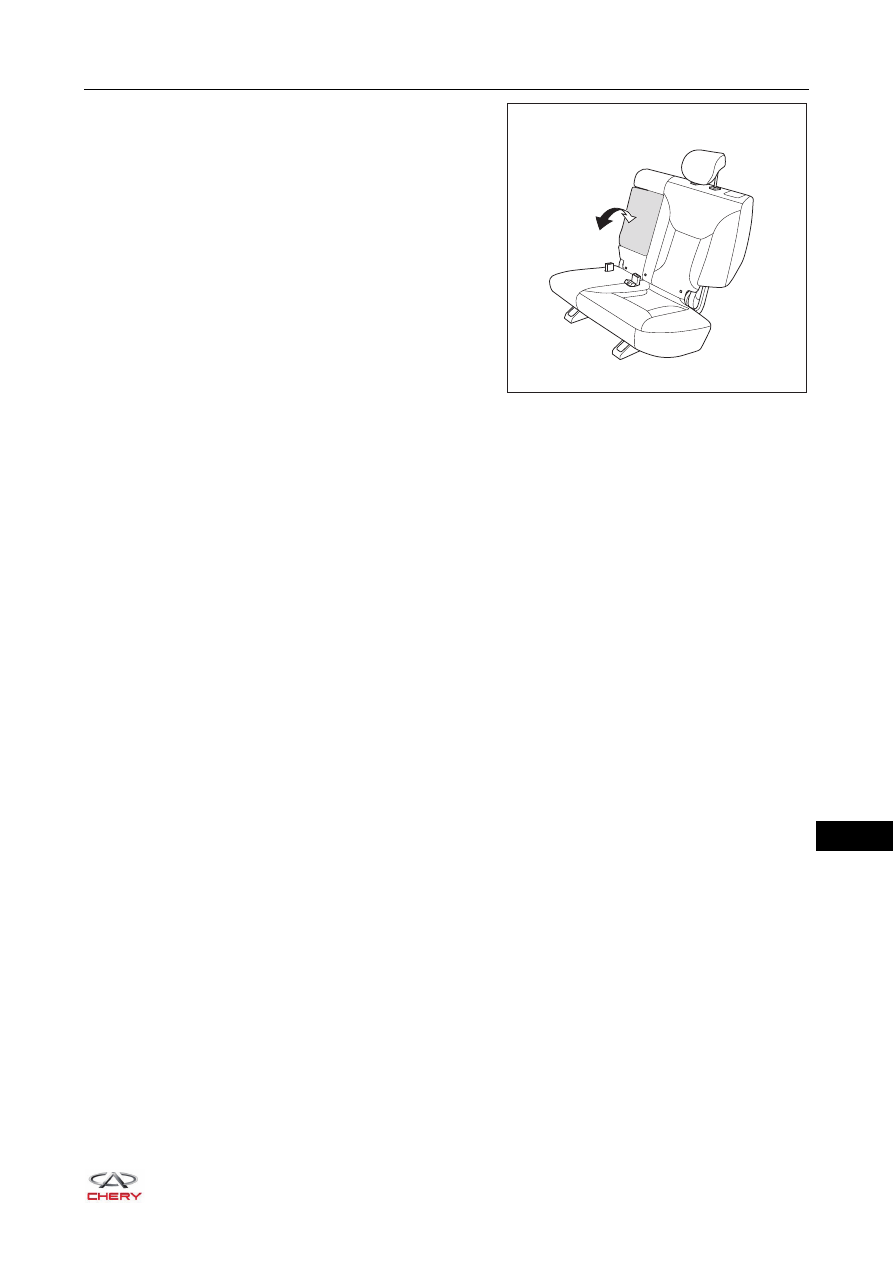

3. Flip down the rear seat armrest assembly forward or

backward, and check if the rear seat armrest assembly is
difficult to move, stuck, etc. If the above conditions occur,
repair or replace in time.

4. Check if the fixing bolts are set in position. Tighten to the specified torque as necessary.

RT21460560

46–

Seat Heater Switch

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the seat heater switch.

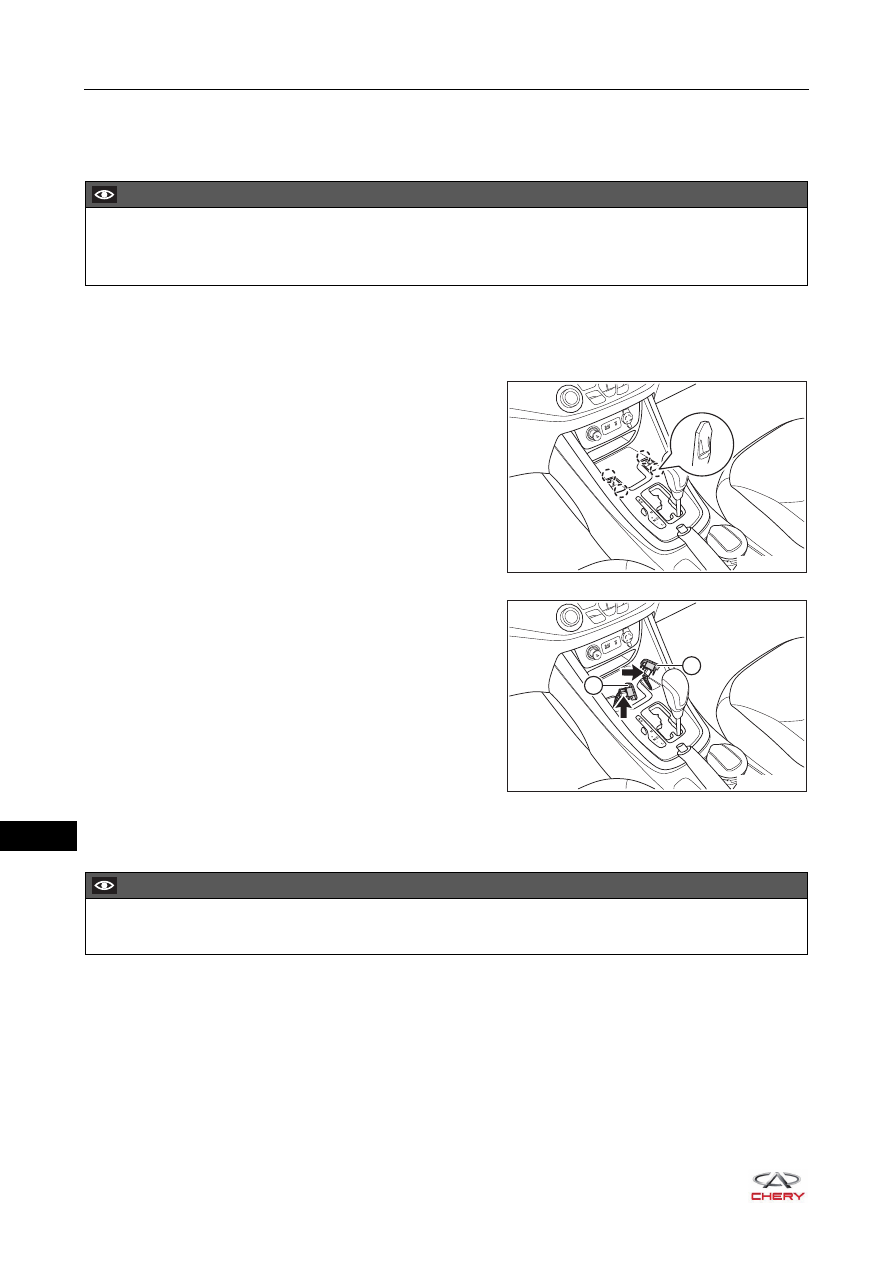

a. Using a screwdriver wrapped with protective tape, pry

up the claws on the seat heater switch.

b. Disconnect the seat heater switch connectors (arrow),

and remove the driver seat heater switch (1) and front
passenger seat heater switch (2).

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing seat heater switch.
 Avoid scratch or damage to the shift panel assembly when removing seat heater switch.

RT21460570

RT21460580

CAUTION

 Check seat heater switch for proper operation after installation.
