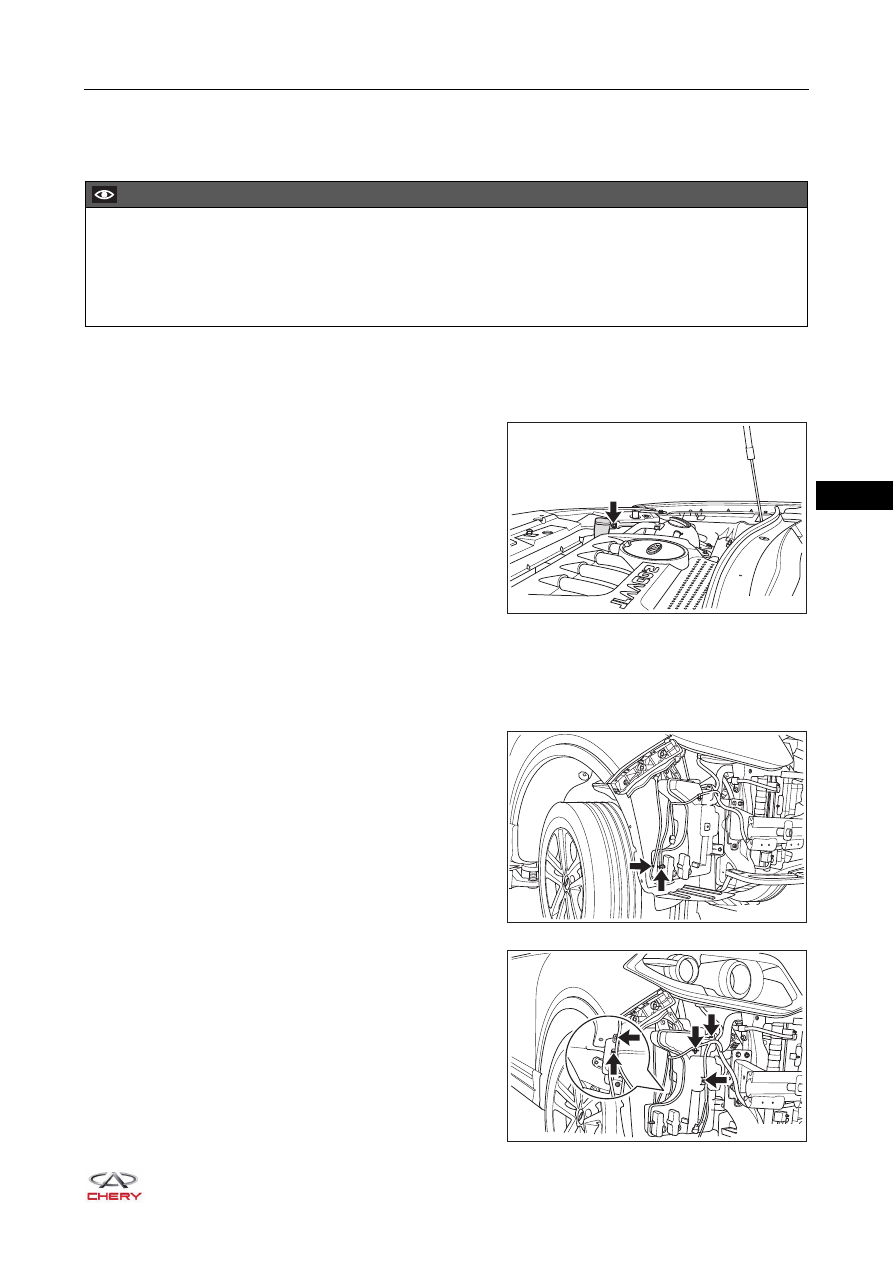

Chery Tiggo 5 (T21). Service manual - part 414

36–

39

36

Washer Fluid Reservoir Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the guide pipe assembly.

a. Remove the fixing bolt (arrow) from guide pipe

assembly.



(Tightening torque: 7 ± 1 N·m)

b. Remove the guide pipe assembly from washer fluid reservoir assembly.

4. Remove the front bumper assembly (

See page 48-11

).

5. Remove the washer pump assembly (

See page 36-37

).

6. Remove the washer fluid reservoir assembly.

a. Detach the washer lines (arrow) from groove on the

washer fluid reservoir assembly.

b. Remove the clips (arrow) from washer fluid reservoir

assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing washer fluid reservoir assembly.
 Appropriate force should be applied when removing washer fluid reservoir assembly. Be careful not to

operate roughly.

 Try to prevent body paint surface from being scratched when removing washer fluid reservoir assembly.

RT21360290

RT21360300

RT21360311

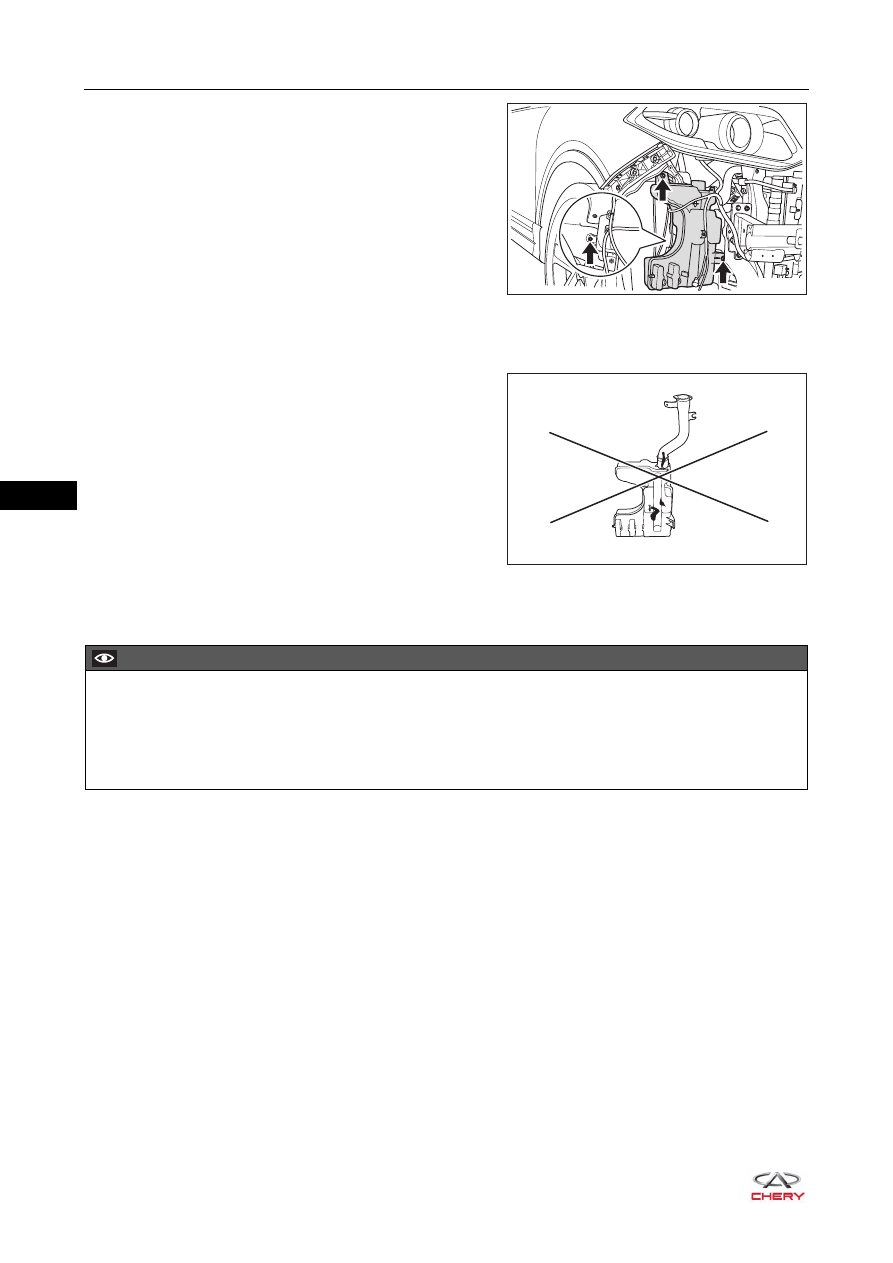

36–

40

36

c. Remove 3 fixing bolts (arrow) from washer fluid

reservoir assembly, and remove the washer fluid
reservoir assembly.



(Tightening torque: 7 ± 1 N·m)



Inspection

1. Check washer fluid reservoir assembly.

a. Check washer fluid reservoir assembly for leakage,

deformation or damage. Replace washer fluid
reservoir assembly if necessary.

b. Check internal and external sides of washer fluid

reservoir for dirt. Remove dirt or replace washer fluid
reservoir assembly if necessary.

c. Check the grommet for damage. Replace the

grommet if necessary.

Installation

Installation is in the reverse order of removal.

RT21360310

RT21360320

CAUTION

 Always operate carefully to prevent components from being damaged when installing washer fluid

reservoir assembly.

 Tighten fixing bolts to the specified torque when installing washer fluid reservoir assembly.
 Install washer line joint in place when installing washer fluid reservoir assembly.

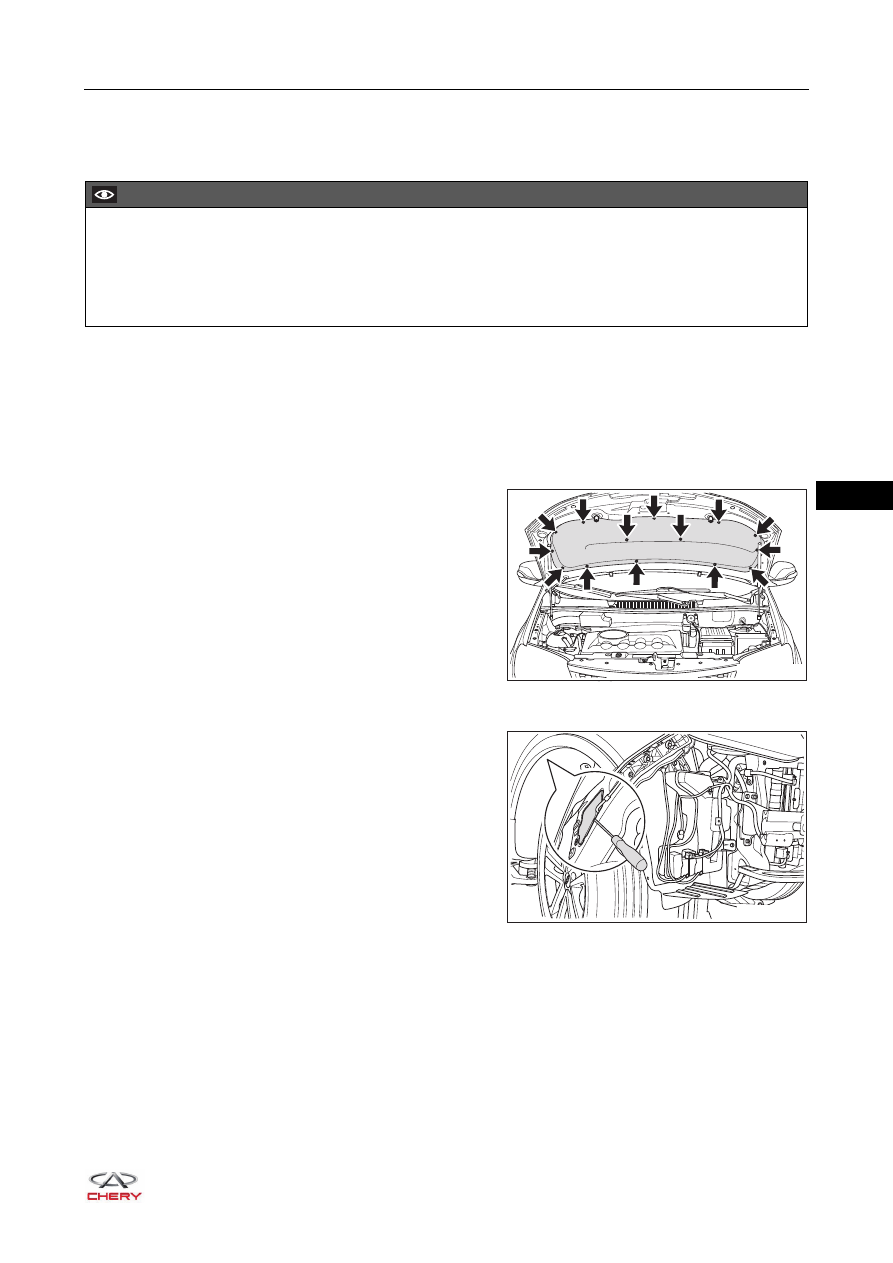

36–

41

36

Washer Line Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front bumper assembly (

See page 48-11

).

4. Remove the front wheel house protector assembly (

See page 48-24

).

5. Remove the front washer nozzle assembly (

See page 36-29

).

6. Remove the hood sound-absorbing pad.

a. Remove the clips (arrow) from hood sound-absorbing

pad, and remove the hood sound-absorbing pad.

7. Remove the service cover.

a. Using a screwdriver wrapped with protective tape, pry

up the claws on service cover, and remove the service
cover.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing washer line assembly.
 Appropriate force should be applied when removing washer line assembly. Be careful not to operate

roughly.

 Try to prevent body paint surface from being scratched when removing washer line assembly.

RT21470050

RT21360340

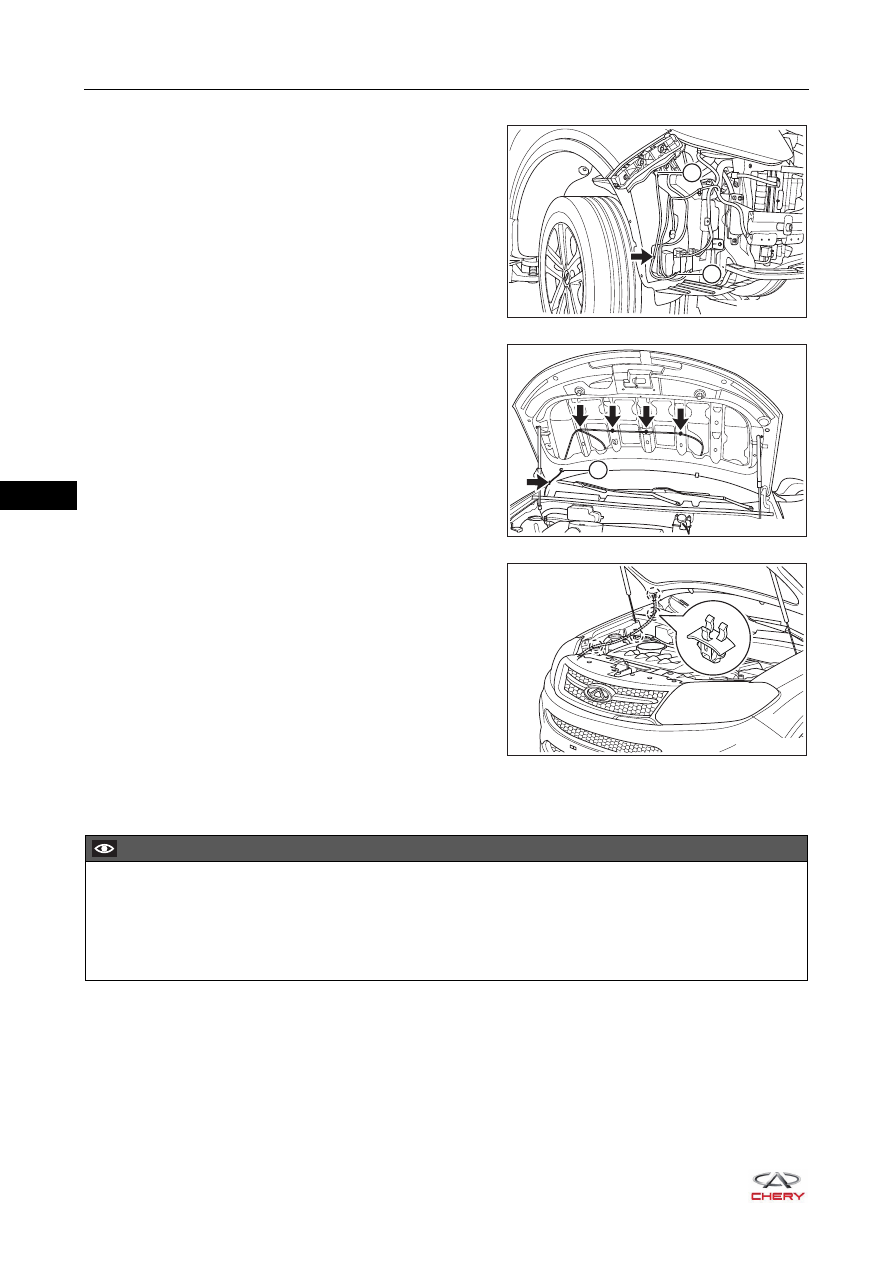

36–

42

36

8. Remove the washer line assembly.

a. Disconnect the joint (1) between washer line and front

washer bump.

b. Detach the washer line (arrow) from the groove on

washer fluid reservoir assembly.

c. Using a screwdriver wrapped with protective tape, pry

up the rubber cover (2).

d. Using a screwdriver wrapped with protective tape, pry

up the rubber cover (1).

e. Detach the washer hose from clips (arrow).

f. Remove the washer line assembly from clips.

Installation

Installation is in the reverse order of removal.

1

2

RT21360330

1

RT21470051

RT21360350

CAUTION

 Always operate carefully to prevent components from being damaged when installing washer line

assembly.

 Install washer line joint in place when installing washer line assembly.
 Check washer system for proper operation after installing washer line assembly.
