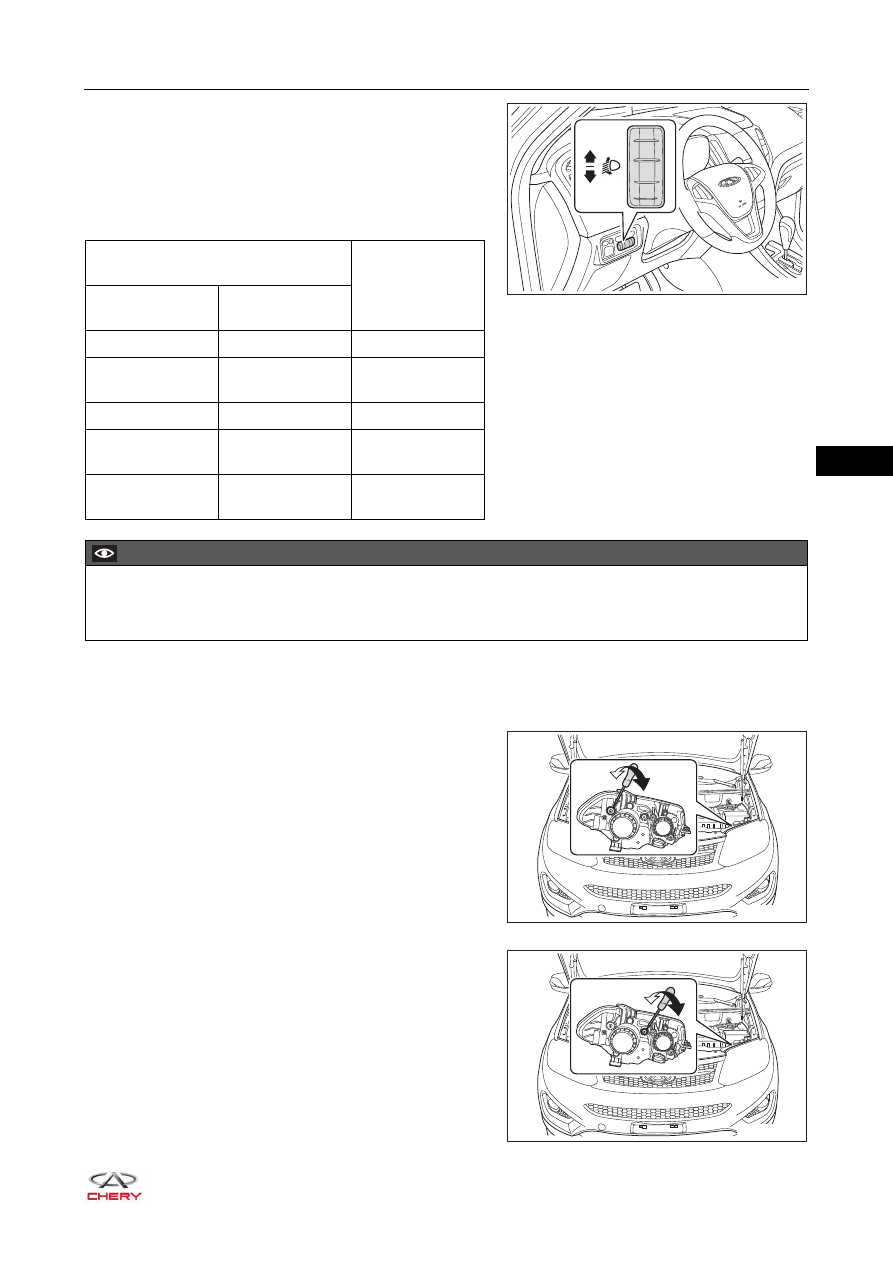

2. Headlight leveling can be adjusted according to the

number of passengers and loading condition. There are 4
adjustment bands to select on headlight leveling knob: 0,
1, 2 and 3.



Turn up: Rise headlight beam.



Turn down: Lower headlight beam.
Adjust the light according to the table below.

3. Manual headlight leveling: the headlight leveling can be changed by adjusting the following areas manually

as shown in the illustration.
Adjustment method for left headlight
a. Low beam left/right adjustment



When rotating the screwdriver clockwise, the beam
move to left; when rotating the screwdriver
counterclockwise, the beam move to right.

b. Low beam up/down adjustment



When rotating the screwdriver clockwise, the beam
move downward; when you rotating the screwdriver
counterclockwise, the beam move upward.

O

1

2

3

RT21350150

Occupant and Luggage Loading

Condition

Knob Position

Occupant

Luggage

Loading

Driver

None

0

Driver + Front

Passenger

None

0

Full Occupied

None

1

Full Occupied

Full Luggage

Loading

2

Driver

Full Luggage

Loading

3

CAUTION

 Whether headlight leveling is correct or not will directly affects driving safety. Be sure to adjust it

according to the related specification.

RT21350160

RT21350170

35–

72

35

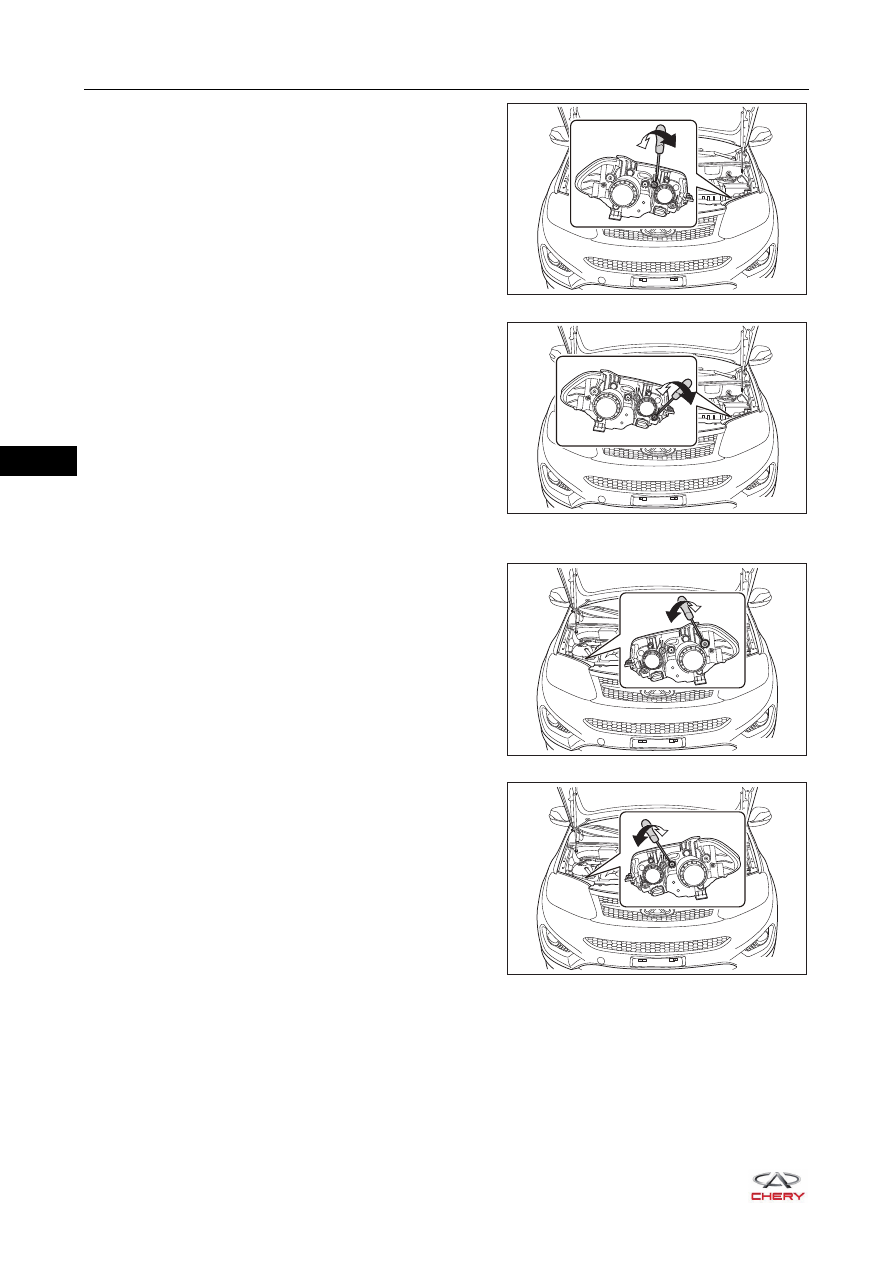

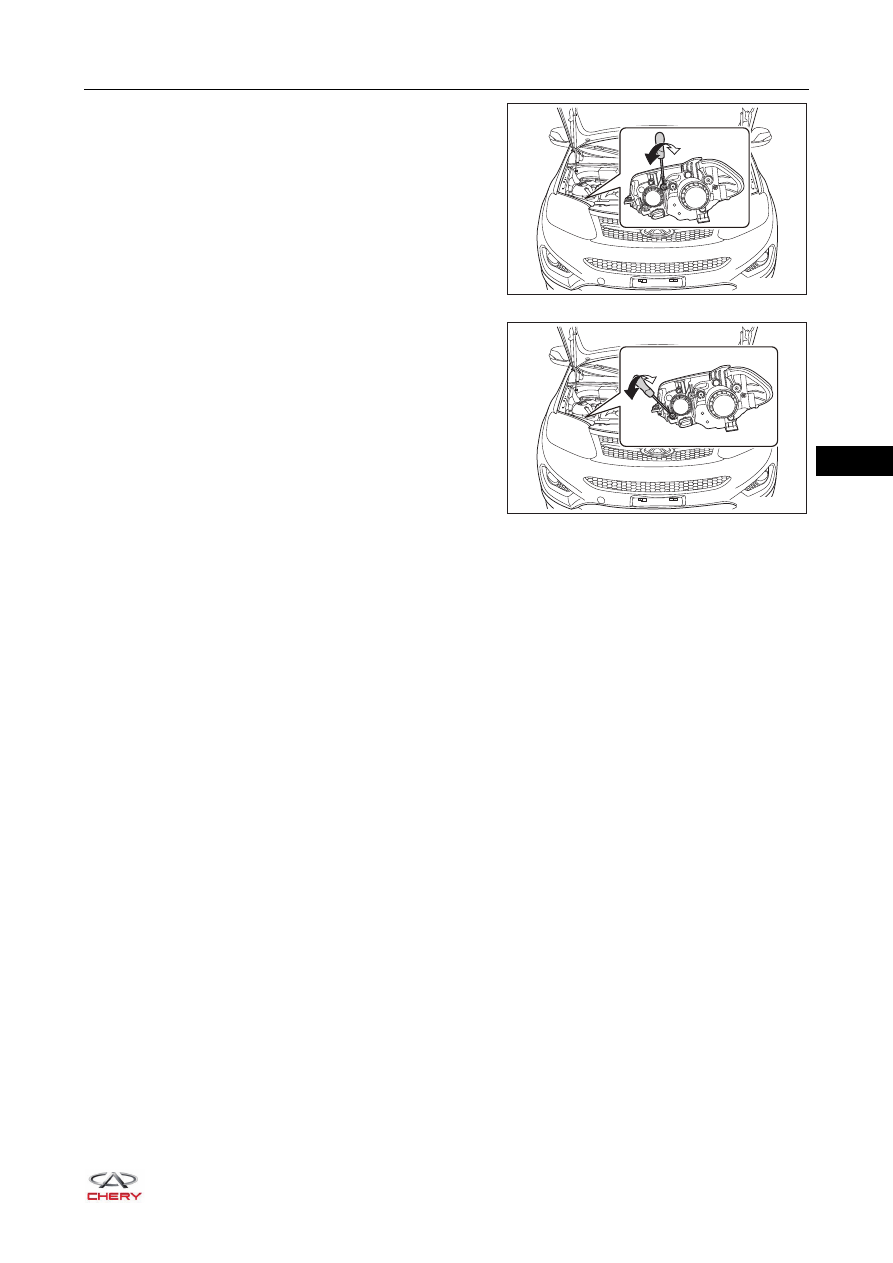

c. High beam left/right adjustment



When rotating the screwdriver clockwise, the beam
move to left; when rotating the screwdriver
counterclockwise, the beam move to right.

d. High beam up/down adjustment



When rotating the screwdriver clockwise, the beam
move upward; when rotating the screwdriver
counterclockwise, the beam move downward.

Adjustment method for right headlight
a. Low beam left/right adjustment



When rotating the screwdriver clockwise, the beam
move to left; when rotating the screwdriver
counterclockwise, the beam move to right.

b. Low beam up/down adjustment



When rotating the screwdriver clockwise, the beam
move downward; when you rotating the screwdriver
counterclockwise, the beam move upward.

RT21350180

RT21350190

RT21350200

RT21350210

35–

73

35

c. High beam left/right adjustment



When rotating the screwdriver clockwise, the beam
move to left; when rotating the screwdriver
counterclockwise, the beam move to right.

d. High beam up/down adjustment



When rotating the screwdriver clockwise, the beam
move upward; when rotating the screwdriver
counterclockwise, the beam move downward.

RT21350220

RT21350230

35–

74

35

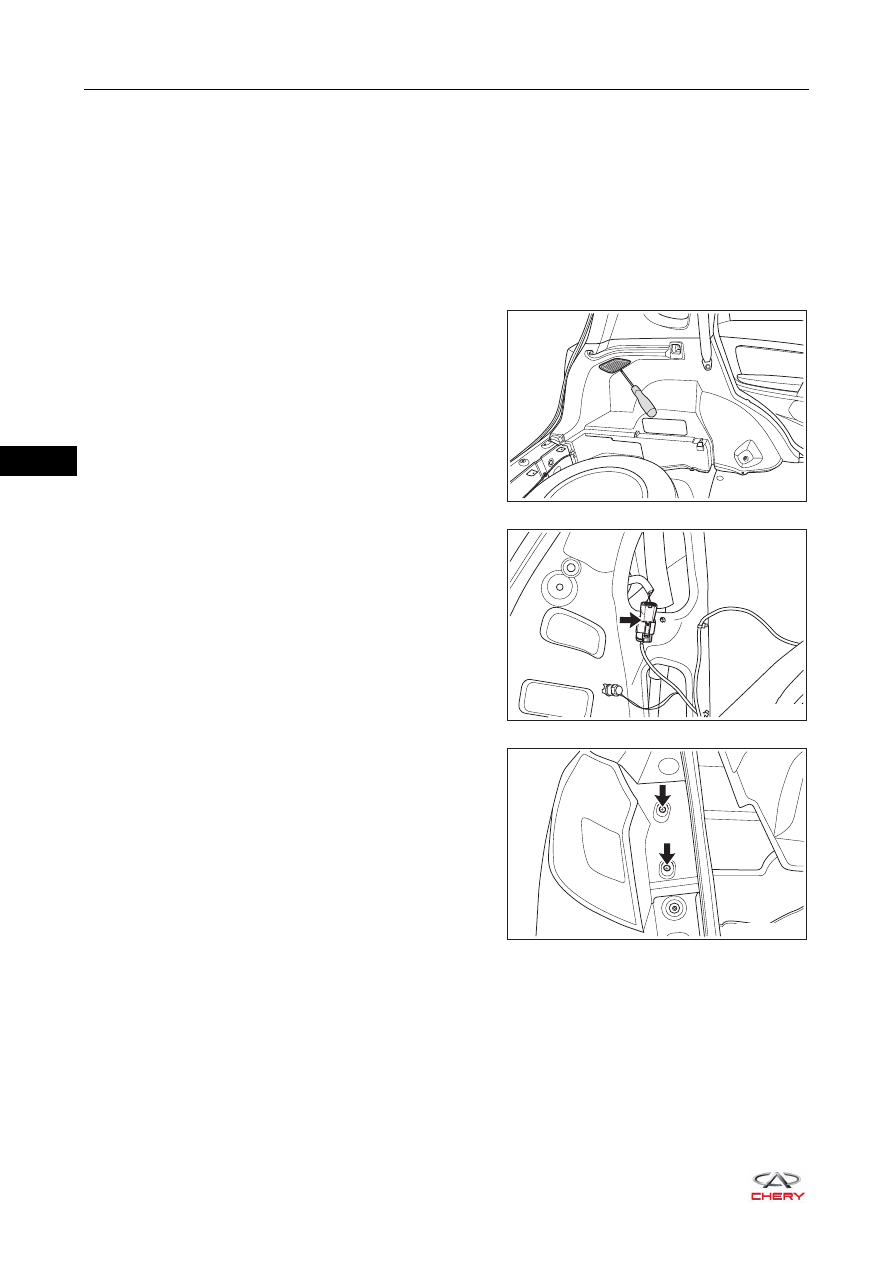

Rear Combination Light Assembly (Fixed Part)

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for rear left combination light.
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear combination light assembly (fixed part).

a. Using a flat tip screwdriver wrapped with protective

tape, pry up and remove the rear combination light
service cover.

b. Disconnect the rear combination light assembly (fixed

part) wire harness connector (arrow), and detach the
wire harness fixing clip.

c. Remove 2 fixing screws (arrow) from outer part of rear

combination light assembly (fixed part).



(Tightening torque: 1.5 ± 0.5 N·m)

RT21490153

RT21350240
