Chery Tiggo 5 (T21). Service manual - part 365

32–

51

32

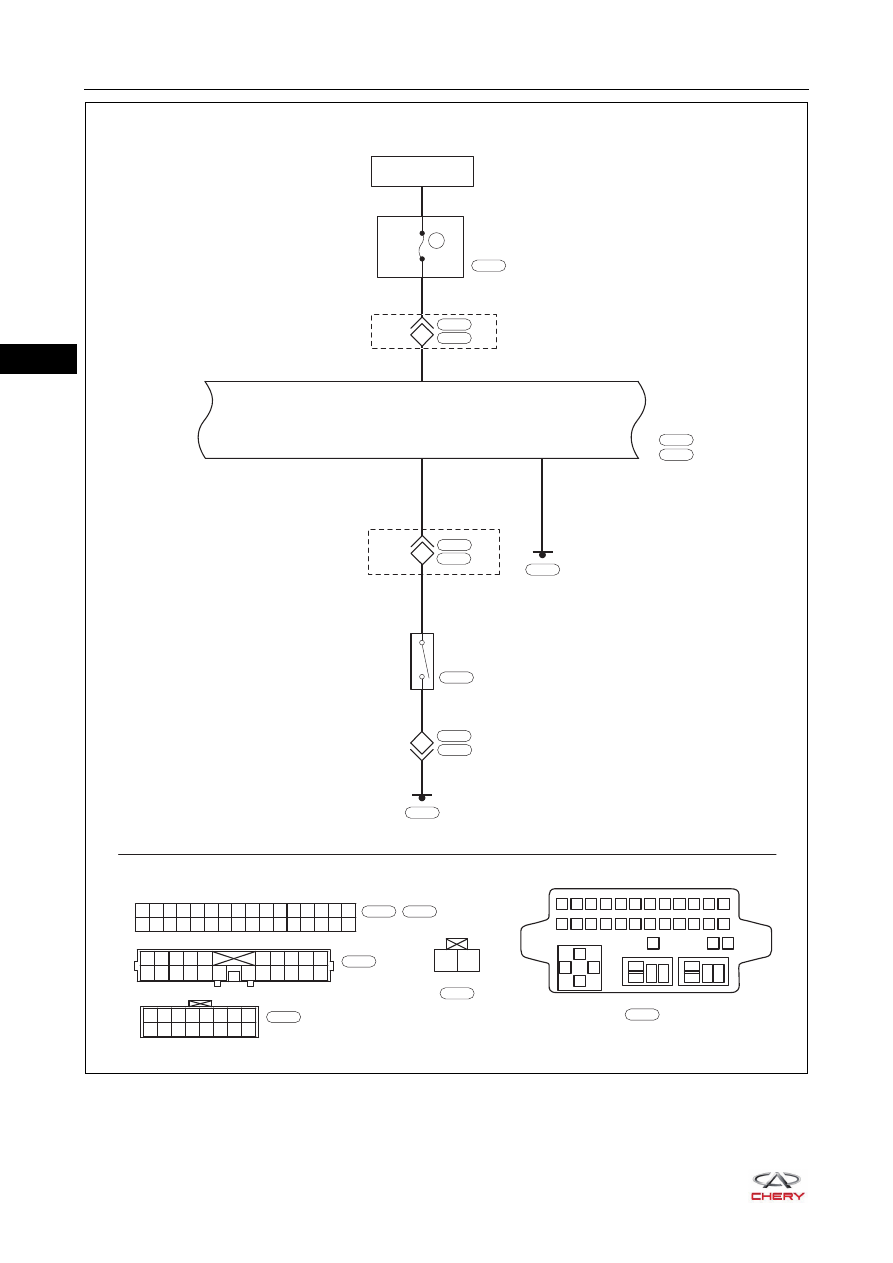

DTC

B1232-12

PDM (Passenger Detection Mat) Switch Circuit Short to
Battery

DTC

B1232-1C

PDM (Passenger Detection Mat) Switch Circuit Voltage
Out of Range

32–

52

32

ET21320090

8

R

R

1

4

I-036

B-055

*2

B-072

16 15 14 13 12 11 10

8

7

6

5

4

3

2

1

9

W

I-036

*2: SRS control module connector is B-072

*1: SRS control module connector is I-046

B

B-072

*1

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

Gr

I-046

SRS
CONTROL
MODULE

I-046

IGNITION SWITCH

ON OR START

10A

RF08

INSTRUMENT
PANEL FUSE
AND RELAY BOX

I-007

B

I-045

16

1

2

3

4

5

6

7

8

9 10 11 12

13

85

85

87

87 30

87 30

30

86

86

85

86

14 15 16 17 18 19 20 21 22 23 24

25

27

26

B

I-007

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

W

I-006

B

I-045

11

BL

BL

B

1

2

25

16

SEAT
BELT
REMINDER

I-006

B-049

B-003

I-006

B-003

1

2

W

B-049

32–

53

32

Self-diagnosis Detection Logic

HINT:
When performing electrical diagnosis and test, always refer to the relevant circuit diagram for the special
circuit and component information.

Diagnosis Procedure

a. Turn ignition switch to LOCK, disconnect the negative battery cable and wait for at least 90 seconds.
b. Disconnect front passenger seat belt reminder switch connector, and connect the new front passenger

seat belt reminder switch connector to connector B-049.

c. Reconnect the negative battery cable and wait for a few seconds.
d. Turn ignition switch ON and wait for at least 90 seconds.
e. Use X-431 3G diagnostic tester to clear the DTCs.
f. Turn ignition switch to LOCK.
g. Turn ignition switch ON and wait for at least 90 seconds.
h. Use X-431 3G diagnostic tester to check if the DTCs are still output.

Use circuit diagram as a guide to perform the following procedures:
a. Turn ignition switch to LOCK, disconnect the negative battery cable and wait for at least 90 seconds.
b. Disconnect the front passenger seat belt reminder switch connector B-049 and SRS control module

assembly connector I-046/B-072.

c. Disconnect the body wire harness connector B-003 and instrument panel wire harness connector I-006

(*1).

d. Check if wire harnesses are worn, pierced, pinched or partially broken.
e. Check for broken, bent, protruded or corroded terminals.
f. Check if related connector terminal contact pins are in good condition.

DTC Code

DTC Definition

DTC Detection

Condition

Warning Light

Condition

Possible Cause

B1232-12

PDM (Passenger
Detection Mat) Switch
Circuit Short to Battery

Ignition switch ON

ON

 Front passenger

seat belt reminder
switch

 Wire harness and

connector

 SRS control

module assembly

B1232-1C

PDM (Passenger
Detection Mat) Switch
Circuit Voltage Out of
Range

1

Check front passenger seat belt reminder switch

Replace front passenger seat belt
reminder switch

NO

2

Check wire harness and connector

YES

Repair or replace instrument panel/body
wire harness and connector

NG

32–

54

32

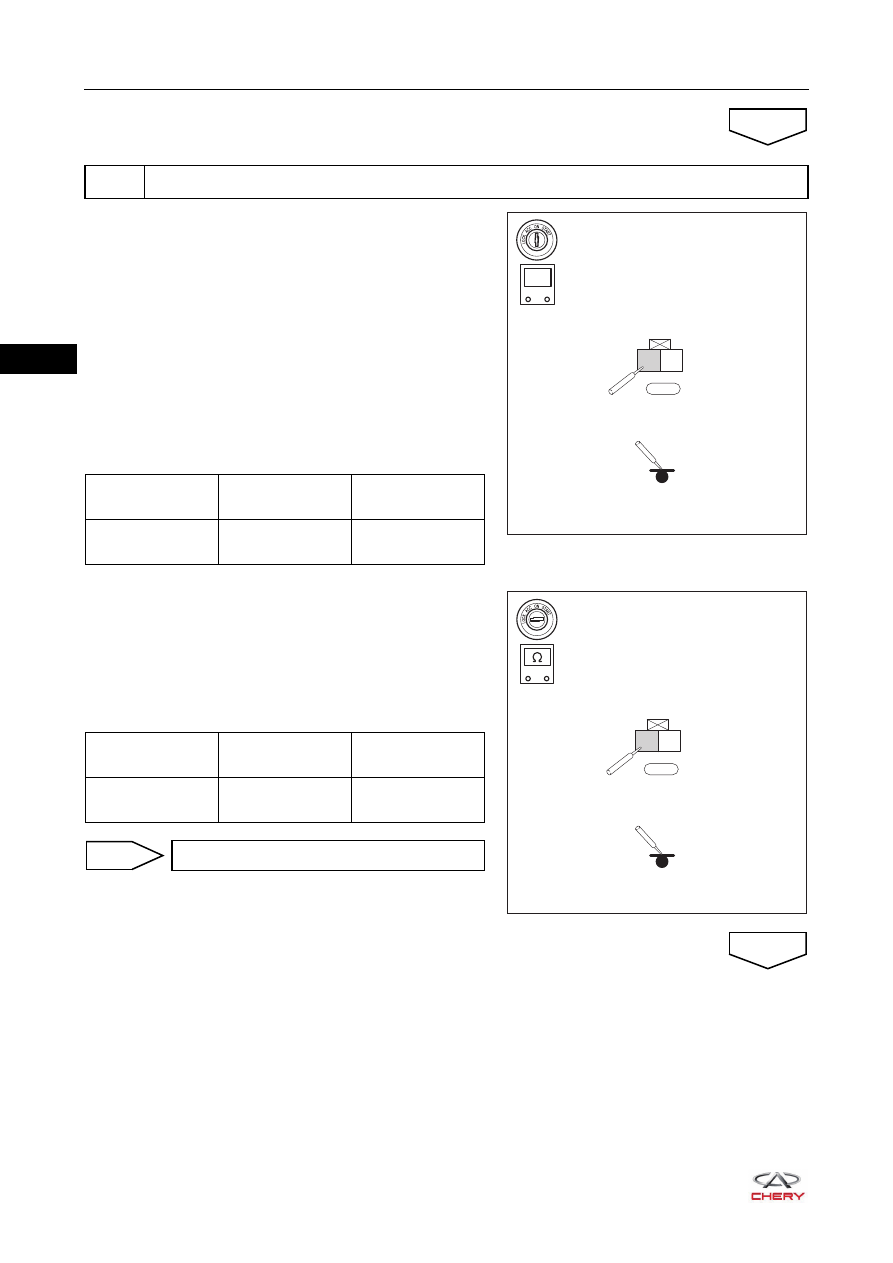

a. Turn ignition switch to LOCK, disconnect the negative

battery cable and wait for at least 90 seconds.

b. Disconnect the front passenger seat belt reminder switch

connector B-049 and SRS control module assembly
connector I-046/B-072.

c. Connect the negative battery cable and wait for a few

seconds.

d. Turn ignition switch ON.
e. Using a digital multimeter, measure the voltage between

front passenger seat belt reminder switch connector B-049
and body ground to check for a short circuit to power
supply according to the table below.
Standard Voltage

f. Turn ignition switch to LOCK, disconnect the negative

battery cable and wait for at least 90 seconds.

g. Using a digital multimeter, check for continuity between

front passenger seat belt reminder switch connector B-049
and body ground to check for a short circuit to ground
according to the table below.
Standard Condition

3

Check front passenger seat belt reminder switch control circuit

OK

RT21320350

-

+

V

1

2

B-049

Multimeter

Connection

Condition

Specified

Condition

B-049 (1) - Body

ground

Ignition switch ON

Below 1 V

-

+

RT21320360

1

2

B-049

Multimeter

Connection

Condition

Specified

Condition

B-049 (1) - Body

ground

Always

No continuity

Replace SRS control module assembly

OK

NG
