Heater Core Sensor (for Automatic A/C)

Inspection

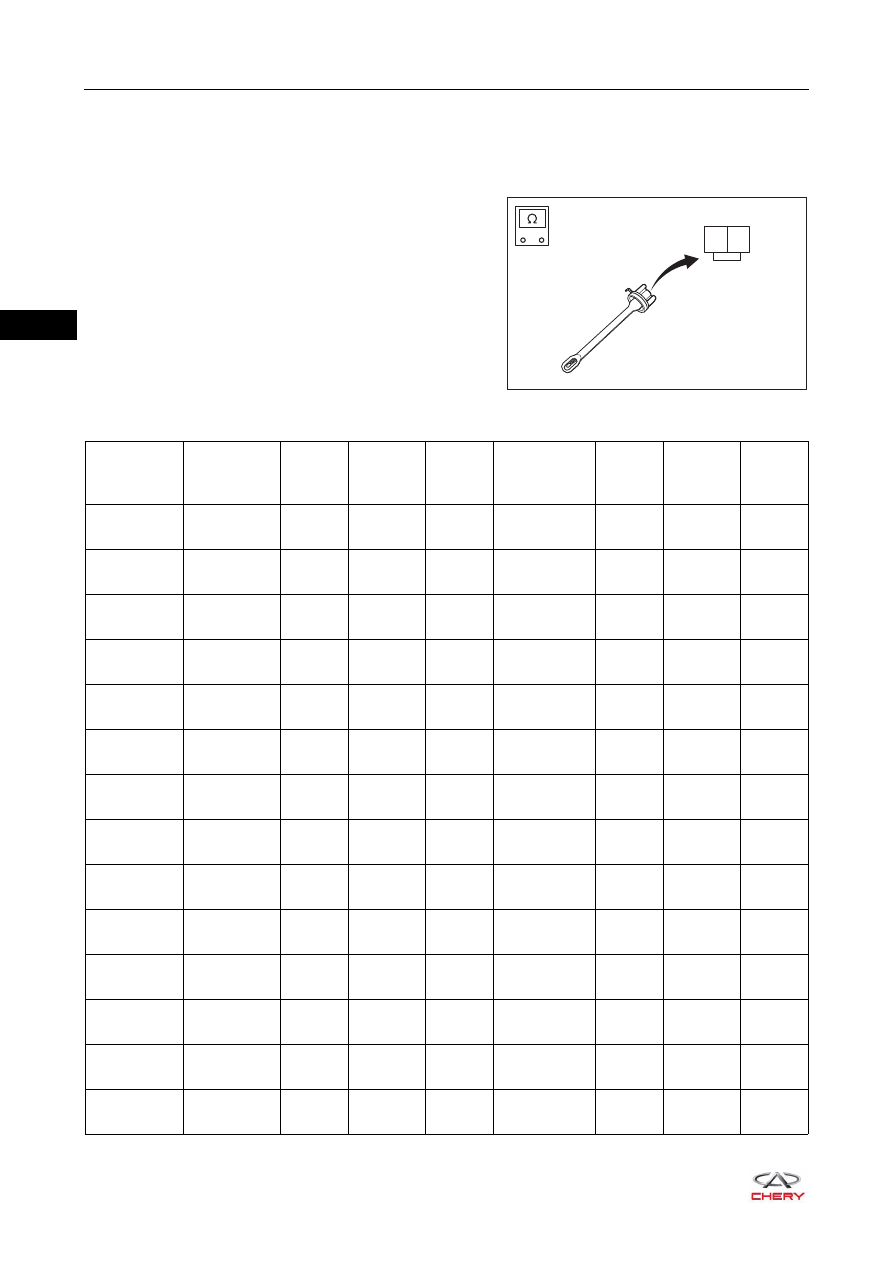

1. Check the heater core sensor.

a. Using the ohm band of digital multimeter, measure the

resistance of heater core sensor according to the
table below.

Standard Resistance

-

+

RT21310990

1

2

Multimeter

Connection

Temperature

(°C)

Lower

Limit

(KΩ)

Standard

Value

(mm)

Upper

Limit

(KΩ)

Temperature

(°C)

Lower

Limit

(KΩ)

Standard

Value

(mm)

Upper

Limit

(KΩ)

Terminal 1 -
Terminal 2

36°C

1.388

1.453

1.520

69°C

0.451

0.483

0.516

Terminal 1 -
Terminal 2

37°C

1.337

1.400

1.467

70°C

0.437

0.468

0.501

Terminal 1 -
Terminal 2

38°C

1.289

1.351

1.415

71°C

0.424

0.454

0.486

Terminal 1 -
Terminal 2

39°C

1.242

1.303

1.366

72°C

0.411

0.441

0.472

Terminal 1 -
Terminal 2

40°C

1.198

1.258

1.319

73°C

0.398

0.428

0.458

Terminal 1 -
Terminal 2

41°C

1.156

1.213

1.274

74°C

0.386

0.415

0.445

Terminal 1 -
Terminal 2

42°C

1.114

1.172

1.230

75°C

0.378

0.398

0.418

Terminal 1 -
Terminal 2

43°C

1.075

1.131

1.189

76°C

0.364

0.390

0.420

Terminal 1 -
Terminal 2

44°C

1.037

1.091

1.148

77°C

0.353

0.379

0.408

Terminal 1 -
Terminal 2

45°C

1.001

1.056

1.110

78°C

0.343

0.368

0.397

Terminal 1 -
Terminal 2

46°C

0.966

1.018

1.073

79°C

0.333

0.358

0.385

Terminal 1 -
Terminal 2

47°C

0.933

0.984

1.038

80°C

0.323

0.348

0.375

Terminal 1 -
Terminal 2

48°C

0.900

0.950

1.004

81°C

0.314

0.337

0.364

Terminal 1 -
Terminal 2

49°C

0.870

0.919

0.970

82°C

0.305

0.328

0.354

31–

113

31

HINT:
Resistance decreases as the temperature increases.

If result is not as specified, replace the automatic A/C wire harness assembly.
