SUSPENSION

Front Stabilizer Link Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Remove the front left wheel (

See page 24-9

).

2. Remove the front left stabilizer link assembly.

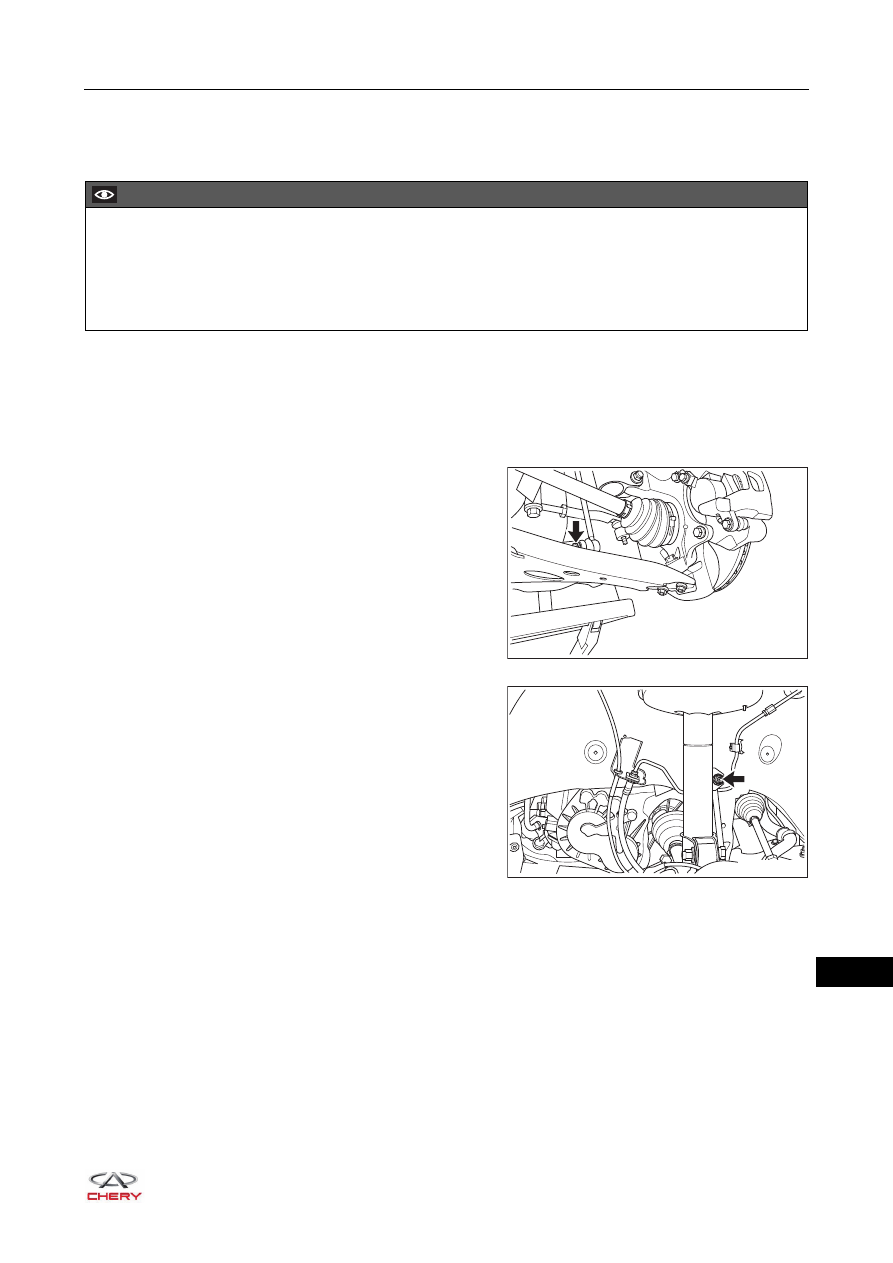

a. Hold the lower end of front left stabilizer link assembly

with an inner hexagon wrench, and remove the
coupling nut (arrow) between front left stabilizer bar
assembly and front left stabilizer link assembly with a
fixing wrench.



(Tightening torque: 45 ± 5 N·m)

b. Hold the upper end of front left stabilizer link assembly

with an inner hexagon wrench, and remove the
coupling nut (arrow) between front left stabilizer link
assembly and front left shock absorber assembly with
a fixing wrench.



(Tightening torque: 45 ± 5 N·m)

c. Remove the front left stabilizer link assembly.

Inspection

1. Check front stabilizer link assembly.

a. Check front stabilizer link assembly bushes for wear, cracks, deformation, damage or grease leakage.

Replace as necessary.

b. Check if the end of front stabilizer link assembly rotates smoothly. Replace as necessary.

CAUTION

 Be sure to wear necessary safety equipment to prevent accidents.
 Make sure that safety lock of lifter has been locked when removing and installing chassis parts.
 It is not permitted to weld or modify suspension bearing parts.
 When removing and installing chassis parts, replace self-locking nuts and rusted nuts for safety.

RT21230240

RT21230031

23–

28

23

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to tighten coupling nuts to specified torque.
 Make sure that the end of front stabilizer link assembly rotates smoothly and is not stuck after installation.

23–

29

23

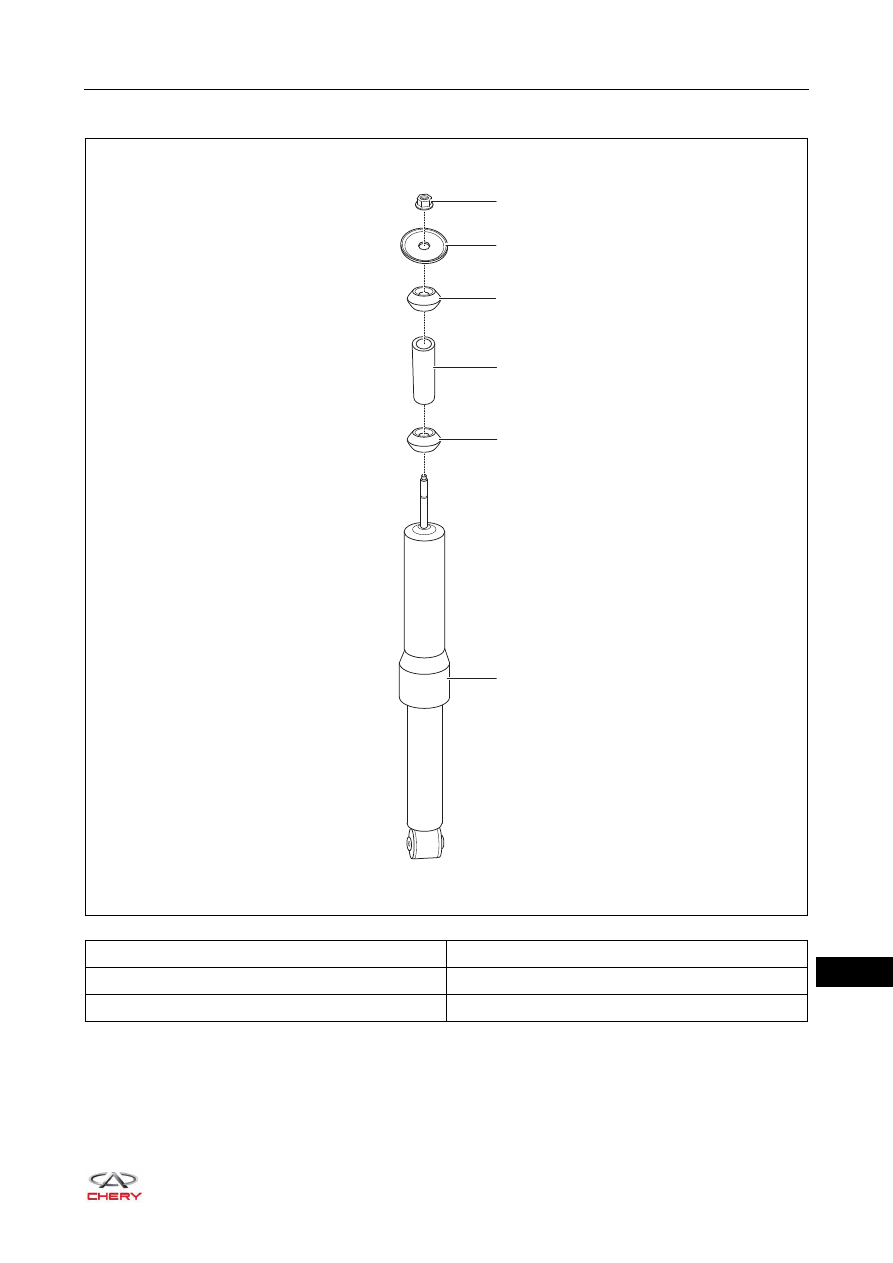

Rear Shock Absorber Assembly

1 - Rear Shock Absorber Assembly Fixing Nut

2 - Rear Shock Absorber Insulator Shim

3 - Rear Shock Absorber Upper Insulator

4 - Rear Shock Absorber Insulator Sleeve

5 - Rear Shock Absorber Lower Insulator

6 - Rear Shock Absorber Assembly

RT21230270

1

3

5

4

2

6

23–

30

23

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Remove the rear left shock absorber assembly.

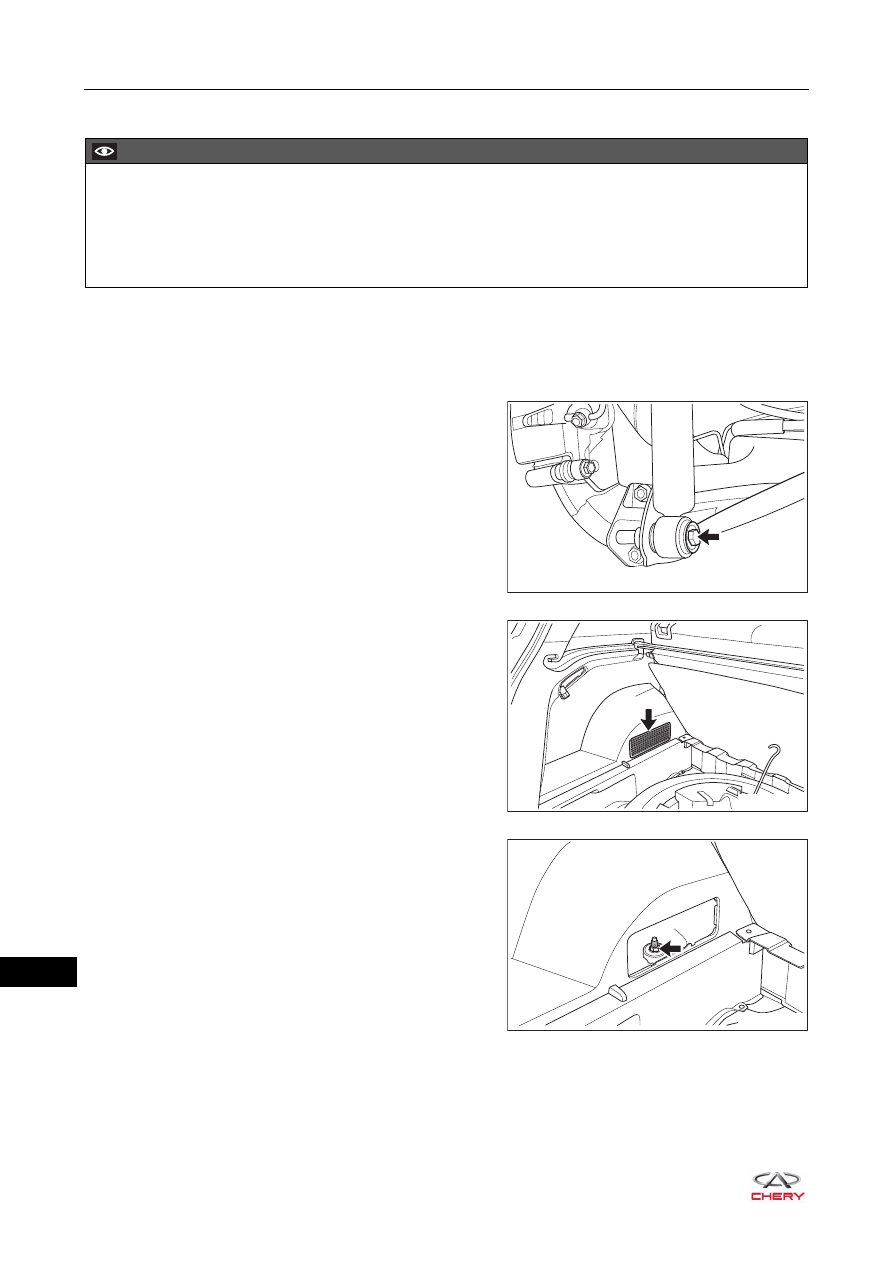

a. Remove the coupling bolt and washer (arrow)

between lower part of rear left shock absorber
assembly and rear left trailing arm Assembly.



(Tightening torque: 45 ± 5 N·m)

b. Lift up the rear floor carpet, remove the rear left shock

absorber assembly service hole cover.

c. Remove the coupling nut (arrow) between upper part

of rear left shock absorber assembly and body.



(Tightening torque: 45 ± 5 N·m)

CAUTION

 Be sure to wear necessary safety equipment to prevent accidents.
 Make sure that safety lock of lifter has been locked when removing and installing chassis parts.
 It is not permitted to weld or modify suspension bearing parts.
 When removing and installing chassis parts, replace self-locking nuts and rusted nuts for safety.

RT21230280

RT21230290

RT21230300
