13–

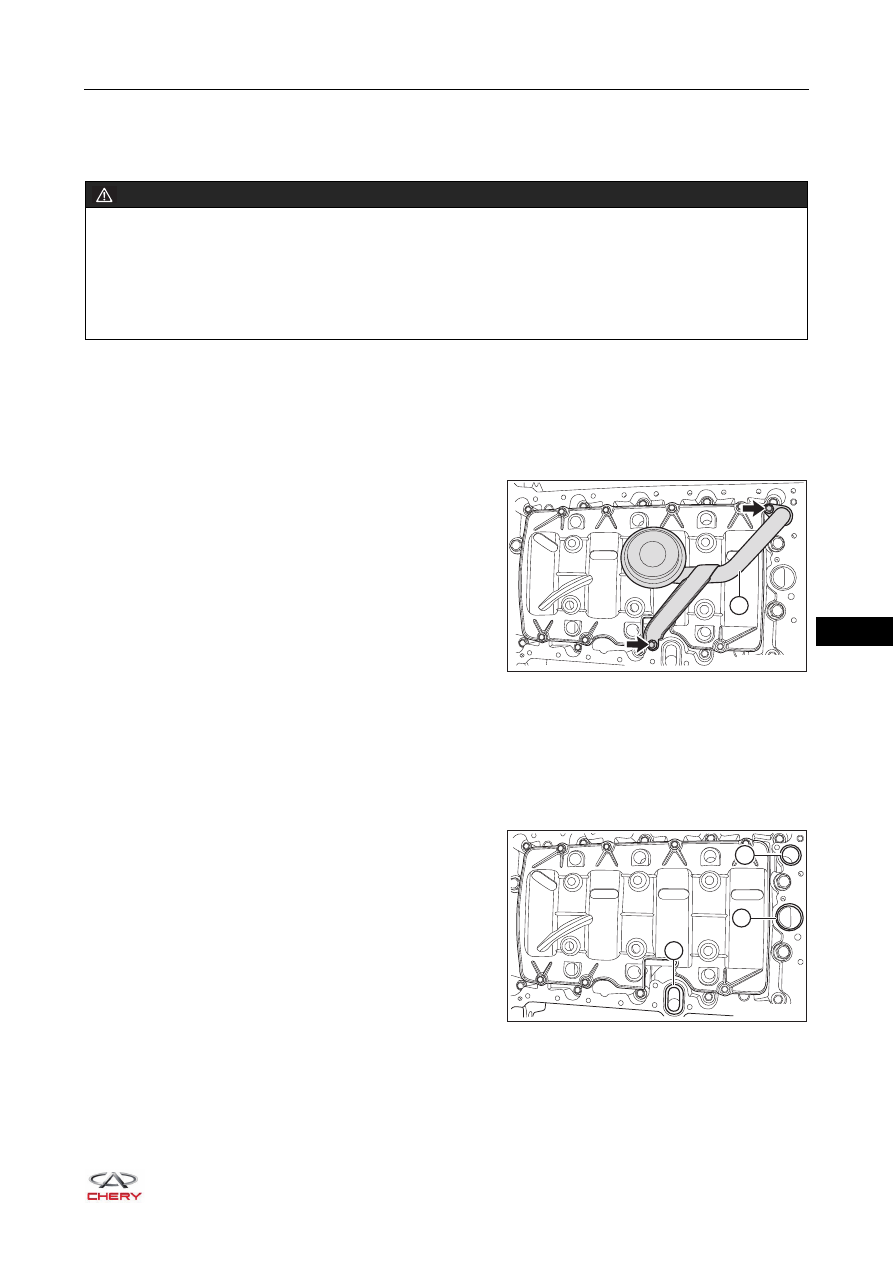

Oil Strainer

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Drain the engine oil (

See page 13-11

4. Remove the oil pan (

See page 13-20

5. Remove the oil strainer.

a. Remove 2 fixing bolts (arrow) from the fuel strainer.



(Tightening torque: 8 + 3 N·m)

b. Remove the oil strainer (1) from the engine block

frame.

c. Remove the oil strainer and its gasket.

Installation

Installation is in the reverse order of removal. Pay attention to the following points during installation:
1. Clean the oil strainer mesh.
2. Replace the grommet.

 Oil strainer grommet (1)
 Oil pump and oil pan connecting pipe grommet (2)
 Oil filter and oil pan connecting pipe grommet (3)

WARNING

 DO NOT drain engine oil until engine cools down.
 Prolonged and repeated contact with engine oil will be harmful to your skin. If engine oil spills on your

skin, wash it off immediately with water. In addition, the used engine oil contains potentially harmful
contaminants, which may cause skin cancer. Therefore, always take proper skin protection measures
when performing vehicle service. DO NOT remove oil filter until engine cools down.

RT21130200

RT21130210

13–

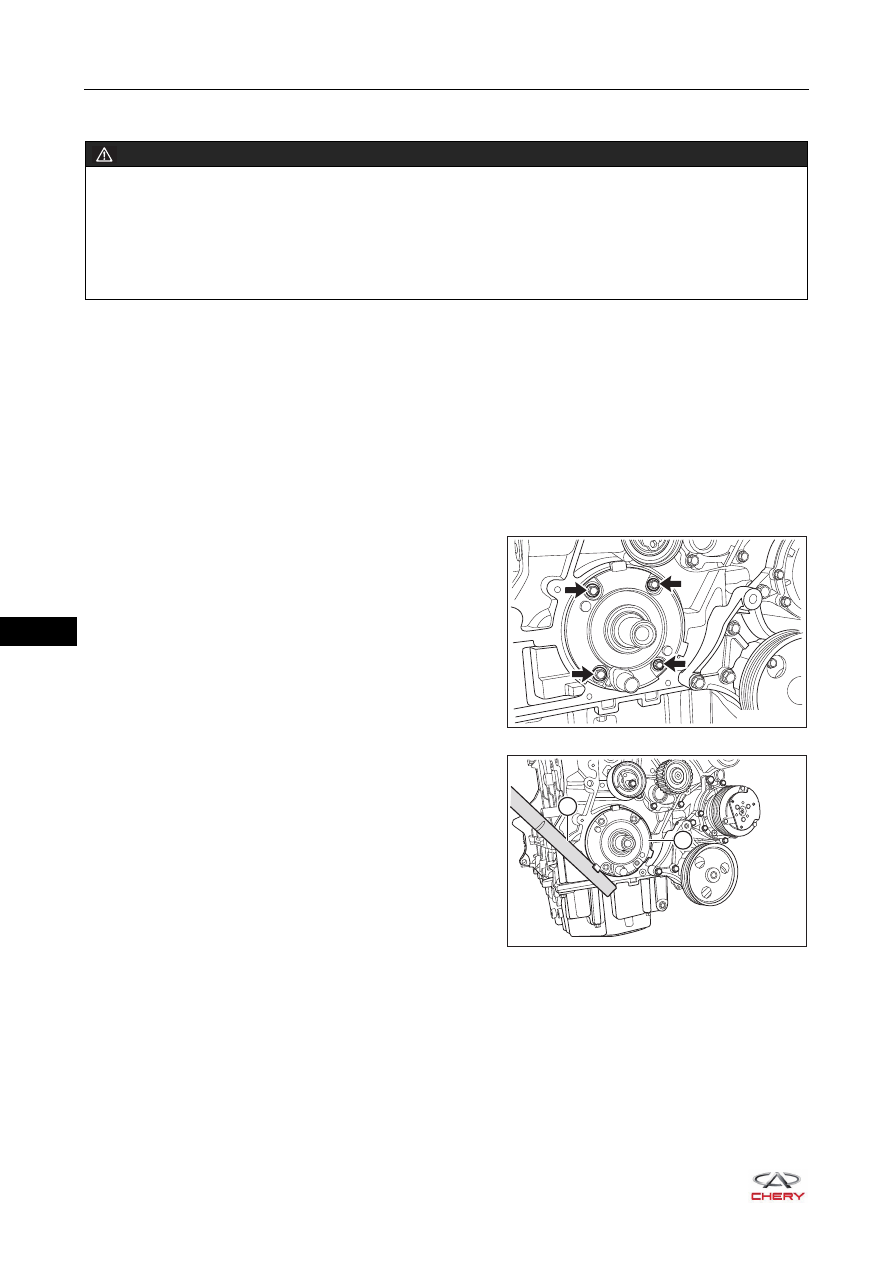

Oil Pump Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Drain the engine oil (

See page 13-11

4. Remove the front right wheel (

See page 24-9

5. Remove the engine accessory drive belt (

See page 07-23

6. Remove the engine timing belt (

See page 07-28

7. Remove the crankshaft front oil seal (

See page 07-39

8. Remove the oil pump assembly.

a. Remove 4 fixing bolts (arrow) from the oil pump

assembly.



(Tightening torque: 17 - 23 N·m)

b. Using a proper tool (1), pry out the oil pump assembly

(2).

WARNING

 DO NOT remove oil filter until engine cools down.
 Prolonged and repeated contact with engine oil will be harmful to your skin. If engine oil spills on your

RT21130220

RT21130230

13–

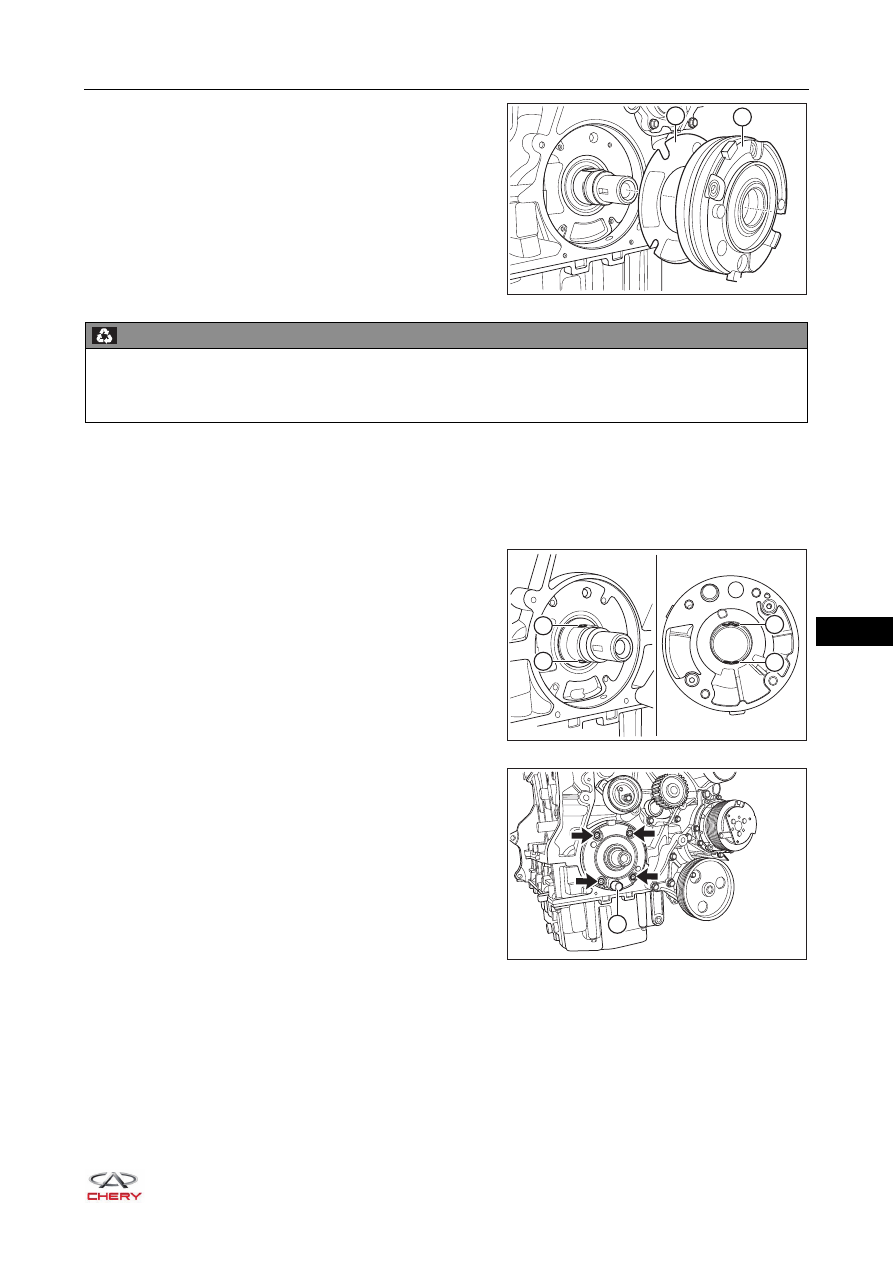

c. Remove the oil pump assembly (2) and oil pump

assembly grommet (1) in order.

Installation

Installation is in the reverse order of removal. Pay attention to the following points during installation:
1. Replace the oil pump gasket and grommet.
2. Installation and alignment of oil pump:

 Align the plane (B) of oil pump assembly with plane

(A) of crankshaft as shown in the illustration.

 The relief valve (flange on the pump) (1) on oil pump

assembly is facing the outlet direction of cylinder
block frame, and the side with characters should face
upward.

 Apply a proper amount of seal gum to the bolt

mounting planes (arrow) before installing the oil pump
assembly fixing bolts.

RT21130240

ENVIRONMENTAL PROTECTION

 Wasted engine oil pump should be handled by specialized department according to local laws and

regulations. Never discard it at will.

RT21130250

RT21130260
