Chery Tiggo 5 (T21). Service manual - part 158

13–

3

13

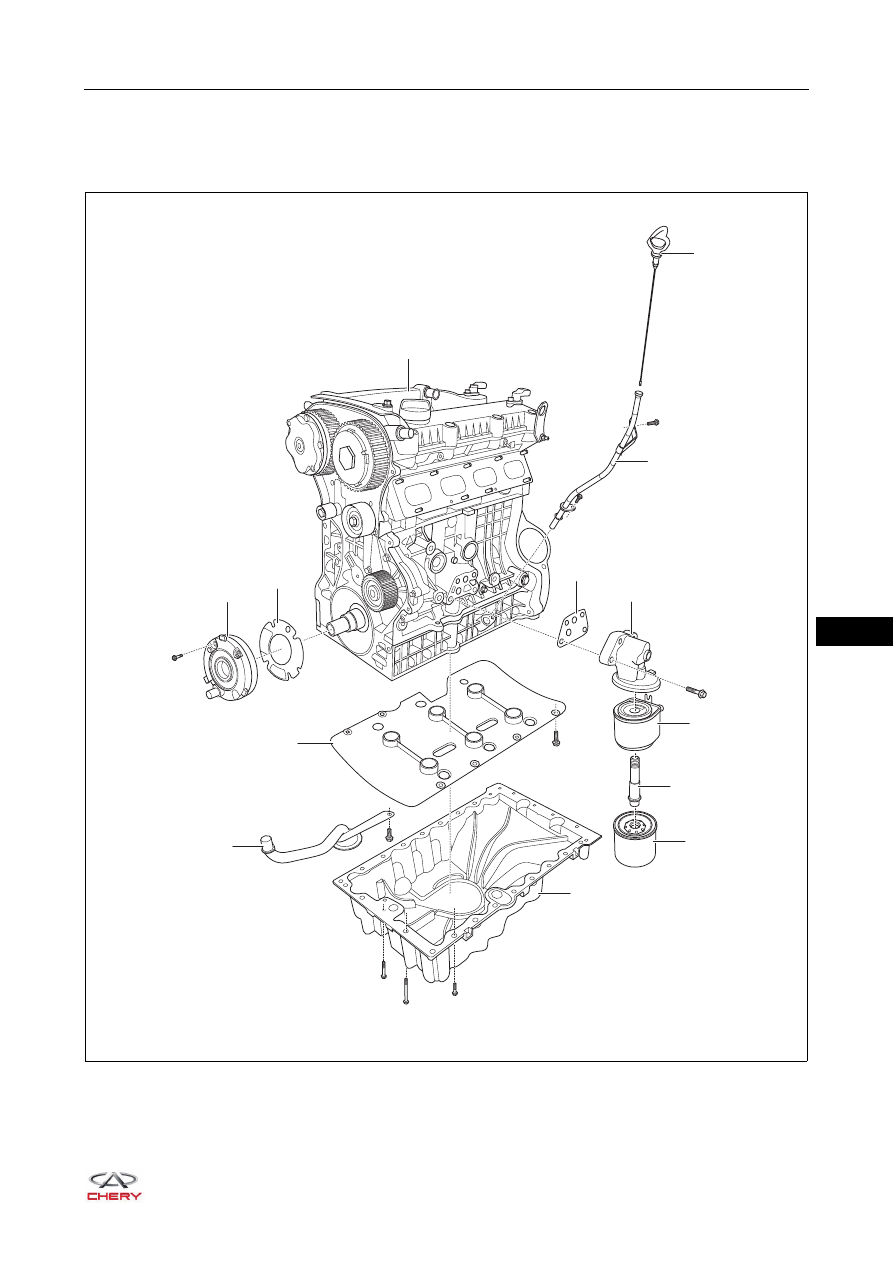

SQR484F LUBRICATION SYSTEM

GENERAL INFORMATION

Description

RT21130010

×4

×4

×7

×2

×6

×18

9

6

7

8

2

3

10

5

4

1

12

13

11

13–

4

13

The function of lubrication system is that crankshaft, when the engine is operating, drives oil pump to suck oil
from oil pan. The sucked oil is filtered by oil filter, then it flows to the friction surfaces of all drive parts through
oil passage and forms oil films between the friction surfaces to realize liquid friction, and finally returns to oil
pan, thus reducing the friction resistance of drive parts, power consumption and wear of part and increasing
the reliability and durability of engine operation.

1 - Engine Assembly

2 - Oil Dipstick

3 - Oil Dipstick Tube

4 - Oil Cooler Bracket Shim

5 - Oil Cooler Bracket

6 - Oil Cooler Assembly

7 - Oil Filter Joint

8 - Oil Strainer Filter

9 - Oil Pan

10 - Oil Strainer

11 - Oil Baffle Plate

12 - Oil Pump Assembly

13 - Oil Pump Assembly Gasket

WARNING

Prolonged and repeated contact with engine oil will result in the removal of natural oils from skin, leading to
dryness, irritation and dermatitis. In addition, the used engine oil contains potentially harmful contaminants,
which may cause skin cancer.
Precautions should be followed when replacing engine oil to minimize the risk of your skin making contact
with used engine oil.
 Wear protective clothing and gloves.
 Wash your skin thoroughly with soap and water, or use waterless hand cleaner to remove any used

engine oil.

 Never use gasoline, thinners or solvents.

13–

5

13

Specifications

System Pressures

Oil Specifications

Torque Specifications

Condition

Pressure (bar)

Idling Speed (750 ± 50 r/min)

Above 1.5 (oil temperature 90°C)

High Idling Speed (2000 r/min)

Above 3.6 (oil temperature 90°C)

High Speed (4000 r/min)

Above 4.7 (oil temperature 90°C)

Engine Type

SQR484F

Oil Capacity (L)

4 ± 0.5

Oil Specifications

Summer: SAE 10W - 40 (SM grade or higher)

Winter: SAE 5W - 40 (SM grade or higher)

Description

Torque (N·m)

Drain Plug

35 ± 3

Oil Filter

25 ± 3

Coupling Bolt Between Oil Pan and Transmission
Case

45 ± 5

Fixing Bolt of Baffle Plate Between Oil Pan and
Transmission Case

45 ± 5

Oil Pressure Switch

20 ± 2

Oil Pan Fixing Bolt

11 ± 1

Oil Pan Baffle Plate Fixing Bolt

8 + 3

Oil Strainer Bracket Fixing Bolt

17 - 23

Oil Strainer Bracket Fixing Nut

17 - 23

Coupling Bolt Between Oil Strainer and Oil Pump

17 - 23

Oil Pump Fixing Bolt

8 - 11

13–

6

13

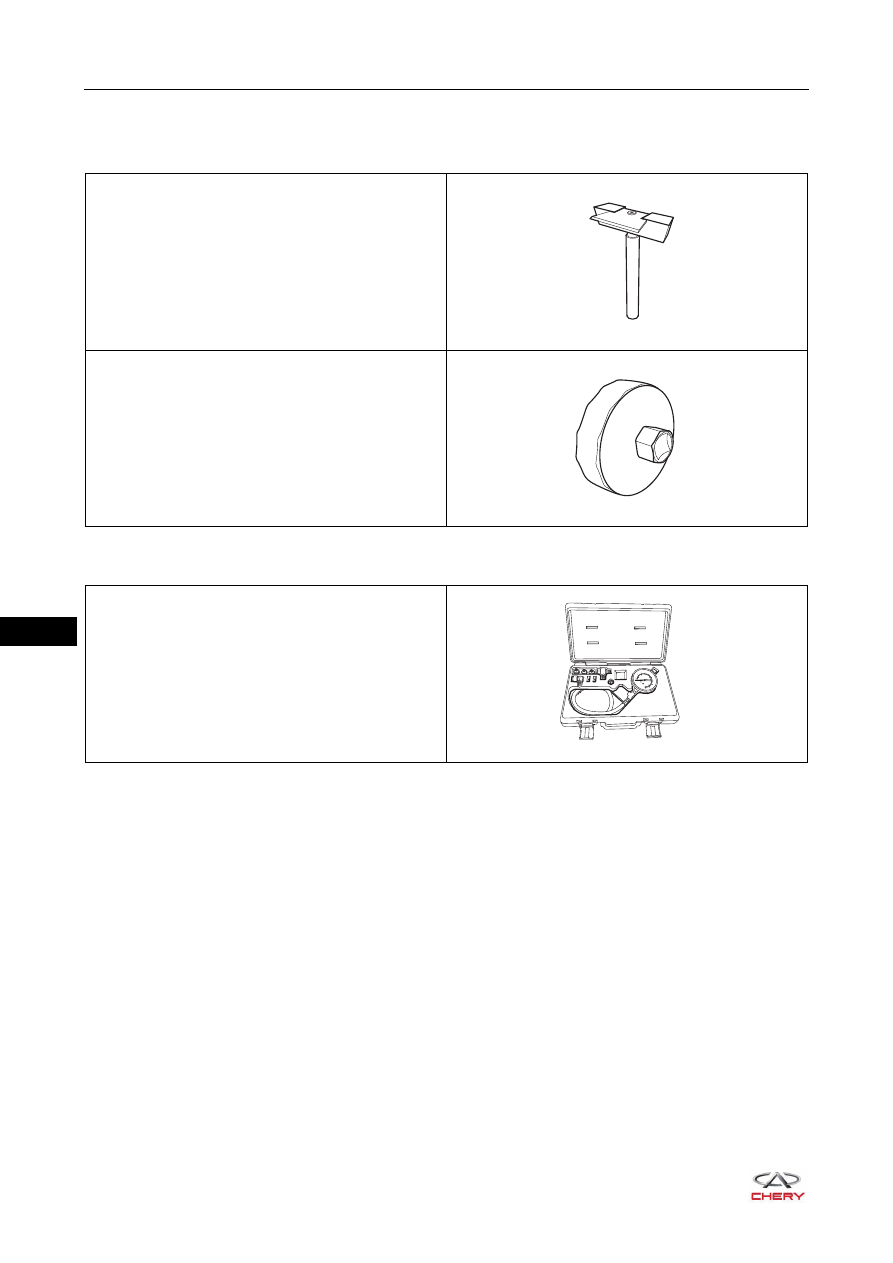

Tools

Special Tools

General Tool

Oil Pan Remover and Scraper

Oil Filter Remover

RCH0000056

RCH0000054

Oil Pressure Tester

RCH0000006
