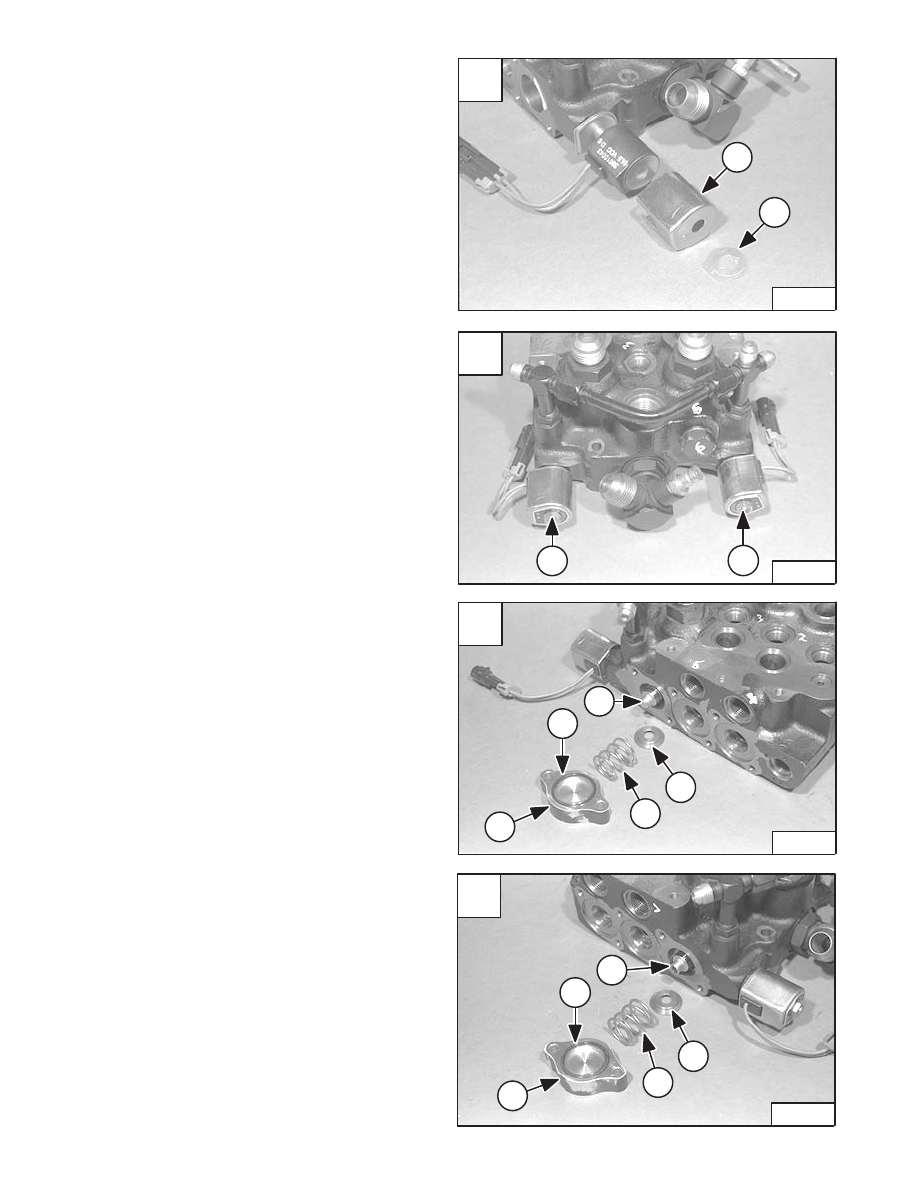

CONTROL VALVE (S/N 509640660 & Above, S/N Auxiliary Electric Solenoid (Cont’d) Assembly (Cont’d) Install the housing (Item 1) [A] and the end plate (Item 2) Install the nut (Item 1) [B] on the solenoid valve. Tighten the nut to 9–12 in.–lbs. (1,02–1,36 Nm) torque. Auxiliary Spool Assembly Install the auxiliary spool (Item 1) [C] & [D] in the control Install the spring seats (Item 2) [C] & [D] and springs Install the O–rings (Item 4) [C] & [D] in the spool covers A P–11005 1 2 C P–11002 2 3 5 4 1 D P–11003 2 3 5 4 1 –2–46– 773 BICS Loader Service Manual B P–11004 1 1 |
