Snowmobile Arctic Cat (2000 year). Instruction - part 103
Fig. 8-62
0731-806
Fig. 8-63
0733-379
KEY
1. Track Drive Assy
2. Drive Sprocket
3. Driveshaft
4. Drive Bushing
5. Bearing
6. Flange Plate
7. Carriage Bolt
8. Lock Nut
9. Drive Adapter
10. Grease Fitting
11. Cable Adapter
12. Driven Shaft
13. Key
14. Disc Hub
15. Brake Disc
16. Screw
17. Lock Nut
18. Return Spring
19. Key
20. Bearing
21. Flange Plate
22. Carriage Bolt
23. Washer
24. Washer
25. Driven Pulley
26. Washer
27. Washer
28. Washer
29. Cap Screw
30. Brake Bracket
31. Clevis Pin
32. Cotter Pin
33. Cap Screw
34. Clevis
35. Crown Nut
36. Bracket
37. Spacer
38. Cap Screw
39. Caliper Assy
40. Pad
41. Backing Plate
42. Caliper
43. Washer

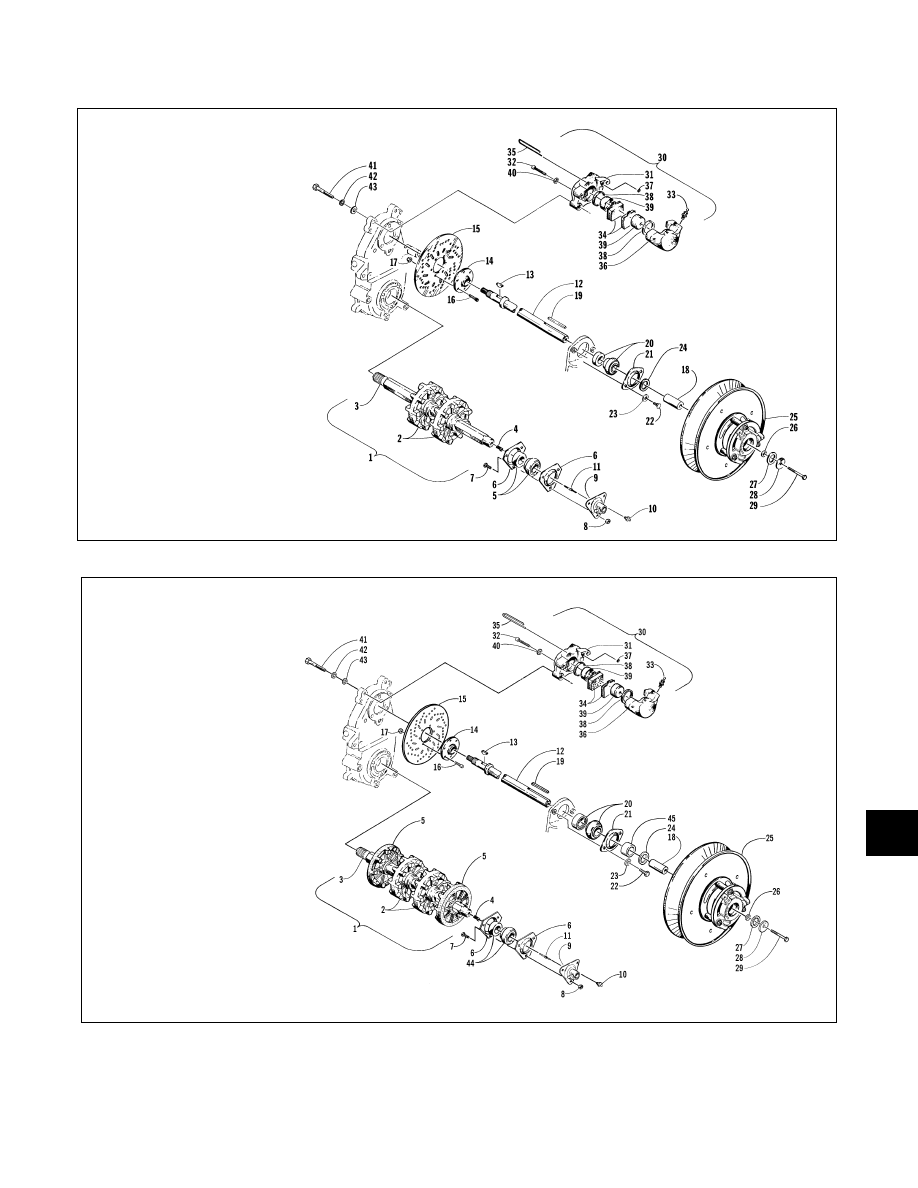

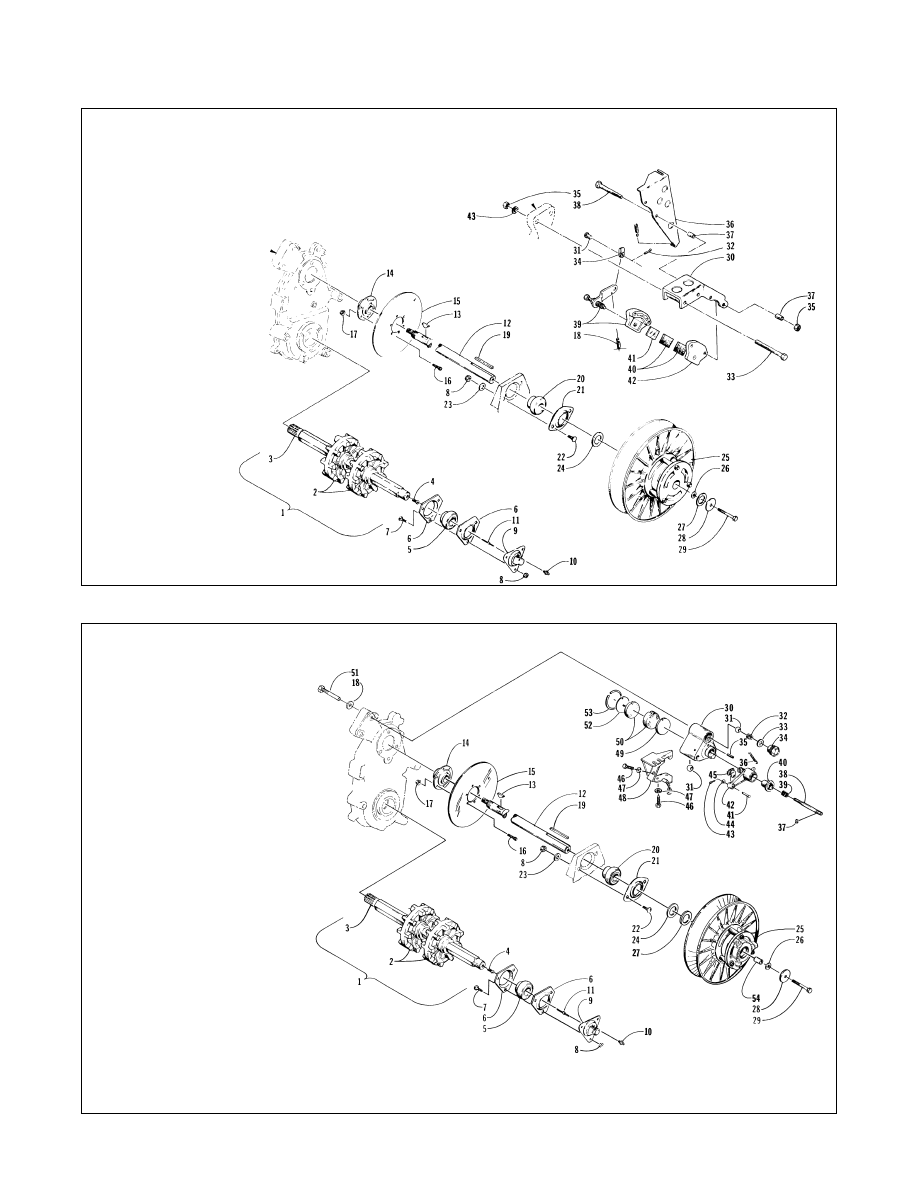

Drive & Driven Shafts/
Mechanical Brake Assy
KEY
1. Track Drive Assy
2. Drive Sprocket
3. Driveshaft
4. Drive Bushing
5. Bearing
6. Flange Plate
7. Carriage Bolt
8. Lock Nut
9. Drive Adapter
10. Grease Fitting
11. Cable Adapter
12. Driven Shaft
13. Key
14. Disc Hub
15. Brake Disc
16. Cap Screw
17. Lock Nut
18. Washer
19. Key
20. Bearing
21. Flange Plate
22. Carriage Bolt
23. Washer
24. Washer
25. Driven Pulley
26. Washer
27. Washer
28. Washer
29. Cap Screw
30. Brake Caliper
31. Alignment Ball
32. Compression Spring
33. Washer
34. Brake Caliper Nut
35. Spring Pin
36. Return Spring
37. Snap Ring
38. Brake Adjuster Screw
39. Compression Spring
40. Brake Adjuster Knob
41. Pin
42. Activator Arm
43. Cotter Pin
44. Washer
45. Clevis
46. Cap Screw
47. Lock Washer
48. Brake Cable Bracket
49. Brake Pad Piston
50. Brake Pad Set
51. Brake Caliper Mounting Bolt
52. Stationary Pad Backing Plate
53. Snap Ring
54. Stub Shaft
Drive & Driven Shafts/
Quick-Adjust Brake Assy
8-18
