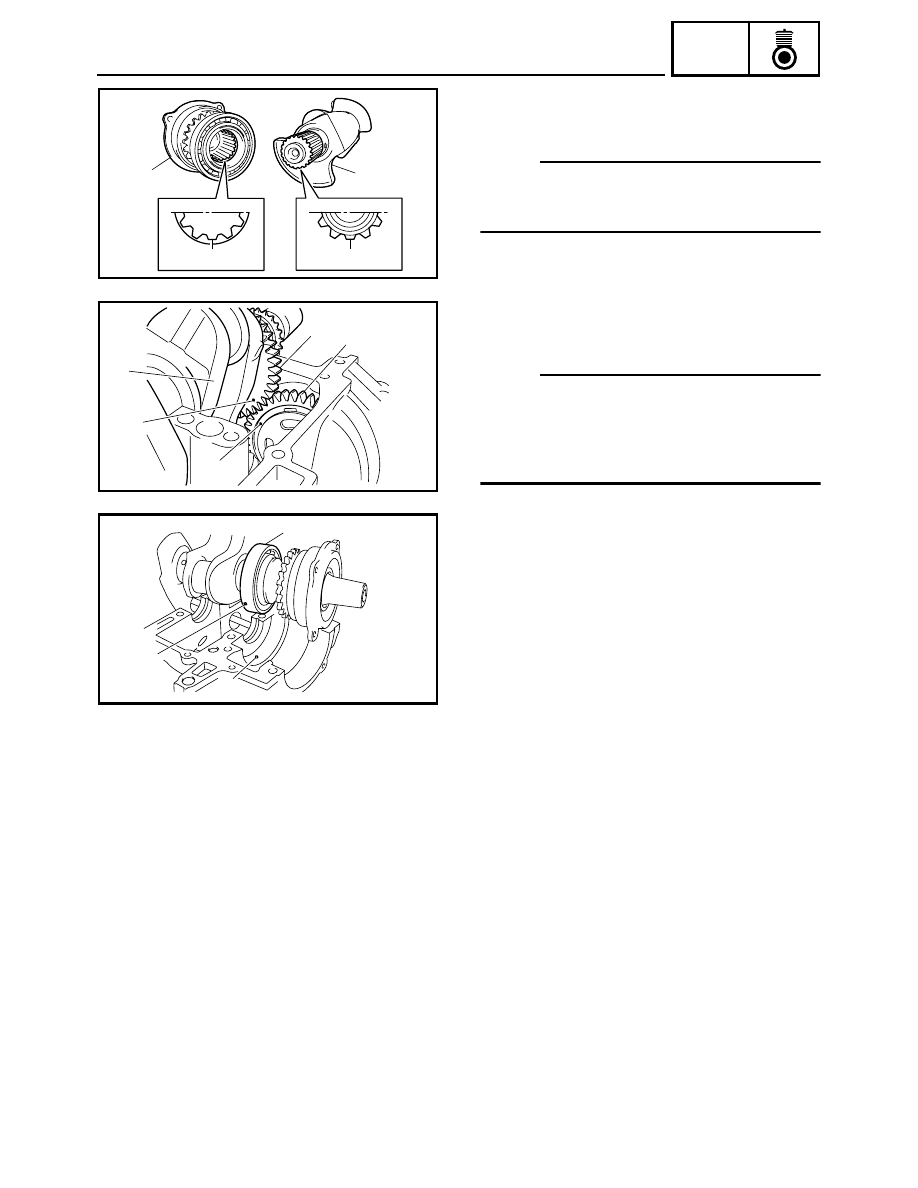

5-76 ENG 8. Install: • Primary sheave drive shaft assembly 1 (to the crankshaft 2) NOTE: Align the shallow groove a in the primary drive shaft assembly with the low spline b of the crank- shaft. a b 1 2 9. Install: • Crankshaft 1 (with primary sheave drive shaft assembly) NOTE: • Align the punch mark a of the balancer drive gear 2 on the crankshaft with the punch mark b of the balancer driven gear 3. • Align the hole c in the bearing 4 with the projec- tion d on the upper crankcase. a b 1 2 3 d c 4 |
