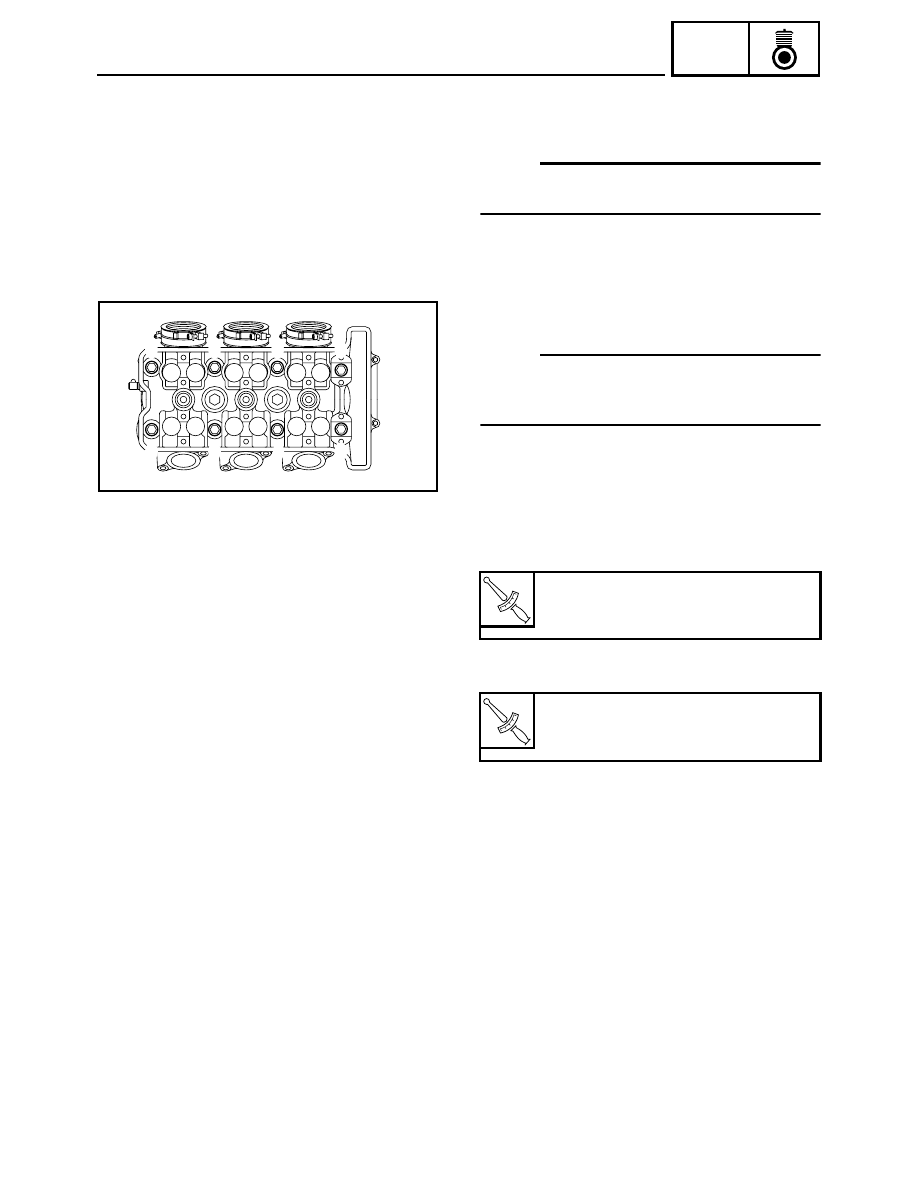

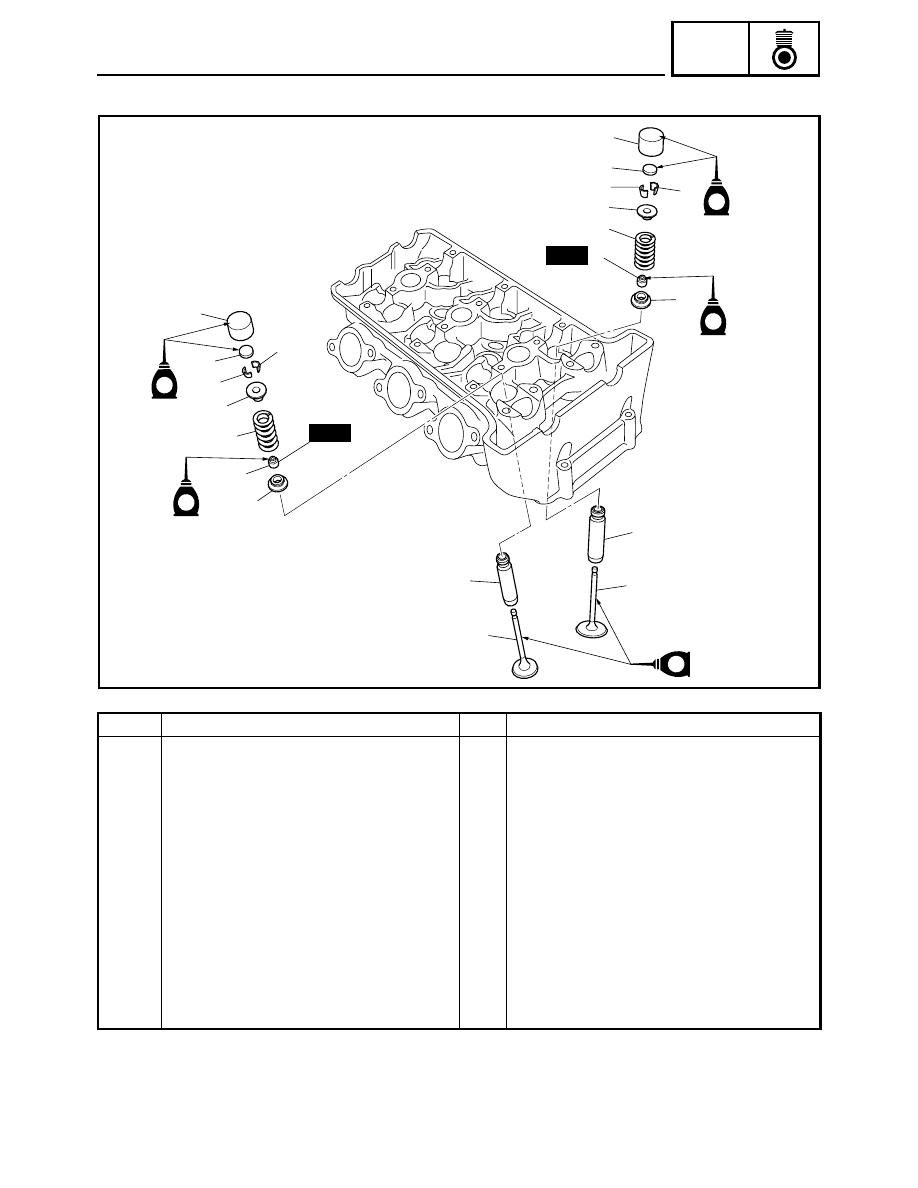

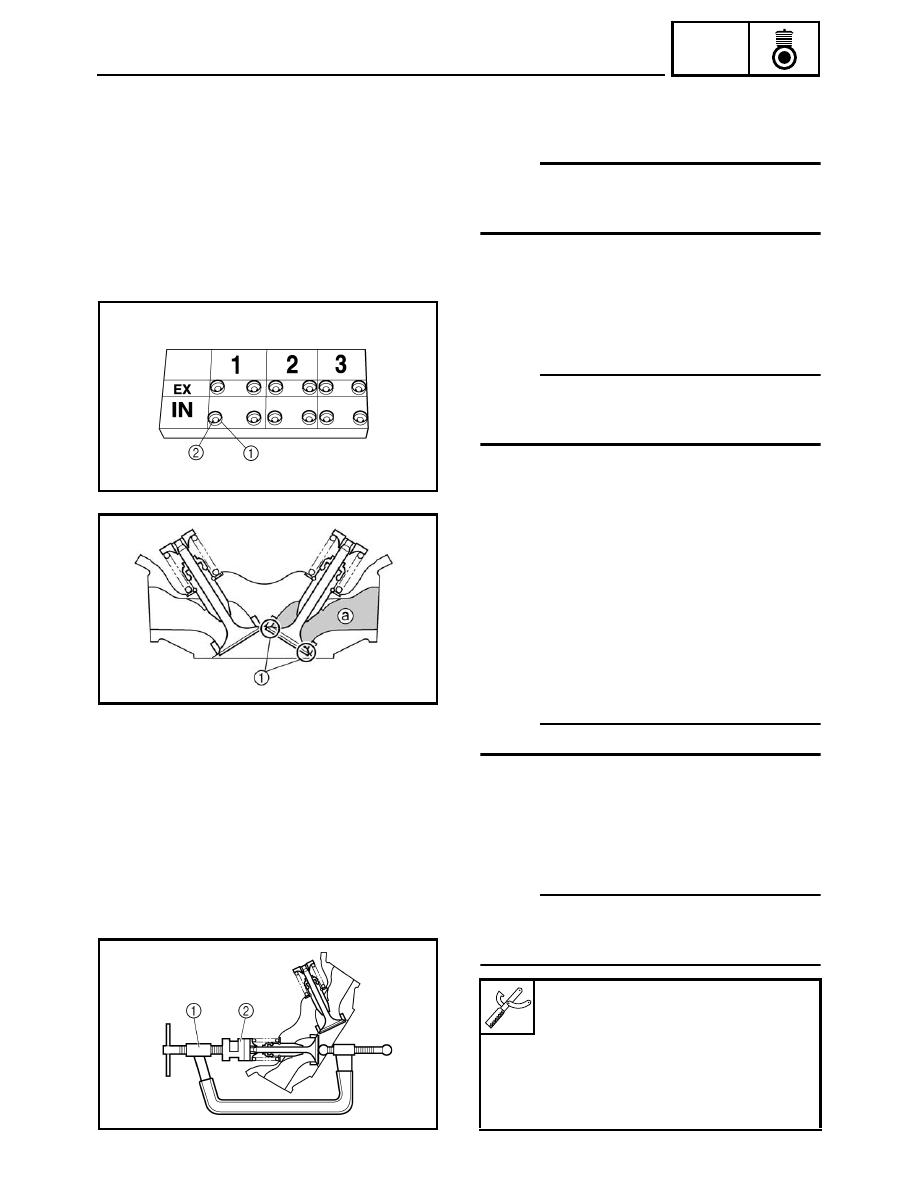

5-28 ENG INSTALLATION 1. Install: • Cylinder head NOTE: Pass the timing chain through the timing chain cav- 2. Tighten: • Cylinder head bolts (M10) NOTE: The tightening procedure of the cylinder head bolts Tightening steps: • Lubricate the cylinder head bolts and washers with engine oil. • Install the washers and cylinder head bolts. tightening sequence as shown. • Loosen and retighten the cylinder head bolts in the proper tightening sequence as shown. T

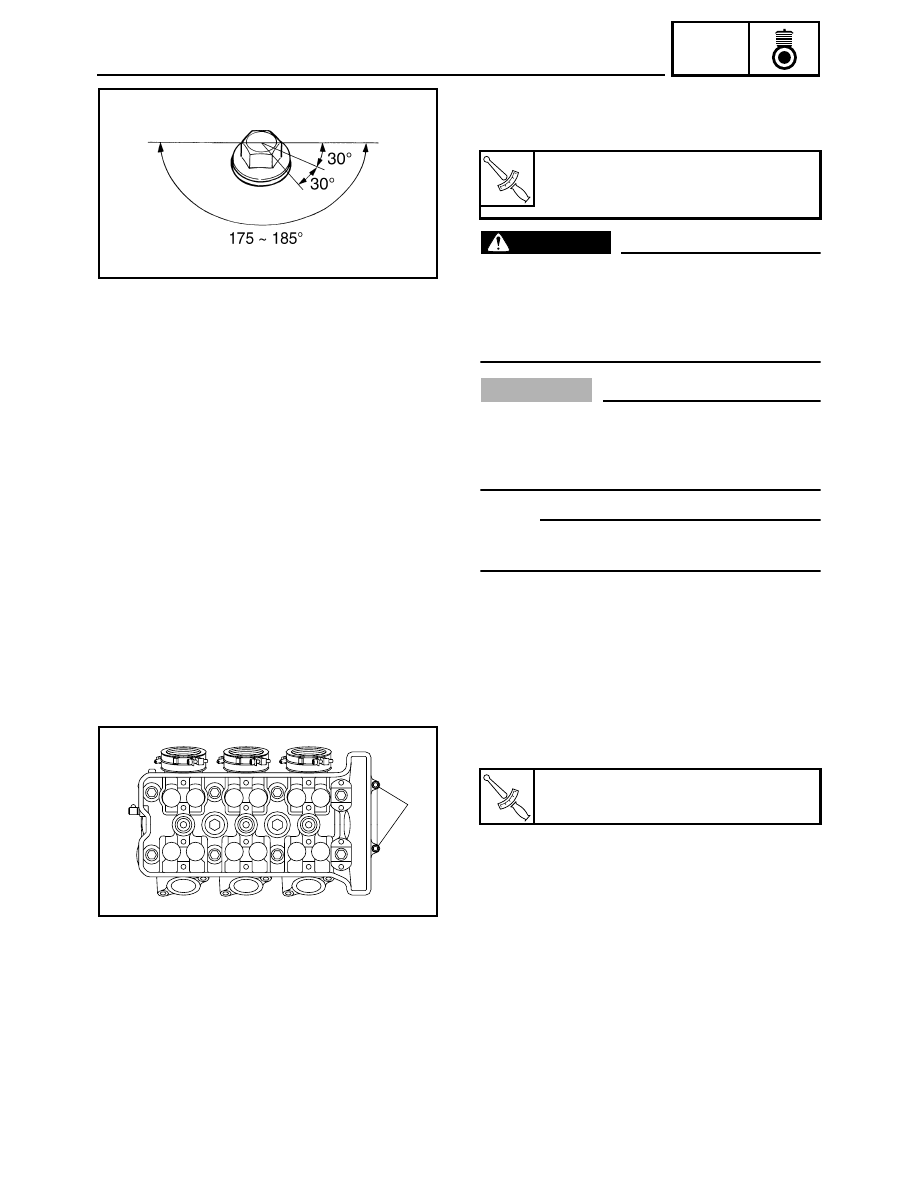

R . . Cylinder head bolt (M10): 1st: 25 Nm (2.5 m · kg, 18 ft · lb) T
R . . Cylinder head bolt (M10): 2nd: 25 Nm (2.5 m · kg, 18 ft · lb) 6 7 3 1 5 2 4 8 |
