IQ Rear Suspension Adjustments

Torsion Spring Preload

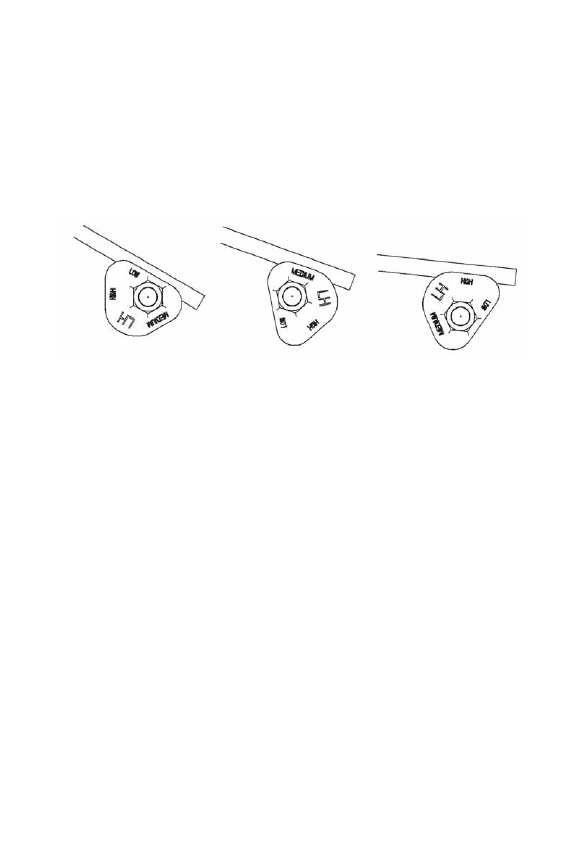

To adjust rear torsion spring preload, rotate the three-position cam using
the engine spark plug tool. Adjustment is easiest when the cam is
rotated from low to medium, and then to high. Rotating directly from
low to high will require significantly more effort.

Different rate torsion springs are available if a firmer ride is desired. See
your dealer for more information.

Soft

Medium

Firm

56

THE PERFECT FIT

IQ Rear Suspension Adjustments

Limiter Strap Position (Ski Pressure)

Ski pressure is set at the factory to
deliver the optimum balance
between ride and handling. If a
rider prefers more ski pressure for
improved steering performance,
adjustments can be made to the
front limiter straps. Tighten the
straps to increase ski pressure.
Loosen the straps to reduce ski
pressure.

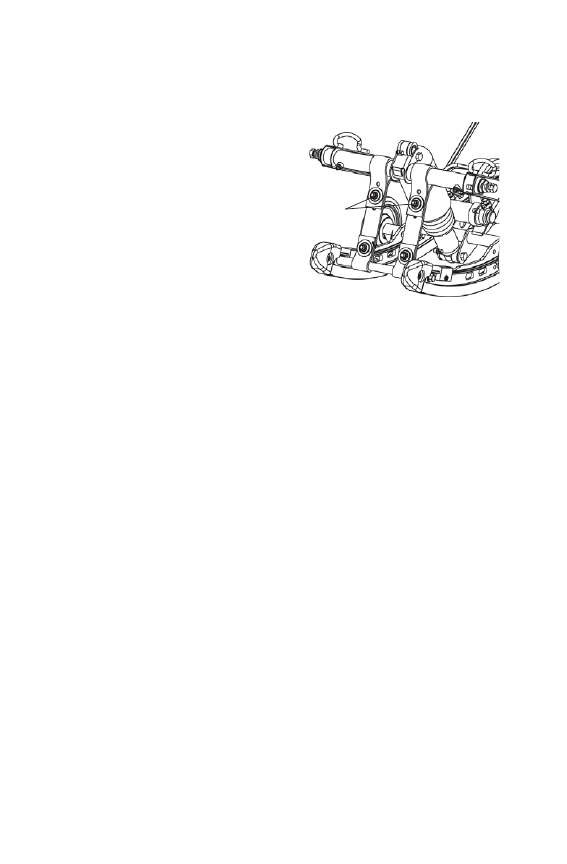

1. Remove the nuts and flat

washers from the upper limiter
straps.

2. Relocate the straps to the desired position.

3. Reinstall the nuts and washers. Tighten securely.

Upper

Nuts

57

THE PERFECT FIT

IQ Rear Suspension Adjustments

Suspension Coupling

On all POLARIS snowmobile rear suspensions, there are two torque
arms that control the movement of the rail beam. Prior to the advent of
suspension coupling, these torque arms could move independently of
each other. Rear suspension coupling links the movement of the front
and rear torque arms to each other. There are two types of rear
suspension coupling.

Front To Rear Coupling and the Front Rear Scissor Stop
(FRSS)

The front rear scissor stop (FRSS) couples the movement of the front
torque arm with the rear torque arm and limits the amount of
independence between the movement of the front torque arm and the
rear torque arm.

When hitting a bump, the front torque arm starts to compress. The FRSS
links that movement to the rear torque arm, causing it to compress and
raise the rear suspension up as one, allowing the suspension to hit the
bump only once and reducing kickback.

The factory setting is usually adequate for all riders and conditions.

58

THE PERFECT FIT

IQ Rear Suspension Adjustments

Rear To Front Coupling and the Rear Rear Scissor Stop
(RRSS)

The rear rear scissor stop (RRSS) couples the movement of the rear
torque arm with the front torque arm and limits the amount of
independent movement between the rear torque and the front torque
arm.

Adjusting the RRSS either allows more weight to transfer to the rear for
more traction, or allows less weight to transfer to the rear, resulting in
improved cornering performance. An adjustment dot is located on the
RRSS. This dot is on the longest end of the scissor stop.

Rear Rear Scissor Stop (RRSS) - Attributes

Moving the RRSS to a higher position will have the following effects on
the suspension:

• Reduced weight transfer.

• Improved chatter bump ride.

• Improved cornering performance.

• Increased load carrying capacity (2-up)
