ADULT SECTION

Maintenance

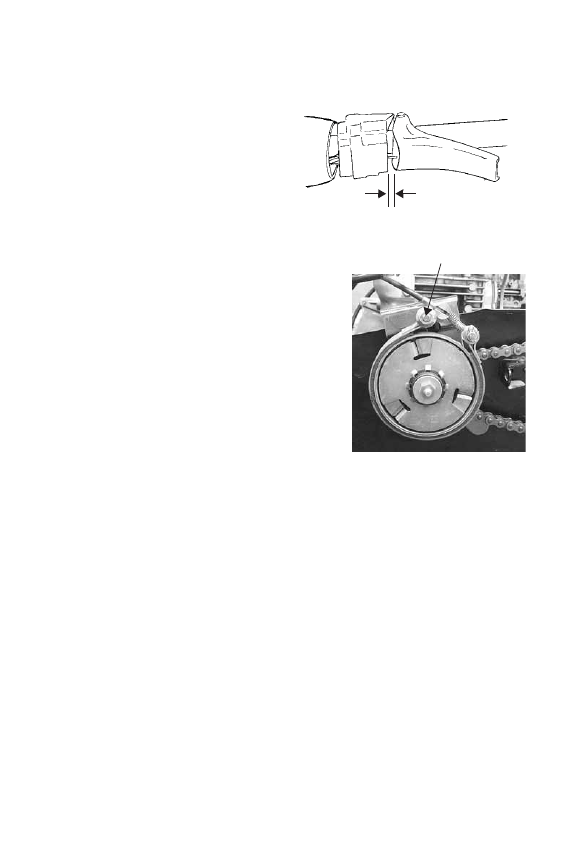

Brake Cable Adjustment

4. Check the actuator linkage to

ensure there is adequate
freedom of movement for
positive brake operation and
that all floating parts move
freely and that all parts are
mounted securely. Tighten
hardware as required.

5. Tighten the adjuster jam nut and

slide the rubber protectors onto
the adjuster.

6. The brake band is adjusted

correctly when brake lever
freeplay is 1/4- 3/8” (6-10 mm)
and clearance between the brake
lever and block with the lever
fully depressed is no more than
3/4” (19 mm). Torque the band
bolt nut to 6 ft. lbs. (8 Nm).

1/4-3/8” (6-10 mm)

Band Bolt Nut

58

ADULT SECTION

Maintenance

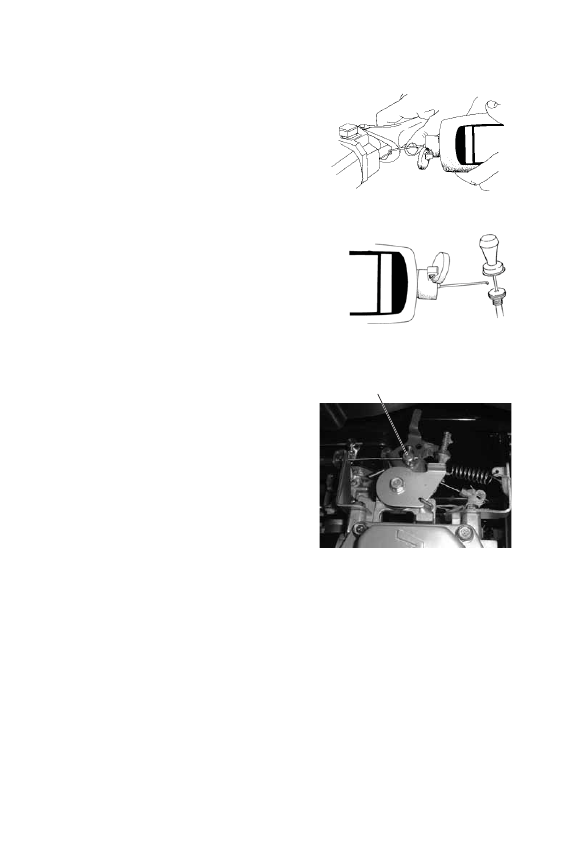

Throttle Cable Lubrication

With the engine off, lubricate the
throttle cable occasionally. Turn
the handlebars to the left and
lubricate liberally with POLARIS
All Season Grease.

Choke/Cable Lubrication

Lubricate the choke slide and
cables occasionally as shown.
Operate the choke intermittently
before turning the engine off. This
draws moisture out of the choke
plunger area and reduces the possi-
bility of the choke becoming fro-
zen.

Throttle Cable Pivot Slug

Lubricate the throttle cable pivot
slug every 50 hours or twice a year
using an aerosol lubricant.

Pivot Slug

59

ADULT SECTION

Maintenance

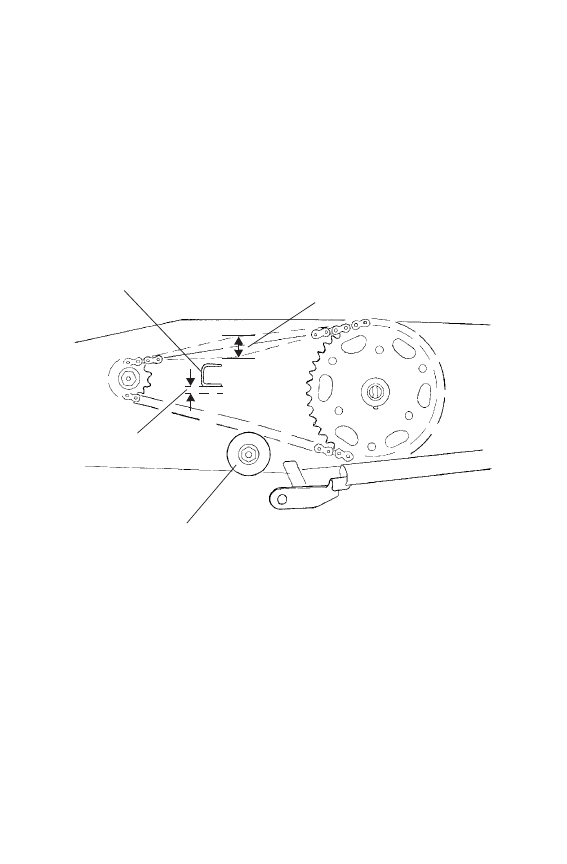

Chain Tensioner

Inspect the chain. Proper deflection is one inch (25 mm). Adjust the
chain if deflection is incorrect.

1. Loosen the nut on the chain tensioner.

2. Raise the tensioner until the correct deflection is attained.

3. Tighten the nut to 15-18 ft. lbs. (20-24 Nm).

TIP: When the chain has stretched to within 1/8" (3 mm) of the muffler mount

bracket on the chassis, replace the chain. Inspect the sprockets as they
also wear and often need replacement when the chain is replaced.

Chain Tensioner

1" (25 mm)

1/8" (3 mm)

Muffler Mount Bracket

60

ADULT SECTION

Maintenance

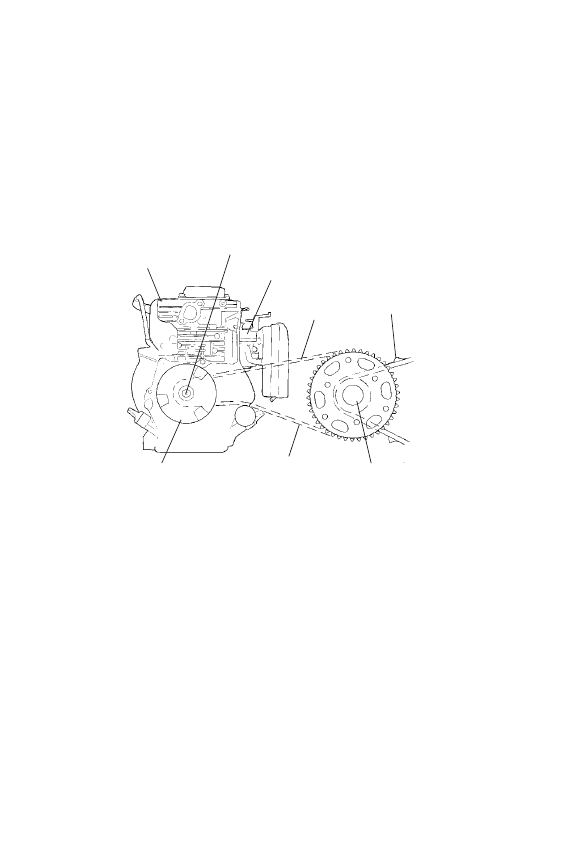

Driveline Lubrication

TIP: Driveline noise is normal for this vehicle.

To ensure long life of the snowmobile's driveline, lubricate as follows:
• Lubricate Point A every 15 hours of operation with a small amount of

POLARIS Premium All Season Grease.

• Lubricate Point B every 10 hours of operation with aerosol chain lube

or SAE 30 oil.

Carburetor

Track

Drive Shaft

Chain

Point B

Point A

Torque Converter

(Centrifugal Clutch)

Engine
