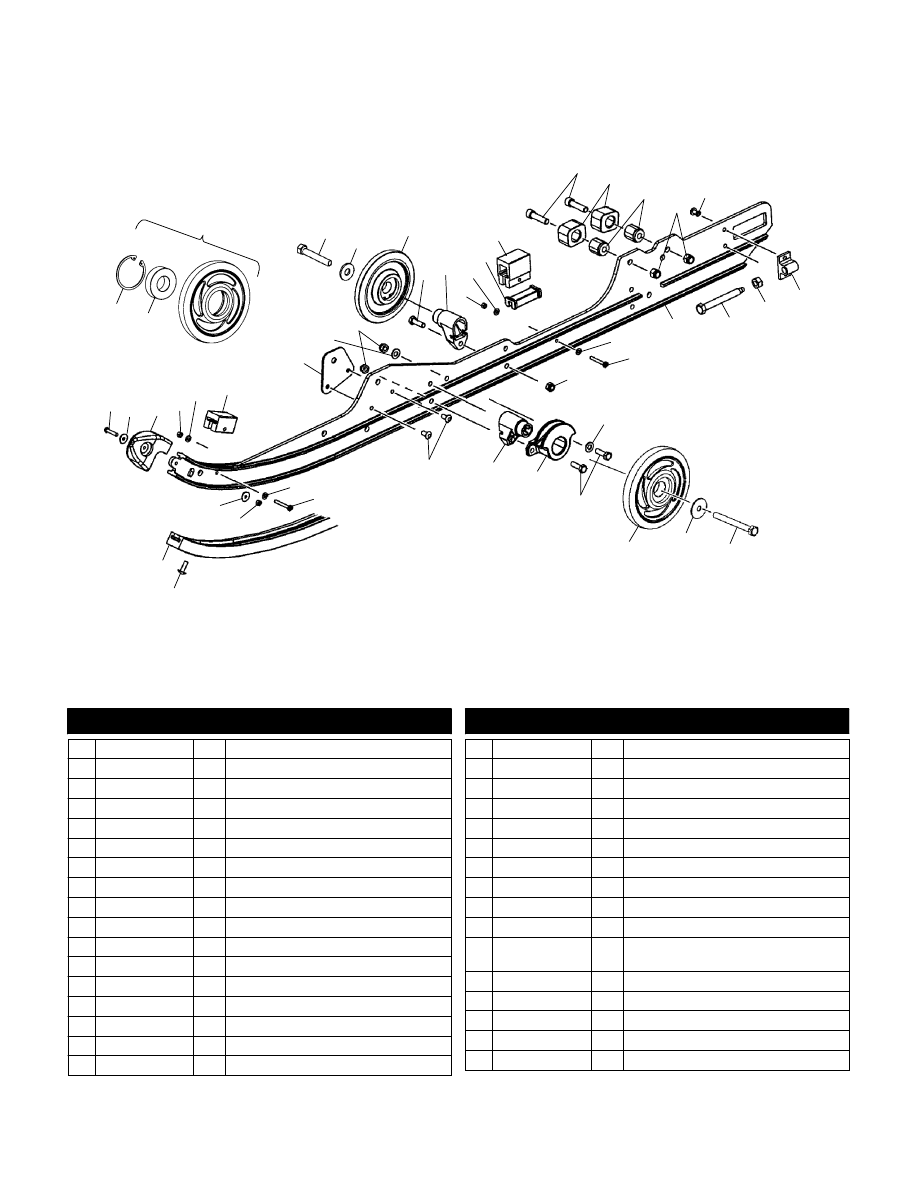

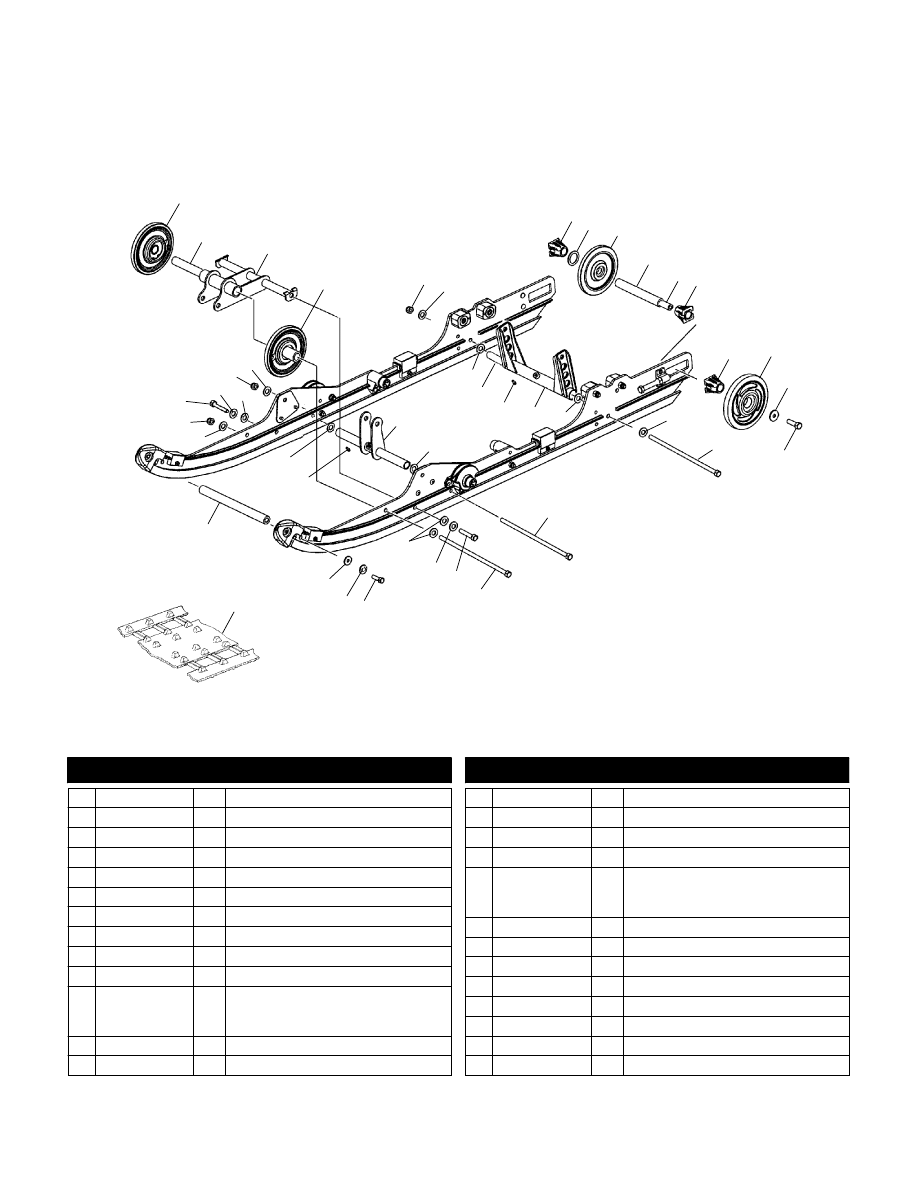

B7 RAIL MOUNTING (SUSPENSION) SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE 24 26 14 4 28 17 2 3 27 13 9 32 6 1, 23 25 12 10 19 20 22 21 7 7 29 1 16 13 14 12 33 30 18 31 7 8 8 8 5 5 29 15 15 11 8 17 16 11 E 2003 Polaris Sales Inc. Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly. Ref. Part No. Qty. Description Ref. Part No. Qty. Description 1 1590318-244 2 Asm., Scrolled Wheel (Incl. 2,3) 2 7718407 4 Ring, Retaining (1 per Wheel) 3 3514303 4 Bearing (1 per Wheel) 4 7512007 2 Bolt 5 7555792 4 Washer 6 5434355 2 Cap, Rail Tip 7 7541925 6 Nut, Nylok 8 7555783 8 Washer, Flat 9 5521499 2 Bumper, Front 10 5245678 2 Bracket, Rail Reinforcement 11 7558402 4 Washer, Flat 12 7542324 6 Nut, Nylok 13 7515346 4 Screw 14 7556179 4 Washer, Spring 15 1590317 2 Asm., Wheel, Bogie (Incl. 2,3) 16 7515317 4 Screw 17 5631065 4 Mount, Wheel 18 5432946 2 Liner, Bumper 19 5521498 2 Bumper, Rear 20 7515537 4 Screw 21 5410925 4 Bumper, Pivot Arm 22 5131113 4 Mount, Bumper 23 7542439 4 Nut, Nylok 24 7621501 4 Rivet 25 5132444 2 Block, Idler Bolt Adjusting 26 7547156 2 Nut, Jam 27 7517773 2 Screw 28 1541684 1541685 1 1 Asm., Rail, LH (Incl. 6,9,19,21,25) Asm., Rail, RH (Incl. 6,9,19,21,25) 29 7510504 4 Screw 30 5434277 2 Guide, Spring 31 7661845 4 Rivet 32 7515199 2 Screw 33 5521633 2 Hi-Fax 5/03 |
