8 Mounting/removing front attachment
8.2 Installing the front attachment
67084
- Fit stands (1) to the brackets.
1
15
24170
1
16
24512
132
8 Mounting/removing front attachment
8.3 Removing the front attachment
67084
8.3 Removing the front attachment
71384
8.3.1 Fitting the stands
- Observe the general warnings at the beginning of
the Fitting / removing the front attachment
chapter.

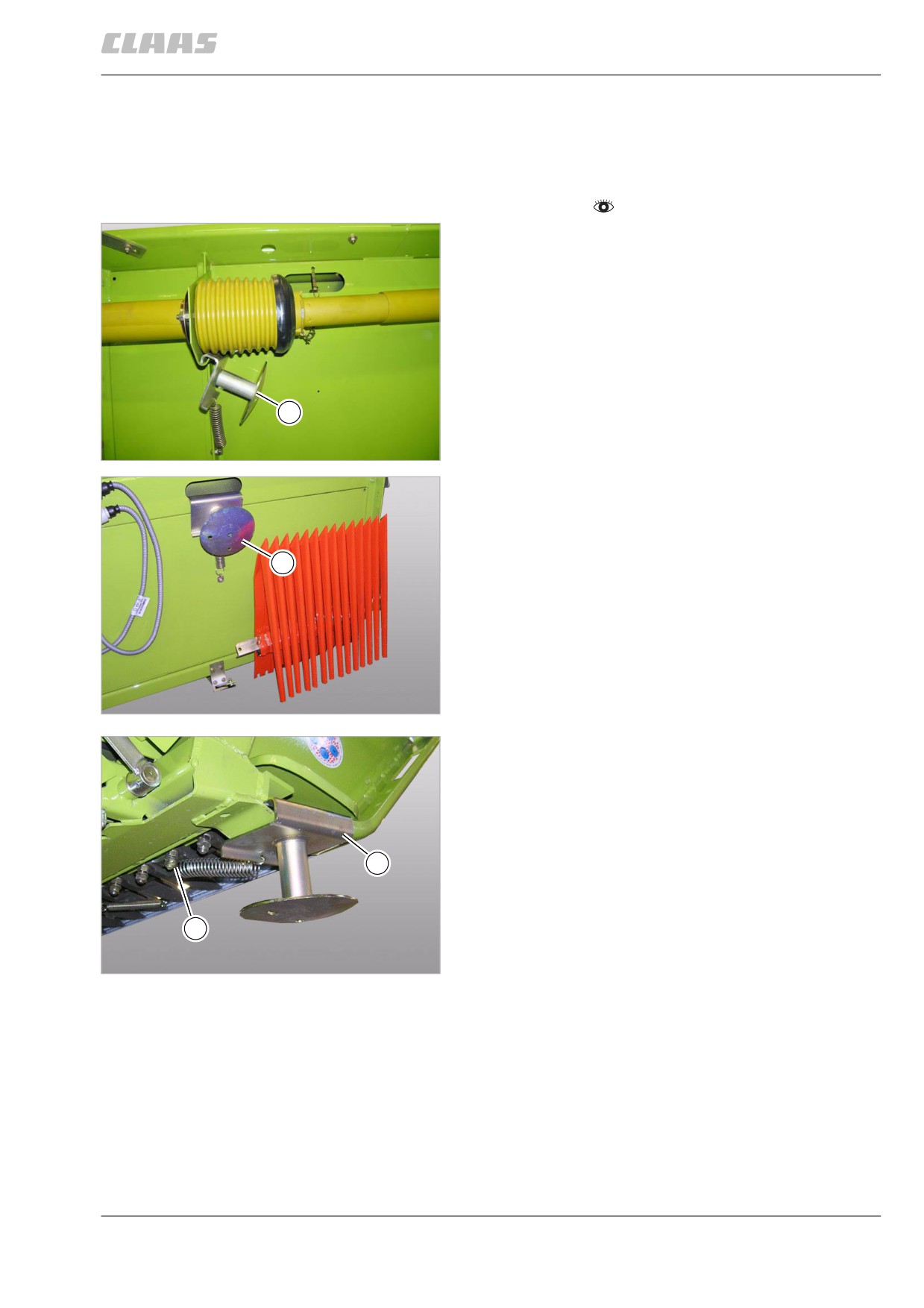

- Remove support (1) from bracket.
1
17
24170
1
18
24512

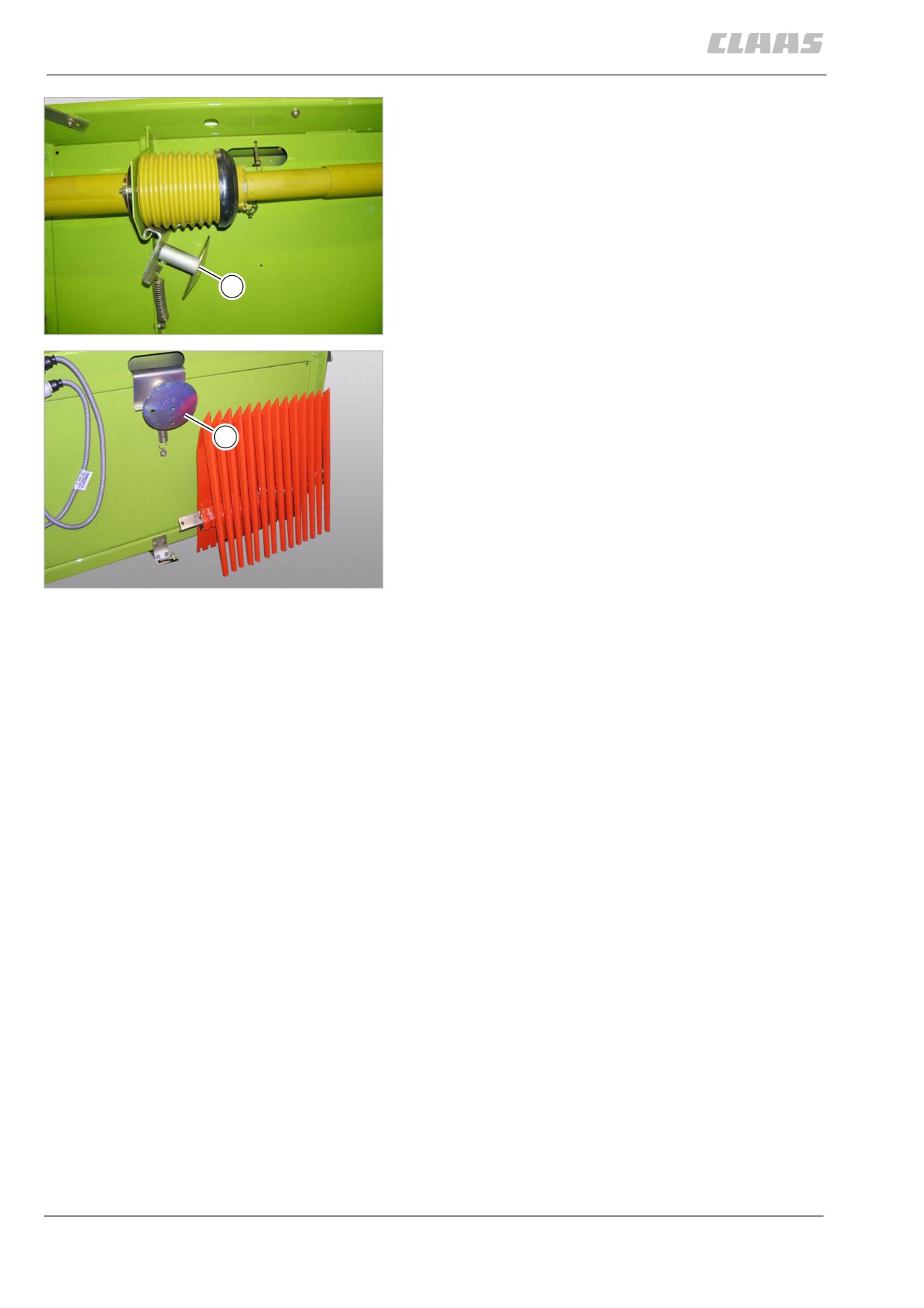

- Suspend the stand (1) at the base frame.
- Secure stand (1) to bolt (2) by means of the
spring.
- Repeat this process on the other side of the front
attachment.
1
2
19
17304
133
8 Mounting/removing front attachment
8.3 Removing the front attachment
67084
71316
8.3.2 Disconnecting the hydraulic system
- Lower the reel completely, using the machine.
The load on the hydraulic system of the front attach-
ment is relieved. Disconnecting and, later on,
connecting of the hydraulic system coupling is made
easier.
- Observe the general warnings at the beginning of
the Fitting / removing the front attachment
chapter.
Caution!
Machine operation with polluted utilities.
1
Machine damage.
- Ensure that no dirt will get into the
removed lines.
- Ensure a clean environment.

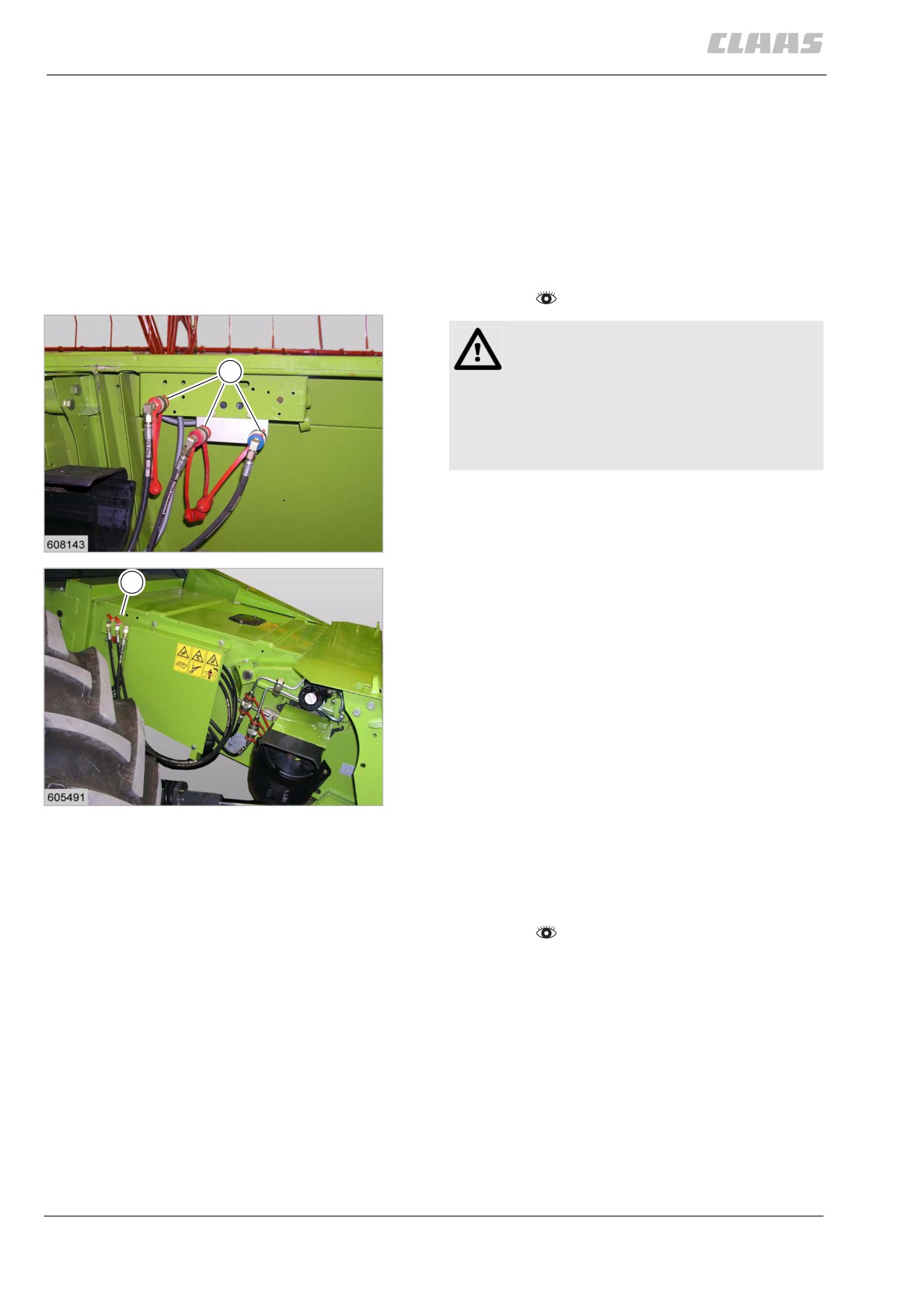

- Disconnect male coupling (1).
Partly accessory.
- Place lid on the male coupling (1).
20
19528
- Hang in male coupling (1) at (A).
A
21
14540
71314
8.3.3 Disconnecting the electric equipment
(accessory)
- Observe the general warnings at the beginning of
the Fitting / removing the front attachment
chapter.
134
8 Mounting/removing front attachment
8.3 Removing the front attachment
67084

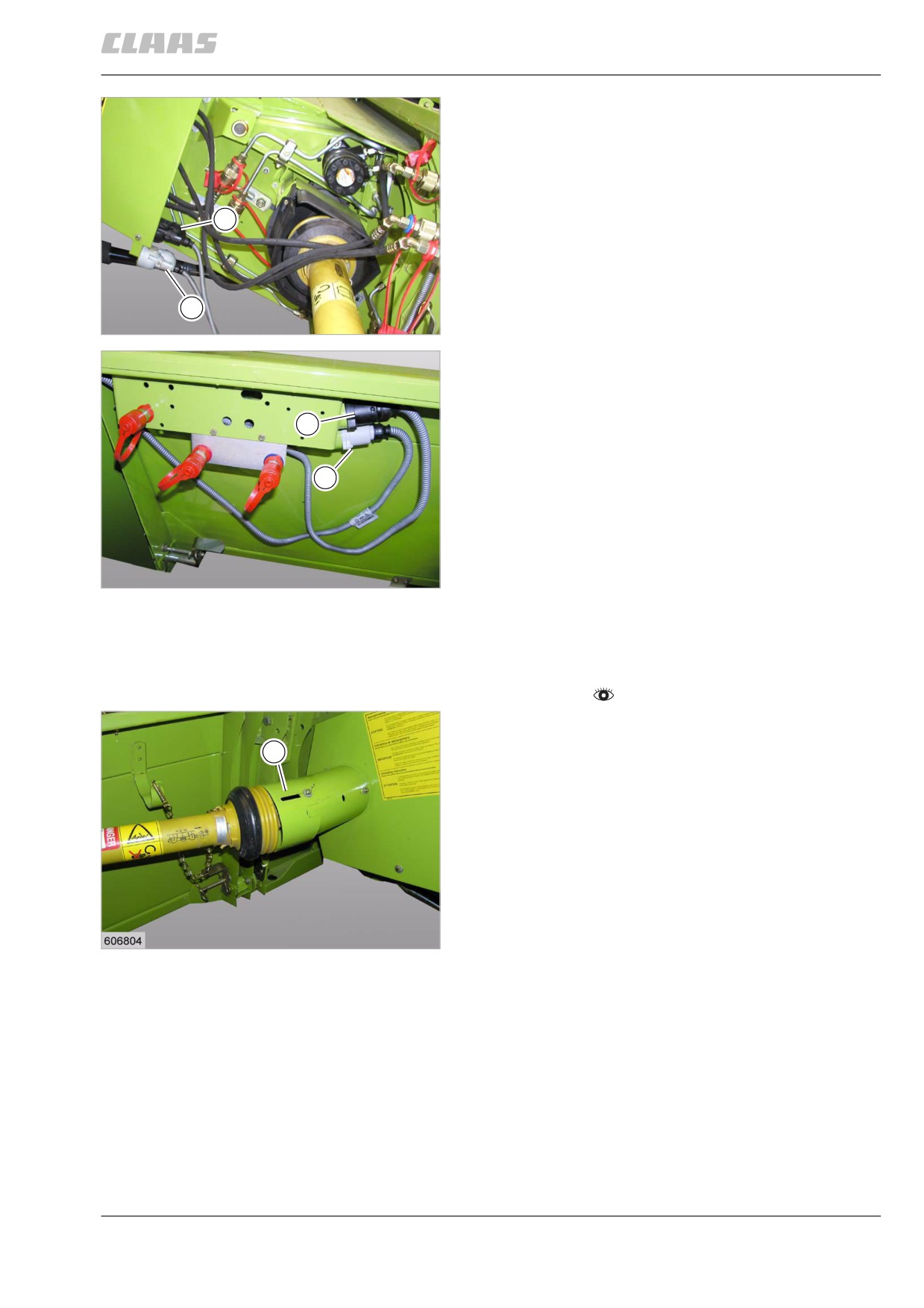

- Disconnect connector (1) and place it in
holder (2).
- Disconnect connector (3) and place it in
holder (4).
1
3
22
24275
2
4
23
24274
71364

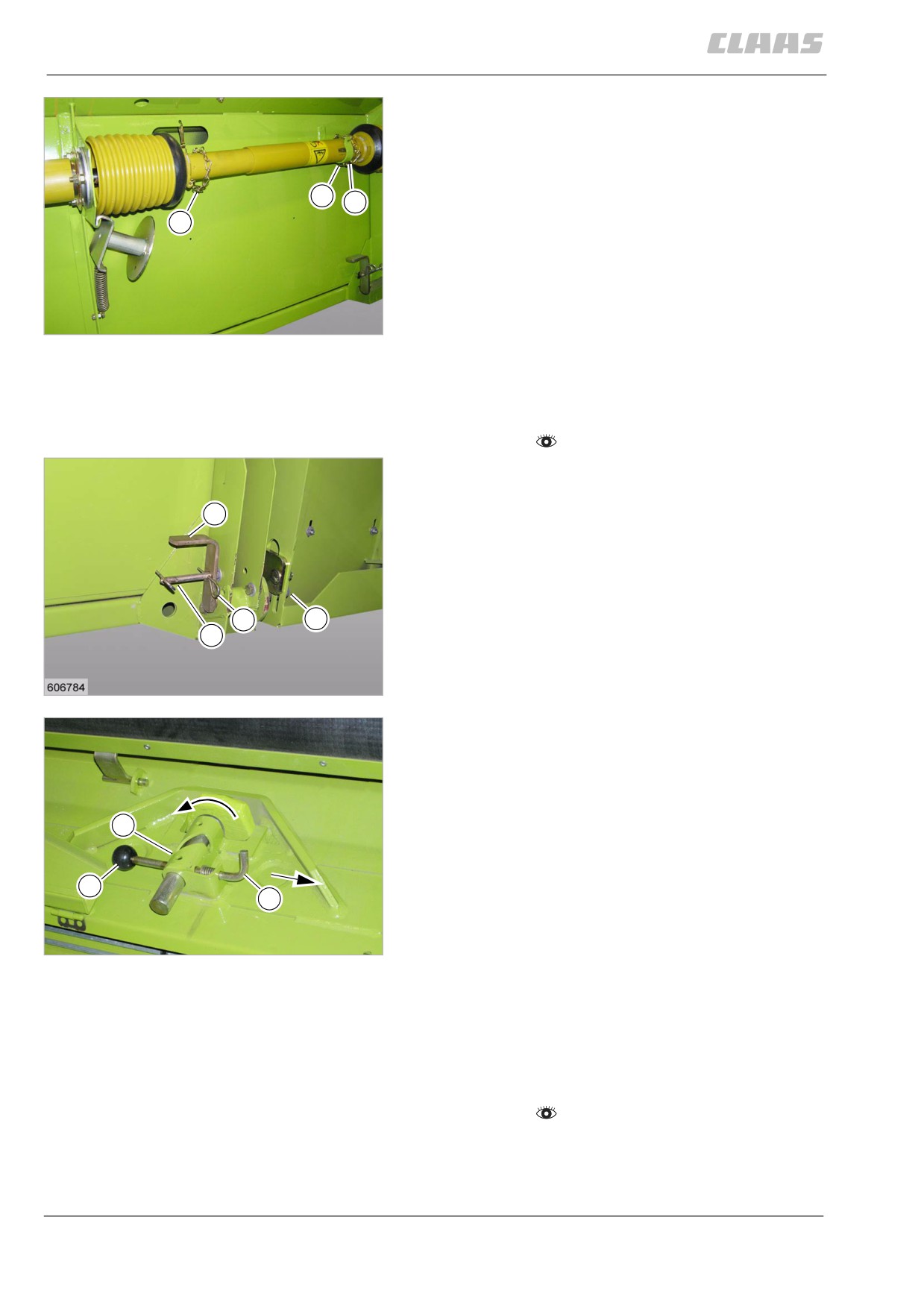

8.3.4 Removing universal drive shaft
- Observe the general warnings at the beginning of
the Fitting / removing the front attachment
chapter.
- Push back or swing up protective guard (1),
depending on the version.
1
- Push in the locking pin (2).
Pull universal drive shaft off of drive pin.
- Pull out or fold down protective guard (1), depend-
ing on the version.
24
DOMINATOR
19527
135
8 Mounting/removing front attachment
8.3 Removing the front attachment
67084
- Place universal drive shaft in holder (1).
- Hang in chains (2) as short as possible.
1
2
2
25
24506
71365
8.3.5 Unlocking the front attachment
- Observe the general warnings at the beginning of
the Fitting / removing the front attachment
chapter.

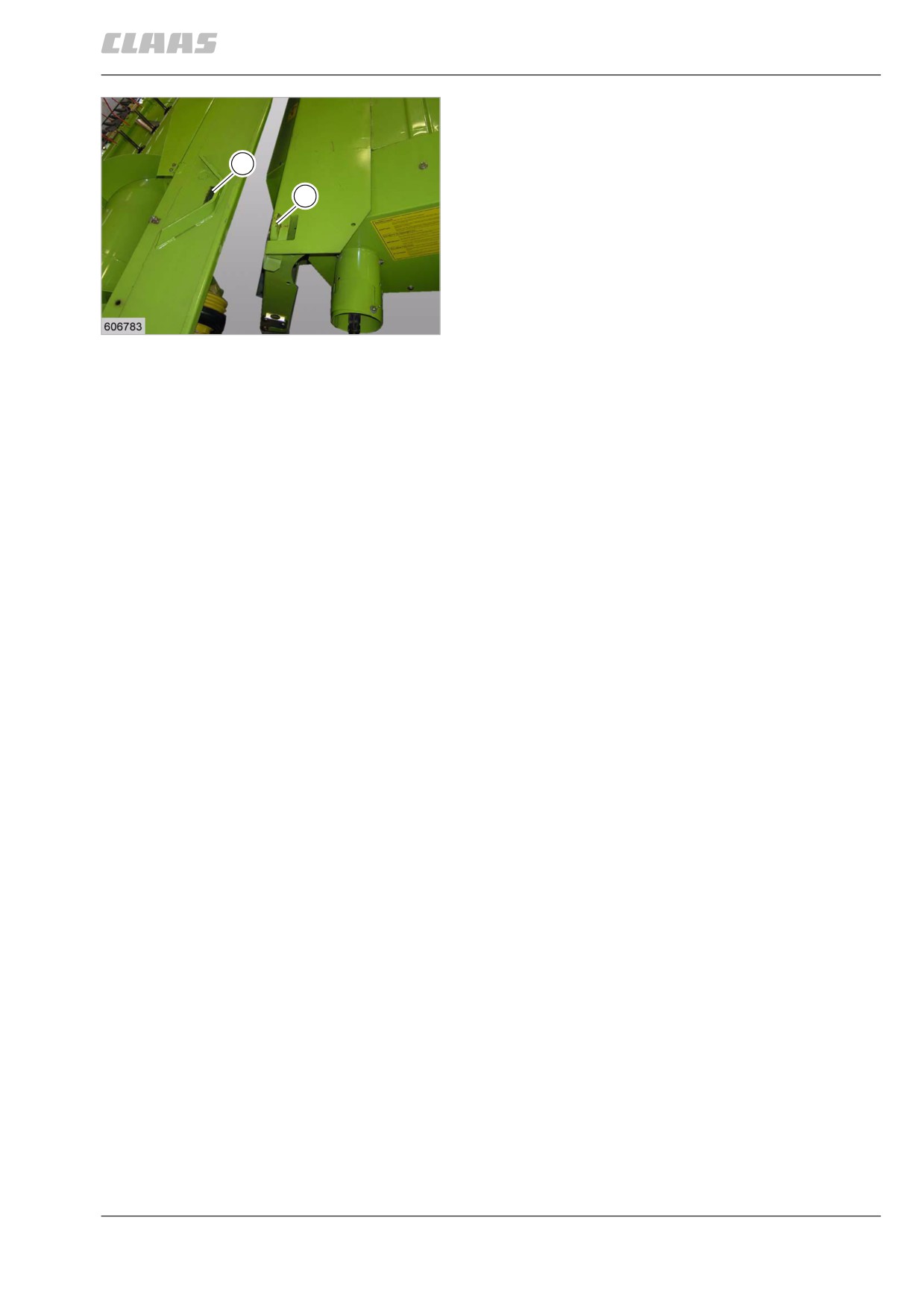

- Pull out cotter pin (1).
- Pull lock pin (2) out of the feeder unit of the
machine, using lever (3).
3
- Shift lever (3) all the way to the outside and
secure in that position by means of cotter pin (1)
at (A).
1
2
A
26
19523
only front attachments and machines equipped
with AUTO-CONTOUR:
- Pull out lever (1) and swing lever (2) up to
position (A).
Lever (1) does not engage in that position.
A
2
1
27
24849
- Repeat this procedure on the other side of the
machine.
71375
8.3.6 Unhitching front attachment
- Observe the general warnings at the beginning of
the Fitting / removing the front attachment
chapter.
136
8 Mounting/removing front attachment
8.3 Removing the front attachment
67084
- Bring front attachment into the horizontal position.
- Lower feed rake conveyor of the machine all the
way down until coupling pin (1) is positioned out-
2
side of coupling receptacle (2).
- Carefully back-up the machine.
1
28
19522
137
9 Driving and transportation
9.1 General Information
67085
9 Driving and transportation
9.1 General Information
85056
9.1.1 General warnings - Driving and
transportation
In the following sections of this chapter, a procedure
instruction refers to the following general warnings.
Danger!
Always stop the engine before carrying out
any work on the machine.
Moving machine parts and / or unexpected
machine movement.
Death or serious injury.
- Diesel engine OFF.
- Apply parking brake.
- Remove the ignition key.
- Remove key of battery isolating
switch.
- Wait for machine parts which run on have
come to a complete halt.
- Secure machine by wheel chocks.
- Ensure that the machine cannot be
started by any third persons.
Danger!
The front attachment, reel and feeder unit may
drop uncontrolled.
Death or serious injuries!
- Apply safety locks.
- Keep a safe distance from the hazard
area.
81876
9.1.2 Preparing road travel
Danger!
Insufficient knowledge about machine
functions.
Death or serious injury.
- Before putting the machine into operation,
make yourself familiar with the controls.
138
9 Driving and transportation
9.1 General Information
67085
Danger!
Persons are in the driving range of the
machine.
Death or serious injury.
- Before and while driving, ensure that
there are no persons or objects in the
driving range.
- Do not carry any persons outside of the
cab.
Danger!
Machine starts to move unexpectedly.
Death or serious injury.
- Never shift gears while driving!
- Never shift gears while driving on slopes.
- Do not let the machine roll.
-
Clean coarse dirt off of the machine.
Take a seat.
Adjust the driver's seat.
Adjust the steering column.
Sound the horn.
Start the diesel engine.
Danger!
Use of independent brake on public roads and
lanes.
Death or serious injury.
- Lock the foot brake pedals together
before travel on public roads and lanes.
- Use the independent brakes exclusively
during work in the field.

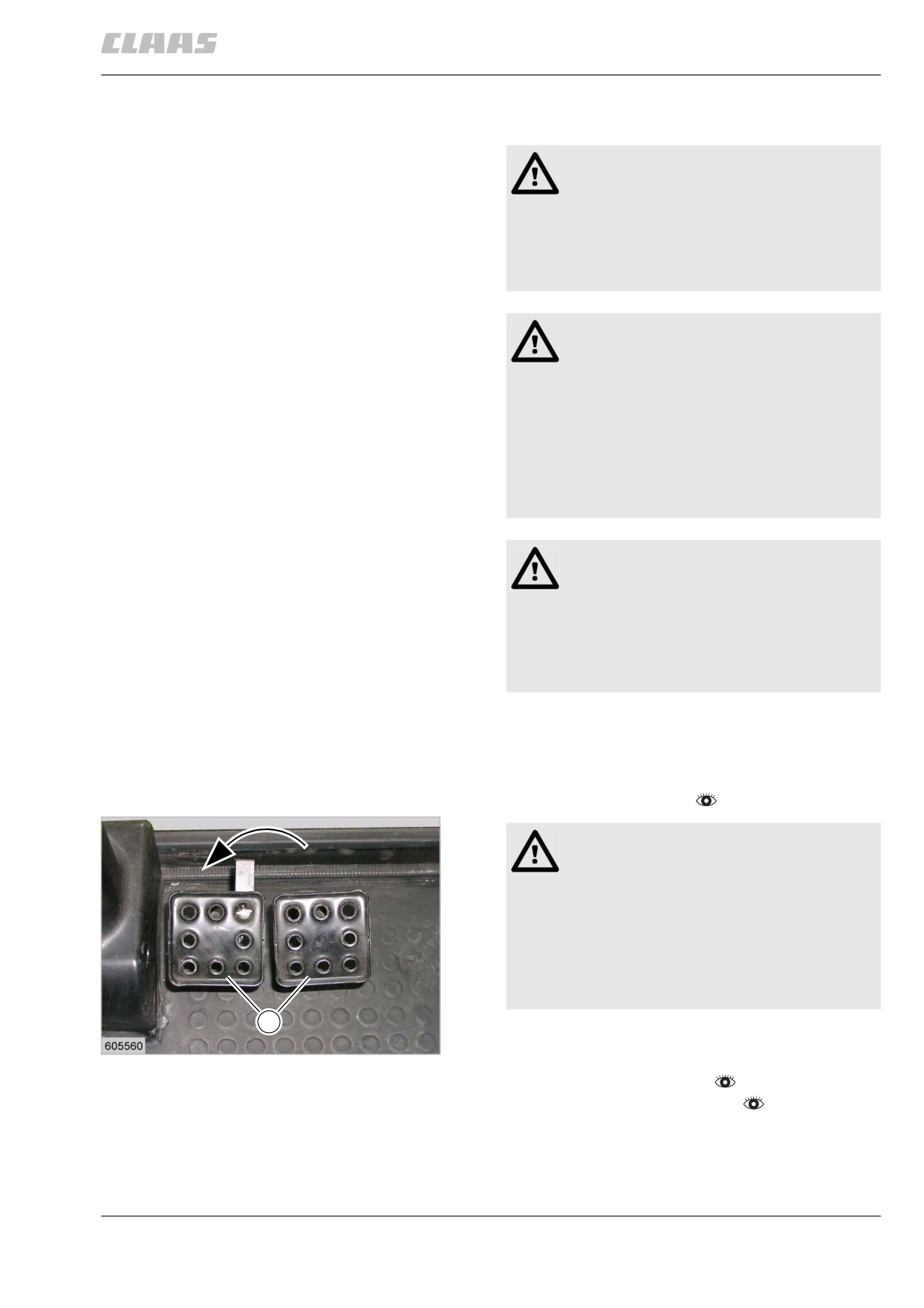

1
-
Couple the foot brake pedals (1).
1
27491
-
Disengage parking brake.
Danger!
Unexpected machine movements.
Death or serious injuries!
- Do not drive in 3rd gear on gradients of
more than 7%.
139
9 Driving and transportation
9.1 General Information
67085
Danger!
Unexpected machine movements.
Death or serious injuries!
Machine damage.
- Adapt the ground speed to the field condi-
tions in areas with a slope.
- Never exceed the permitted ground
speed of 20 (25) km/h on surfaces with a
slope.
-
Shift machine to desired gear.
Swing in unloading auger tube.
Close grain tank cover.
Move the front attachment to transport position
and prepare it for road travel.
-
Raise / lower the feed rake conveyor (front attach-
ment) until the clearance between the bottom
edge of the feed rake conveyor and the ground is
500 mm.
Danger!
1
Unexpected machine movements.
Death or serious injuries!
- For road travel the road travel / fieldwork
switch must be OFF.
-

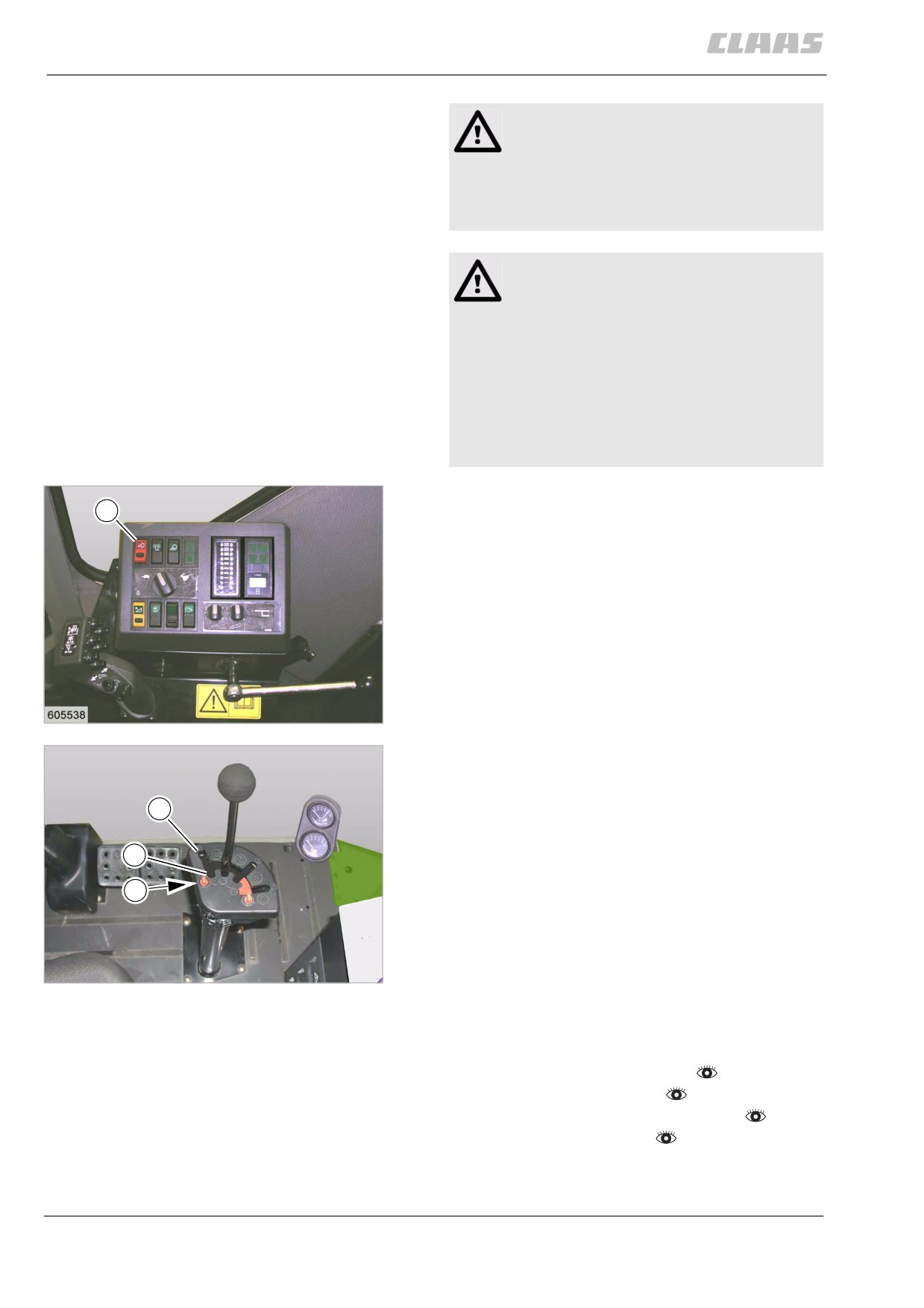

Switch off switch (1).
2
DOMINATOR 150 / 140
19415
Danger!
Unexpected machine movements.
1
Death or serious injuries!
- During road travel, the front attachment
2
gate must be blocked.
X
- Block the front attachment gate (1 / 2) with
lock (X).
3
DOMINATOR 130
28327
- Adjust the diesel engine speed.
- Switch on the warning beacon.
- If necessary, switch on the drive lights.
- Switch off the work lights.
140
9 Driving and transportation
9.1 General Information
67085
81883
9.1.3 Preparing fieldwork
Danger!
Insufficient knowledge about machine
functions.
Death or serious injury.
- Before putting the machine into operation,
make yourself familiar with the controls.
Danger!
Persons are in the driving range of the
machine.
Death or serious injury.
- Before and while driving, ensure that
there are no persons or objects in the
driving range.
- Do not carry any persons outside of the
cab.
Danger!
Machine starts to move unexpectedly.
Death or serious injury.
- Never shift gears while driving!
- Never shift gears while driving on slopes.
- Do not let the machine roll.
-
Sit on the operator’s seat.
Adjust the operator’s seat.
Adjust the steering column.
Sound the horn.
Start the diesel engine.
Danger!
Use of independent brake on public roads and
lanes.
Death or serious injury.
- Lock the foot brake pedals together
before travel on public roads and lanes.
- Use the independent brakes exclusively
during work in the field.
1
-

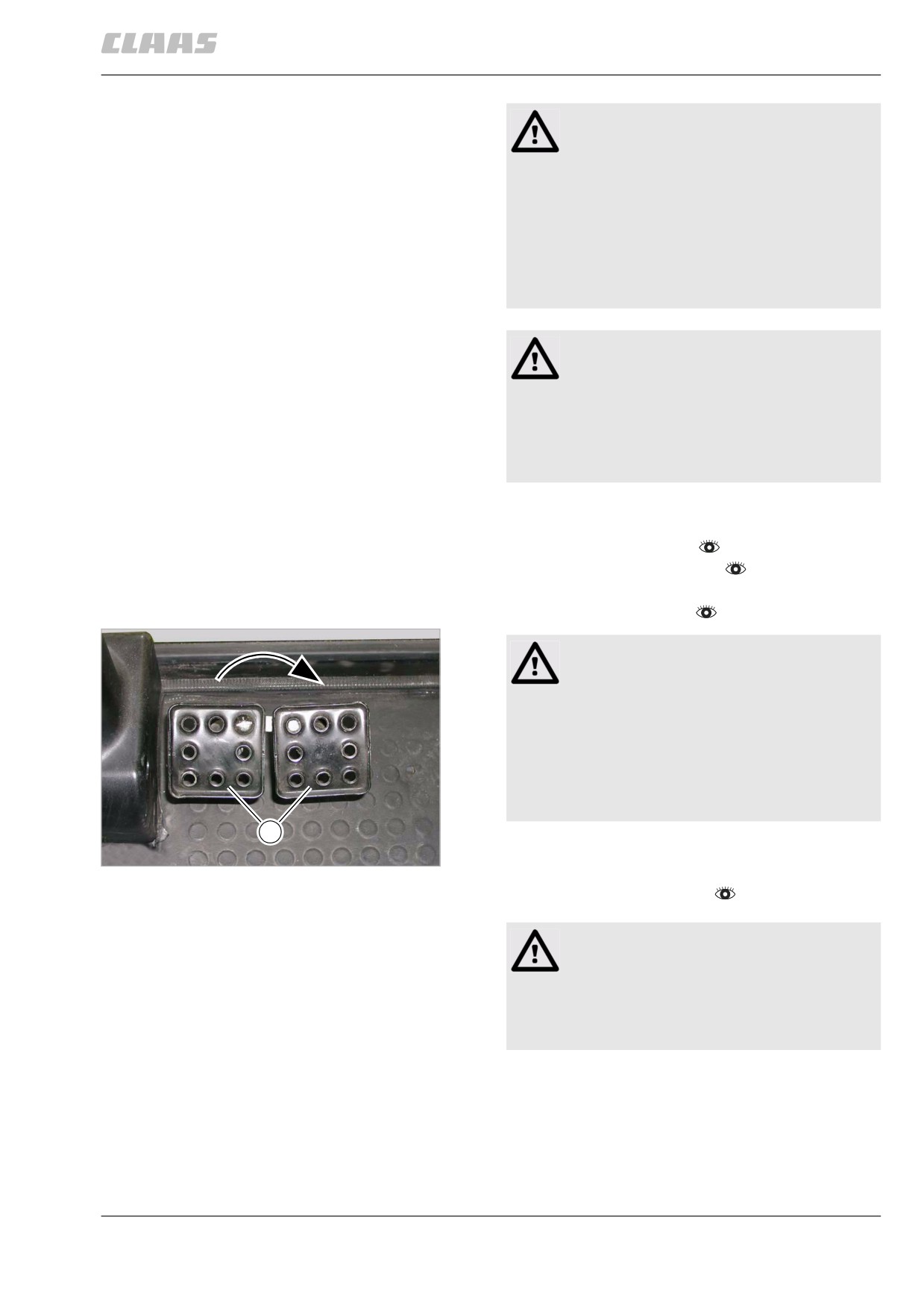

If necessary, uncouple the foot brake pedals (1).
4
19469
-
Disengage parking brake.
Shift machine to desired gear.
141
9 Driving and transportation
9.1 General Information
67085
Danger!
Unexpected machine movements.
Death or serious injuries!
- Do not drive in 3rd gear on gradients of
more than 7%.
Danger!
Unexpected machine movements.
Death or serious injuries!
Machine damage.
- Adapt the ground speed to the field condi-
tions in areas with a slope.
- Never exceed the permitted ground
speed of 20 (25) km/h on surfaces with a
slope.
-
Switch on switch (1).
1
5
DOMINATOR 150 / 140
19415
- Unblock the front attachment gate (1 / 2) with
lock (X).
1
2
X
6
DOMINATOR 130
28328
- Move the front attachment to working position and
prepare it for fieldwork.
- Prepare machine for fieldwork.
- Adjust the diesel engine speed.
- Switch off warning beacon.
- If necessary, switch on the drive lights.
- Switch on the work lights.
142
9 Driving and transportation
9.2 Engine
67085
9.2 Engine
80064

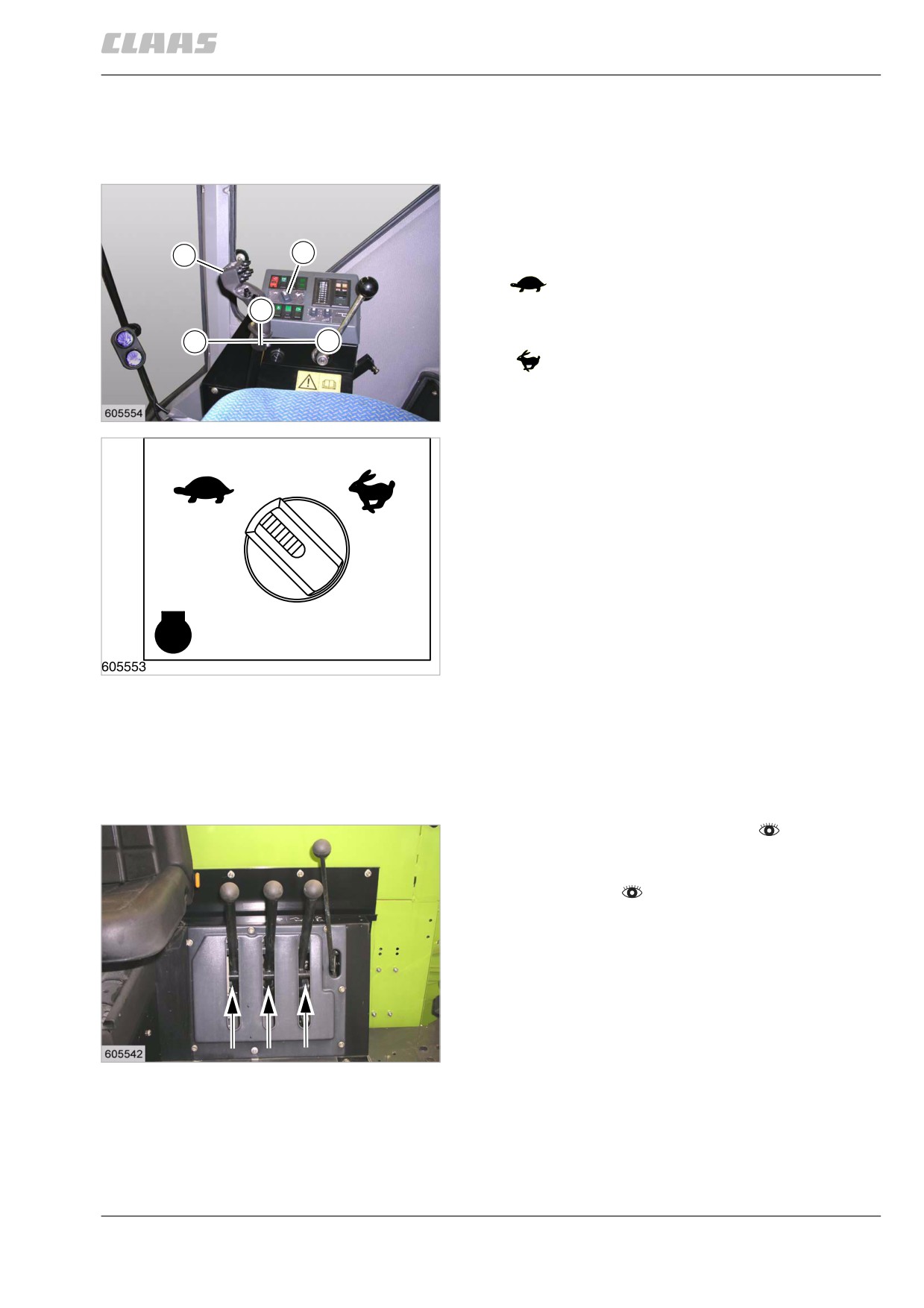

9.2.1 Adjusting the diesel engine speed
(DOMINATOR 150 / 140)

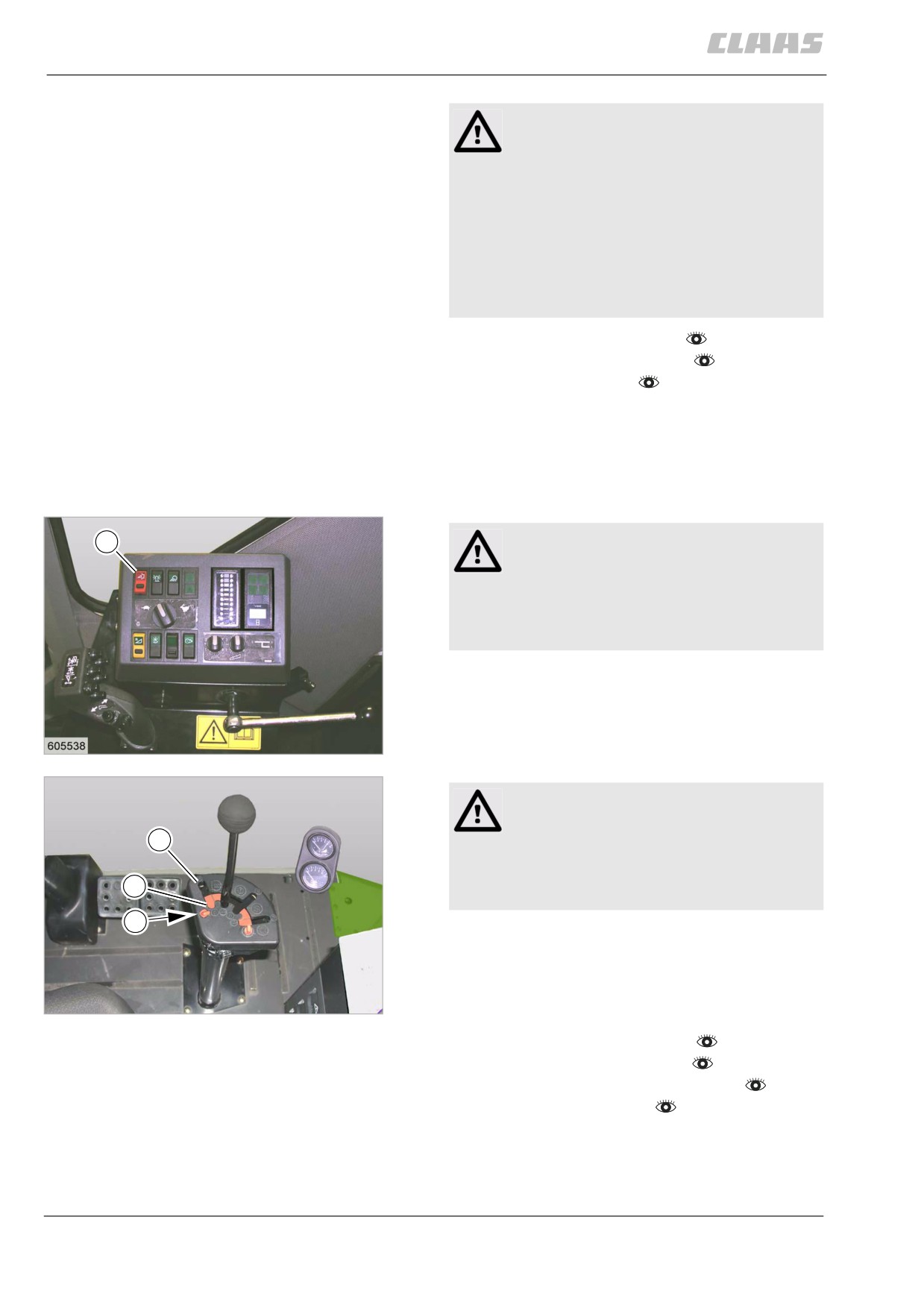

The diesel engine speed is set using the rotary control
switch (1).
The engine speeds are needed for different kinds of
F
7
work with the machine.
Slow idle speed:
N
• Starting the diesel engine
• Manoeuvring, for example on level surface
A
B
Max. no-load speed:
• Road travel
7
• Fieldwork
19459
8
19418
80098

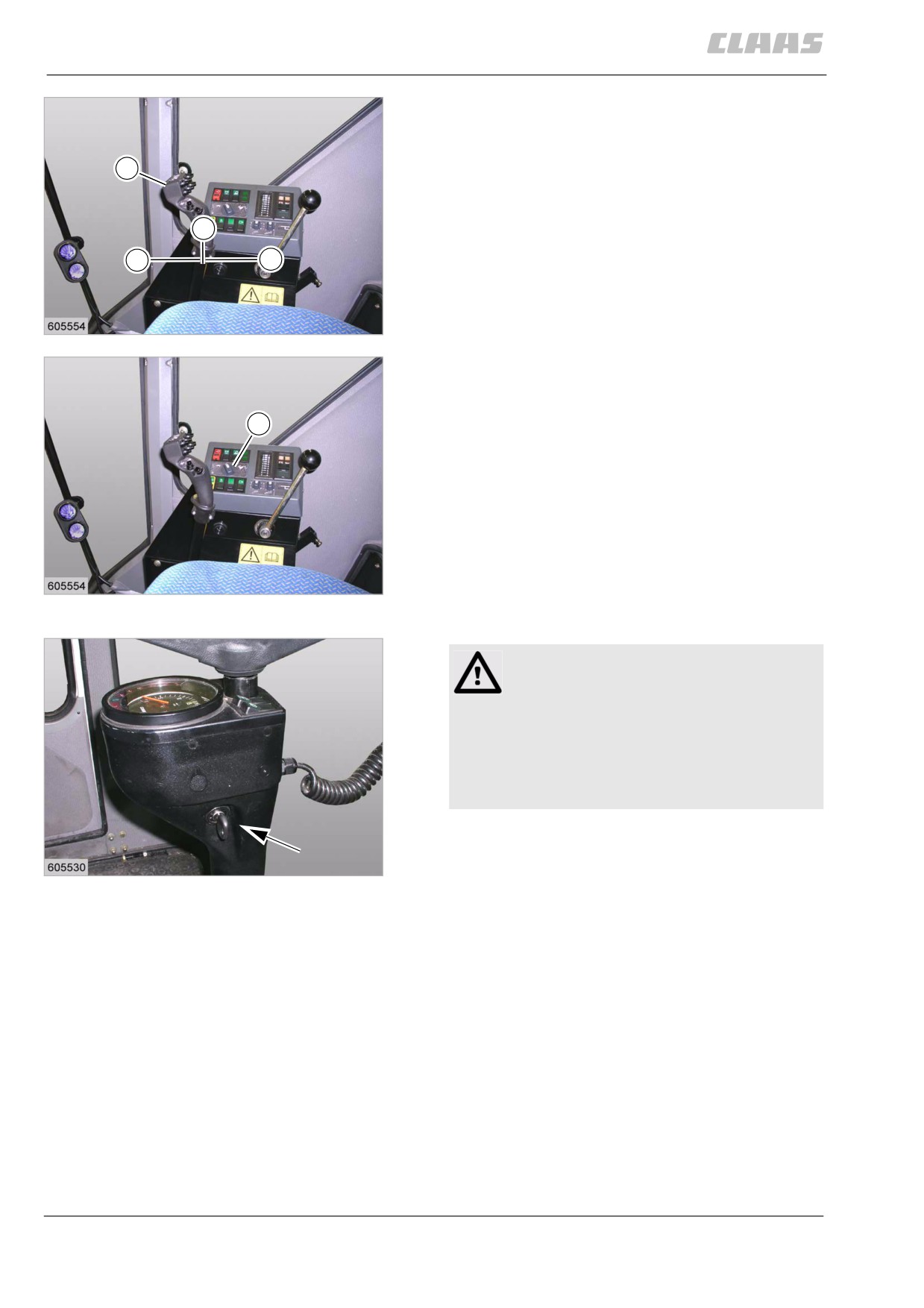

9.2.2 Starting the diesel engine
(DOMINATOR 150 / 140)

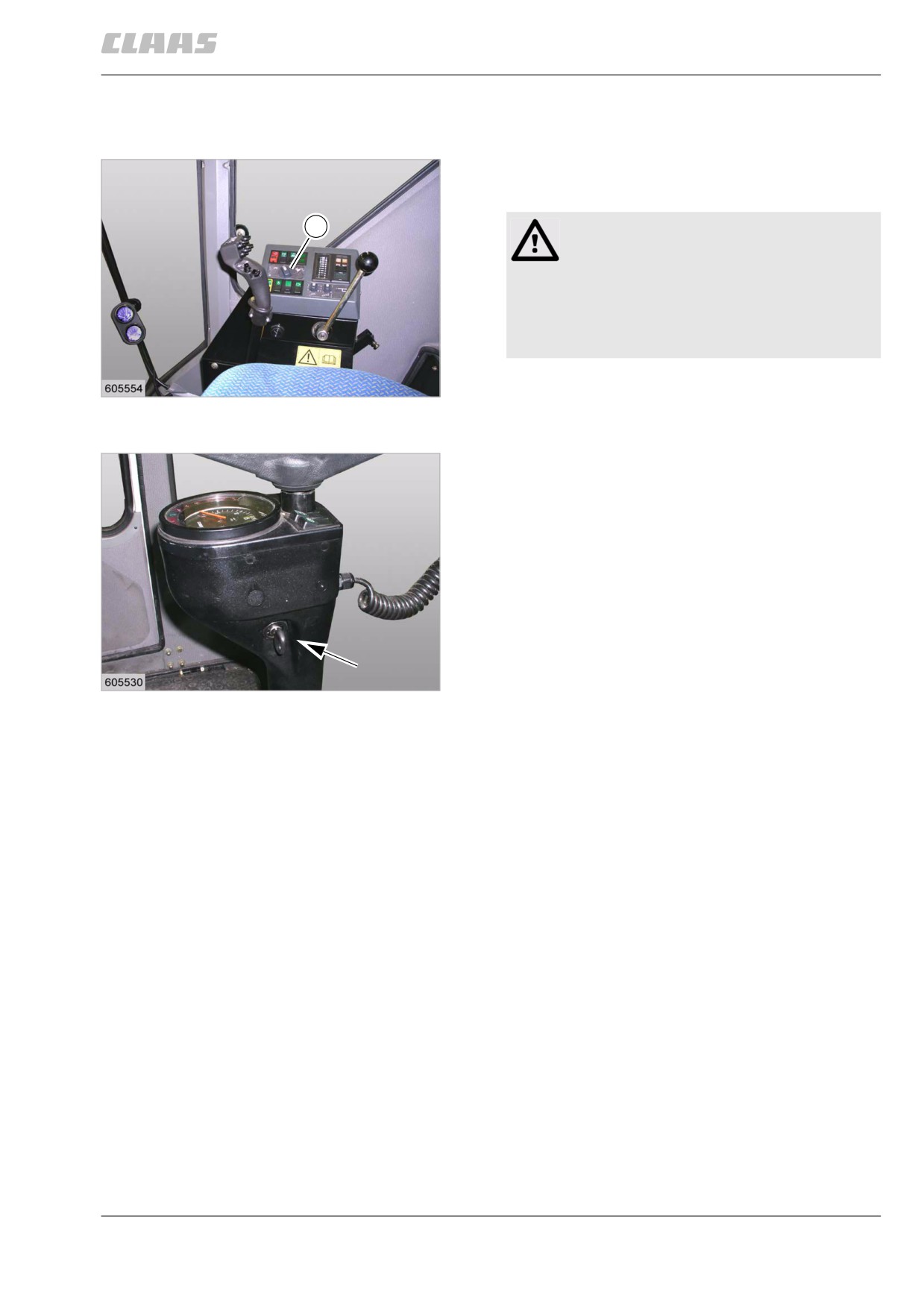

- Sit on the operator’s seat.
- Adjust the operator’s seat.
- Adjust the steering column.
- Disengage the front attachment.
- Stop the threshing mechanism.
- Switch off the grain tank unloading
mechanism.
9
19419
143
9 Driving and transportation
9.2 Engine
67085
- Move the ground speed control lever (1) to neutral
position (N).
1
N
A
B
10
19459
- Set the diesel engine speed rotary control
switch (1) to the min. no-load speed.
1
11
19459
- Sound the horn.
Danger!
When starting the machine, persons are on
the machine or in its hazard area.
Death or serious injury.
- Before starting the machine ensure that
there are no persons or objects in the
hazardous area.
- Turn the ignition key to position 1.
- Turn the ignition key to the limit stop until the die-
12
sel engine starts.
19363
Do not hold the ignition key at the limit stop
for more than 10 seconds!
- Release the ignition key.
The ignition key engages and the diesel engine is
started.
At low outside temperatures, let diesel engine run at
min. no-load speed for some minutes after starting.
144
9 Driving and transportation
9.2 Engine
67085
80100
9.2.3 Stopping the diesel engine
(DOMINATOR 150 / 140)
- Set the diesel engine speed rotary control
switch (1) to the min. no-load speed.
1
Warning!
Overheating of the turbocharger.
Machine damage.
- Before turning off, first let the diesel
engine run a short time at slow idling
speed.
13
19459
- Disengage all drives previously engaged.
- Turn the ignition key to position 0.
The diesel engine stops.
14
19363
145
9 Driving and transportation
9.2 Engine
67085
80060

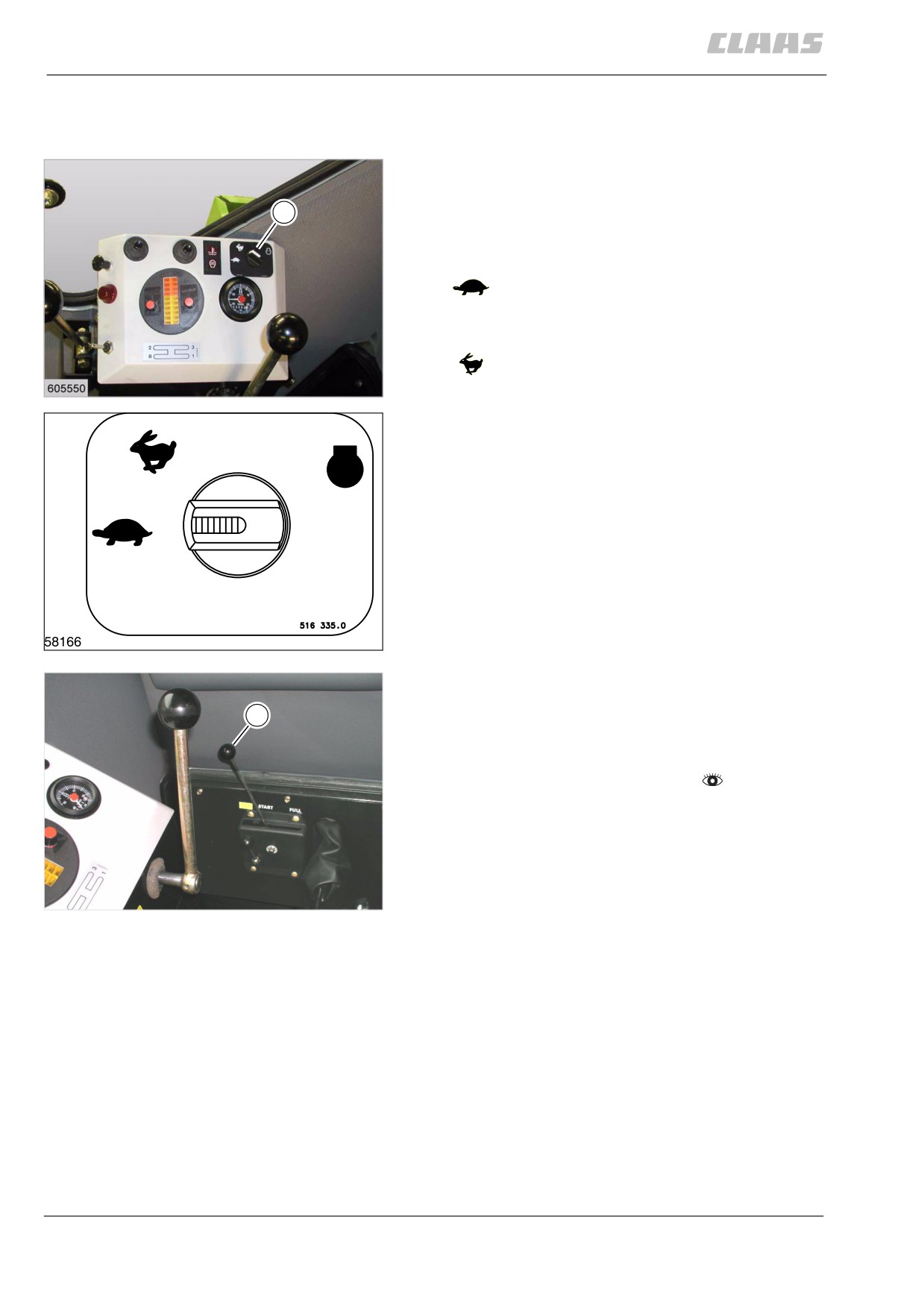

9.2.4 Adjusting the diesel engine speed
(DOMINATOR 130)
CATERPILLAR C-6.6, 3056E
The diesel engine speed is set using the rotary control
1
switch (1).
The engine speeds are needed for different types of
work with the machine.
Slow idling speed:
• Start the diesel engine.
• Manoeuvring, e.g. on a level surface.
Max. no-load speed:
15
• Road travel.
CATERPILLAR C6.6, 3056E
19412
• Harvesting (grain tank unloading).
16
CATERPILLAR C6.6, 3056E
19413
Perkins 1006-T6
The diesel engine speed is set using lever (1).
1
The engine speeds are needed for different types of
work with the machine.
(STOP) (hidden) = without function,
Stopping the
diesel engine (DOMINATOR 130)
START = Lower idle speed:
• Starting the diesel engine
• Manoeuvring, for example on level surface
17
FULL = Max. no-load speed:
Perkins 1006-T6
29771
• Road travel
• Fieldwork
80069

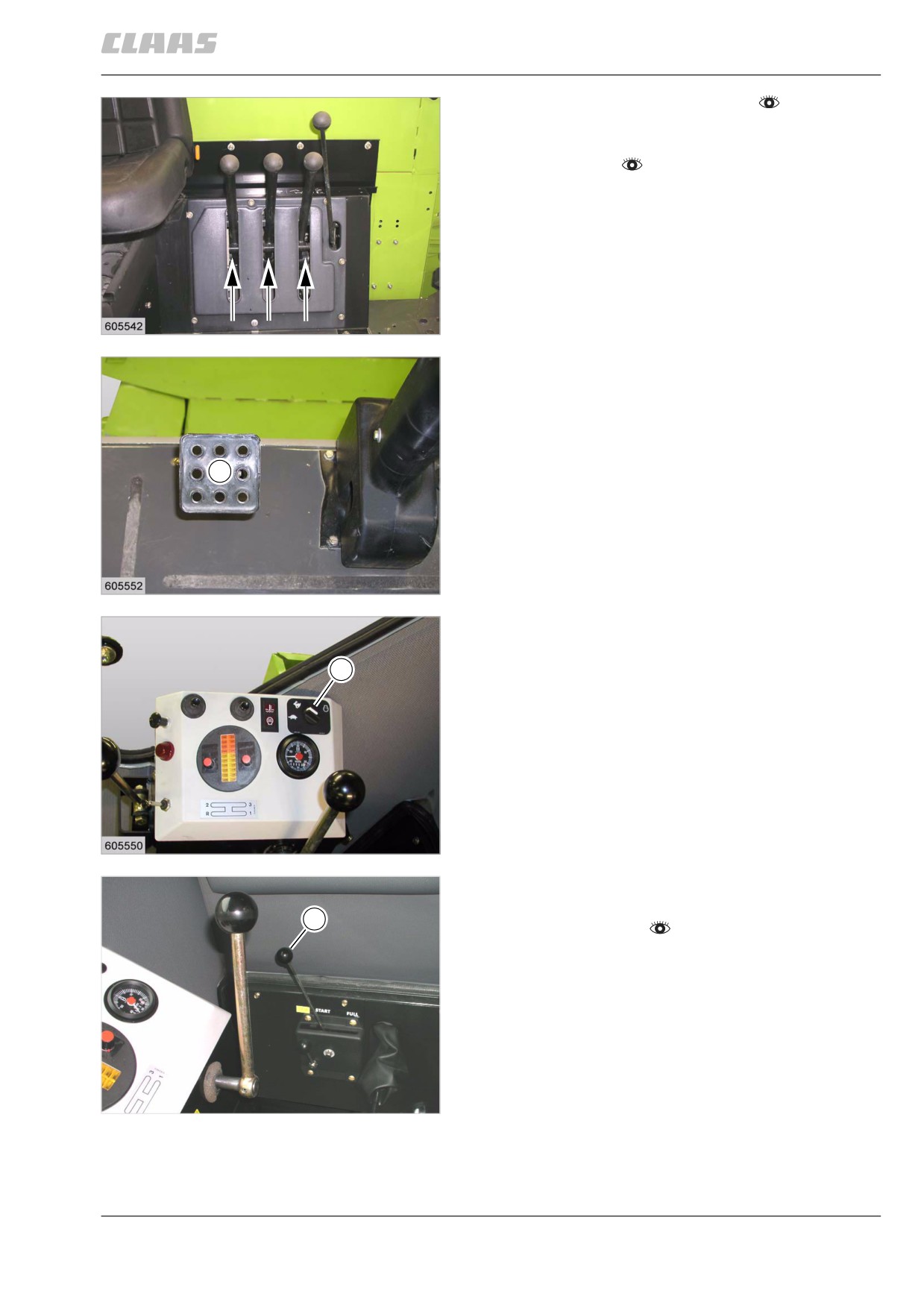

9.2.5 Starting the diesel engine
(DOMINATOR 130)
- Sit on the operator’s seat.
- Adjust the operator’s seat.
- Adjust the steering column.
146
9 Driving and transportation
9.2 Engine
67085
- Disengage the front attachment.
- Stop the threshing mechanism.
- Switch off the grain tank unloading
mechanism.
18
19419
- Press the clutch pedal (1).
1
19
19458
CATERPILLAR C-6.6, 3056E
- Set the diesel engine speed rotary control
1
switch (1) to the min. no-load speed.
20
CATERPILLAR C6.6, 3056E
19412
Perkins 1006-T6
- Set the diesel engine speed lever (1) to the
1
START position.
21
Perkins 1006-T6
29771
- Sound the horn.
147















Content      ..     7      8      9      10     ..
