PAGE 33

SECTION 4: ELECTRICAL SYSTEM

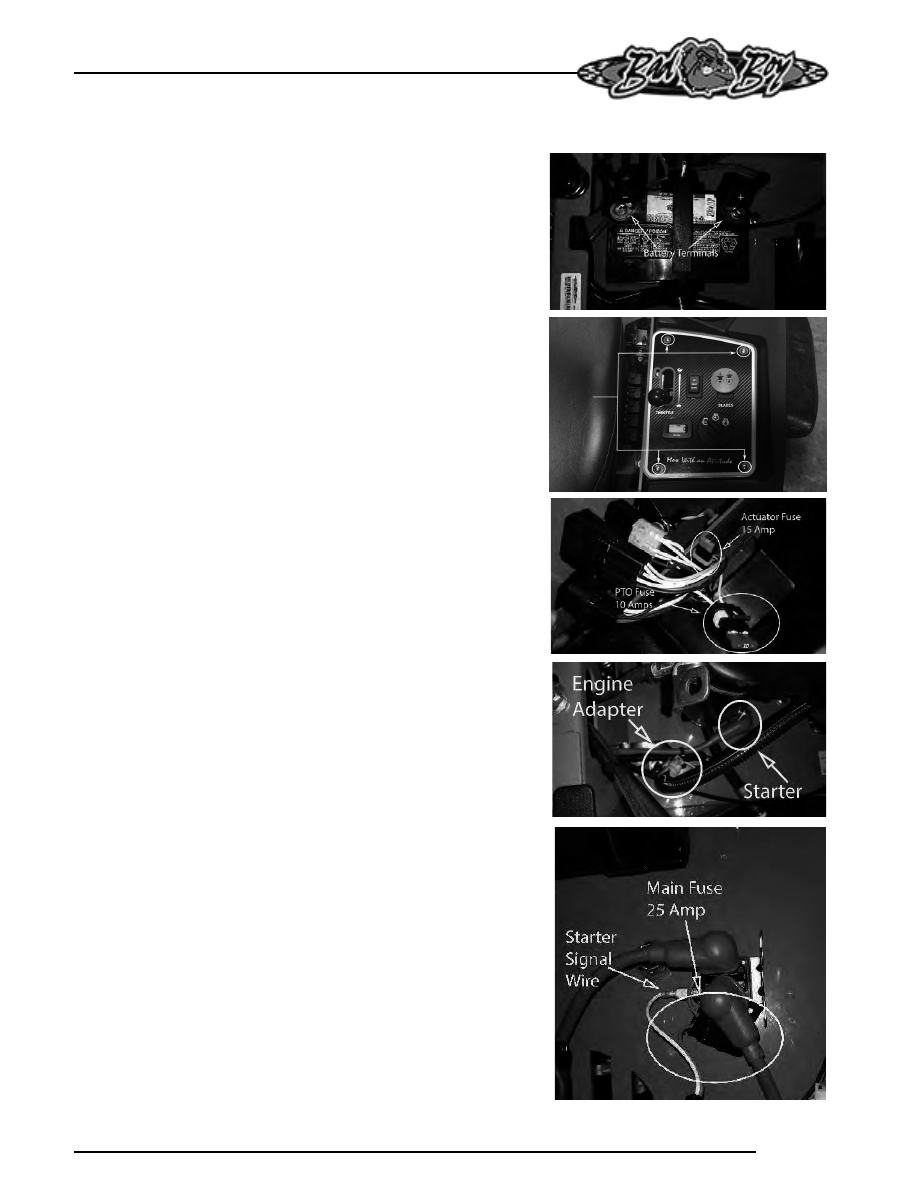

This mower is equipped with three protective fuses: a 25
amp main fuse (pictured to the right), a 10 amp clutch fuse
(blade engagement) and a 15 amp linear actuator fuse
(deck lift). The main fuse is located on



the left side of the unit; by the starter solenoid. The clutch
fuse is located just underneath the control panel along
with the linear actuator fuse. You will need to remove the
four screws that hold the control panel to the tank using
a 3mm or a 1/8” hex wrench.

A blown fuse usually indicates a problem within the
electrical system or an electrical component. Ensure the
battery terminals are tightly fastened. Never replace a
fuse with one of a higher amperage rating or
‘bypass’ a fuse in any way. Doing so creates

a significant fire hazard and can cause severe damage to
the mowers electrical components. If a fuse is repeatedly
blowing, contact your Bad Boy dealer.



On most models, the red wire coming out of the engine is
the  charging  wire  from  the alternator. Check  for  13.6  -
14.2 volts dc at this wire with engine at full throttle.



If you are having issues starting your mower ensure the
signal wire is connected to your starter solenoid.

Use a

3mm

Wrench

to

Remove

4 Screws

PAGE 34

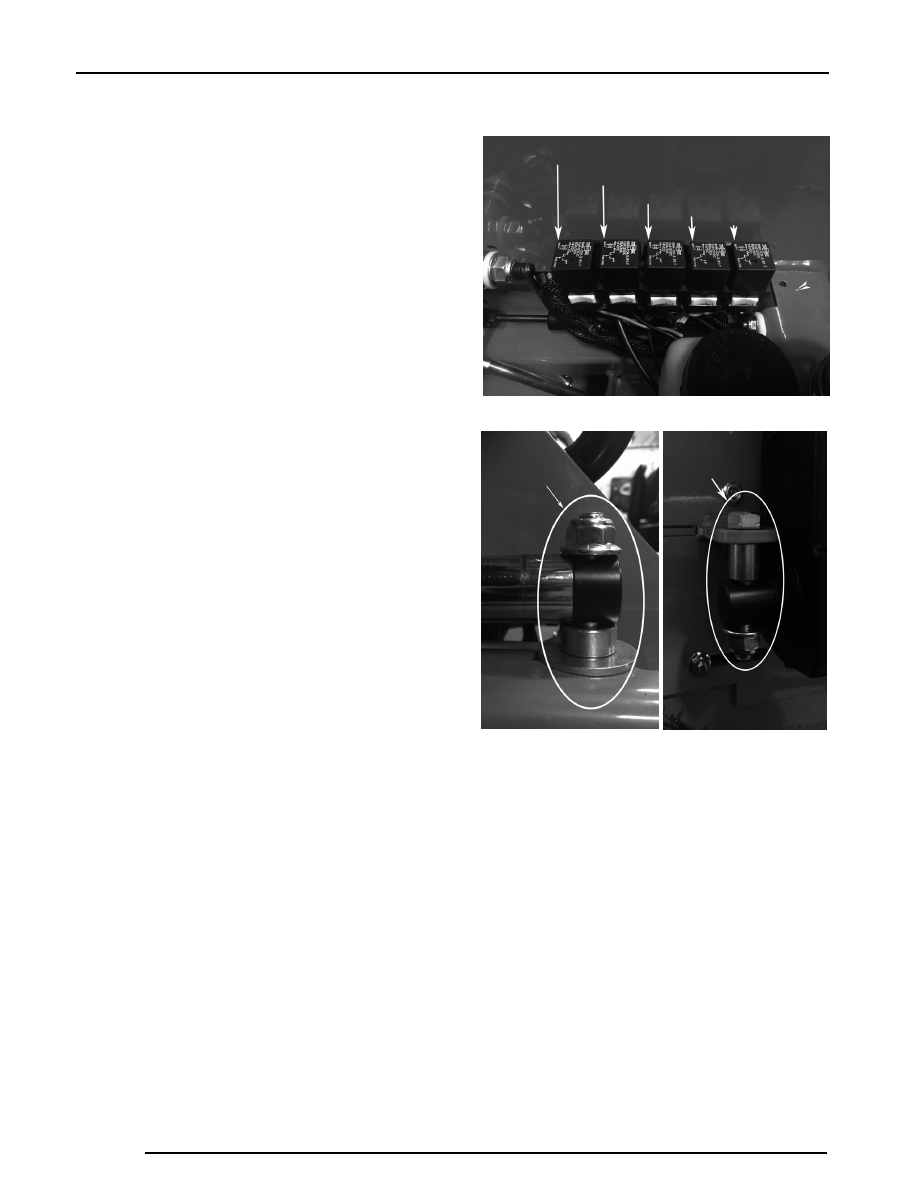

Check the condition and connection of the relays
located under the control panel. Ensure that they are
clean and connected. Make sure that wire terminal
ends have not been pushed out of the relay block.



The linear actuator is the mechanism that raises and lowers
the deck. If it ever starts to make noise when raising and
lowering the deck you might find it necessary to tighten the
nuts and bolts on the front and rear of the actuator. Be
careful not to overtighten these as you can damage the
actuator. Also if your actuator ever stops working make sure
to check the fuse under the control panel as shown on the
previous page.

Parking Brake Relay

Seat Relay

Starter Relay

Engine Charge Relay

Drive Arms Relay

Front
Actuator
Attachment

DO NOT
OVERTIGHTEN!!!

Rear
Actuator Attachment

DO NOT
OVERTIGHTEN!!!

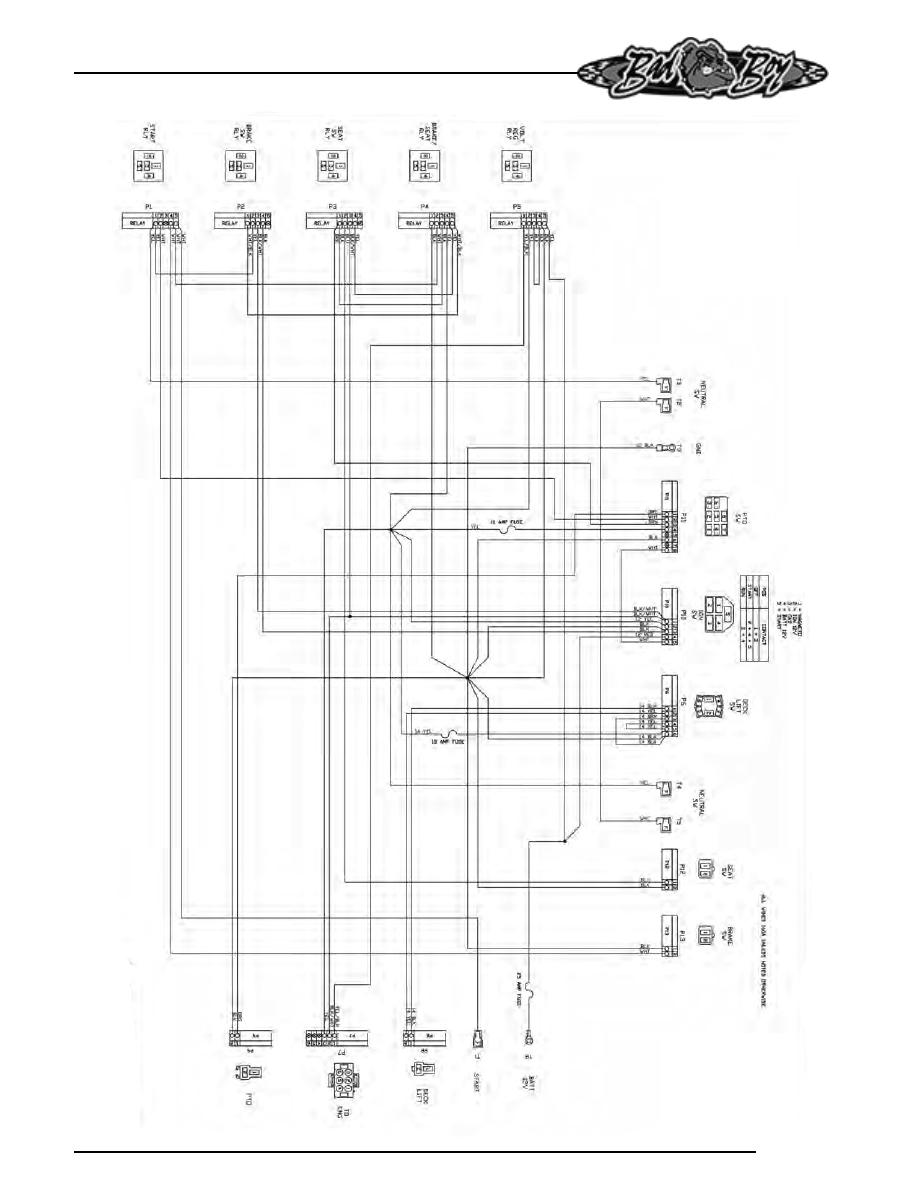

PAGE 35

PAGE 36

SECTION 5: FRAME

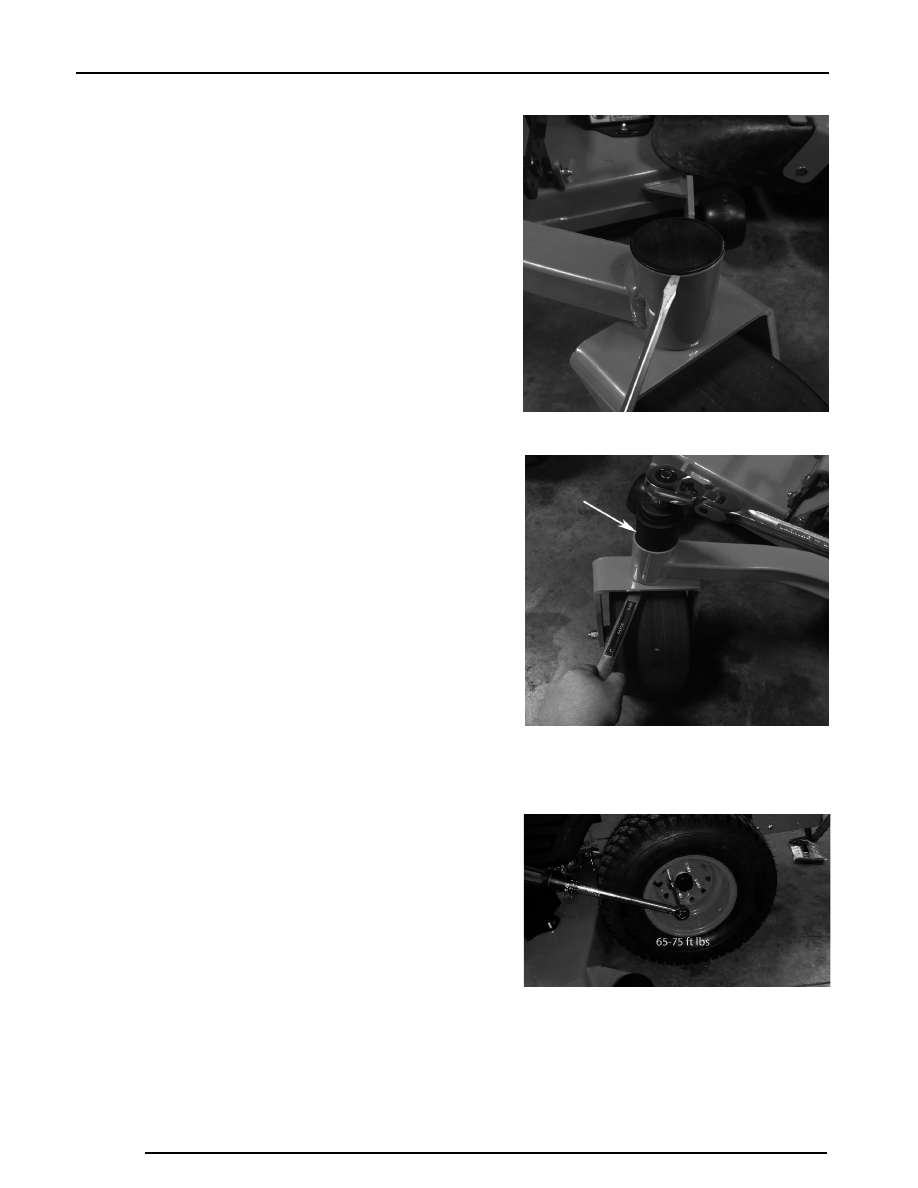

The front fork nuts require a torque of 40ft-lbs. While
applying this torque, turn the fork itself to ensure no damage
is done to the bearing. This operation is only necessary if a
repair requires it.  To access the recessed front fork nuts,
remove the dust cap by prying gently using a flat-head
screwdriver.  Once cap is removed, a 36mm socket will be
needed for top nut.  You will need to secure the bottom nut
with a 1 1/2". wrench.  Once you have torqued the nuts to 40
ft.-lbs., reapply the dust cap by gently tapping around its
edges. Do NOT hit center of cap.

Torque rear wheel lugs to 65-75 ft. lbs. Re-torque at every oil
change and check at every mowing.

40 ft lbs

40 ft-lbs
