9.5T Steering Non-drive AxleFor KAMAZ 6580 / 65801. Parts Catalog (2016)





备 件 目 录
Spare Parts List
<<<<<<<<
We only accept liabilit y for the or iginal spare par ts supplied by ourselves
>>>>>>>>
9.5T Steering Non-drive Axle
For KAMAZ 6580 / 65801
DITION
>Apr. 2016

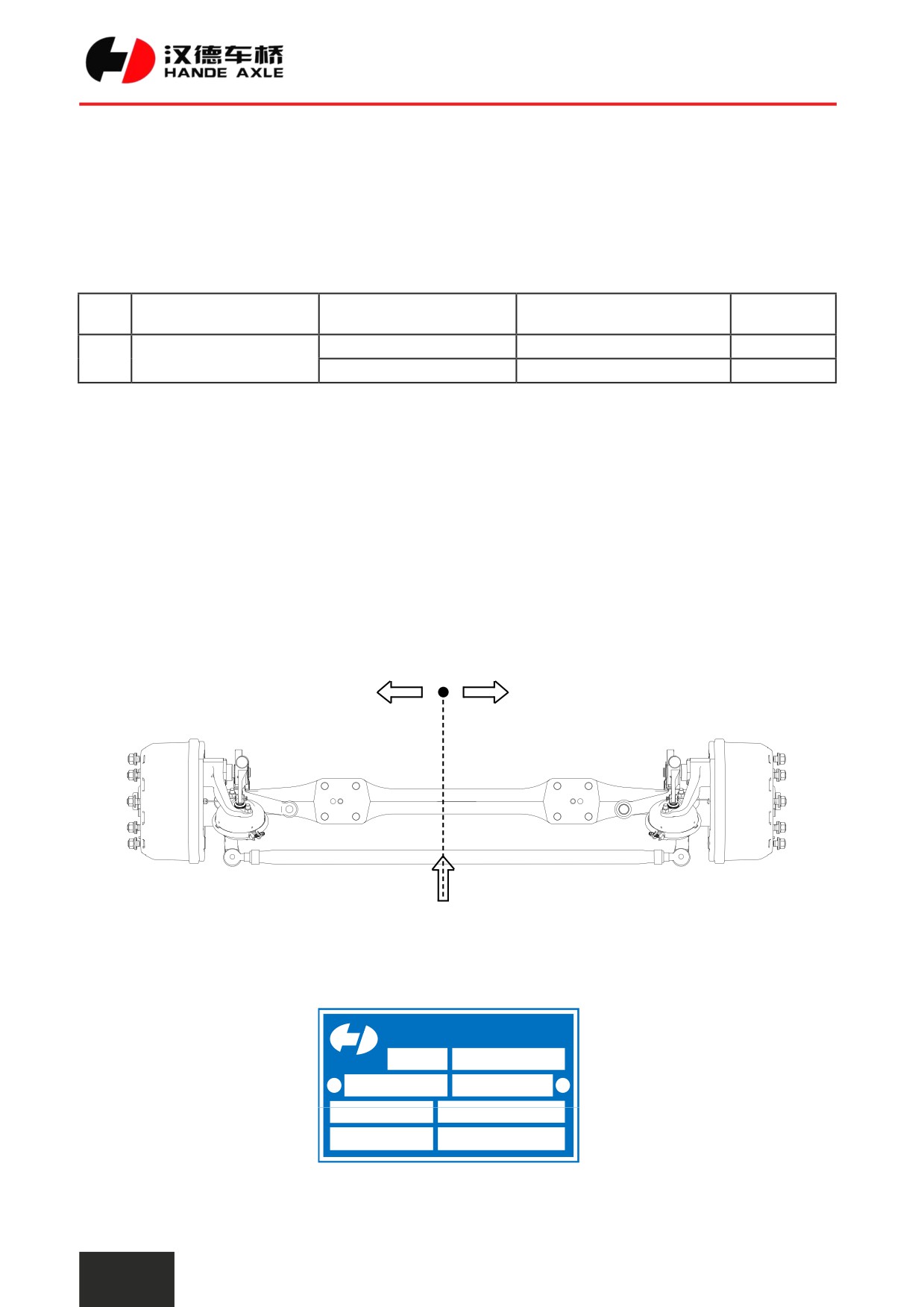

General infromation
Specifications
Axle information
This Parts list is suitable for below axle
Item
Description
Axle Identification No.
Installation Drawing No.
Rated Load
KAMAZ6580 (6×4)
HDZ95T040010045
HD90009000047
9.5T
1
KAMAZ65801 (8×4)
HDZ95T040010057
HD90009000075
9.5T
Definition of viewpoints
Left side
Right side
Vehicle direction
ID plate
SHAANXI HANDE AXLE CO.,LTD
Axle number
①
Axle load
②
Manufacturing number
③
⑤
④
1 - Axle identification No.
4 - Vehicle manufacture part No.
2 - Axle rated load
5 - Vehicle manufacture name
3 - Serial number (Manufacturing number)
2
General infromation
Instructions for ordering spare parts
Warranty
Shaanxi HanDe Axle Co.,Ltd provides a warranty only for the original delivered replacement parts.
Please be aware that the use of other than original replacement parts can have a negative effect on
the design properties of the axle, therefore making it unsafe.
Shaanxi HanDe Axle Co.,Ltd will not be liable for any damages resulting from the use of other than
original replacement parts and accessories. Please be aware that special production and delivery
specifications exist for proprietary or third-party parts and that our replacement parts comply with
the most recent standards as prescribed by law.
Ordering
When ordering original HanDe replacement parts, please provide the following information:
1. Vehicle manufacturer
2. Name or description of the spare part
3. Spare part number
4. Quantity
5. Delivery item
3

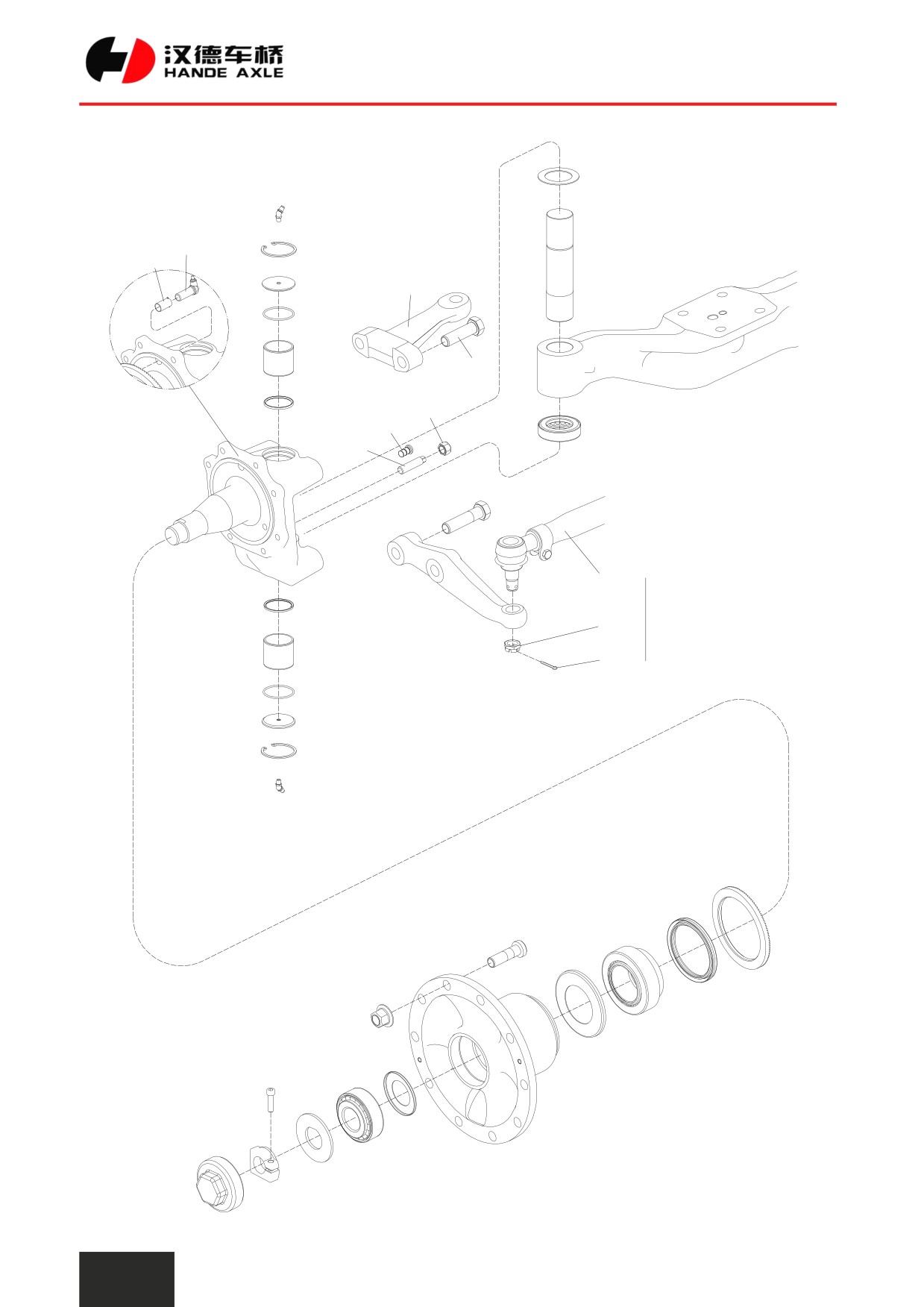

35
14
22
15
21
34
16
25
17
23
26
24
29
36
28
27
33
20
30
32-3
19
31
32
32-2
18
32-1
17
16
15
14
8
13
7
12
11
10
2
9
1
6
5
4
3
4
Item
Description
HanDe Part No.
Qty
1
Hub cover
81.44312.0009
2
2
Hexagon socket cap screws
Q218B1040TF2
2
3
Jam nut
81.92901.0066
2
4
Thrust washer
81.44215.0016
2
5
Taperd roller bearing, 32310S
HD95009410007
2
6
Oil retainer
HD90009410004
2
7
Wheel nut
190003884160
20
8
Wheel bolt
H150A2284AZF3
20
9
Hub
HD90009410196
2
10
Oil retainer
HD90009410165
2
11
Taperd roller bearing
06.32499.0190
2
12
Hub seal
HD90009410260
2
13
ABS teeth ring
81.52403.0021
2
14
Grease nipple
190003963114
4
15
Circlip for hole
Q43068
4
16
Seal disc
81.44208.0009
4
17
O-ring
DZ9100410406
4
18
Needle bearing
06.33719.0097
2
19
Kingpin seal - below
06.56279.0343
2
20
Steering knuckle
HD90009410447
2
21
ABS sensor bush (WABCO: 899 759 815 4)
DZ9100580215
2
22
ABS sensor (WABCO: 441 032 809 0)
DZ9100580214
2
23
Bush for kingpin - up
HD90009410358
2
24
Kingpin seal - up
HD90009410360
2
Steering knuckle arm - left
HD90009410247
1
25
Steering knuckle arm - right, only for HDZ95T040010045
HD90009410433
1
26
Bolt, M24×1.5×80-10.9
Q151B2480TF2
4
27
Stop bolt
HD95009410002
2
28
Plug
81.96002.0368
2
29
Nut
Q341B16
2
Bolt, M24×1.5×105-10.9, only for HDZ95T040010045
Q151B24105TF2
4
30
Bolt, M24×1.5×95-10.9, only for HDZ95T040010057
Q151B2495TF2
4
Tie rod arm, left, only for HDZ95T040010045
HD90009410173
1
Tie rod arm, right, only for HDZ95T040010045
HD90009410174
1
31
Tie rod arm, left, only for HDZ95T040010057
81.46701.0289
1
Tie rod arm, right, only for HDZ95T040010057
81.46701.0290
1
Tie rod assembly, only for HDZ95T040010045
DZ90009436000
1
32
Tie rod assembly, only for HDZ95T040010057
DZ9100430090
1
32-1
Cotter pin
/
2
32-2
Nut
/
2
32-3
Tie rod
/
1
5
35
14
22
15
21
34
16
25
17
23
26
24
29
36
28
27
33
20
30
32-3
19
31
32
32-2
18
32-1
17
16
15
14
8
13
7
12
11
10
2
9
1
6
5
4
3
6
Item
Description
HanDe Part No.
Qty
33
Tapered roller thrust bearing
DZ9003326025
2
34
Kingpin
HD90009410357
2
Adjusting washer, thickness 1.80mm
81.90713.0678-1.80
Adjusting washer, thickness 1.90mm
81.90713.0678-1.90
Adjusting washer, thickness 2.00mm
81.90713.0678-2.00
Adjusting washer, thickness 2.10mm
81.90713.0678-2.10
Adjusting washer, thickness 2.15mm
81.90713.0678-2.15
Adjusting washer, thickness 2.20mm
81.90713.0678-2.20
35
2
Adjusting washer, thickness 2.25mm
81.90713.0678-2.25
Adjusting washer, thickness 2.30mm
81.90713.0678-2.30
Adjusting washer, thickness 2.40mm
81.90713.0678-2.40
Adjusting washer, thickness 2.50mm
81.90713.0678-2.50
Adjusting washer, thickness 2.60mm
81.90713.0678-2.60
Adjusting washer, thickness 2.70mm
81.90713.0678-2.70
36
Beam
HD90009410391
1
7

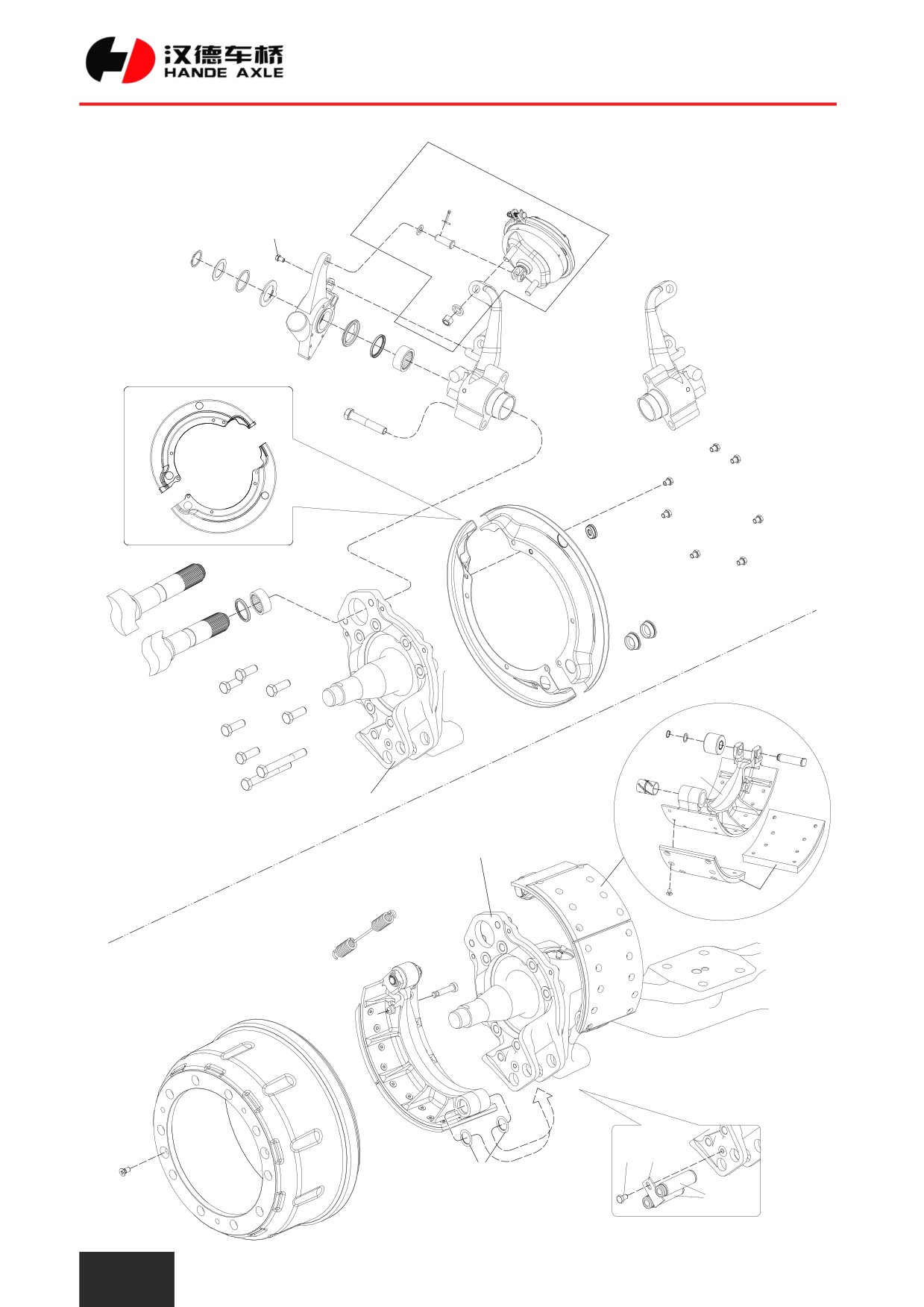

26
22
27
32
25
36
35
23
34
24
33
20b
30
20a
29
28
15
16a
11
19
16b
17
15
14
13b
18
13a
12
3-2
3-3
3-1
3-4
3-5
11
6
3-6
6
3
3-8
3-7
4
5
3
2
1
10
9
7
8
8
Item
Description
HanDe Part No.
Qty
1
Sunk screw
Q2541020
4
2
Brake drum
81.50110.0232
2
3
Brake shoe lining assembly( width 180mm)
HD90009440080
4
3-1
Circlip for shaft
Q43117
4
3-2
Washer DIN988-S17*24
06.15113.2615
4
3-3
Roller assembly
81.50213.6006
4
3-4
Pin for brake shoe roller
81.50211.0030
4
3-5
Brake shoe
/
4
3-6
Bush for brake shoe pin
DZ95009440001
4
3-7
Rivet
81.92201.0109
64
3-8
Brake lining ( width 180mm)
81.50221.0849
8
4
Return spring
DZ9100440039
2
5
Return spring pin
DZ9100440043
4
6
Backing plate
DZ9100440032
2
7
O-ring
81.96501.0831
8
8
Brake shoe pin
81.50212.0032
4
9
Lock plate for brake shoe pin
81.90801.0225
2
10
Capscrew, M10×1.5×18-10.9
Q184A1018TF2
2
11
Bolt, M16×1.5×130-10.9
Q151B16130TF2
8
12
Bolt, M16×1.5×45-10.9
Q151B1645TF2
12
13a
S-cam shaft-left
81.50301.0221
1
13b
S-cam shaft-right
81.50301.0222
1
14
Seal
81.96502.6040
2
15
Needle bearing
81.93404.6005
4
16a
Dust cover
HD90009440078
2
16b
Dust cover
HD90009440077
2
17
Plug, inspection
188000340037
4
18
Plug, blanking
81.96002.0098
4
19
Bolt, M10×12-8.8
Q150B1012
14
20a
Brake chamber and S-cam shaft seat
HD90009440075
1
20b
Brake chamber and S-cam shaft seat
HD90009440076
1
Brake chamber (30” ,joint M22×1.5)-left
HD90009360039
1
22
Brake chamber (30” ,joint M22×1.5)-right
HD90009360040
1
9
26
22
27
32
25
36
35
23
34
24
33
20b
30
20a
29
28
15
16a
11
19
16b
17
15
14
13b
18
13a
12
3-2
3-3
3-1
3-4
3-5
11
6
3-6
6
3
3-8
3-7
4
5
3
2
1
10
9
7
8
10
Item
Description
HanDe Part No.
Qty
23
Spring washer
Q40516
2
24
Nut M16×1.5
Q341B16
2
25
Pin for brake chambe
Q5101440
2
26
Cotter pin
Q5004040
2
27
Washer
Q40114
2
28
Seal
81.96502.6039
2
29
Spacer
81.91710.0163
2
30
Automatic slack adjuster ( arm length L = 165mm)
HD90009440072
2
32
Bolt, M8×12-8.8
Q150B0812
2
33
Indicator plate
81.90711.0714
2
Adjusting washer, thickness 0.5mm
81.90711.0704-0.5
on-
35
Adjusting washer, thickness 1.5mm
81.90711.0704-1.5
demand
34
Washer
81.90701.0769
2
36
Circlip for shaft
Q43134
2
11
Note
Indices/Rev
Date
Description
A
Oct. 2015
New Release
Add item ”specification”
change the brake lining width from 160mm to 180mm.
B
Apr. 2016
change the length of ASA from 145mm to 165mm.
change the steering angle of HDZ95T040010045.
change the joint of brake chamber from M16×1.5 to M22×1.5























///////////////////////////////////////
